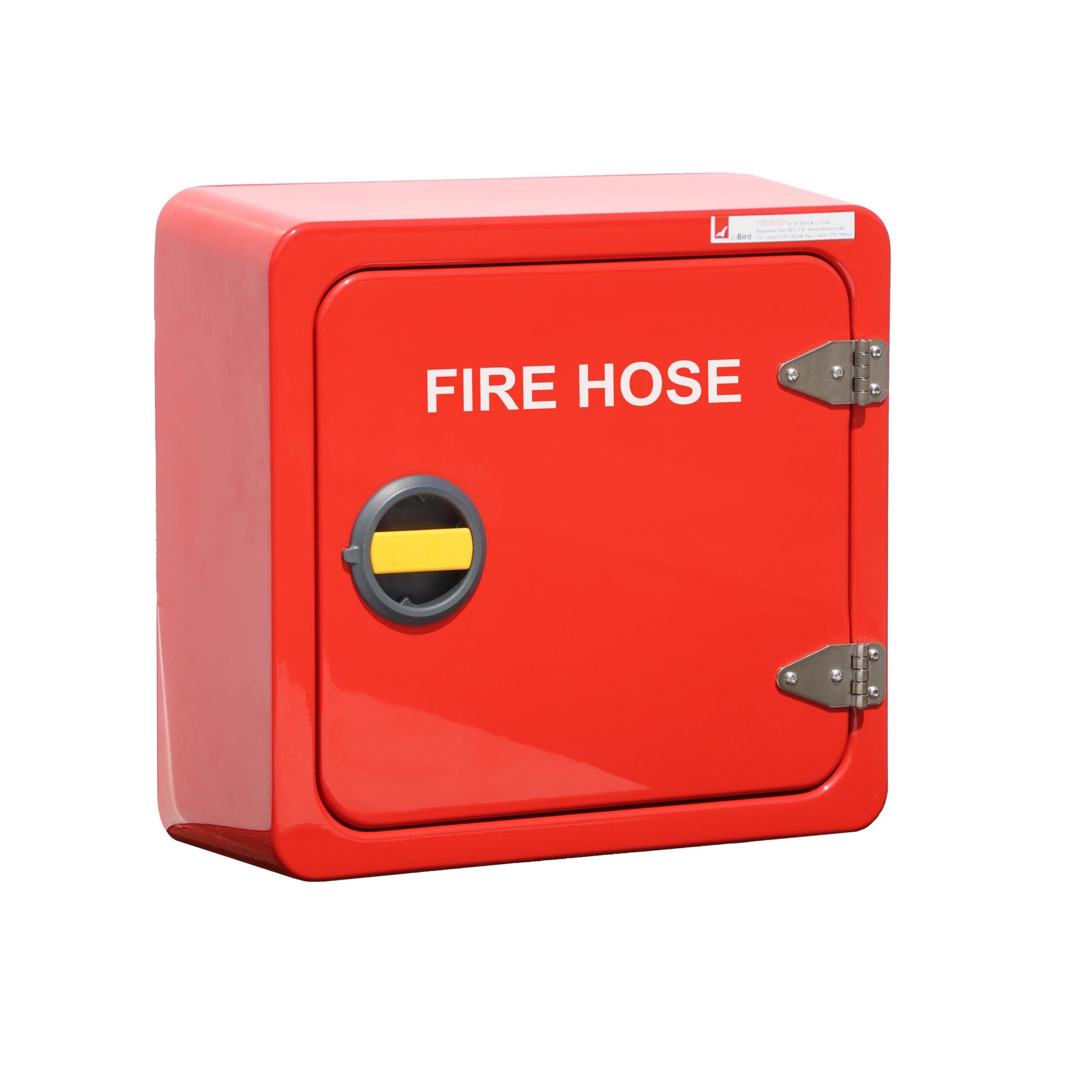

10-20m Fire hose cabinet (JB80)
Dimensions : Height x width x depth: 524 x 561 x 198 mm (20.63 x 22.09 x 7.8″)
Aperture: 374W x 414W mm (14.72 x 16.3″)
Internal depth: 162 mm (6.38″)
Weight : 6.1Kg (13.42Lb)
The JB80 fire hose cabinet can stores a fire hose of between 10m and up to 20m (depending on type) and a marine nozzle for use on commercial vessels. They are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The design features a 10mm thick door for great rigidity and excellent weather sealing helped by a very effective EPDM seal around the door aperture. The 316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers.
The door can be specified with left or right hinging and features a graphite Nylon rotary door handle (with Biomaster technology) which can be fitted with an anti-tamper seal. It guarantees fast access in an emergency even when wearing gloves.
Please note: For a 20M rubber covered hose and pistol grip nozzle we recommend using the larger JB85.

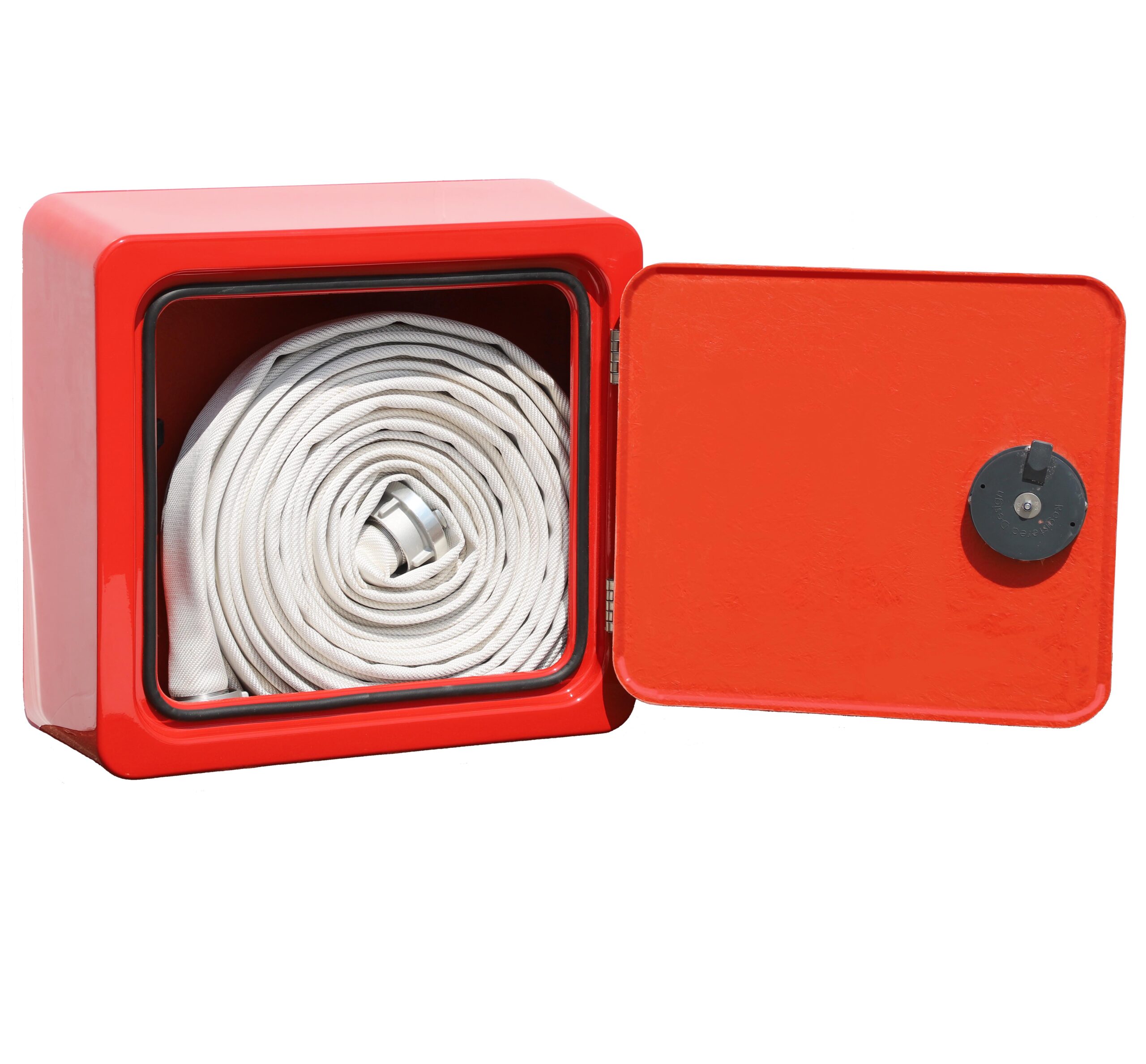

For the storage of 1 x 10-20M fire hose and nozzle
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy and shipping companies due to it's durability
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon/316 Stainless steel with Biomaster (R) technology and anti-tamper seal facility
Seal: EPDM
For the storage of 1 x 10-20M fire hose and nozzle
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy and shipping companies due to it's durability
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon/316 Stainless steel with Biomaster (R) technology and anti-tamper seal facility
Seal: EPDM
Additional information
| Dimensions | 524 x 561 x 198 mm (20.63 x 22.09 x 7.8") |
|---|---|
| Aperture | 374 x 414 mm (14.72 x 16.3") |
| Manufacturer | UK |
