Fire Extinguisher Cabinets
Jo Bird offer a comprehensive list of fire extinguisher cabinets for your portable and wheeled fire extinguishers. Anything from a single 2Kg CO2 extinguisher to a cabinet storing two large 65 litre wheeled extinguishers or even a 130 litre foam trolley are available. Not all types are shown to avoid confusion and may only be offered as a customised cabinet during a quote.
Options for cold environments include heating and insulation for safe and explosion risk areas. For hotter climes, vents with mesh is a popular option. Those shown in with an “NHS” suffix are designed for use in secure hospitals rather than offshore where security is more important than protection from the elements.
All will provide many years of reliable service and ensure the equipment remains in perfect working order. Please note: The JB82/JB84/JB28R and JB02R are only manufactured in the UK. The Dubai factory can offer alternatives to these models so please see the cabinets with a “Dubai” suffix to find these.
| SKU | Image | Name | Dimensions (HxWxD) | Aperture | Volume | hf:tax:pa_manufacturer |
|---|---|---|---|---|---|---|

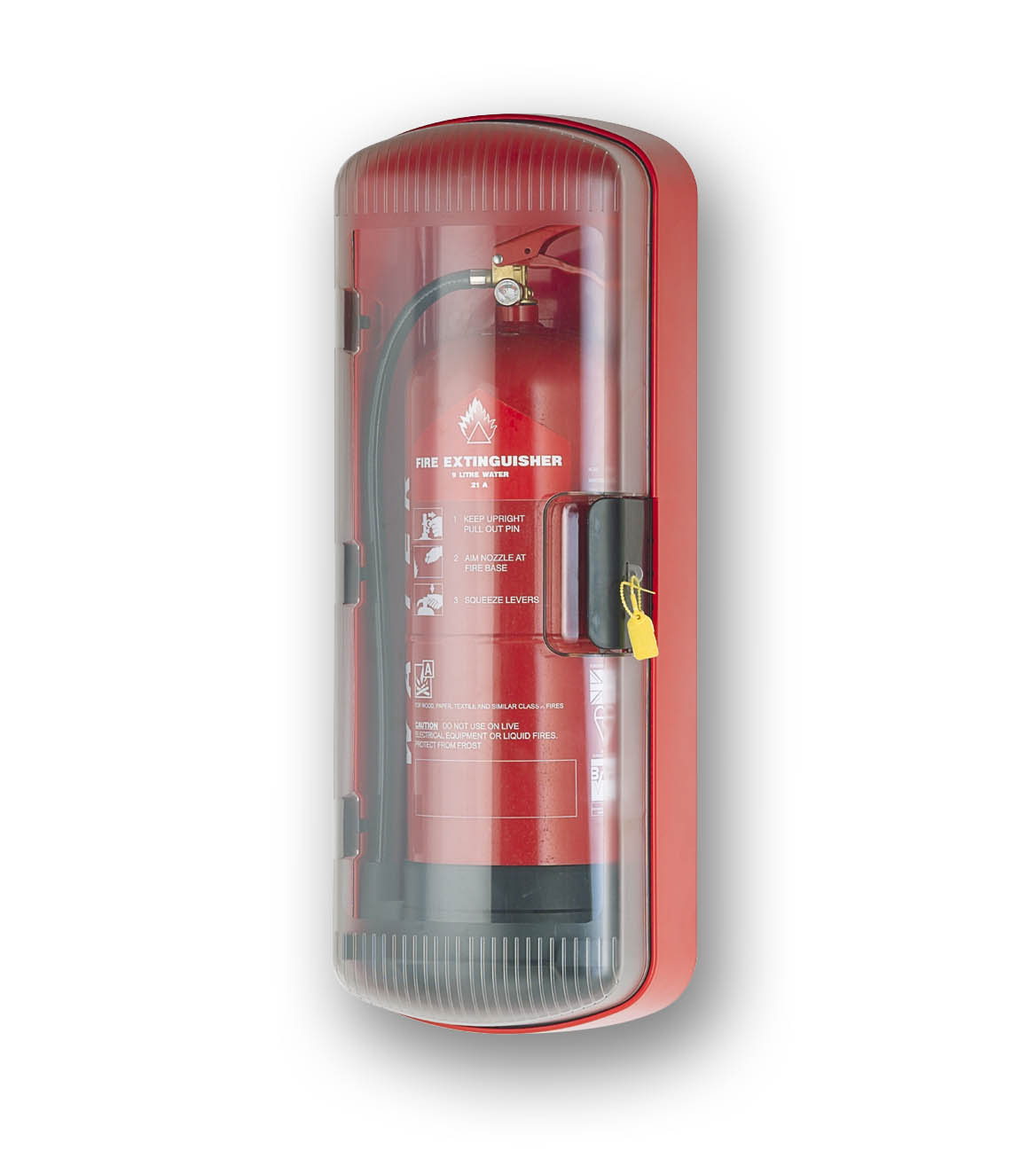

| SOS101 |  | 1 x 6-9 Kg Fire extinguisher Cabinet (SOS101) | 762 x 282 x 211 mm (30 x 11.1 x 8.31") | 654 x 207 mm (25.75 x 8.15") | ||

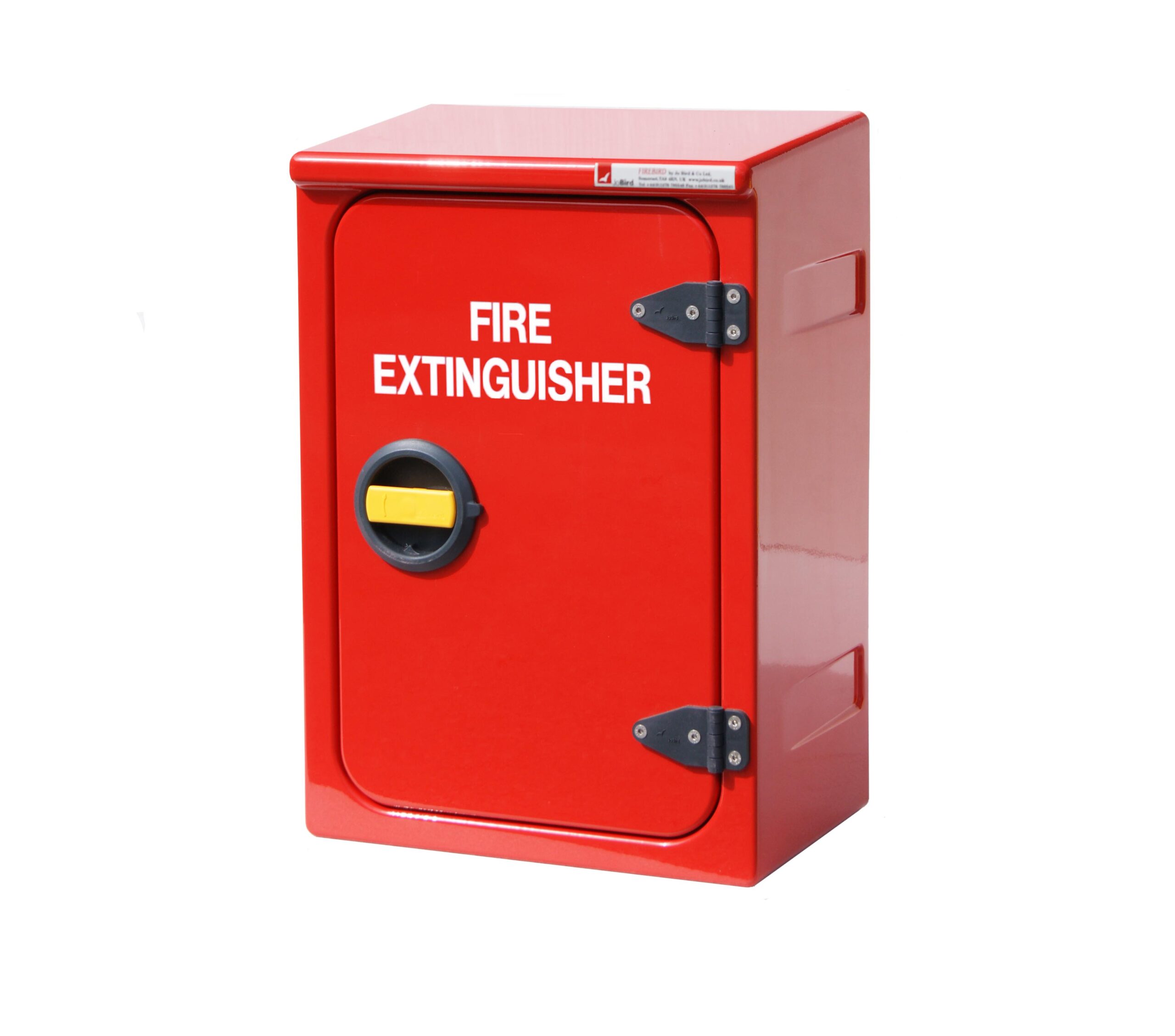

| JB81 |  | 2Kg CO2 Fire extinguisher cabinet (JB81) | 640 x 447 x 283 mm (25.2 x 17.6 x 11.14") | 491 x 302 mm (19.33 x 11.89") | uk | |
| JB82-2023 |  | 6-12 litre Fire extinguisher Cabinet (JB82) New | 799 x 373 x 263 mm (31.46 x 14.69 x 10.35") | 639 x 217 mm (25.16 x 8.54") | uk | |
| JB82S-2023 | | 6-12 litre Fire extinguisher Cabinet (JB82S) New | 799 x 373 x 263 mm (31.46 x 14.69 x 10.35") | 639 x 217 mm (25.16 x 8.54") | uk | |

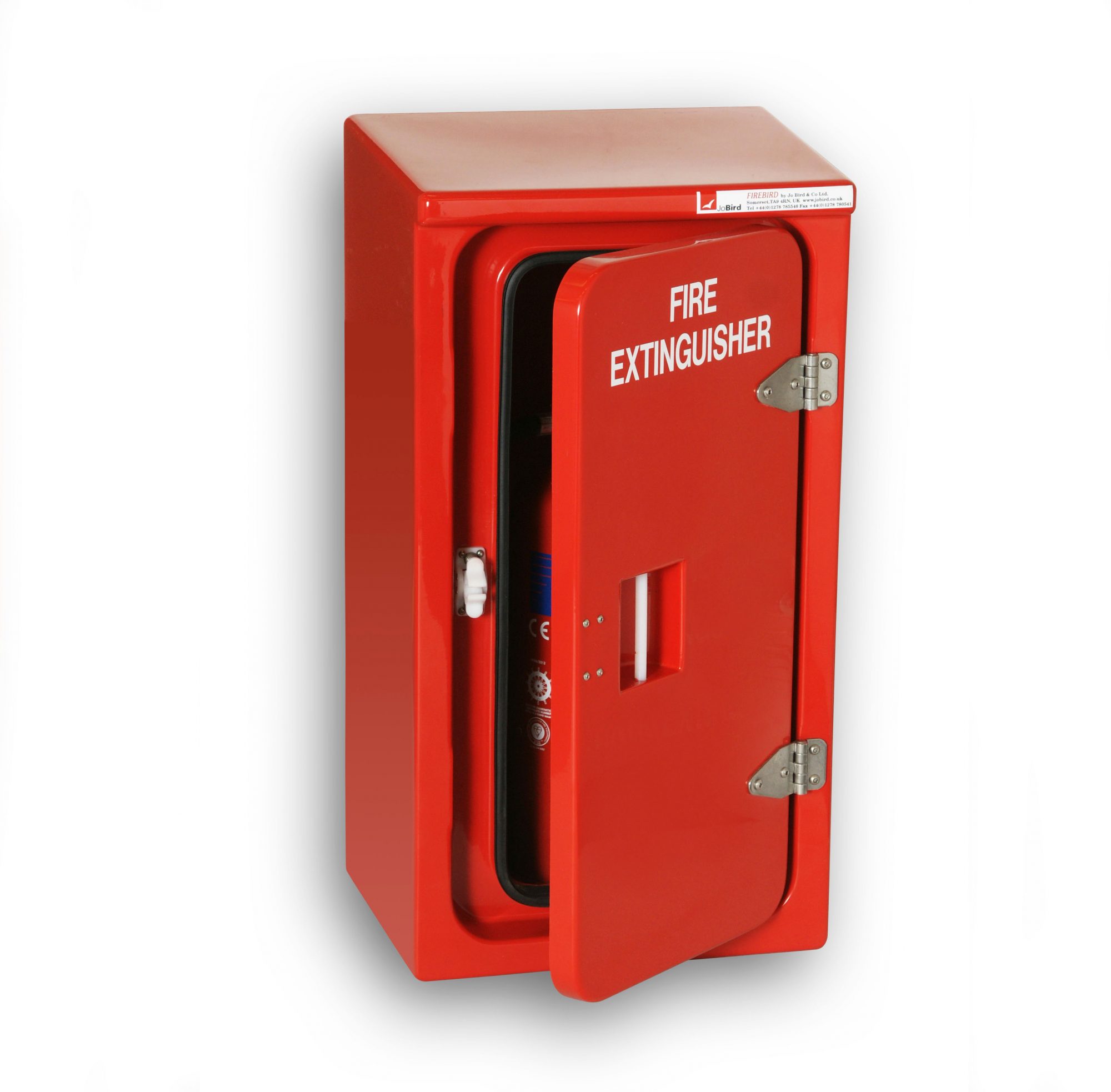

| JB66 |  | 1 x 6-9 Kg/litre Fire extinguisher Cabinet (JB66) | 773 x 426 x 314 mm (30.43 x 16.77 x 12.36") | 524H x 224W mm (20.63 x 8.82") | dubai | |

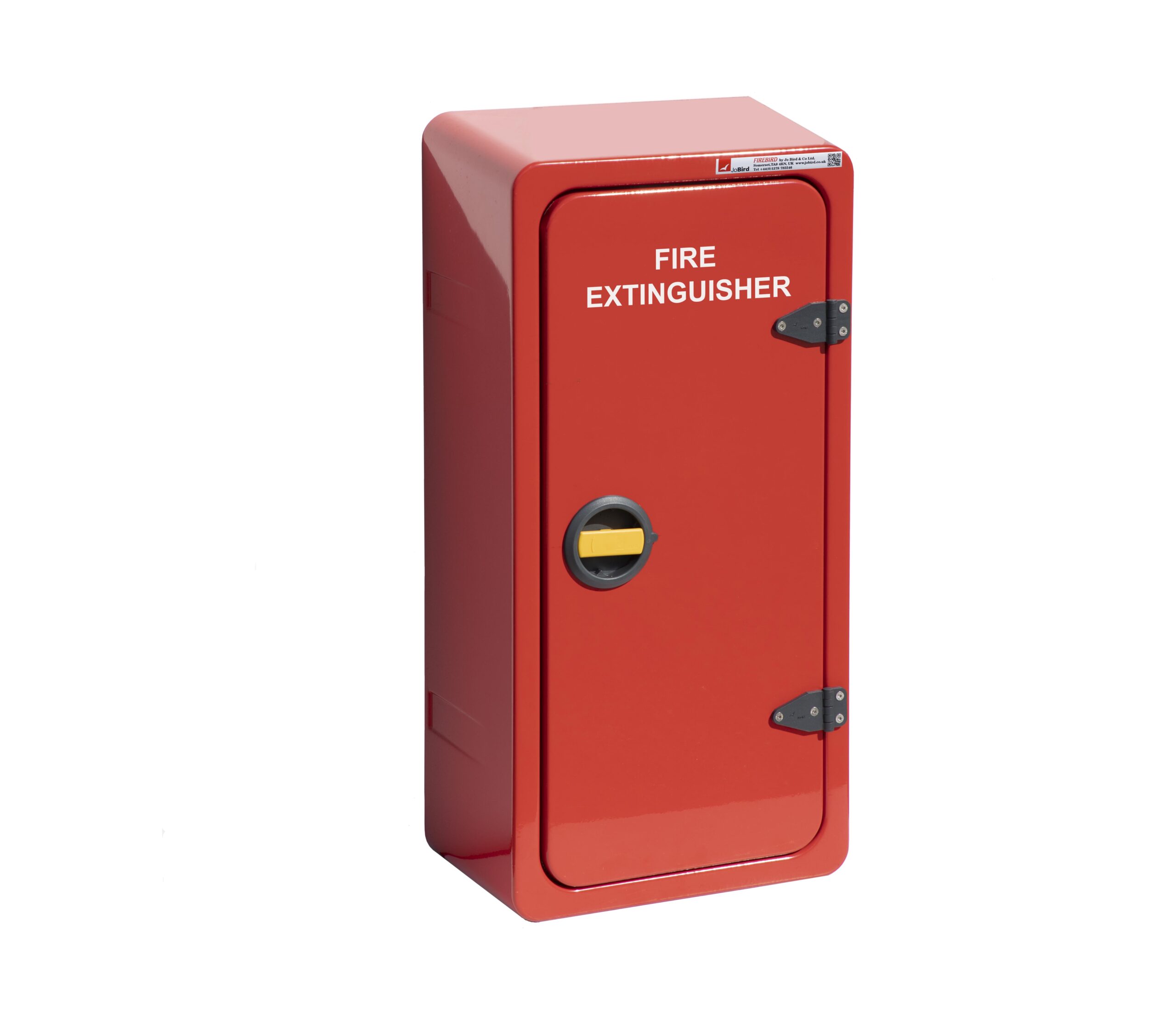

| JB84 |  | 5kg CO2 Fire extinguisher Cabinet (JB84) | 948 x 472 x 271 mm (37.32 x 18.58 x 8.54") | 811 x 316 mm (31.93 x 12.44") | uk | |
| JB84S |  | 5Kg CO2 Fire extinguisher Cabinet (JB84S) | 948 x 472 x 271 mm (37.32 x 18.58 x 8.54") | 811 x 316 mm (31.93 x 12.44") | uk | |

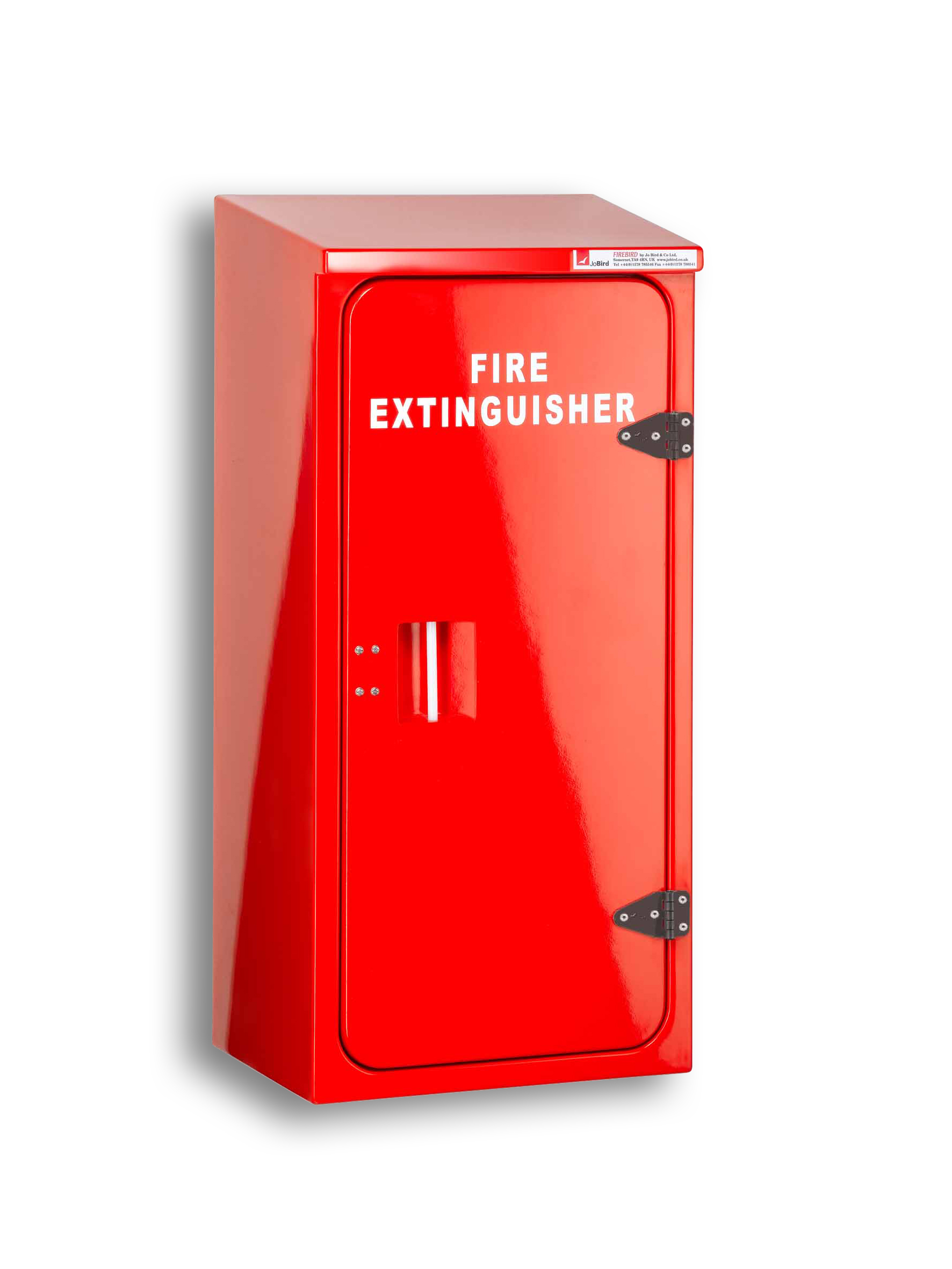

| JB01 |  | 5kg CO2 Fire extinguisher Cabinet (JB01) Dubai | 970 x 470 x 345 mm (38.19 x 18.5 x 13.58") | 800H x 312W mm (31.5" x 12.28") | dubai | |

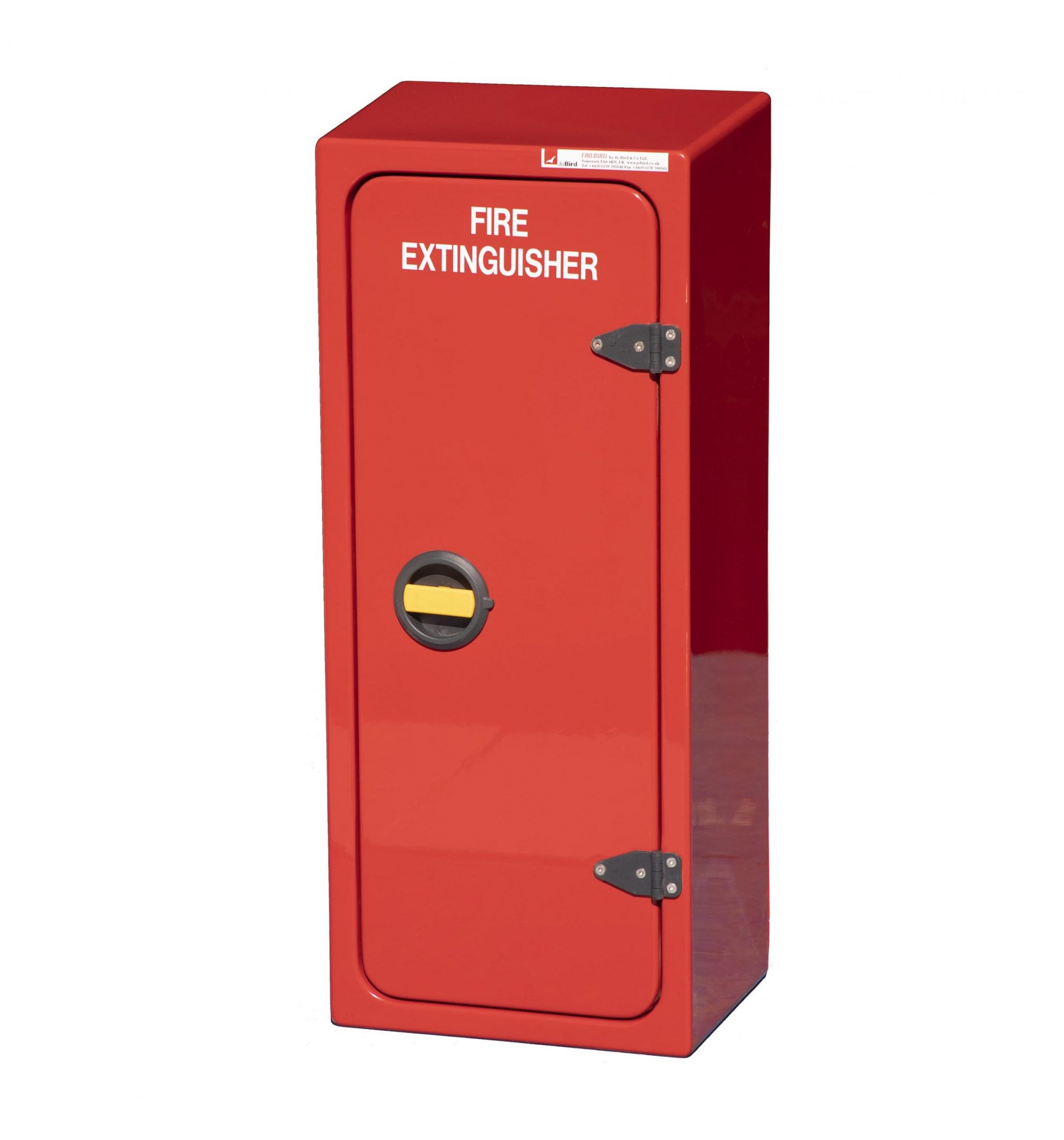

| JB28R |  | 5kg CO2 Fire extinguisher Cabinet (JB28R) | 1076 x 463 x 320 mm (42.36 x 18.23 x 12.6") | 895 x 259 mm (35.24 x 10.2") | ||

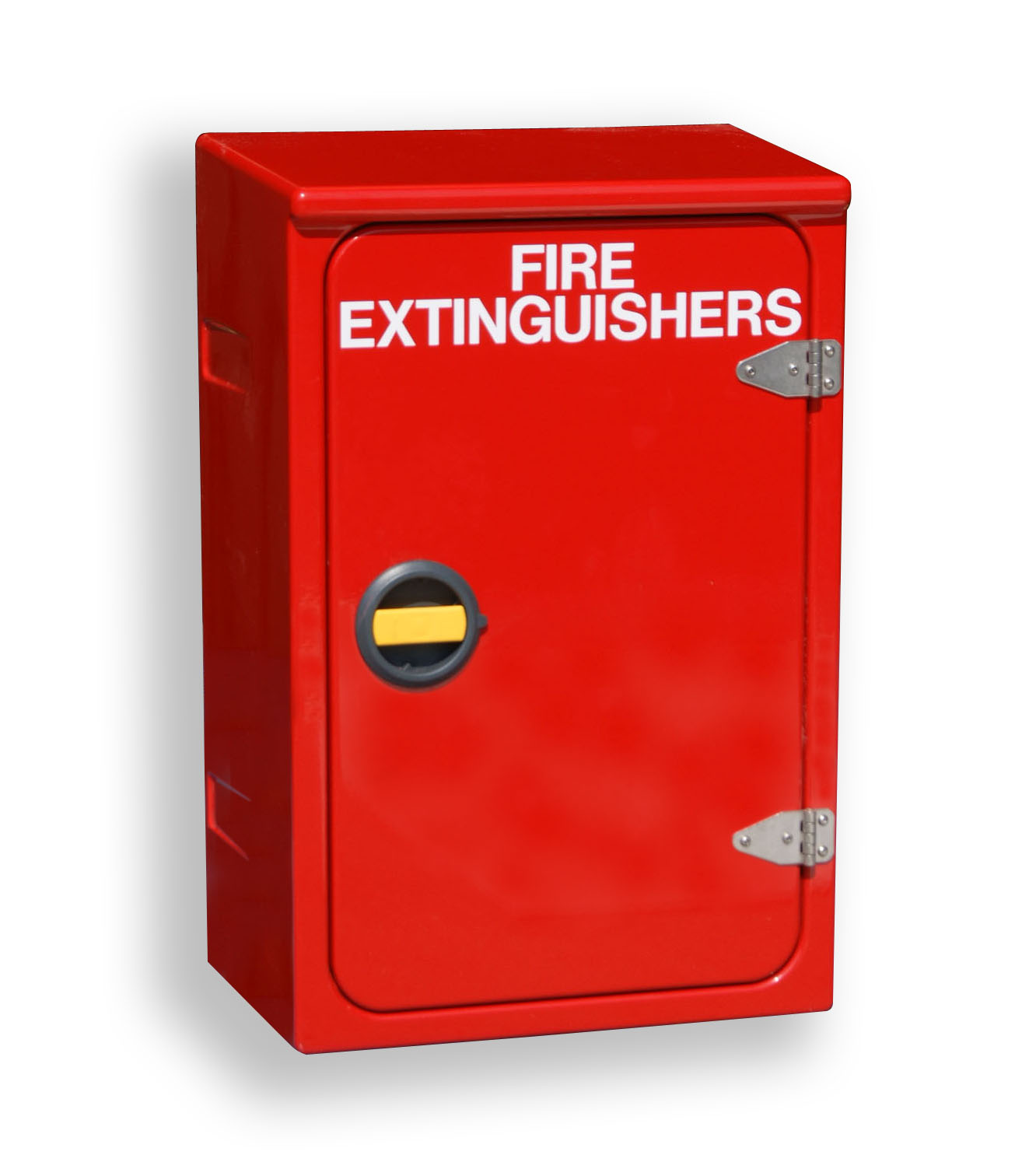

| JB83 |  | 2 x Fire extinguisher Cabinet (JB83) | 816 x 548 x 344 mm (32.13 x 21.57 x 13.54") | 650 x 391 mm (25.59 x 15.39") | uk | |

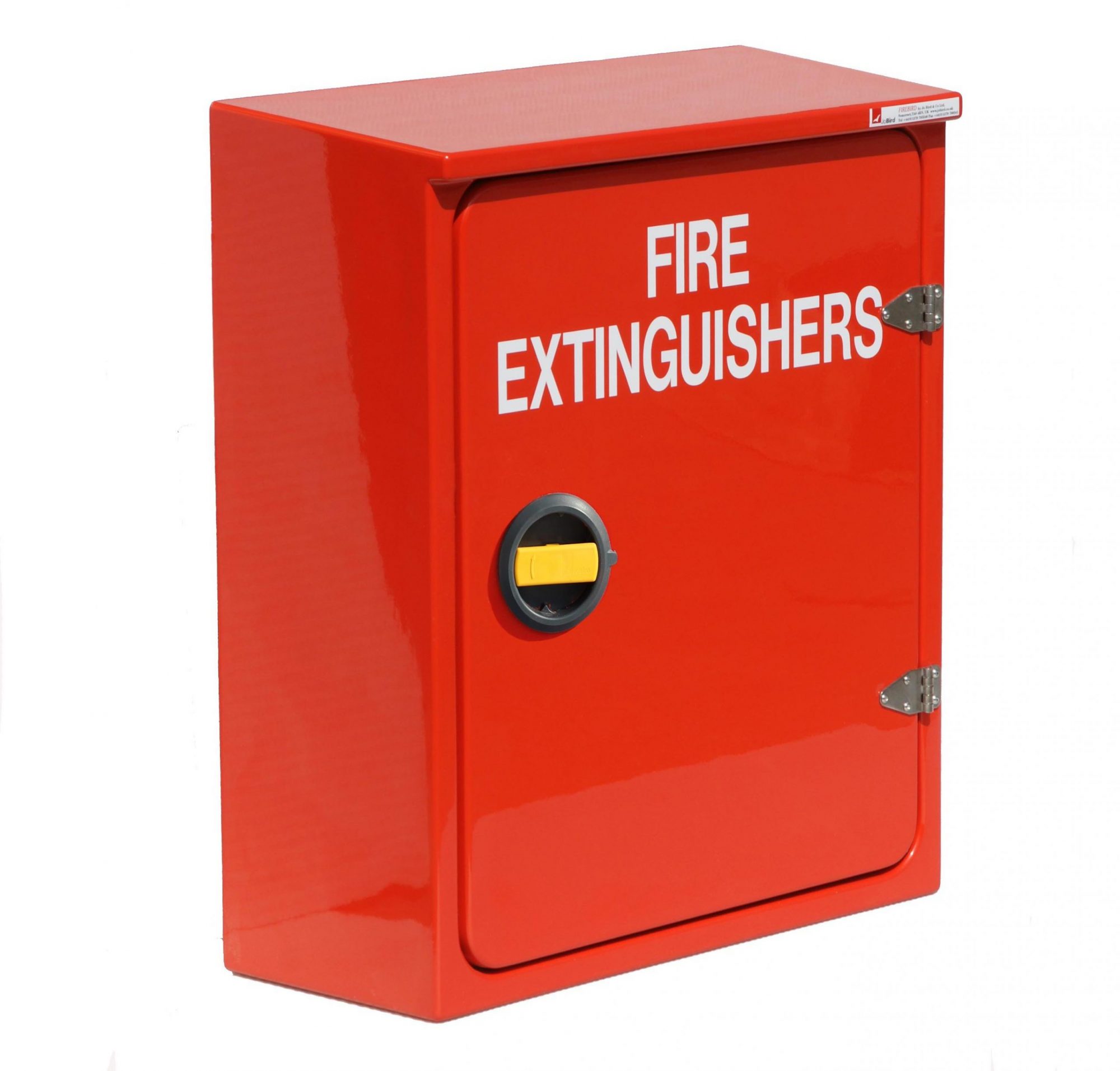

| JB02R |  | 2-3 Fire extinguisher Cabinet (JB02R) | 937 x 835 x 347 mm (36.89 x 32.87 x 13.66") | 755 x 630 mm (29.72 x 24.8") | ||
| JB02d |  | 2-3 Fire extinguisher Cabinet (JB02) Dubai | 937 x 835 x 347 mm (36.89 x 32.87 x 13.66") | 755 x 630 mm (29.72 x 24.8") | dubai | |
| JB59 |  | 2 x 5Kg CO2 Fire extinguisher Cabinet (JB59) | 1079 x 815 x 305 mm (42.48 x 32.09 x 12") | 890H x 612W mm (35.04 x 24.09") | uk | |

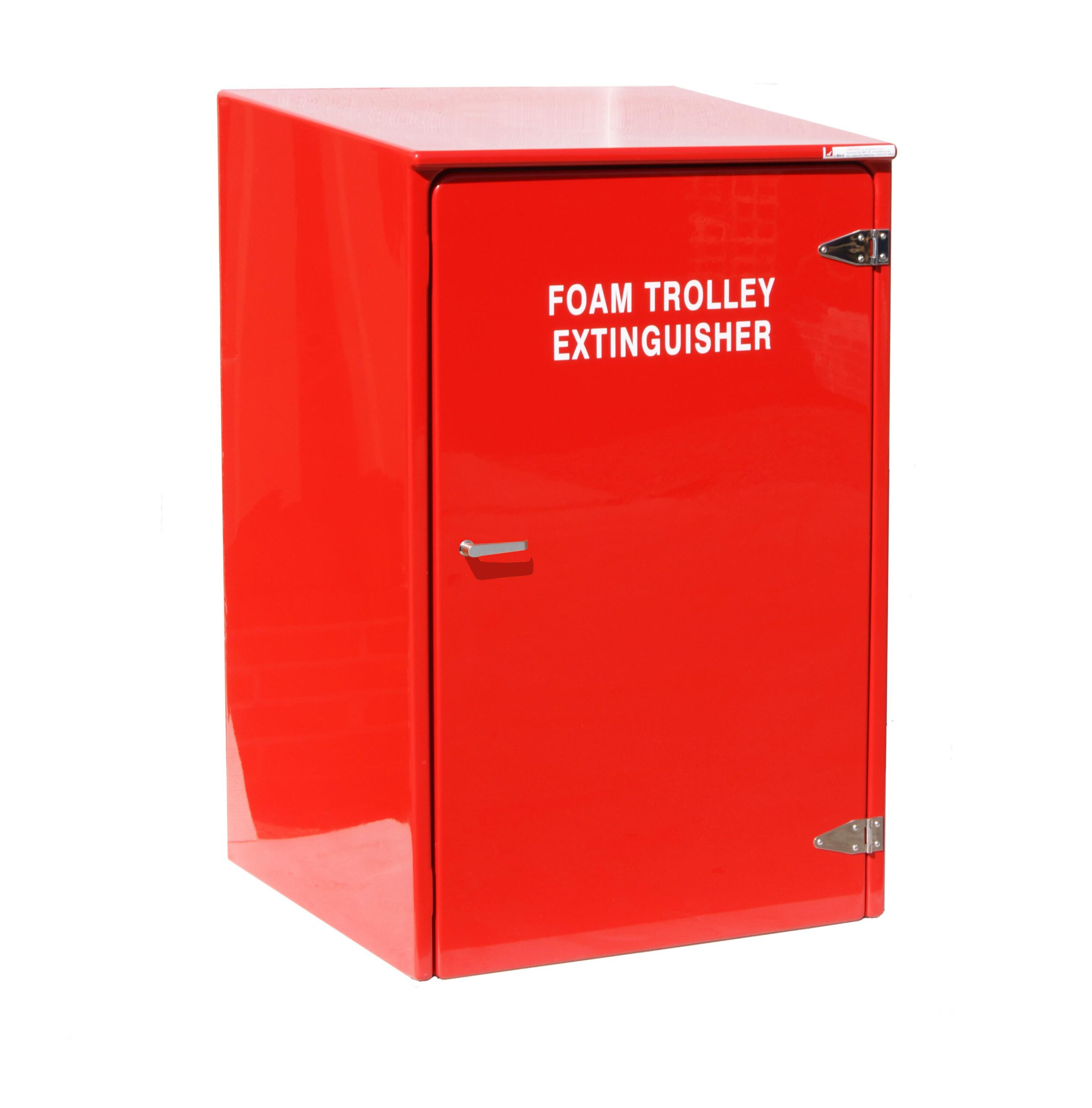

| JB65 |  | Wheeled fire extinguisher cabinet (JB65) | 1520 x 1005 x 912 mm (59.84 x 39.57 x 35.91") | 1362 x 724 mm (53.62 x 28.5") | uk | |

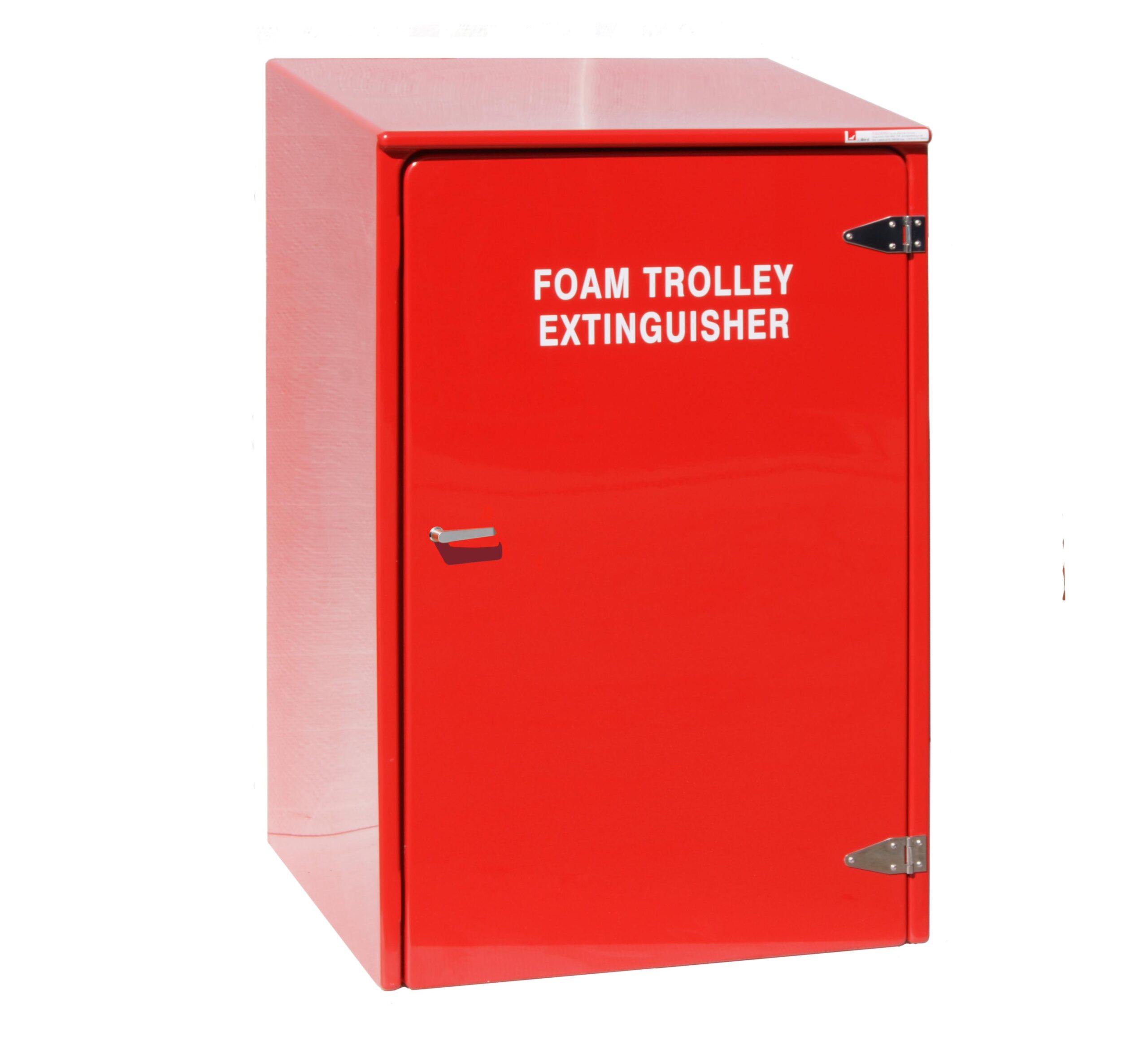

| JB65D |  | JB65 Wheeled fire extinguisher cabinet (Dubai) | 1525 x 1005 x 932 mm (60.03 x 39.57 x 36.69") | 1362 x 724 mm (53.62 x 28.5") | dubai | |

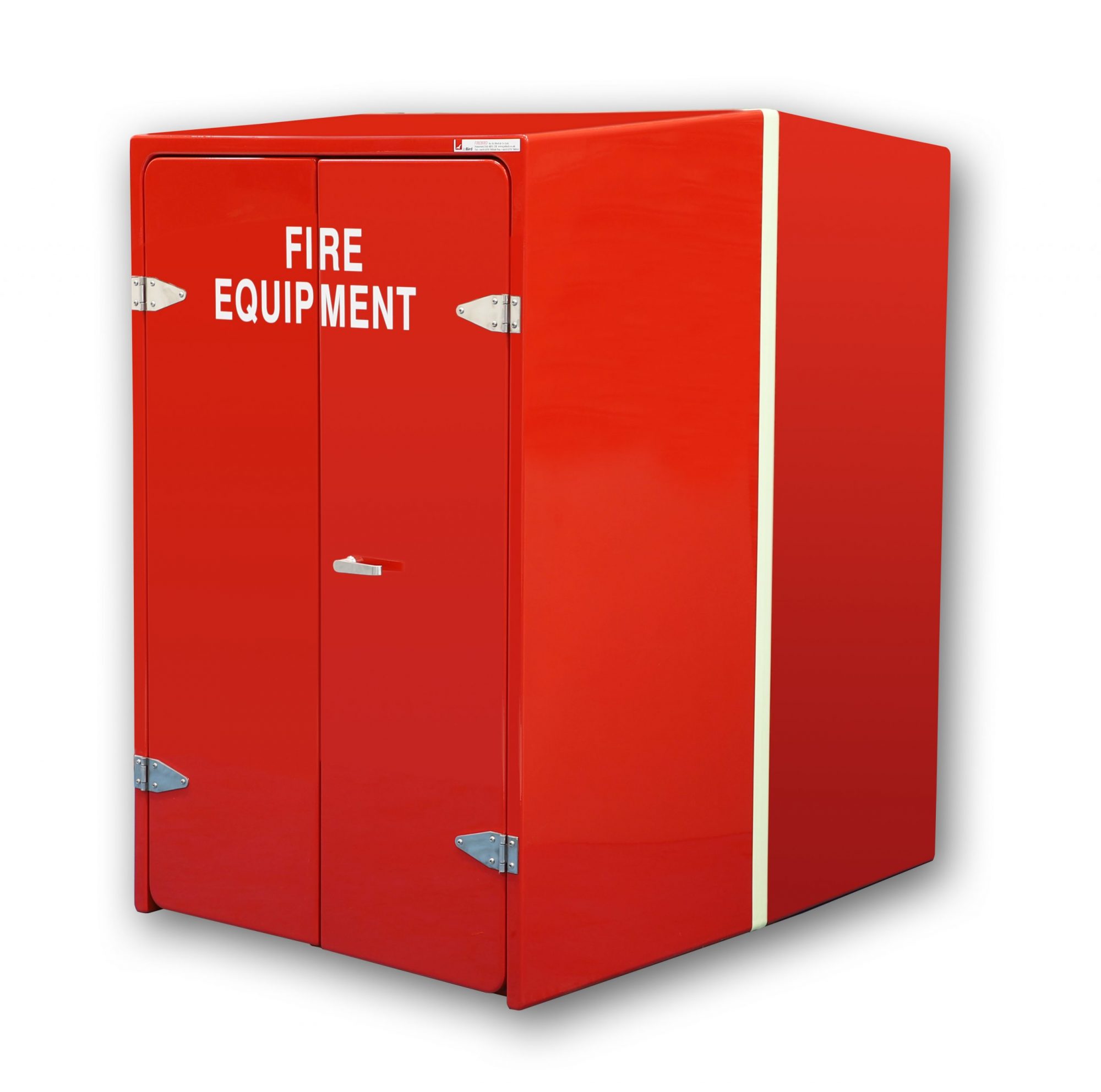

| JB68 |  | Cabinet for wheeled fire extinguishers (JB68) | 1552 x 1007 x 1350 mm (61.1 x 39.65 x 53.15") | 1400H x 811W mm (55.12 x 31.93") | uk | |

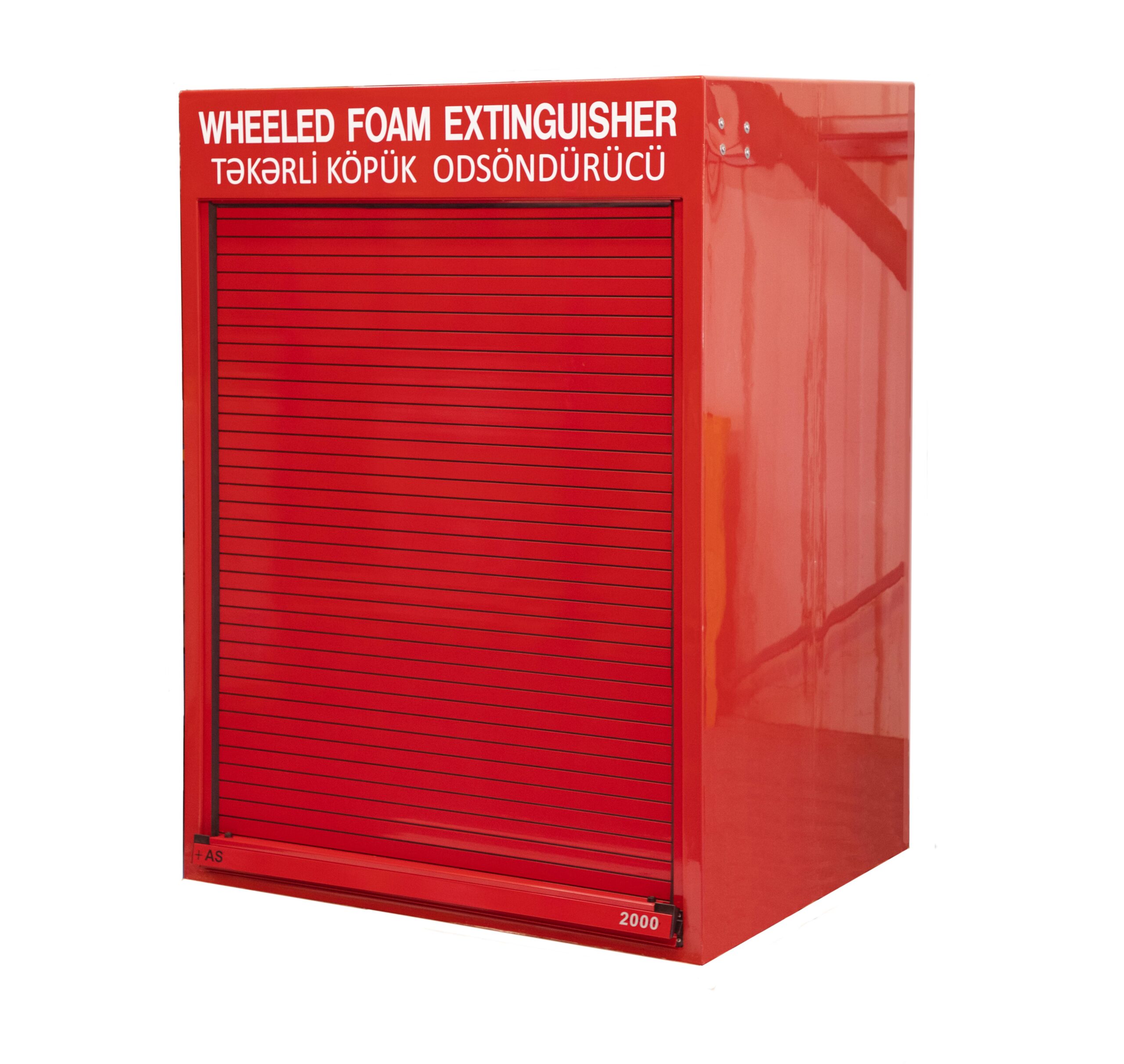

| RS300.1200 |  | Cabinet for wheeled fire extinguishers (RS300.1200) | 2050 x 1395 x 1200 mm (80.71 x 54.92 x 47.24") | 1515 x 1210 mm (59.65 x 47.63") | uk |
Get in touch
Our very experienced and helpful sales team would be delighted to assist you in selecting the most appropriate cabinet(s) to meet your needs in a relaxed and no pressure environment. If you need CAD drawings to incorporate into your designs we will be happy to assist.
