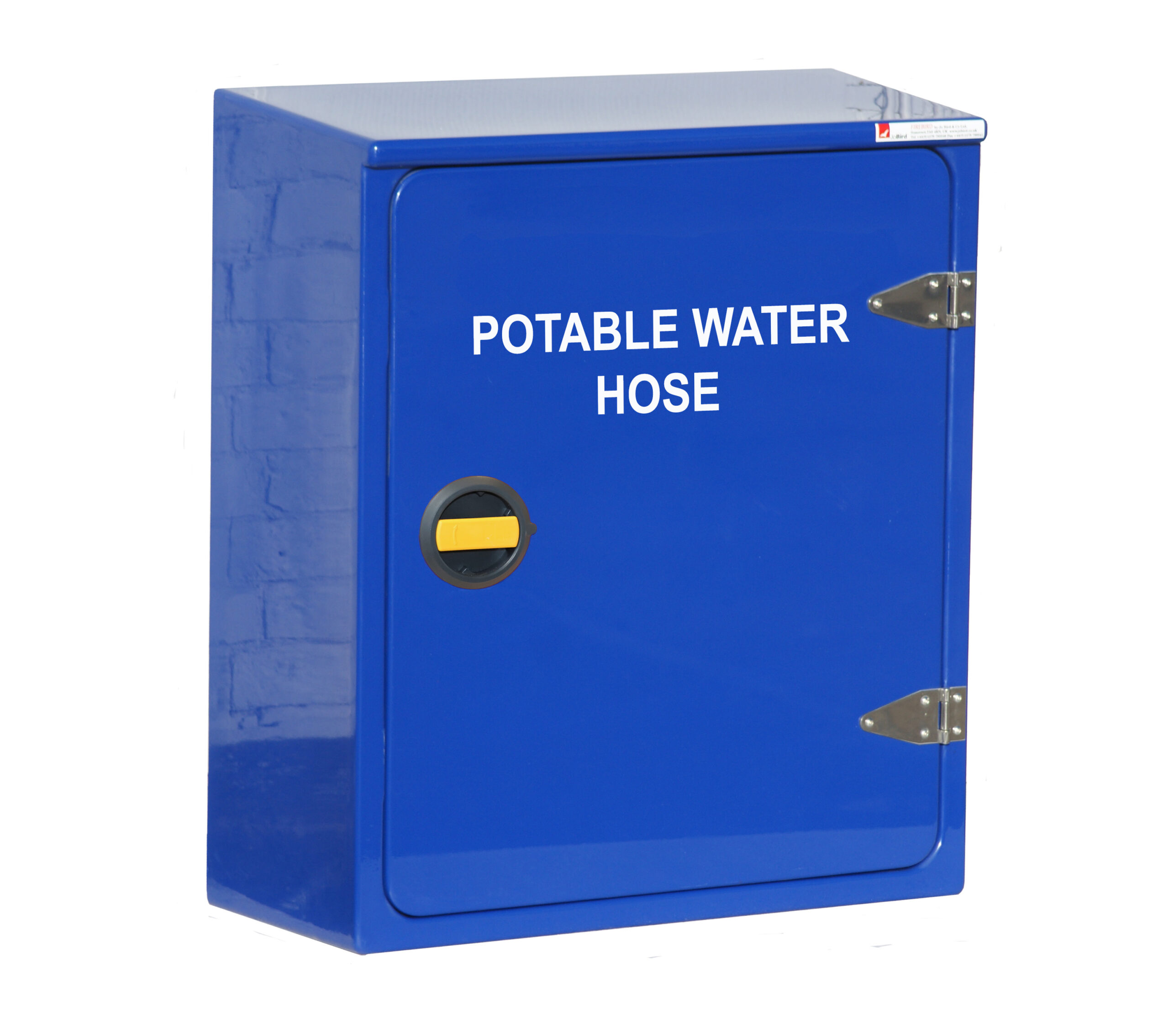

2 x 30M Wash down hose cabinet (JB02HR)

Dimensions : Height x width x depth: 937 x 835 x 347 mm                              (36.89 x 32.87 x 13.66″)

Aperture: 756H x 628W mm (29.76 x 24.72″)

Internal depth: 293 mm  (11.54″)

Weight : 15 Kg  (33Lb)

The JB02HR wash down hose cabinet  by Jo Bird can store up to two 30M Wash down or potable water hoses and nozzles. It comes fitted with a 316 Stainless steel hose pin for tidy storage of the hoses and to help keep their shape.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. The rigid design and high quality EPDM door seal help to achieve an excellent IP rating of 56. It has both Lloyds and ABS approvals. The 316 Stainless steel door  hinges are secured with 316 stainless steel nuts, bolts and washers. The door can be specified with left or right hinging and features a nylon/stainless steel rotary handle with Biomaster (R) technology and can easily be opened even when wearing gloves. Furthermore it can also be fitted with a breakable anti-tamper seal.

Typical uses

For the storage of 2 x 20-30M Water hoses
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability

Material specification
Colour: Blue RAL 5002
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon/316 Stainless steel with Biomaster (R) technology and an anti-tamper seal facility
Seal: EPDM
Optional extras
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
Perspex window
Ground mounting posts

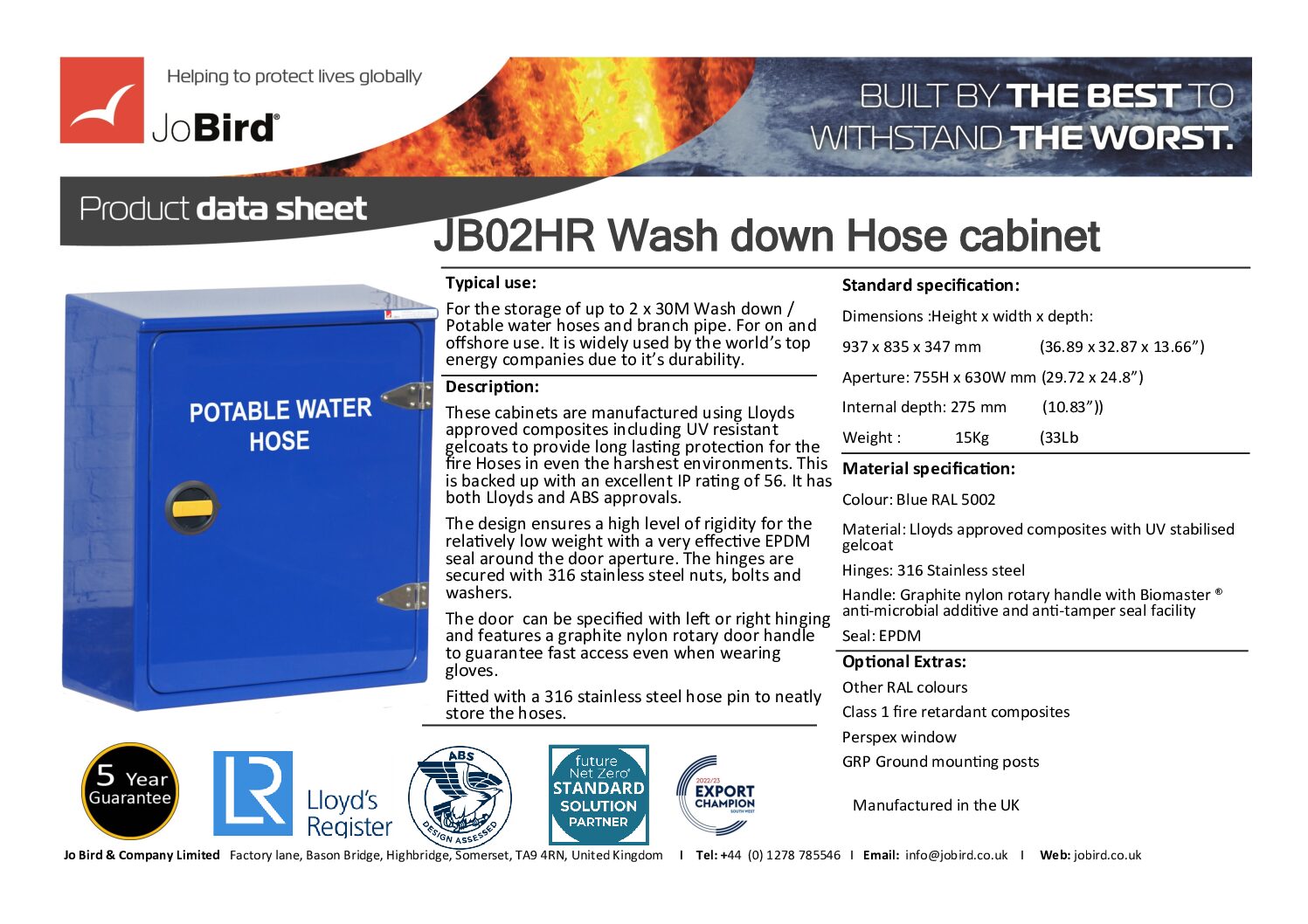

JB02HR Wash down hose Datasheet 2023

Typical uses

For the storage of 2 x 20-30M Water hoses
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability

Material specification
Colour: Blue RAL 5002
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon/316 Stainless steel with Biomaster (R) technology and an anti-tamper seal facility
Seal: EPDM
Optional extras
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
Perspex window
Ground mounting posts

JB02HR Wash down hose Datasheet 2023

Additional information

Dimensions

937 x 835 x 347 mm (36.89 x 32.87 x 13.66")

Aperture

756 x 628 mm (29.76 x 24.72")

Manufacturer

UK
