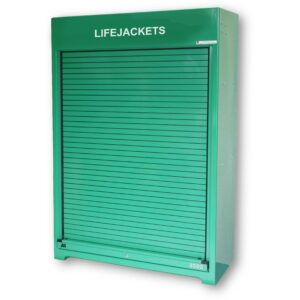

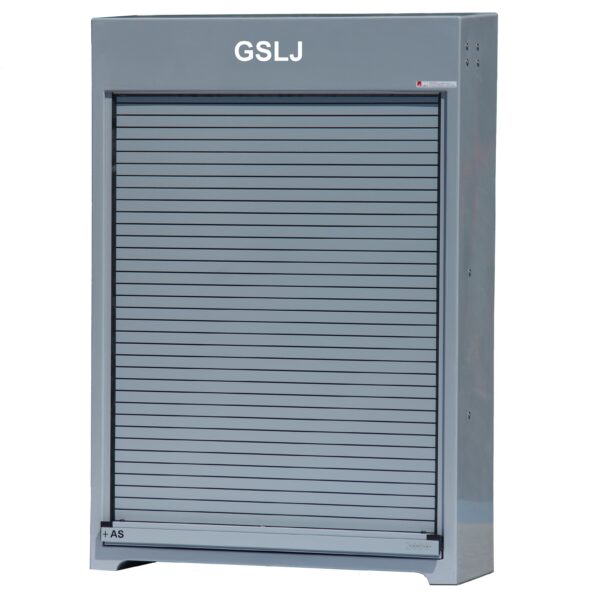

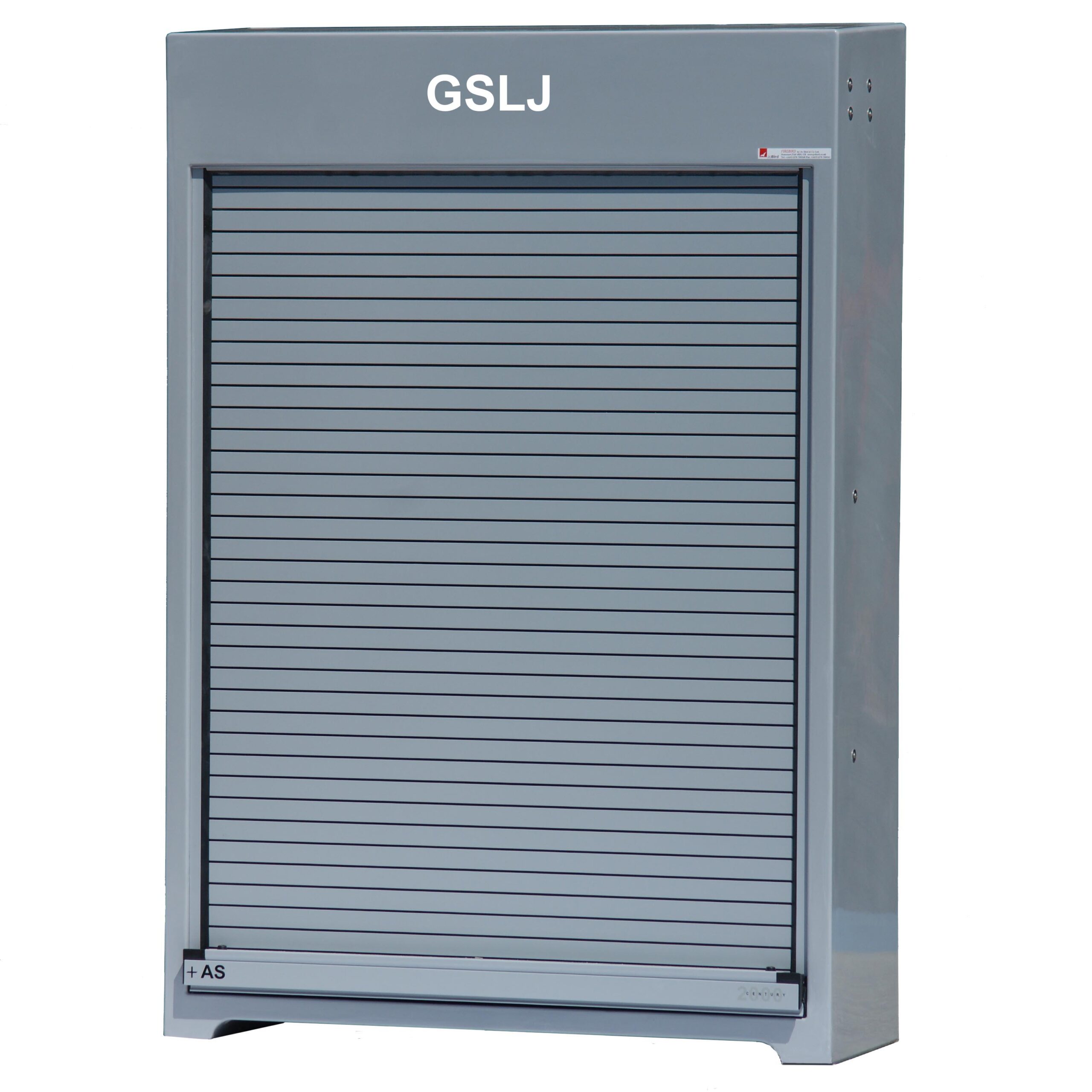

30 x Automatic life jacket cabinet (RS300LJD)

Dimensions : Height x width x depth: 2015 x 1385 x 460 mm                          (79.33 x 54.53 x 18.11″)

Aperture: 1500H x 1210W mm (59.06 x 47.64″)

Internal depth: 400 mm (15.75″)

Weight : 80Kg (176Lb)

The RS300LJD is fitted with a superb AS roller shutter door making access to the contents possible where there would not be room to open a conventional door so ideal for tight spaces. The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door apertures. These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The cabinet comes complete with 6 automatic life jacket hangers for the storage of 30 automatic life jackets. If the life jackets are stored in vacuum or foil bags, shelves can be fitted instead of hangers. Exact capacity depends on model being stored. Ideal for storing General service life jackets (GSLJ) on Naval ships and patrol vessels.

Typical uses
Fitted with 6 automatic life jacket hangers for the storage of automatic life jackets (not in vacuum or foil bags).
designed to cope with extreme environments offshore.
It is used by Various Navies and on military support vessels due to it's durability
Material specification
Colour: Grey RAL7040
Material Lloyds approved composites with UV Stabilised gelcoat
Hangers: Composite
RS Roller shutter door: Aluminium
Seal: EPDM
Optional extras
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
vents

RS300LJD Datasheet 2021

Typical uses
Fitted with 6 automatic life jacket hangers for the storage of automatic life jackets (not in vacuum or foil bags).
designed to cope with extreme environments offshore.
It is used by Various Navies and on military support vessels due to it's durability
Material specification
Colour: Grey RAL7040
Material Lloyds approved composites with UV Stabilised gelcoat
Hangers: Composite
RS Roller shutter door: Aluminium
Seal: EPDM
Optional extras
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
vents

RS300LJD Datasheet 2021

Additional information

Dimensions

2015 x 1385 x 460 mm (79.33 x 54.53 x 18.11")

Aperture

1500H x 1210W mm (59.06 x 47.64")

Manufacturer

UK
