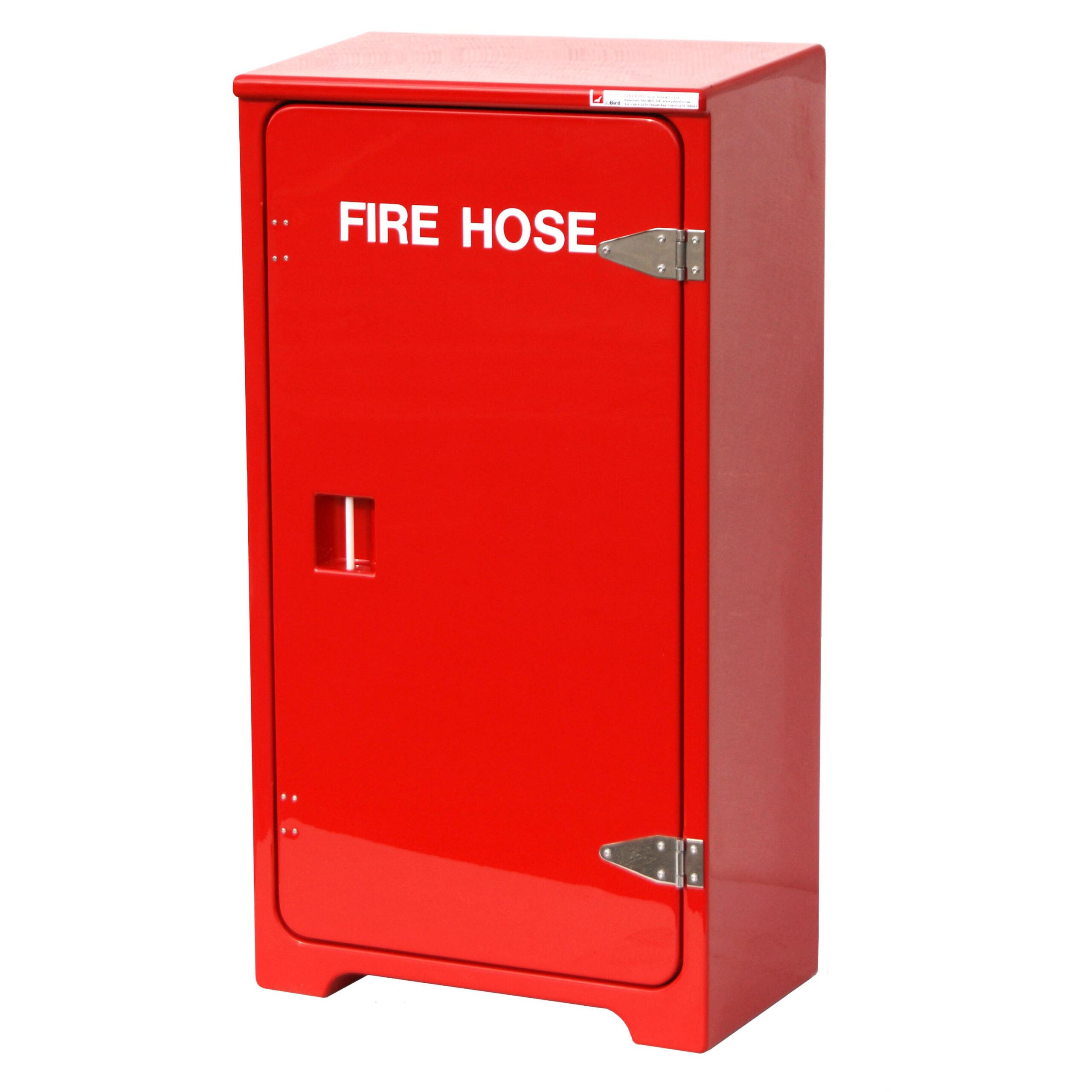

4 x 23M Fire Hose cabinet (JB14H)
Dimensions : Height x width x depth: 1296 x 698 x 392 mm (51.02 x 27.5 x 15.43″)
Aperture: 1060H x 490W mm (41.73 x 19.29″)
Internal depth: 320 mm (12.6″)
Weight : 24Kg (52.8Lb)
The JB14H Fire hose cabinets are fitted with 2 x 316 Stainless steel hose pins to store up to 4 x 23m rubber covered fire hoses and nozzles. It is widely used both on and offshore. The robust construction and effective weather sealing provide excellent protection to vital fire fighting equipment (IP56). These fire hydrant cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in hot climates. It has both Lloyds and ABS approvals.
The door can be specified with left or right hinging and features a nylon rod handle to pull the door open to guarantee fast access in an emergency even when wearing gloves. The 316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers rather than rivets.

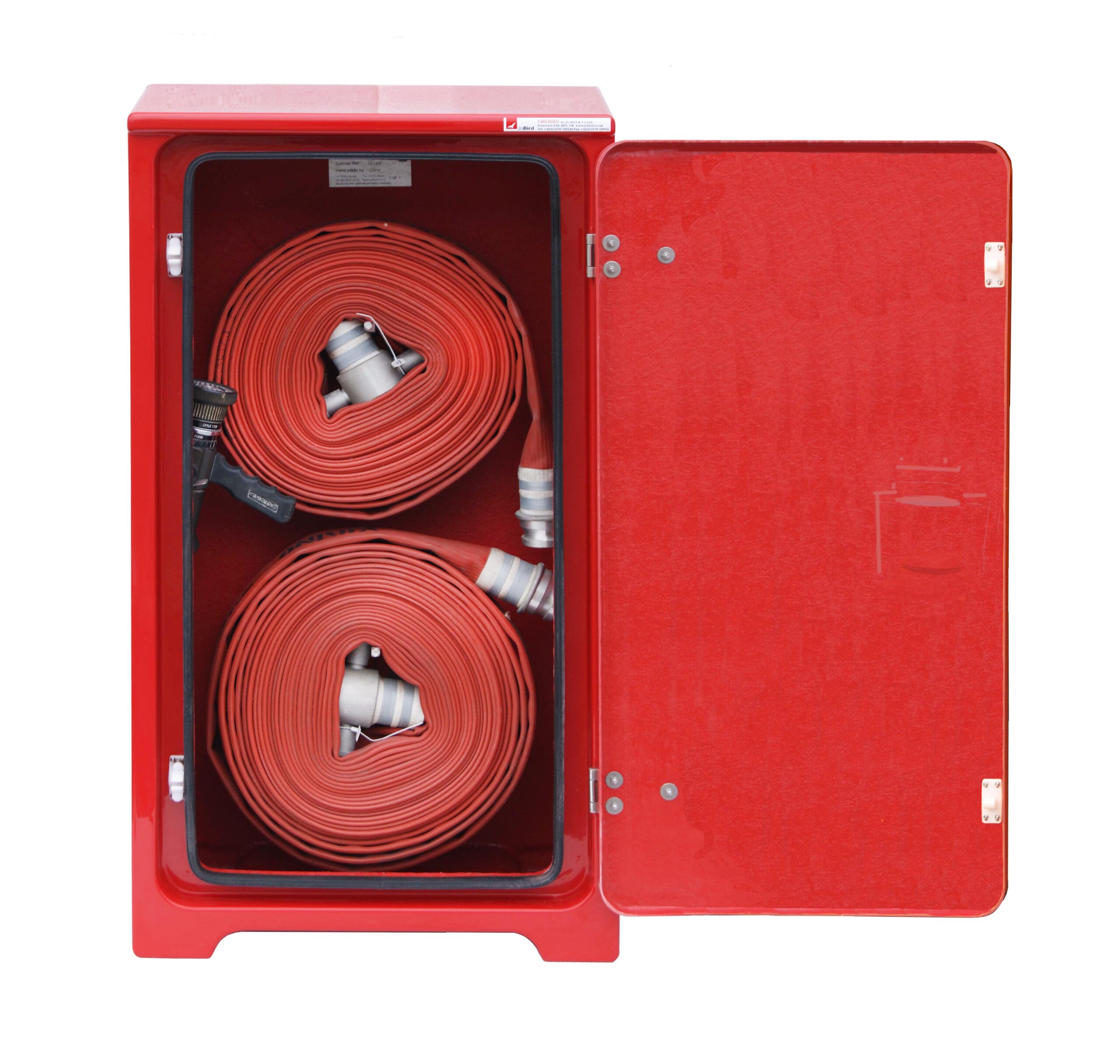

For the storage of 4 x 23M fire hoses and 2 x nozzles, designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Hose pins: 316 Stainless steel
Handle: Nylon rod
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
316 Stainless steel 3 way locking
For the storage of 4 x 23M fire hoses and 2 x nozzles, designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Hose pins: 316 Stainless steel
Handle: Nylon rod
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
316 Stainless steel 3 way locking
Additional information
| Dimensions | 1296 x 698 x 392 mm (51.02 x 27.5 x 15.43") |
|---|---|
| Aperture | 1060 x 490 mm (41.73 x 19.29") |
| Manufacturer | UK |
