Dimensions : Height x width x depth: 1302 x 782 x 490 mm                             (51.26 x 30.79 x 19.29″)

Aperture: 1080H x 590W mm (42.52 x 23.23″)

Internal depth: 395 mm (15.55″)

Weight : 22Kg (48.4Lb)

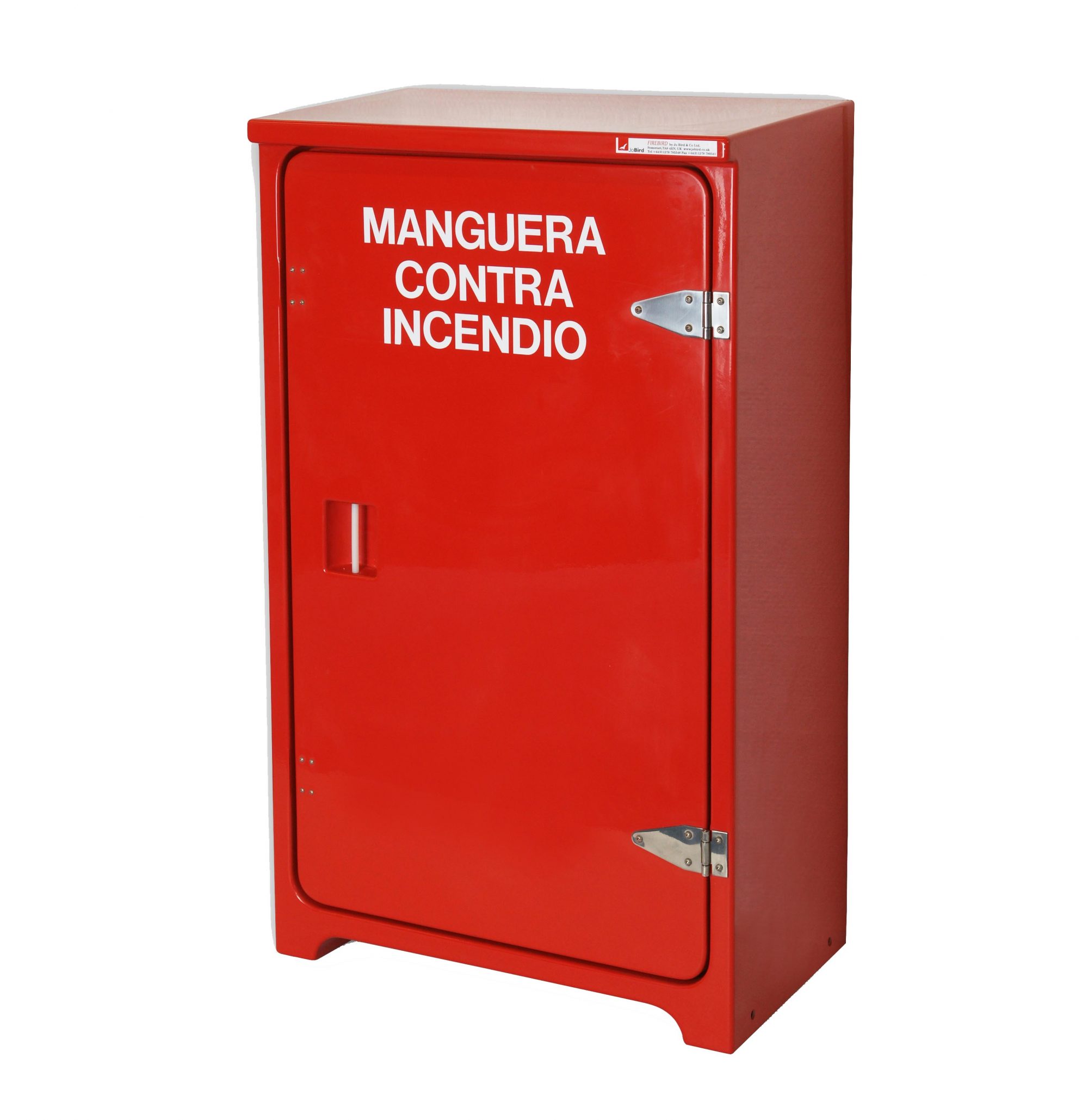

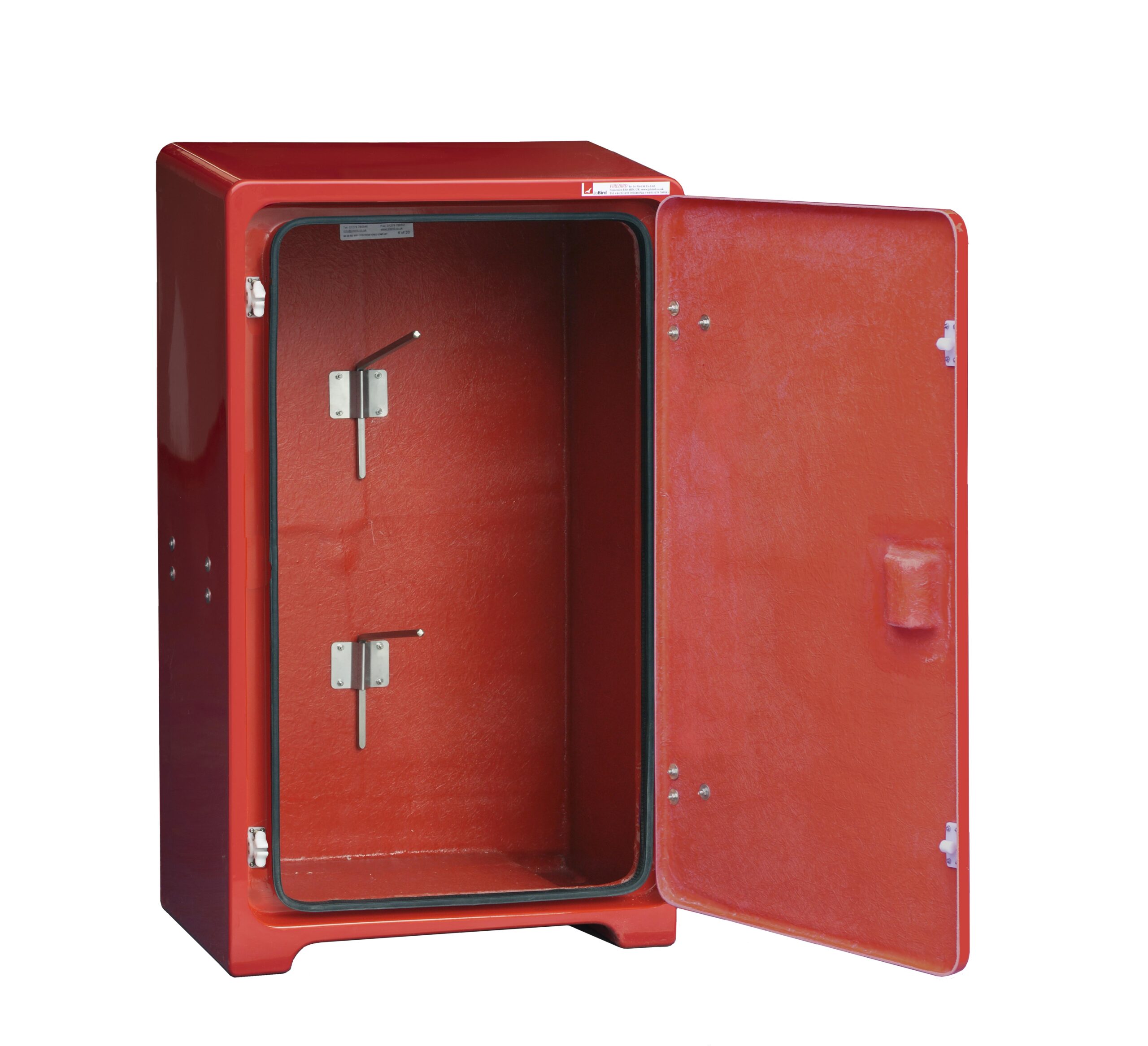

The JB10H Fire hose cabinet by Jo Bird stores up to 4 x 30m Fire hoses and 2 nozzles. It is widely used both offshore and on shore.  It is fitted with 2 x 316 stainless steel hose pins for the  neat storage of the fire hoses and helps them keep the right shape. The nozzles are conveniently held in a 316 Stainless steel nozzle bracket. Further hooks can be added for spanners if required. It is designed to cope with extreme environments and is manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.

The door can be specified with left or right hinging and features a nylon rod handle to pull the door open to guarantee fast access in an emergency even when wearing gloves.

Please note the version manufactured in the UK has the same performance and similar dimensions but has a few cosmetic differences.
