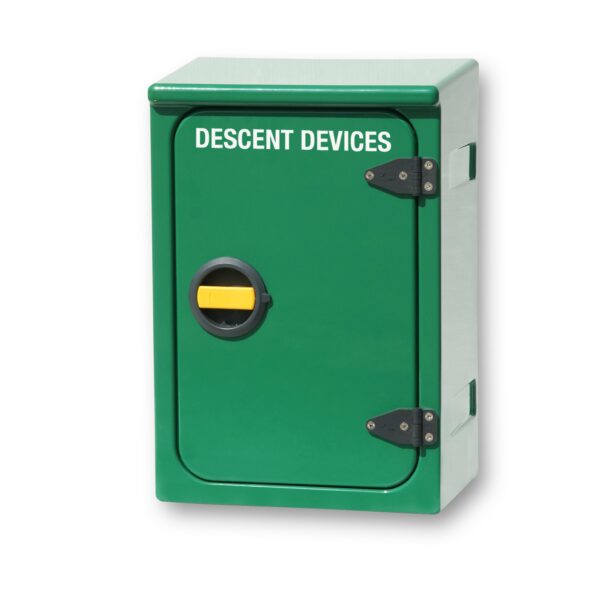

Descent Device cabinet (JB81)
Dimensions : Height x width x depth: 640 x 447 x 283 mm (25.2 x 17.6 x 11.14″)
Aperture: 491H x 302W mm (19.33 x 11.89″)
Internal depth: 222 mm (8.74″)
Weight : 7.4Kg (16.28″)
The JB81 by Jo Bird can store up to six emergency descent devices (based on the Donut descent device dimensions). These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals. The design features a very robust 16mm thick door and a torsion box body design to provide a combination of light weight and durability. It also features a very effective EPDM seal around the door aperture. The hinges are secured with 316 stainless steel nuts, bolts and washers.
The door can be specified with left or right hinging and features a graphite Nylon rotary door handle (with Biomaster (R) technology) to guarantee fast access in an emergency even when wearing gloves.
The handle can be fitted with an anti-tamper seal.
For the storage of approximately 6 x Emergency Descent devices
designed to cope with extreme environments offshore.
It is widely used by the world's top energy companies due to it's durability

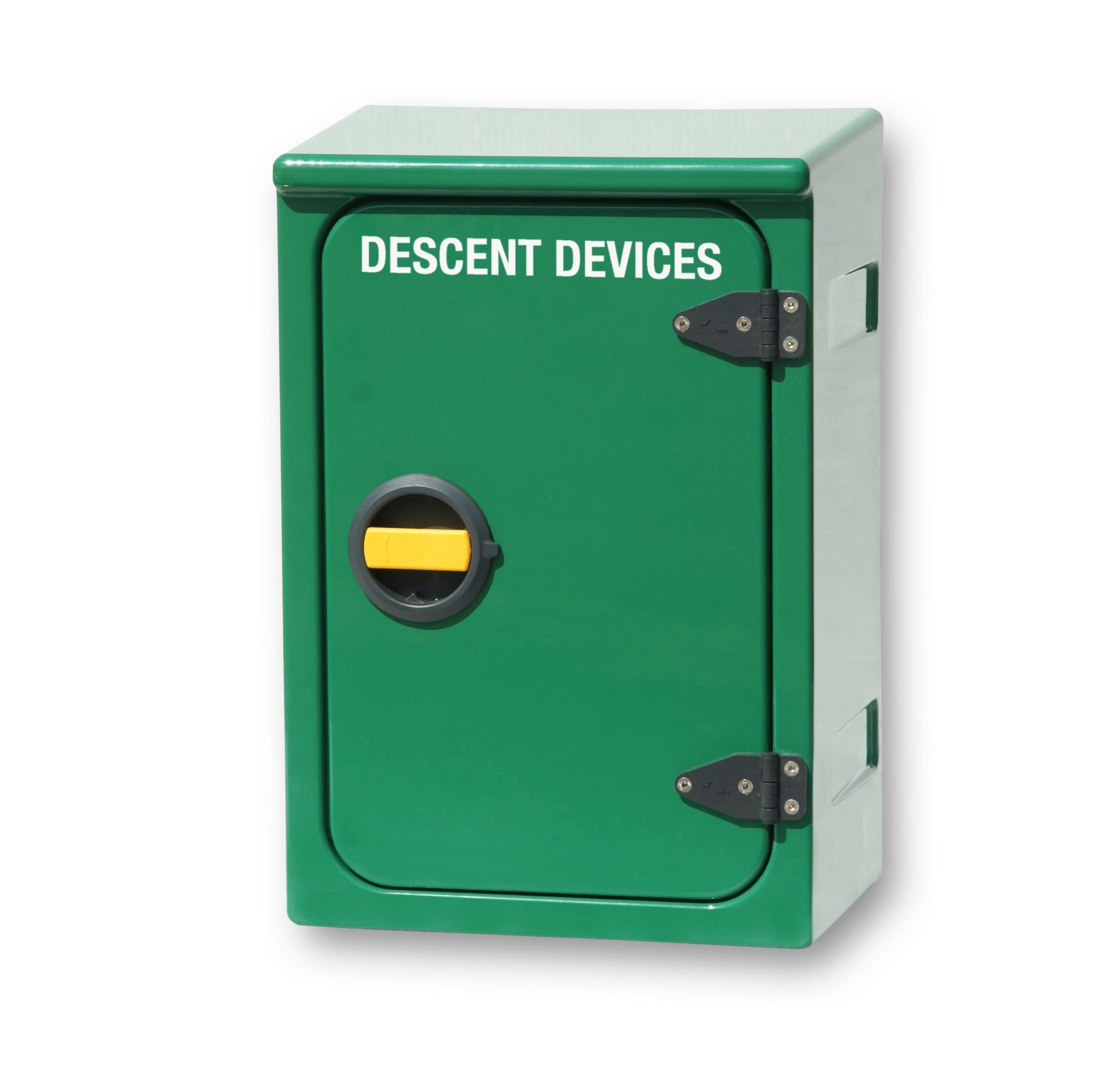

Colour: Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: Graphite nylon
Handle: Nylon/316 Stainless steel with Biomaster (R) anti-microbial technology
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
316 Stainless steel hinges
For the storage of approximately 6 x Emergency Descent devices
designed to cope with extreme environments offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: Graphite nylon
Handle: Nylon/316 Stainless steel with Biomaster (R) anti-microbial technology
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
316 Stainless steel hinges
Additional information
| Manufacturer | UK |
|---|---|
| Dimensions | 1000 x 1050 x 850 mm, 1029 x 335 x 318mm, 1076 x 463 x 320 mm, 1076 x 463 x 320 mm (42.36 x 18.23 x 12.6"), 1078 x 437 x 345 mm, 1079 x 815 x 305 mm, 1079 x 815 x 305 mm (42.48 x 32.09 x 12"), 1085 x 925 x 353 mm, 1085 x 925 x 353 mm (42.72 x 36.42 x 13.9"), 1296 x 698 x 392 mm, 1296 x 698 x 392 mm (51.02 x 27.5 x 15.43"), 1300 x 1300 x 425 mm, 1302 x 785 x 489 mm (51.26 x 30.91 x 19.25"), 1302 x 788 x 469 mm, 1304 x 788 x 469 mm, 1308 x 790 x 629, 1322 x 812 x 600, 1400 x 1000 x 350 mm, 1460 x 940 x 770 mm, 1474 x 918 x 479 mm, 1475 x 916 x 442 mm (58.07 x 36.06 x 17.4 inches), 1488 x 925 x 618 mm, 15.35 x 9.25 x 12.32", 1503 x 935 x 768 mm, 1520 x 1005 x 912 mm, 1520 x 1005 x 912 mm (59.84 x 39.57 x 35.91"), 1525 x 1005 x 932 mm, 1525 x 1005 x 932 mm (60.03 x 39.57 x 36.69"), 1550 x 776 x 491 mm, 1550 x 776 x 491 mm (61.02 x 30.55 x 19.33"), 1552 x 1007 x 1350 mm, 1552 x 1007 x 1350 mm (61.1 x 39.65 x 53.15"), 1620 x 798 x 460 mm, 1663 x 235 x 313 mm, 1765 x 903 x 460, 1765 x 903 x 460 mm (69.49 x 35.55 x 18.11"), 1775 x 908 x 600 mm, 1795 x 2450 x 600 mm (70.67 x 96.46 x 23.62"), 1831 x 1034 x 785 mm, 1831 x 1034 x 785 mm (72.09 x 40.71 x 30.91"), 1927 x 814 x 660 mm, 1927 x 814 x 660 mm (75.87 x 32.05 x 25.98"), 20.08 x 22.05 x 7.56 inches, 20.63 x 22.09 x 7.8 inches, 2000 x 1090 x 450 mm, 2010 x 1055 x 760 mm, 2010 x 1055 x 760 mm (79.13 x 41.54 x 29.92"), 2015 x 1385 x 460, 2015 x 1385 x 460 mm, 2015 x 1385 x 460mm (79.33 x 54.53 x 18.11 inches), 2020 x 1390 x 600 mm, 2024 x 1395 x 1400 mm, 2024 x 1395 x 950 mm, 2024 x 1395 x 950 mm (79.69 x 54.92 x 37.4"), 2025 x 1395 x 600 mm, 2030 x 1405 x 950 mm, 2030 x 1425 x 1400 mm, 2035 x 1395 x 750 mm, 2050 x 1395 x 1200, 2050 x 1395 x 1200 mm, 2050 x 1395 x 1200 mm (80.71 x 54.92 x 47.24 inches), 2050 x 1395 x 1200 mm (80.71 x 54.92 x 47.24"), 2060 x 1425 x 1200 mm, 24.13 x 26.38 x 7.28 inches, 26.61 x 93.90 x 34.84 inches, 27.56 x 27.56 x 7.87 inches, 29.53 x 58.27 x 41.34", 31.46 x 14.72 x 11.02 inches, 31.54 x 93.9 x 34.84", 31.85 x 31.3 x 6.89 inches, 33.46 x 33.46 x 7.87 inches, 35.43 x 94.29 x 35.04", 36.18 x 45.28 x 29.53", 36.61 x 36.14 x 8.27", 36.89 x 32.87 x 13.66 inches, 36.89 x 32.87 x 13.66", 361 x 276 x 150 mm, 361 x 276 x 150 mm (14.21 x 10.87 x 5.91"), 37.32 x 18.58 x 8.54 inches, 390 x 235 x 313 mm, 40.51 x 13.19 x 12.52", 422 x 448 x 213 mm, 422 x 448 x 213 mm (16.61 x 17.64 x 8.39"), 450 x 1000 x 451 mm, 475 x 995 x 615 mm, 51.02 x 27.48 x 15.43 inches, 510 x 560 x 192 mm, 524 x 561 x 198 mm, 524 x 561 x 198 mm (20.63 x 22.09 x 7.8 inches), 58.03 x 36.14 x 18.86", 605 x 935 x 480 mm, 605 x 935 x 480 mm (23.82 x 36.81 x 18.8 inches), 605 x 935 x 480 mm (23.82 x 36.81 x 18.9"), 610 x 490 x 550 mm, 613 x 670 x 185 mm, 613 x 670 x 185 mm (24.13 x 26.38 x 7.28"), 625 x 528 x 240 mm, 625 x 528 x 240 mm (24.6 x 20.79 x 9.45 inches), 626 x 680 x 331 mm (24.65 x 26.77 x 13.03"), 626 x 680 x 331mm, 630 x 716 x 216 mm, 640 x 447 x 283 mm, 640 x 447 x 283 mm (25.2 x 17.6 x 11.14"), 643 x 726 x 362 mm, 676 x 2385 x 885 mm, 686 x 2081 x 815 mm, 686 x 2081 x 815 mm (27 x 81.93 x 32.09 inches), 695 x 1000 x 580 mm, 695 x 1000 x 580 mm (27.36 x 39.37 x 22.83 inches), 700 x 700 x 200 mm, 737 x 1030 x 982 mm, 748 x 346 x 222 mm, 748 x 346 x 222 mm (29.45 x 13.62 x 8.74"), 750 x 1480 x 1050 mm, 762 x 282 x 211 mm, 762 x 282 x 211 mm (30 x 11.1 x 8.31"), 773 x 426 x 314 mm, 773 x 426 x 314 mm (30.43 x 16.77 x 12.36"), 773 x 426 x 314 mm (30.43 x 16.77 x 12.36"), 780 x 995 x 620 mm, 788 x 1150 x 750 mm, 788 x 1150 x 750 mm (31.02 x 45.28 x 29.53 inches), 799 x 374 x 279 mm, 799 x 374 x 280 mm, 799 x 374 x 280 mm (31.46 x 14.72 x 11.02"), 800 x 373 x 277 mm, 801 x 2385 x 885 mm, 809 x 795 x 175 mm, 816 x 548 x 344 mm, 816 x 548 x 344 mm (32.13 x 21.57 x 13.54"), 850 x 850 x 200 mm, 857 x 1070 x 435 mm, 857 x 1070 x 435 mm (33.74 x 42.13 x 17.13"), 860 x 1430 x 930 mm, 875 x 1480 x 1050 mm, 875 x 1480 x 1050 mm (34.45 x 58.27 x 41.34"), 900 x 2395 x 890 mm, 919 x 1150 x 750 mm, 920 x 835 x 316, 920 x 835 x 316 mm (36.22 x 32.87 x 12.44 inches), 930 x 918 x 210 mm, 935 x 537 x 365 mm (36.81 x 21.14 x 14.37"), 937 x 835 x 347, 937 x 835 x 347 mm, 937 x 835 x 347 mm (36.89 x 32.87 x 13.66 inches), 937 x 835 x 347 mm (36.89 x 32.87 x 13.66"), 942 x 572 x 483 (37.09 x 22.52 x 19.02"), 942 x 572 x 483 mm, 942 x 572 x 483 mm (37.09 x 572 x 483"), 948 x 472 x 271 mm, 948 x 472 x 271 mm (37.32 x 18.58 x 8.54"), 961 x 552 x 330 mm, 961 x 552 x 330 mm (37.83 x 21.73 x 12.99"), 968 x 469 x 345 mm, 970 x 470 x 345 mm (38.19 x 18.5 x 13.58") |
