Dimensions : Height x width x depth: 626 x 680 x 331 mm                               (24.65 x 26.77 x 13.03″)

Aperture: 460H x 520W mm (18.11 x 20.47″)

Internal depth: 290 mm (11.42″)

Weight : 10Kg (22Lb)

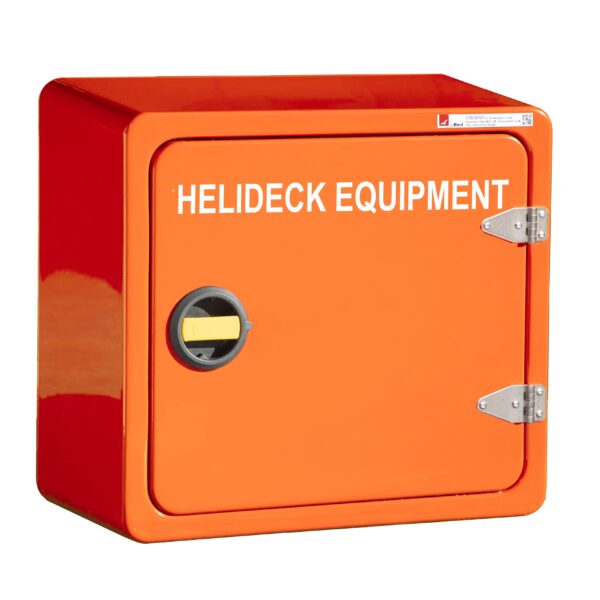

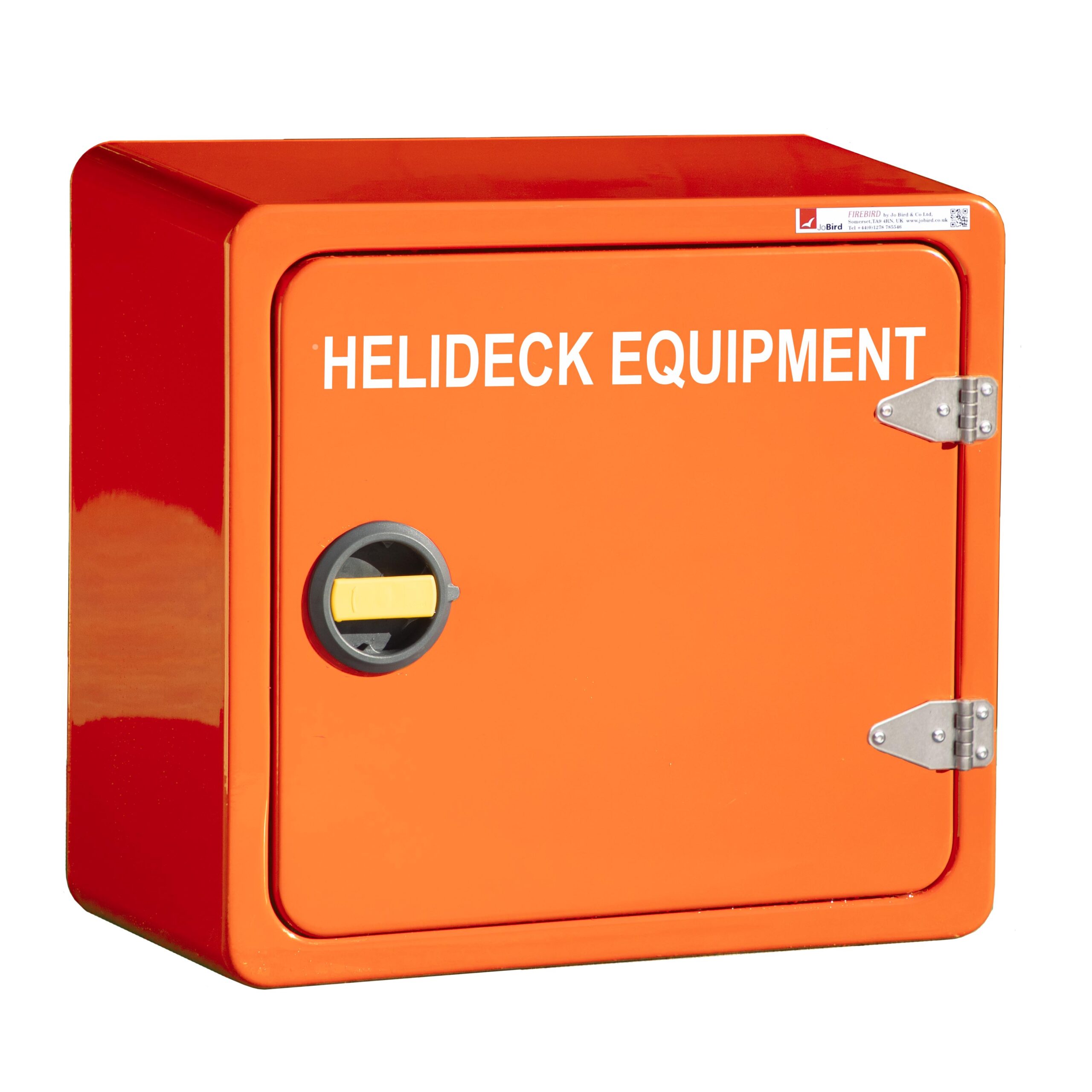

The JB85.360 equipment storage cabinet is used to store a wide variety of safety equipment including chemical suits, descent devices and smoke hoods.  It can be adapted with shelves and brackets to suit other equipment too.  They are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in harsh environments on and offshore. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.

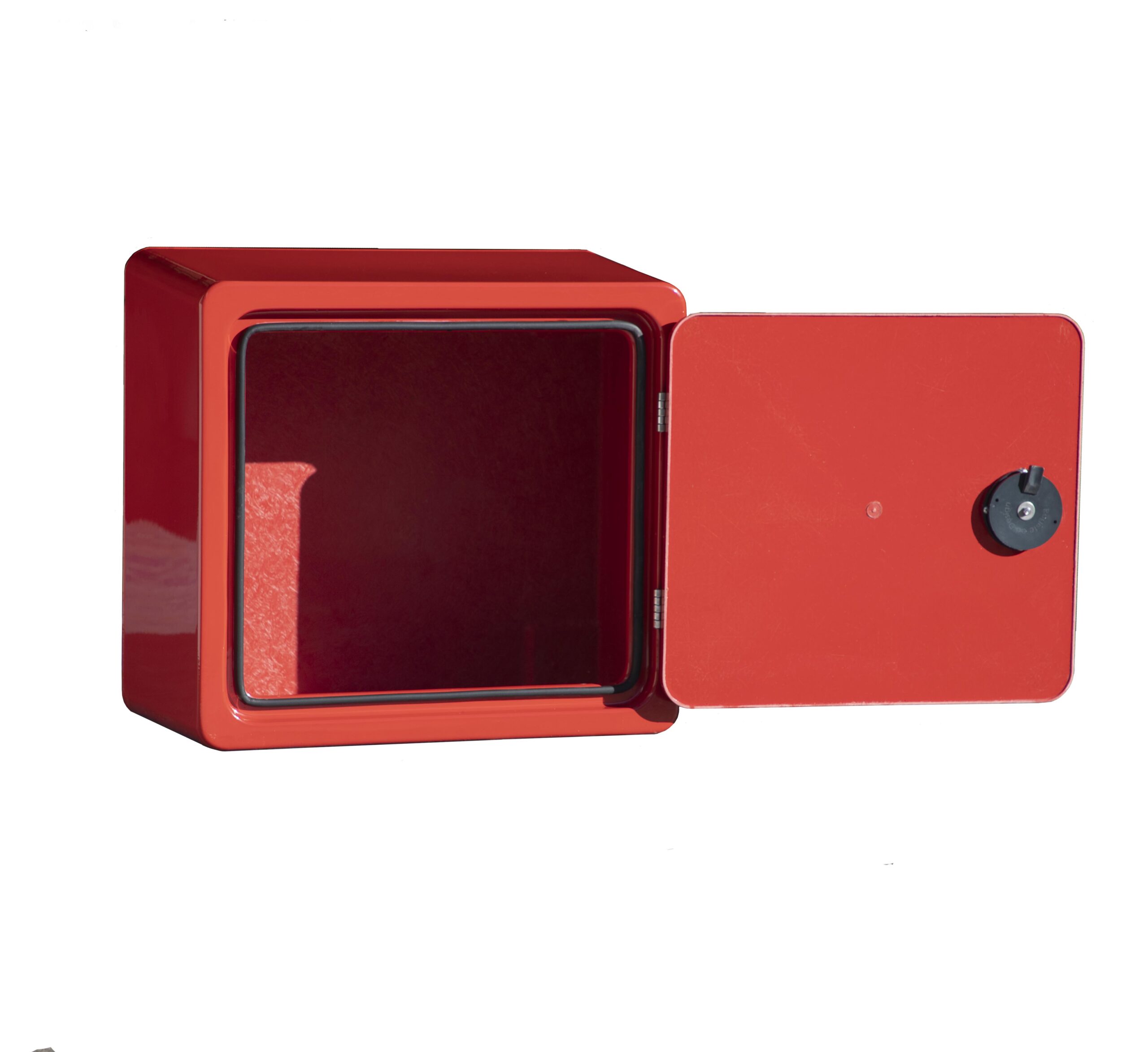

The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The hinges are secured with 316 stainless steel nuts, bolts and washers for long term durability. The door can be specified with left or right hinging and features a graphite nylon rotary handle incorporating Biomaster (R) technology and is easy to open in an emergency when wearing gloves. The handle can also be fitted with an anti-tamper seal.

This mode will eventually replace the JB16.360.
