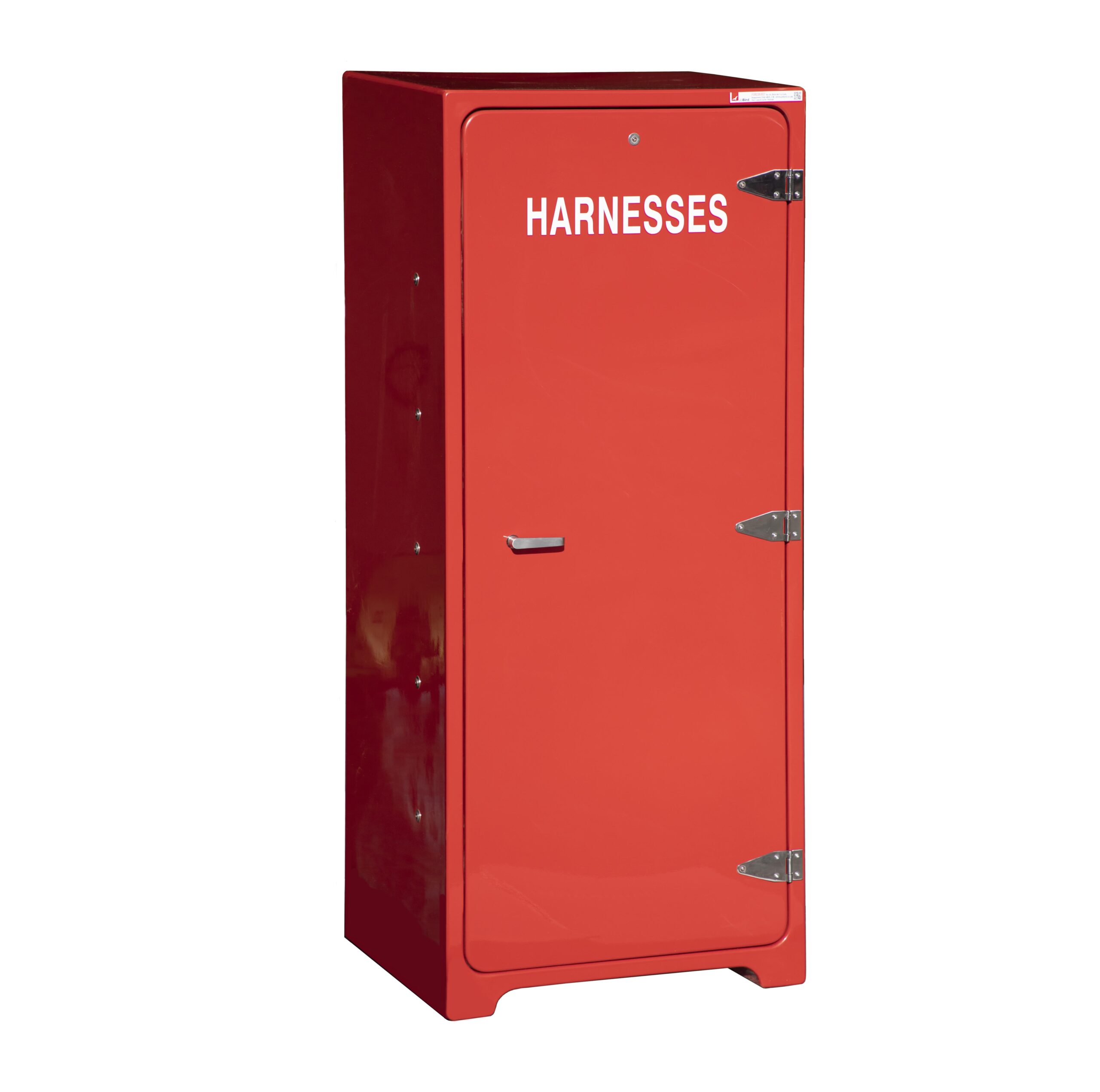

Fall arrest harness cabinet (JB20)
Dimensions (mm): Height x width x depth: 1927 x 814 x 660
Aperture: 1680H x 600W
Internal depth: 593
Weight Kg: 40Kg
The JB20 cabinets are fitted with shelves to store fall arrest harnesses on offshore wind farms and other offshore energy structures. The separate compartments help to prevent the harnesses getting tangled as well as keeping them dry. These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The door can be manufactured to be left or right hinged and is secured with 316 stainless steel 3 way locking system. This is fitted with a single large handle for fast and convenient use when wearing gloves.

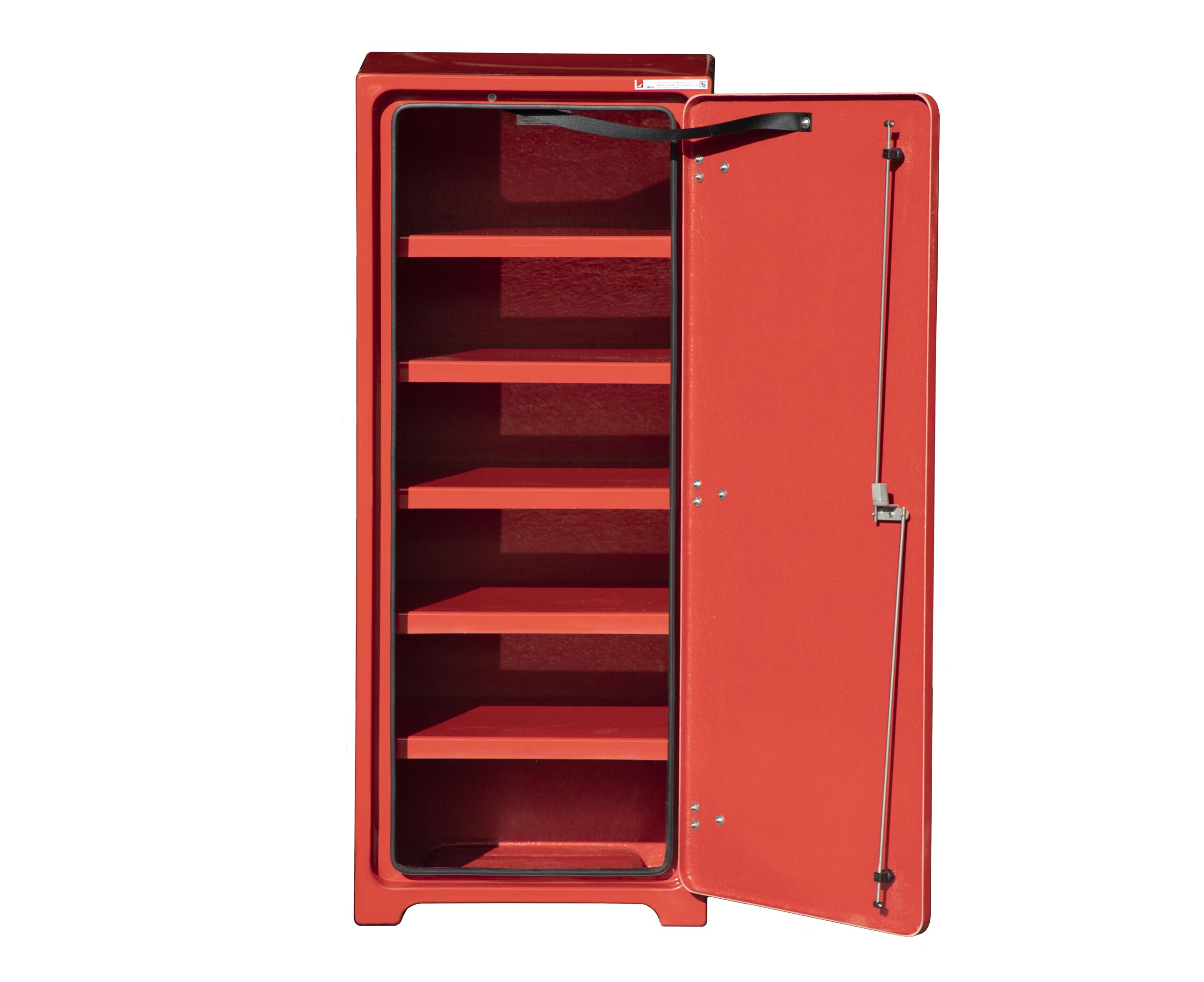

Can be fitted with 5 shelves to create compartments for the orderly storage of fall arrest harnesses.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy and commercial marine companies due to it's durability
Colour: Red RAL 3000 or Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
L Handle: 316 Stainless steel
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
Heating and insulation
vents
https://vimeo.com/840768452?share=copy
Can be fitted with 5 shelves to create compartments for the orderly storage of fall arrest harnesses.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy and commercial marine companies due to it's durability
Colour: Red RAL 3000 or Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
L Handle: 316 Stainless steel
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
Heating and insulation
vents
https://vimeo.com/840768452?share=copy
Additional information
| Dimensions | 1927 x 814 x 660 mm |
|---|---|
| Aperture | 1680H x 600W |
| Manufacturer | UK |
Get in touch
Our very experienced and helpful sales team would be delighted to assist you in selecting the most appropriate cabinet(s) to meet your needs in a relaxed and no pressure environment. If you need CAD drawings to incorporate into your designs we will be happy to assist.
