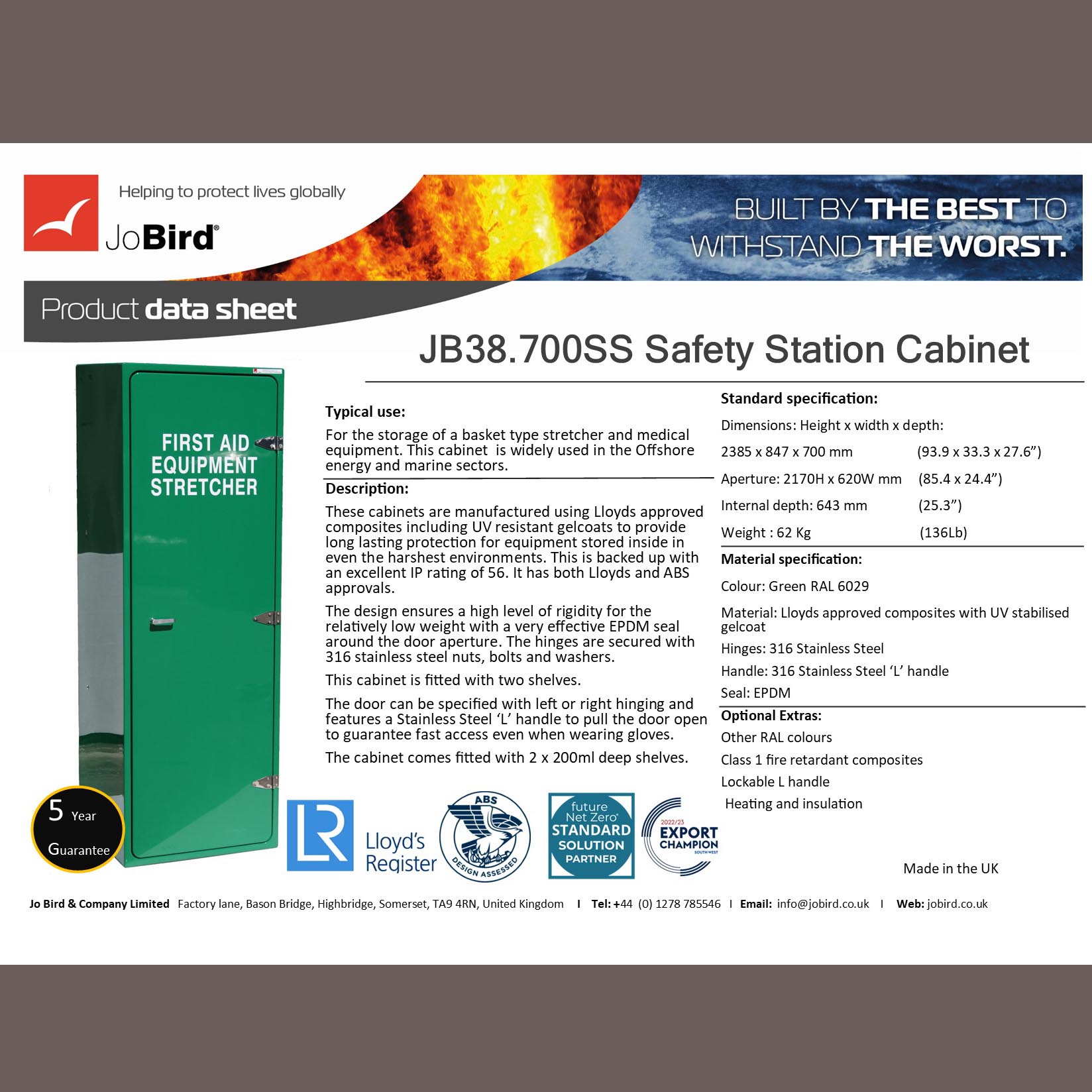

Safety Station Cabinet (JB38.700SS)
Dimensions : Height x width x depth: 2385 x 847 x 700 mm (93.9 x 33.35 x 27.56″)
Aperture: 2170H x 620W mm (85.43 x 24.41″)
Internal depth: 643 mm (25.31″)
Weight : 62Kg (136.4Lb)
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.

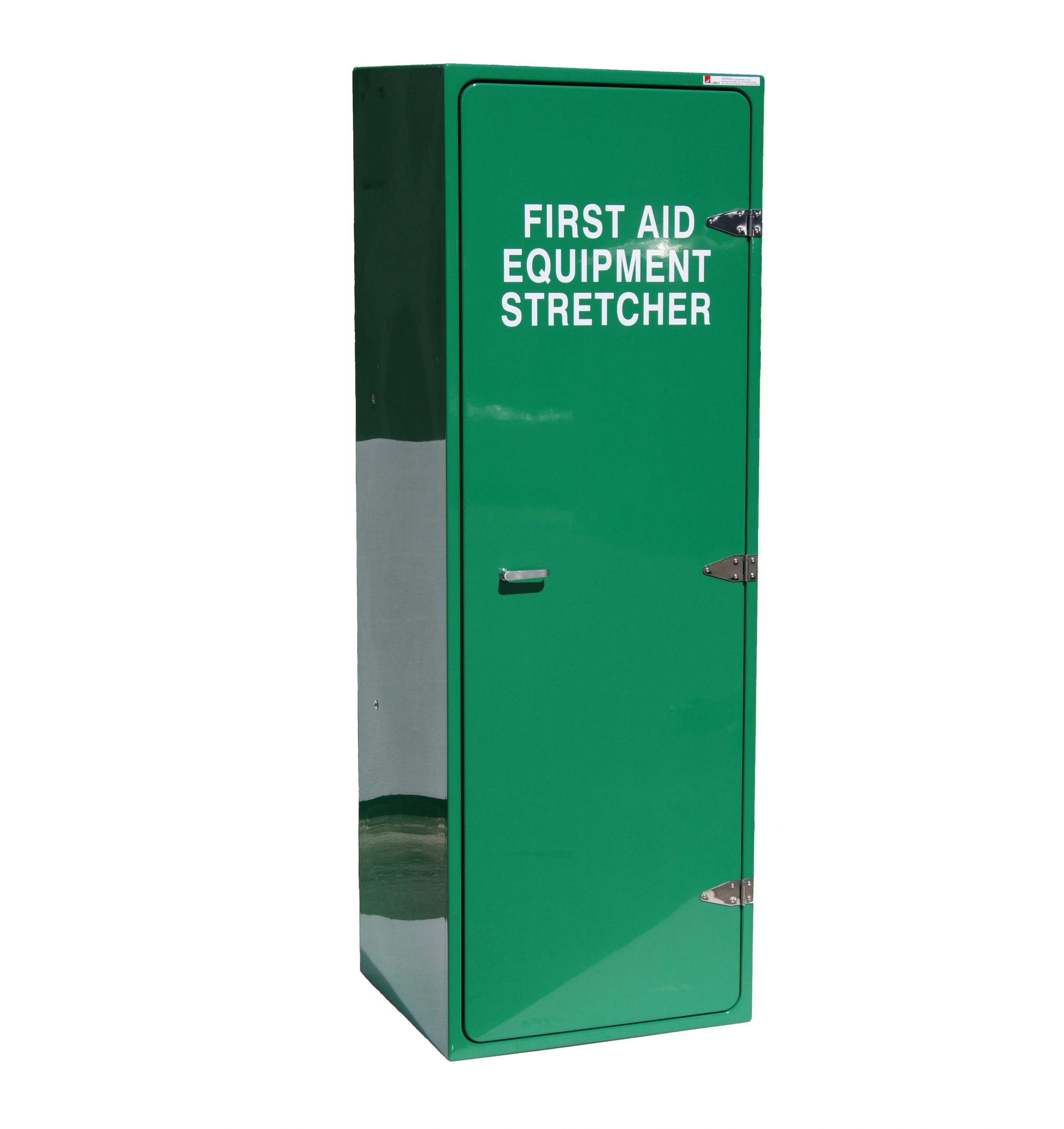

The cabinet is designed to store a basket stretcher and medical equipment.

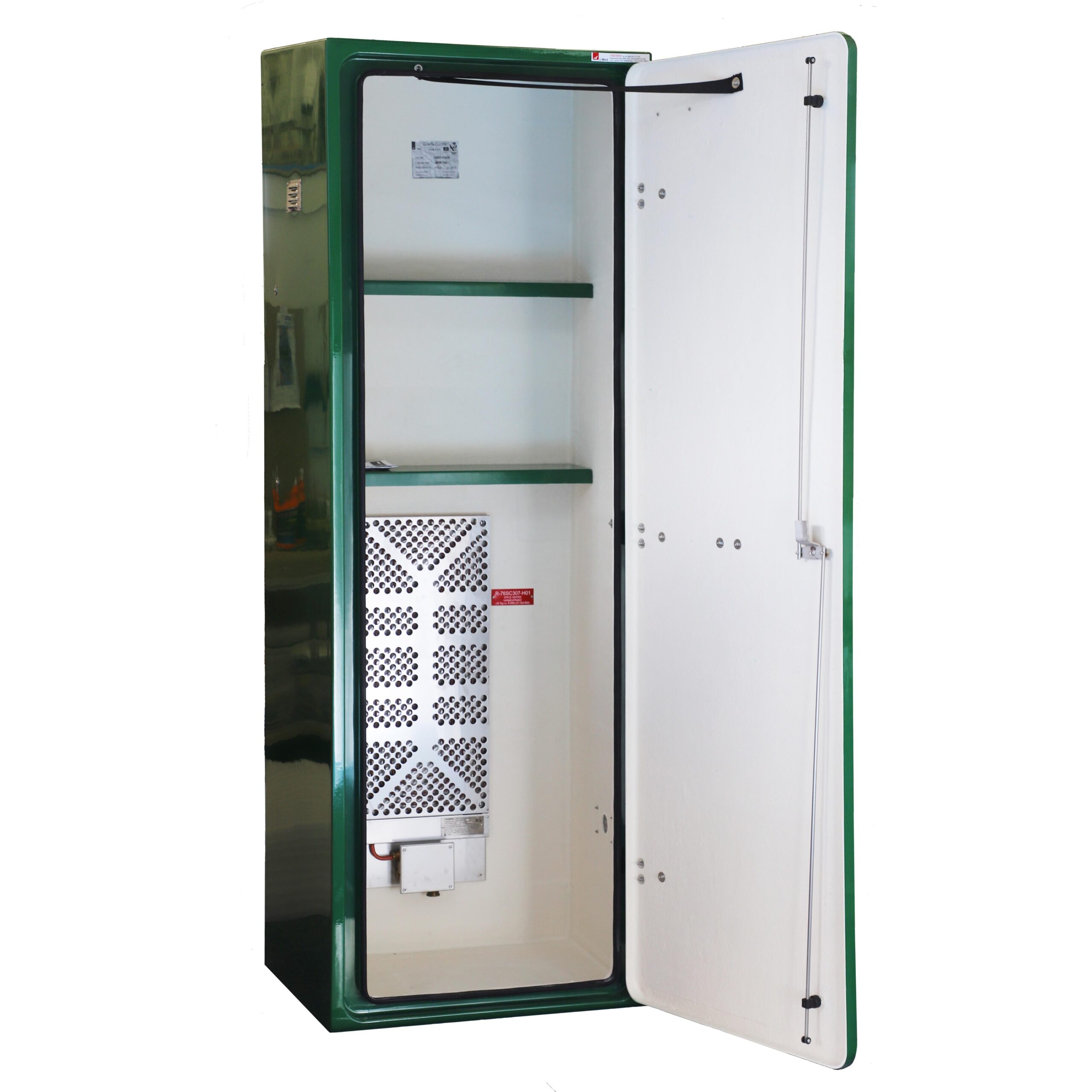

The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The 316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers. The door is fitted with 316 Stainless steel 3 way locking for fast access in an emergency. The door can be specified with left or right hinging.
Storage of 1 x Basket stretcher and spine board plus medical equipment
Designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: 316 Stainless steel with three way locking
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Lockable L handle
Heating and insulation
Storage of 1 x Basket stretcher and spine board plus medical equipment
Designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: 316 Stainless steel with three way locking
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Lockable L handle
Heating and insulation
Additional information
| Dimensions | 2385 x 847 x 700 mm (93.9 x 33.35 x 27.56") |
|---|---|
| Aperture | 2170H x 620W mm (85.43 x 24.41") |
| Manufacturer | UK |
