1 x 12Kg/litre or 5kg CO2 Fire extinguisher Cabinet (JB01)
Dimensions : Height x width x depth: 968 x 469 x 345 mm (38.11 x 18.46 x 13.58″)
Aperture: 795H x 273W mm (31.3 x 10.75″)
Internal depth: 222 mm (8.74″)
Weight : 10 Kg (22Lb)

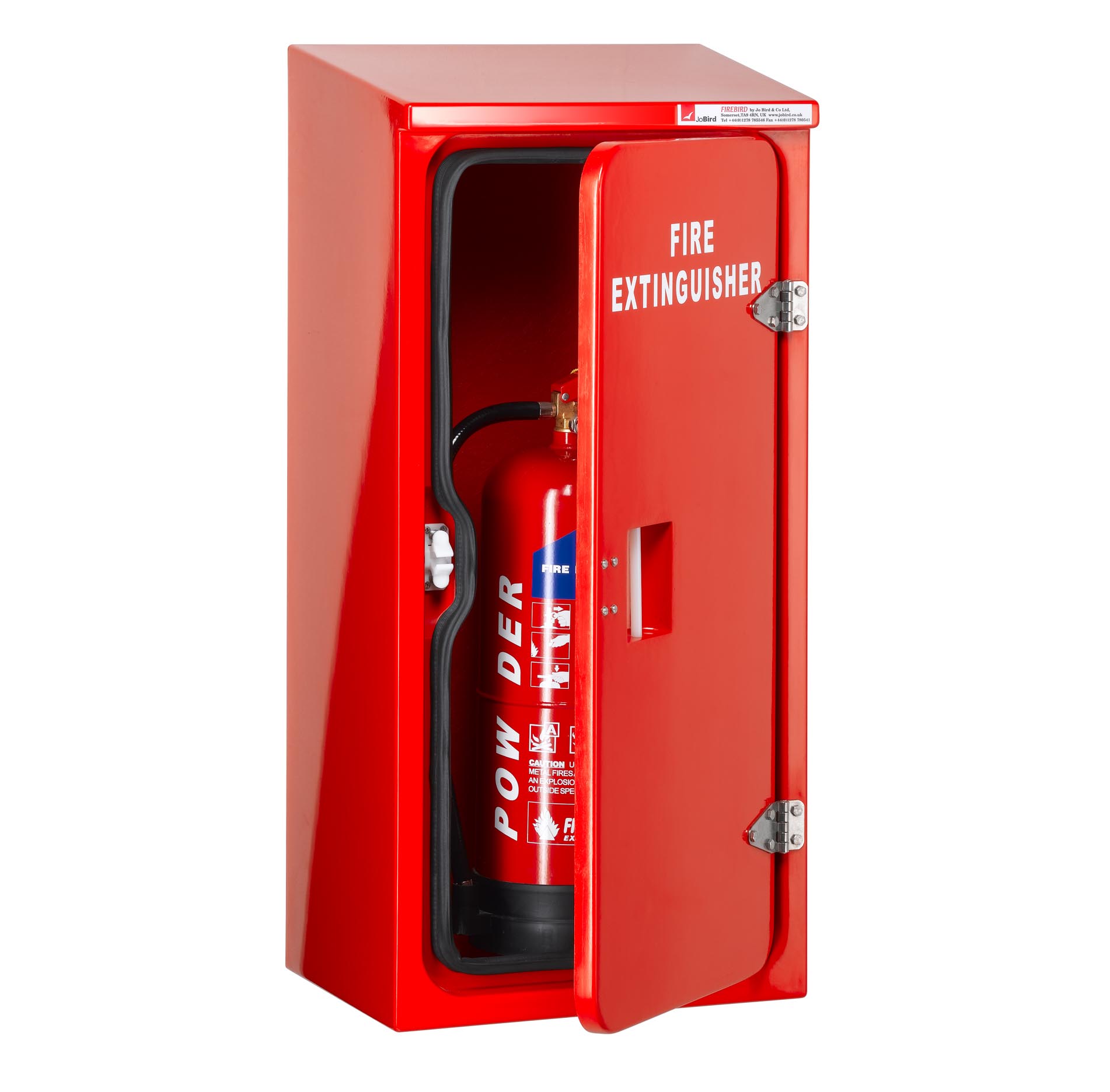

The JB01 can store 1 x 5Kg CO2 portable fire extinguisher up to 939mm tall or 1 x 12Kg/litre fire extinguisher.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The Nylon graphite hinges are secured with 316 stainless steel nuts, bolts and washers (not rivets)..
The door can be specified with left or right hinging and features a nylon rod handle to pull the door open to guarantee fast access in an emergency even when wearing gloves.
Please note: This cabinet is only manufactured in Dubai. For UK production please see the separate listing for the JB84
For the storage of 1 x 5Kg CO2 Fire extinguisher up to 939mm high or 1 x 12Kg/litre Fire extinguisher
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: Nylon
Handle: Nylon
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
316 Stainless steel hinges
Perspex window
For the storage of 1 x 5Kg CO2 Fire extinguisher up to 939mm high or 1 x 12Kg/litre Fire extinguisher
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: Nylon
Handle: Nylon
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
316 Stainless steel hinges
Perspex window
Additional information
| Dimensions | 968 x 469 x 345 mm (38.11 x 18.46 x 13.58") |
|---|---|
| Aperture | 795H x 273W mm (31.3 x 10.75") |
| Manufacturer | Dubai |
