Dimensions : Height x width x depth: 1304 x 788 x 469 mm                              (51.34 x 31.02 x 18.46″)

Aperture: 1052H x 570W mm  (41.42 x 22.44″)

Internal depth: 415 mm (16.34″)

Weight : 22Kg  (48.4Lb)

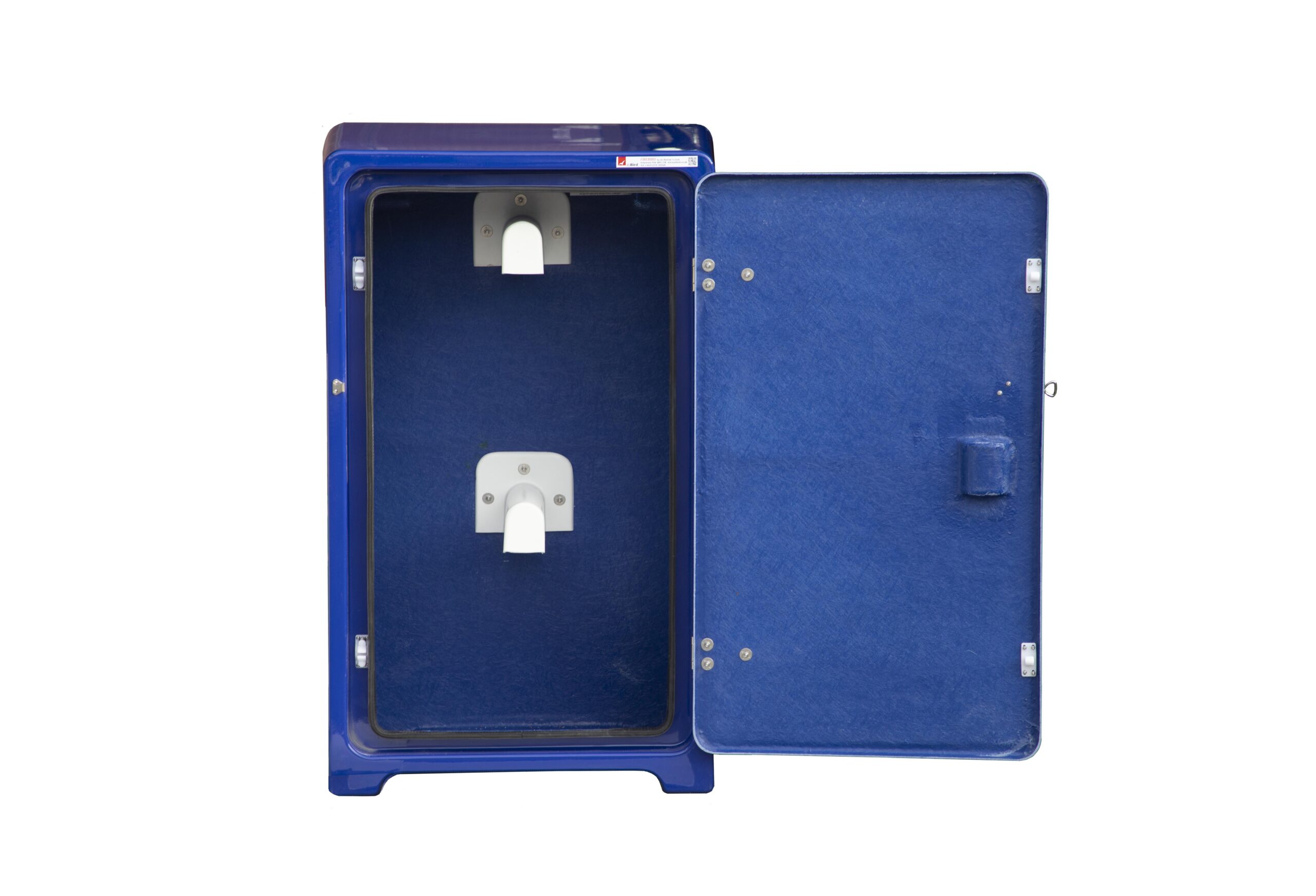

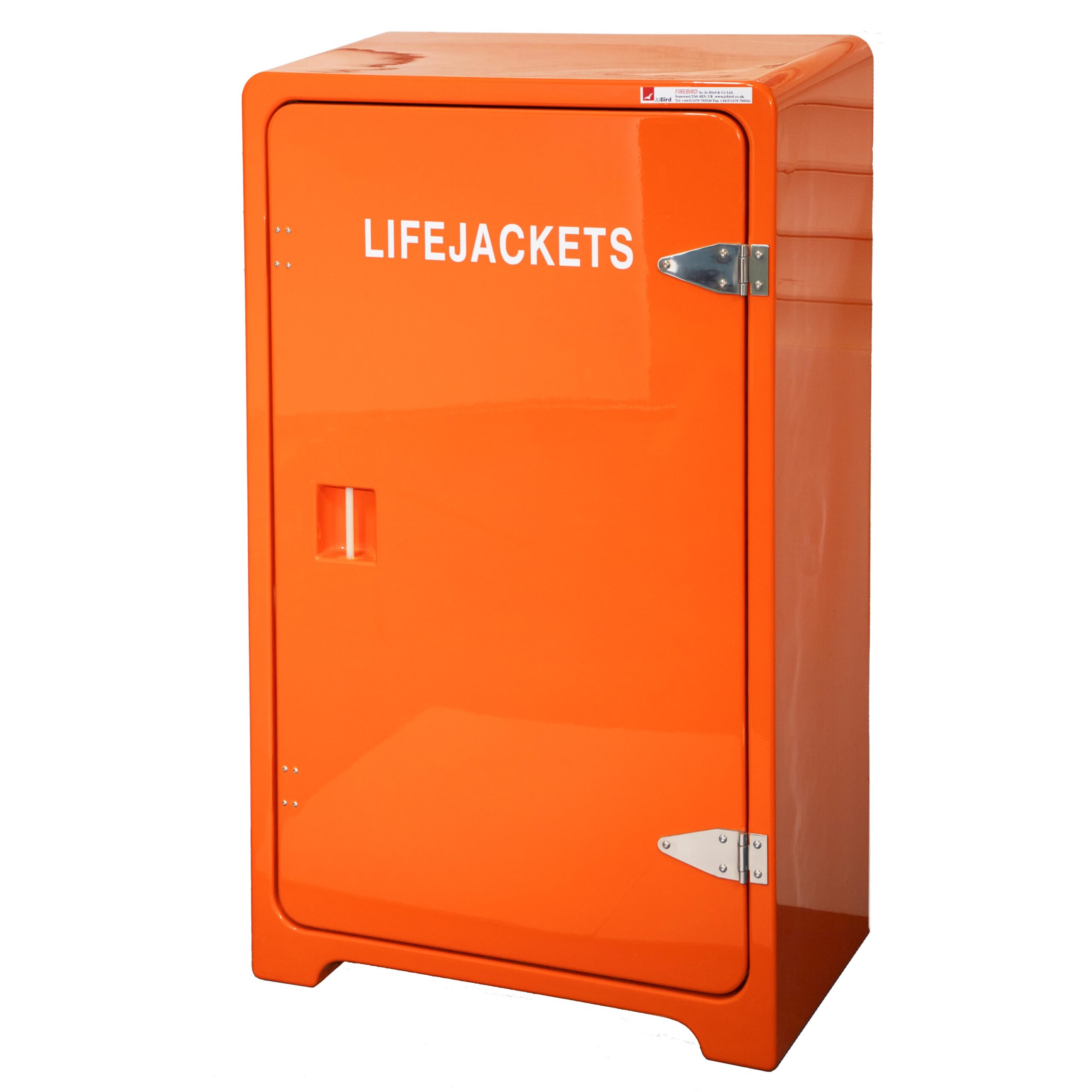

The JB10LJ Automatic Life jacket cabinet stores approximately 10 life jackets on two hangers. The hangers help to prevent condensation which can lead to accidental inflation. The cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals. The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The 316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers.

The door can be specified with left or right hinging and features a nylon rod handle to pull the door open to guarantee fast access in an emergency even when wearing gloves. Please note: For automatic life jackets stored in vacuum or foil bags we recommend using the JB10LJS or JB10.600LJS instead as these cabinets have shelves instead of hangers.
