Dimensions : Height x width x depth: 626 x 680 x 331 mm                              (24.65 x 26.77 x 13.03″)

Aperture: 460H x 520W mm (18.11 x 20.47″)

Internal depth: 290 mm (11.42″)

Weight : 10Kg (22Lb)

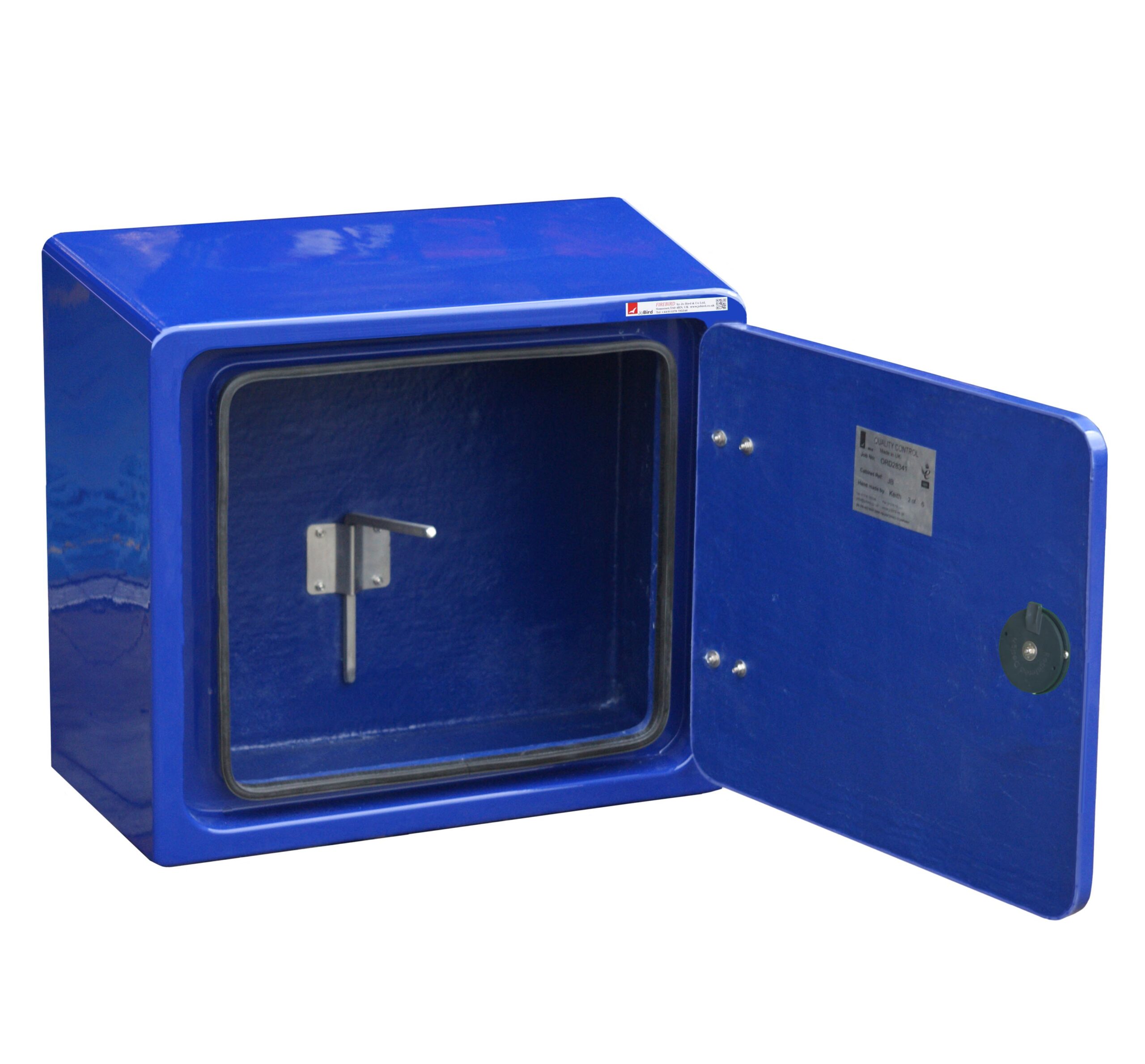

The JB85.360H hose cabinet is fitted with a 316 stainless steel hose pin for 2 X 20-25M Wash down hoses and nozzles. The hose pin helps to maintain the shape of the hoses. They are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in harsh environments on and offshore. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.

The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The hinges are secured with 316 stainless steel nuts, bolts and washers. The door can be specified with left or right hinging and features a graphite nylon rotary handle incorporating Biomaster (R( technology and is easy to open in an emergency when wearing gloves. The handle can also be fitted with an anti-tamper seal.

The cabinet can be fitted with an optional 316 stainless steel door stay which keeps the door locked in the open position and so prevents it blowing around when the cabinet is being inspected or used.
