24-28 x Automatic life jacket cabinet (JB08.600LJ)
Dimensions : Height x width x depth: 1488 x 925 x 618 mm (58.58 x 36.42 x 24.33″)
Aperture: 1234H x 704W mm (48.58 x 27.72″)
Internal depth: 546 mm (21.5″)
Weight : 38Kg (83.6Lb)

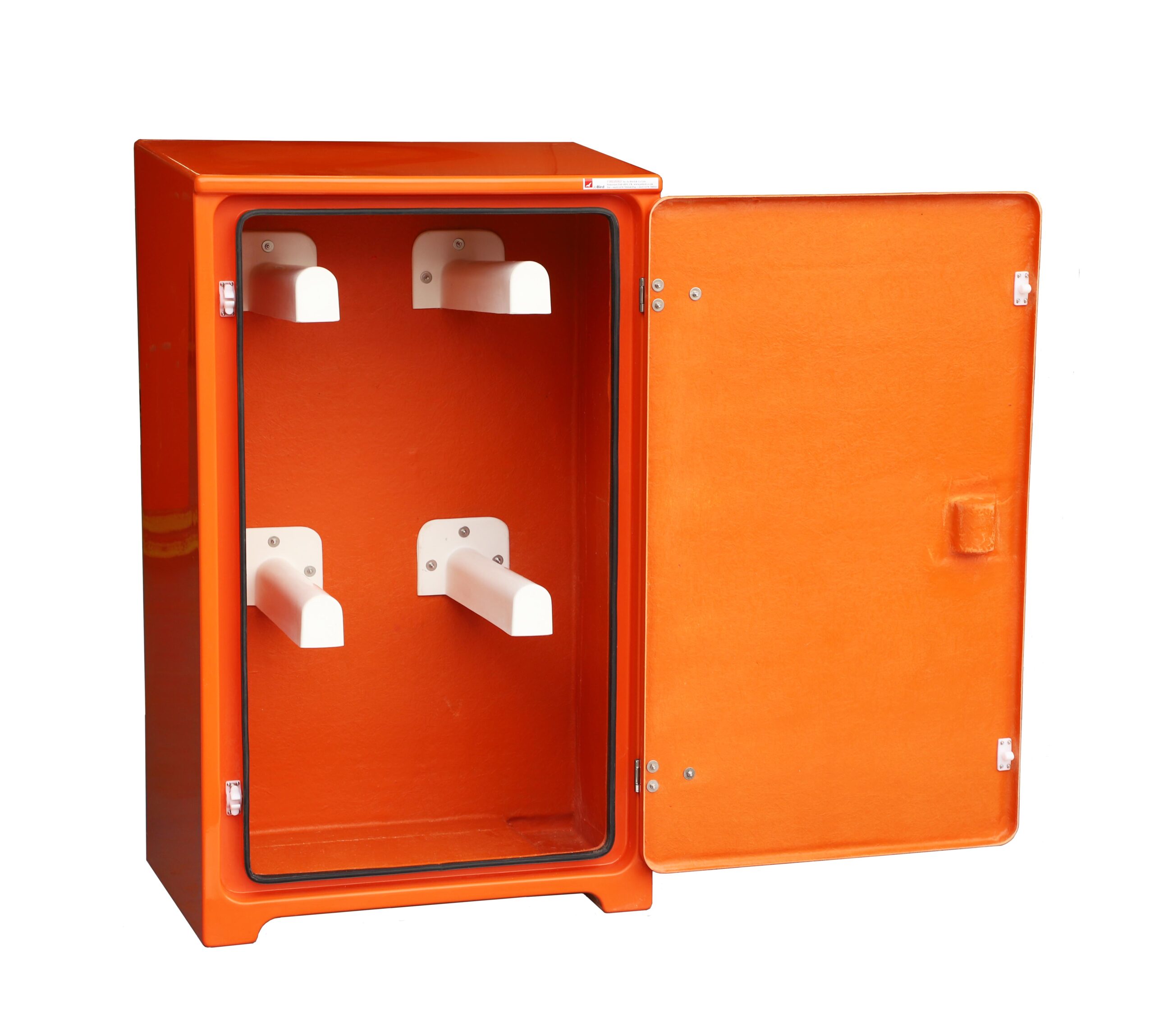

The JB08.600LJ cabinets are fitted with four hangers to store 24-28 automatic life jackets depending on type (not stored in vacuum or foil bags) These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The door can be specified with left or right hinging and features a nylon rod handle to pull the door open to guarantee fast access in an emergency even when wearing gloves. The cabinet can also be manufactured in other colours as well as having further customisation options available including heating and insulation for cold climates. Please ask for details.
For automatic life jackets stored in foil or vacuum bags we recommend using the JB08.750LJS which is fitted with shelves instead of hangers.
For the storage of 24-28 x automatic life jackets (not in bags)
designed to cope with extreme environments offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Orange RAL 2009
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon rod
Seal: EPDM
Hangers
composites
Other RAL Colours
Class 1 Fire retardant composites
Perspex window

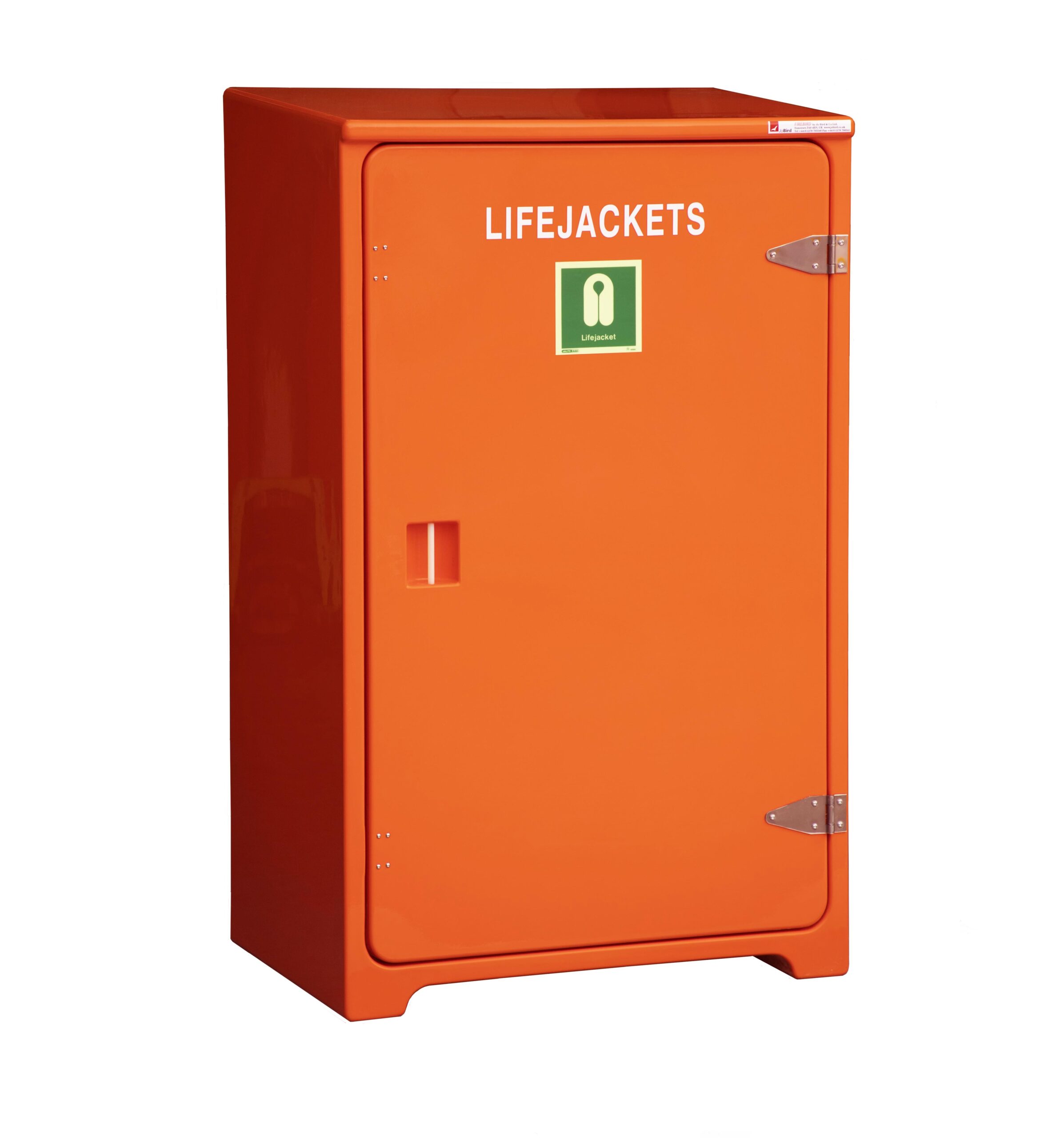

316 Stainless steel 3 way locking IMO Photo-luminescent Life jacket label
For the storage of 24-28 x automatic life jackets (not in bags)
designed to cope with extreme environments offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Orange RAL 2009
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon rod
Seal: EPDM
Hangers
composites
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
316 Stainless steel 3 way locking IMO Photo-luminescent Life jacket label
Additional information
Dimensions | 1488 x 925 x 618 mm (58.58 x 36.42 x 24.33") |
---|---|
Aperture | 1234H x 704W mm (48.58 x 27.72") |
Manufacturer | Dubai, UK |
