30 x Automatic life jacket cabinet (RS300LJ)
Dimensions : Height x width x depth: 2015 x 1385 x 460 mm (79.33 x 54.53 x 18.11″)
Aperture: 1500H x 1210W mm (59.06 x 47.64″)
Internal depth: 400 mm (15.75″)
Weight : 80Kg (176Lb)

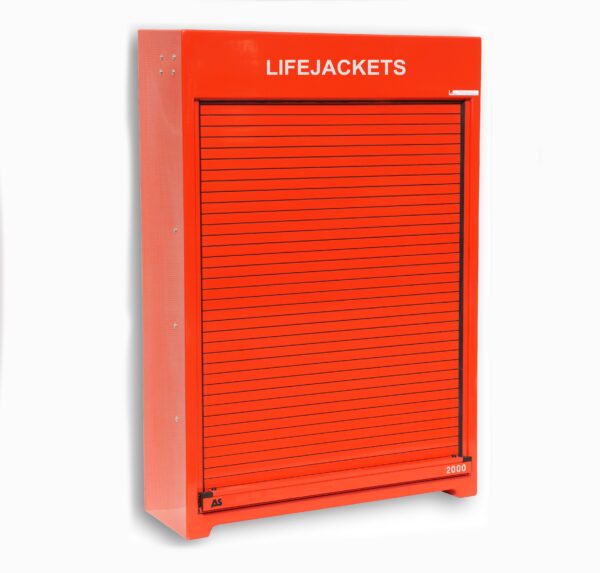

The RS300LJ automatic life jacket cabinet is fitted with a superb AS roller shutter door making access to the contents possible where there would not be room to open a conventional door so ideal for tight spaces. The cabinet comes complete with 6 automatic life jacket hangers for the storage of 30 automatic life jackets (not in vacuum or foil bags). Exact capacity depends on model being stored.
The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.

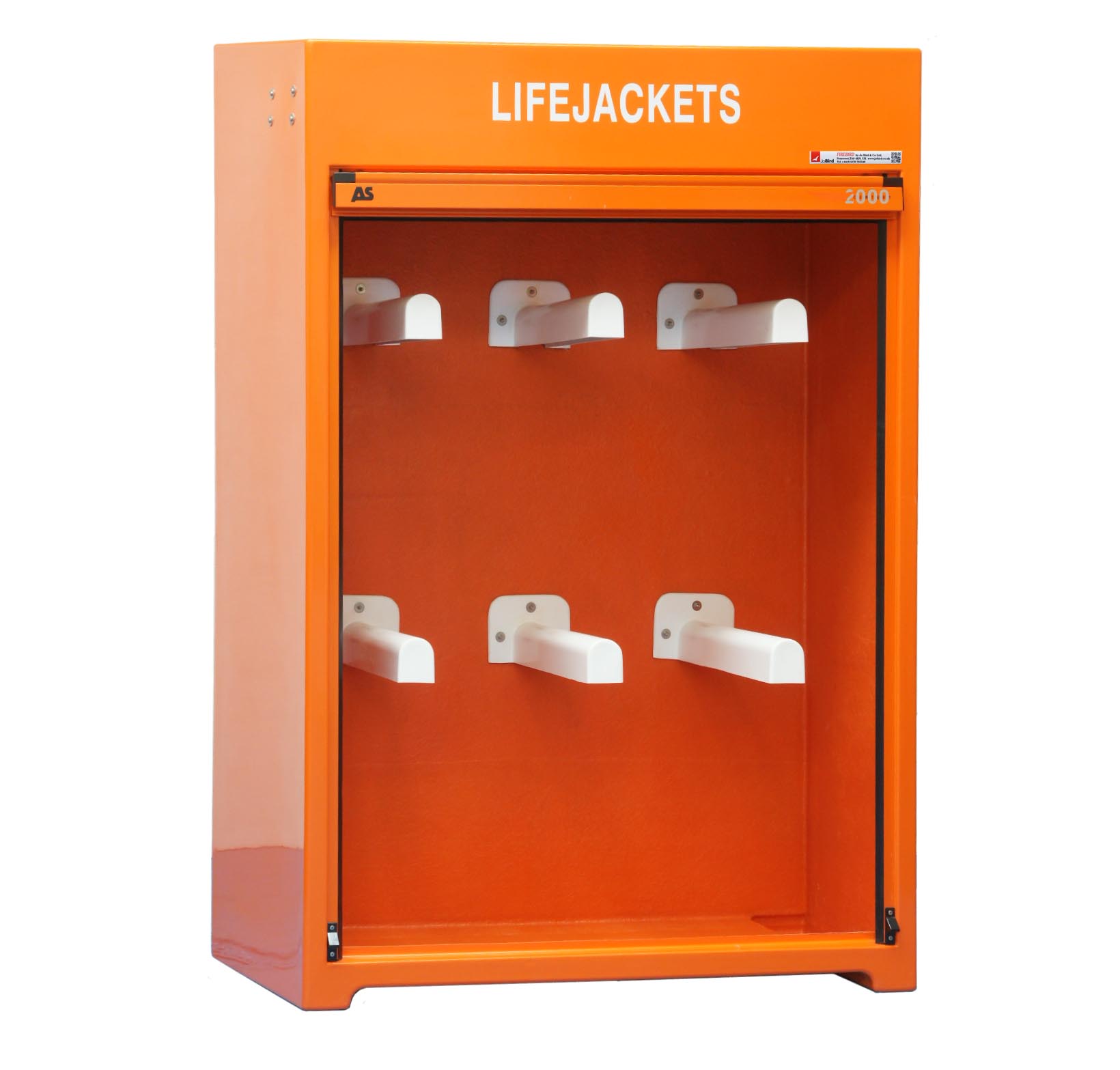

Fitted with 6 automatic life jacket hangers for the storage of automatic life jackets (not in vacuum or foil bags).
designed to cope with extreme environments offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Orange RAL 2009
Material Lloyds approved composites with UV Stabilised gelcoat
Hangers:Composite
RS Roller shutter door: Aluminium
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
vents
Fitted with 6 automatic life jacket hangers for the storage of automatic life jackets (not in vacuum or foil bags).
designed to cope with extreme environments offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Orange RAL 2009
Material Lloyds approved composites with UV Stabilised gelcoat
Hangers:Composite
RS Roller shutter door: Aluminium
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
vents
Additional information
Dimensions | 2015 x 1385 x 460 mm (79.33 x 54.53 x 18.11") |
---|---|
Aperture | 1500H x 1210W mm (59.06 x 47.64") |
Manufacturer | UK |
