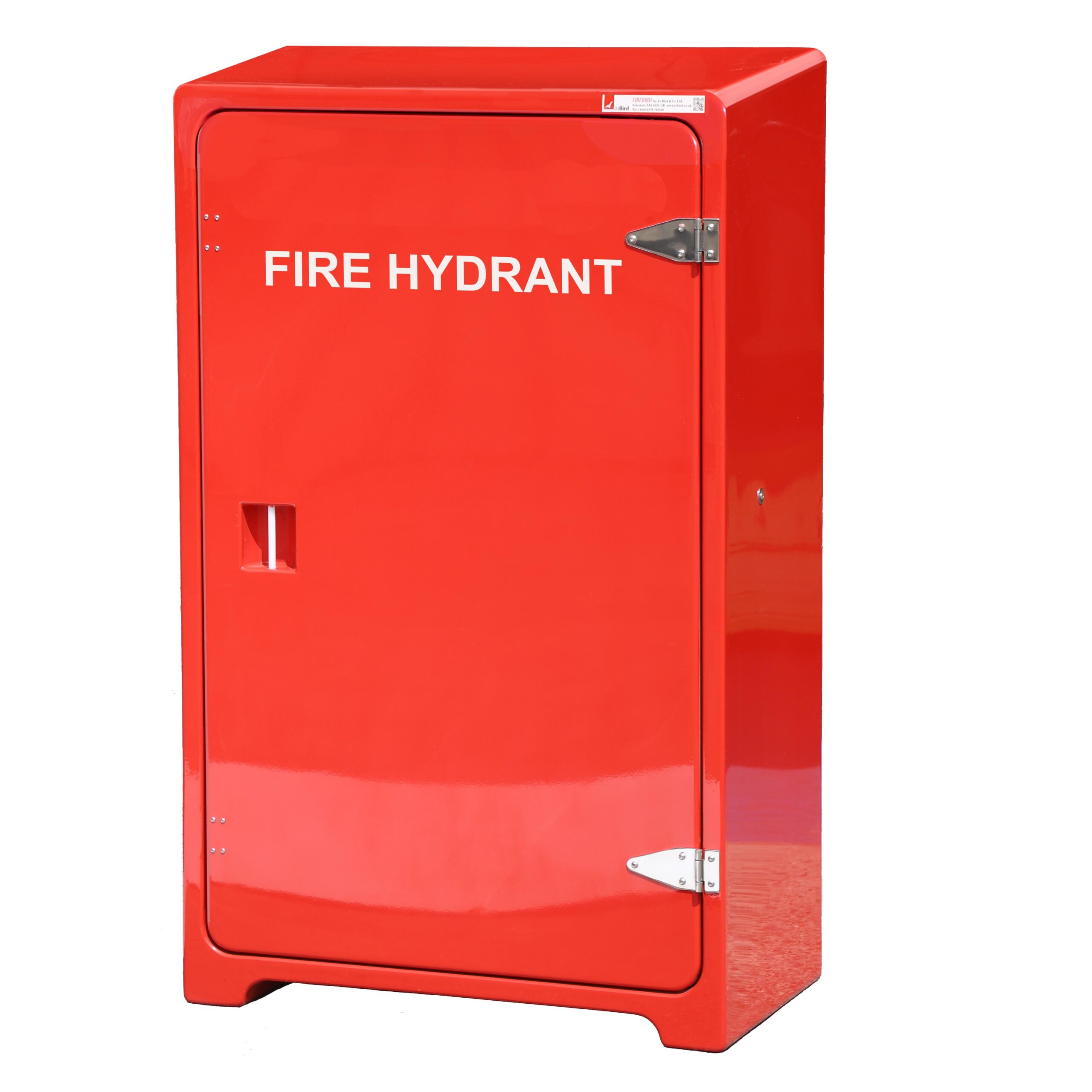

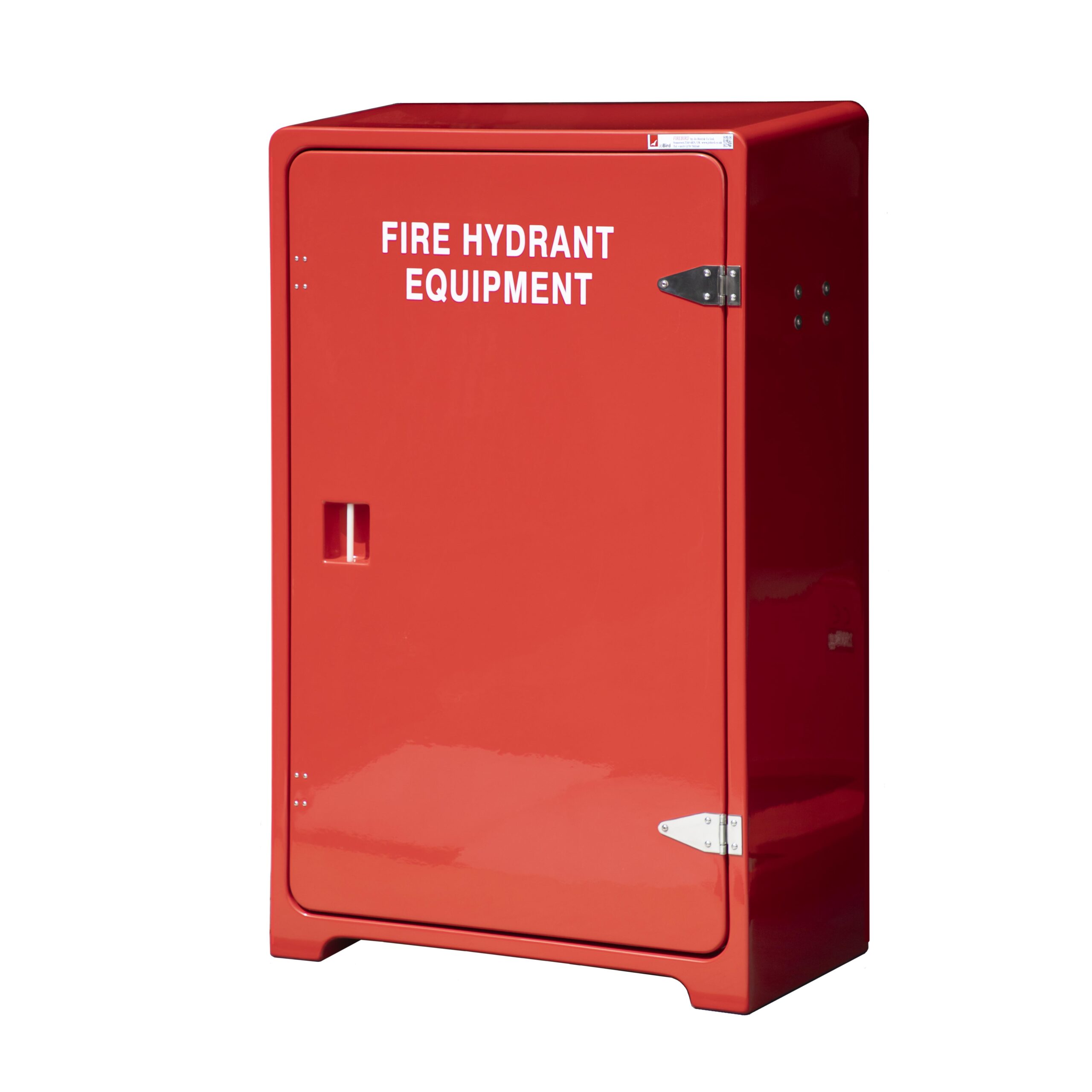

4 x 30M Fire Hose cabinet (JB08H)
Dimensions : Height x width x depth: 1475 x 916 x 442 mm (58.07 x 36.06 x 17.4″)
Aperture: 1234H x 699W mm (48.58 x 27.52″)
Internal depth: 388 mm (15.28″)
Weight : 35Kg (77Lb)

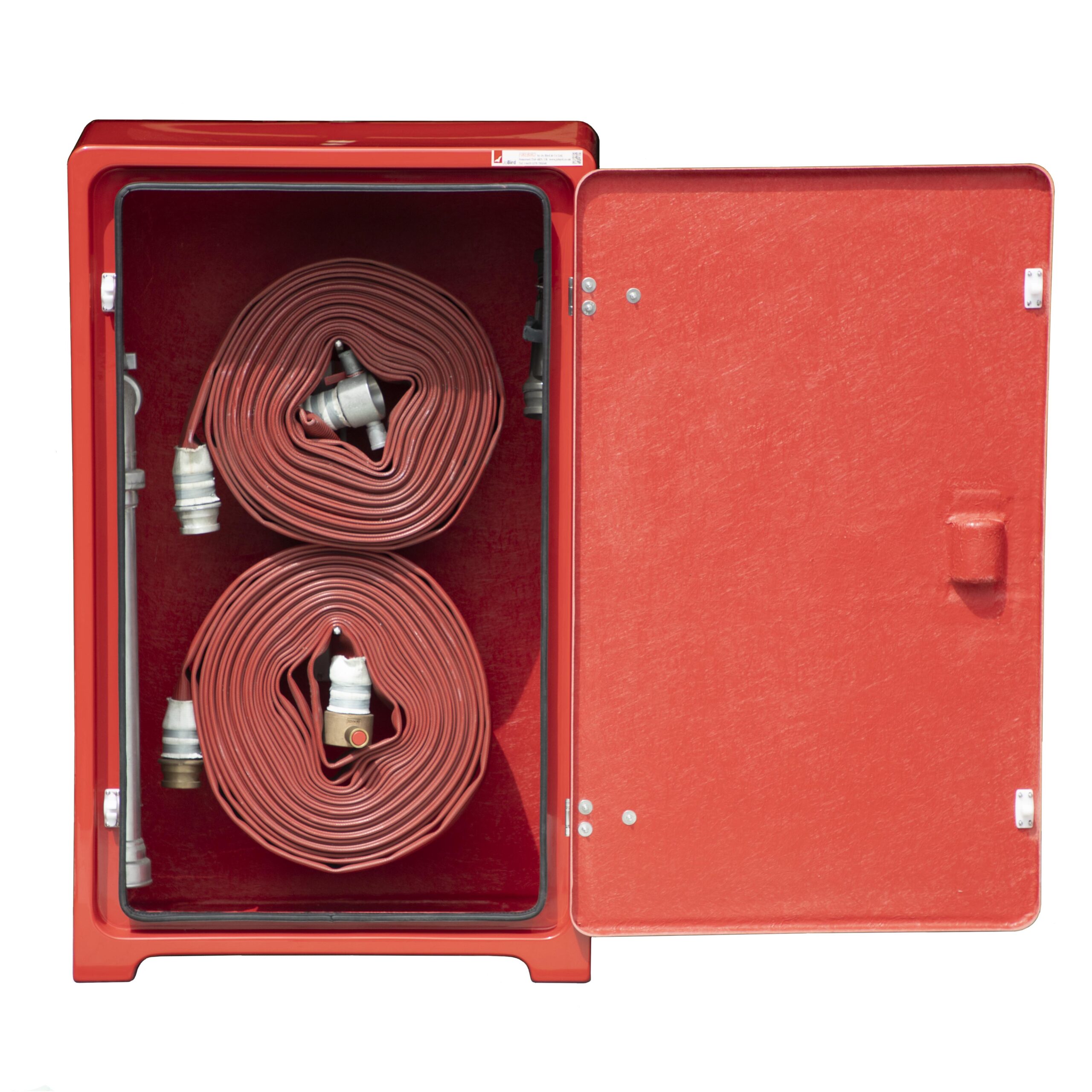

The JB08H Fire hose cabinets are fitted with 2 x 316 stainless steel hose pins for the storage of up to 4 x 303M Fire hoses and nozzles and space for a foam branch. The nozzles and foam branch are securely held by 316 Stainless steel brackets and hooks can be added, if required, for spanners.
The cabinet body and doors are manufactured using Lloyds approved composites including UV resistant gelcoat to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals. The door can be specified with left or right hinging and features a nylon rod handle to pull the door open to guarantee fast access in an emergency even when wearing gloves.
For the storage of 4 x 30M fire hoses and nozzles,
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Hose pins: 316 Stainless steel
Handle: Nylon rod
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
316 Stainless steel 3 way locking
For the storage of 4 x 30M fire hoses and nozzles,
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Hose pins: 316 Stainless steel
Handle: Nylon rod
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
316 Stainless steel 3 way locking
Additional information
| Dimensions | 1475 x 916 x 442 mm (58.07 x 36.06 x 17.4") |
|---|---|
| Aperture | 1234 x 699 mm (48.58 x 27.52") |
| Manufacturer | UK |
