Dimensions : Height x width x depth: 422 x 448 x 213 mm                                (16.61 x 17.64 x 8.39″)

Aperture: 255H x 255W mm (10.04 x 10.04″)

Internal depth: 160 mm (6.3″)

Weight : 6Kg    (13.2Lb)

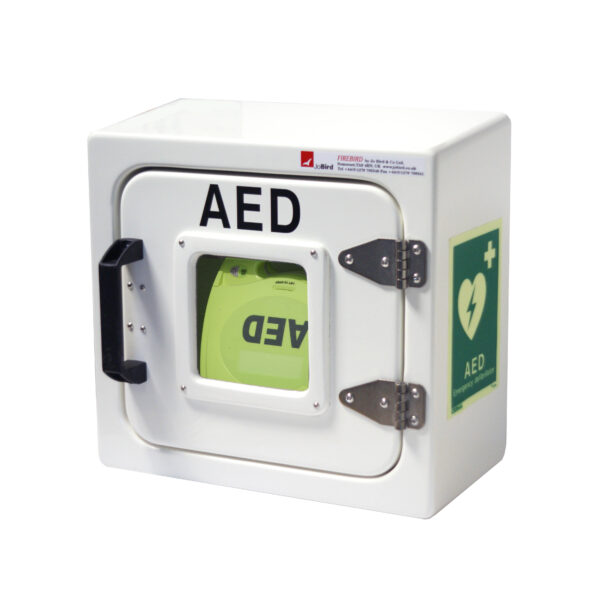

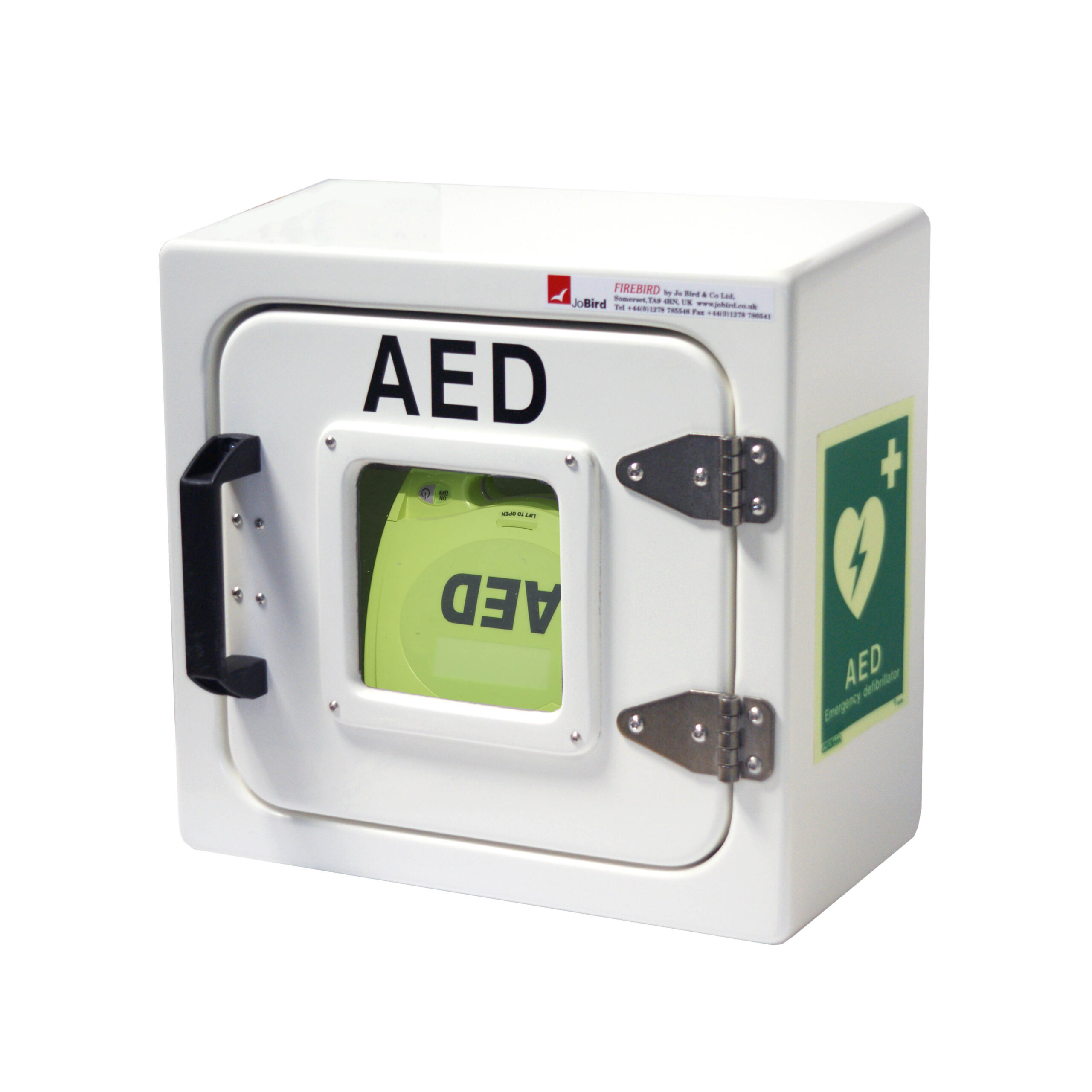

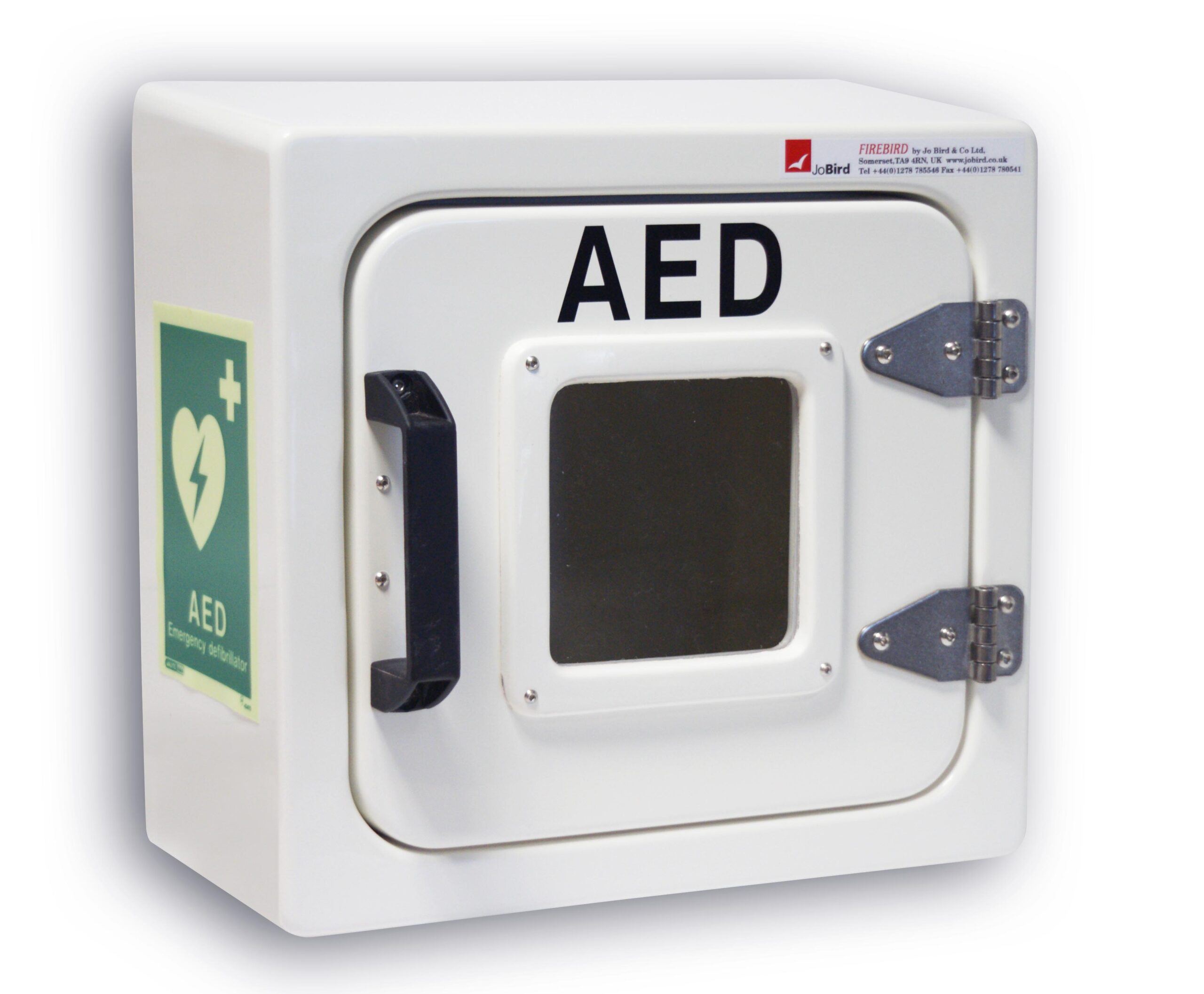

The JB04AED cabinet stores an AED (Defibrillator) and features a clear view window so the device can be seen. It is manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection for the AED in even the harshest on or offshore environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.

The design of this cabinet achieves a high level of rigidity for the relatively low weight and has a high quality bubble type EPDM seal to keep the keep dust and water away from the AED and help to keep it in good working order. The 316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers for long term durability.

The door can be specified with left or right hinging and features a polyamide handle to pull the door open to guarantee fast access in an emergency even when wearing gloves. A key pad lock can be fitted as an optional extra. Please note: The Defibrillator is not included.

This cabinet is only made in the UK. The JB06AED is available as an alternative, from Dubai.
