Dimensions : Height x width x depth: 1780 x 434 x 248  mm                                (70 x 17.1 x 9.8″)

Aperture: 1626H x 250W mm                                                                                  (64 x 9.8″)

Internal depth: 201 mm                                                                                        (7.9″)

Weight : 21Kg                                                                                                        (46.2Lb)

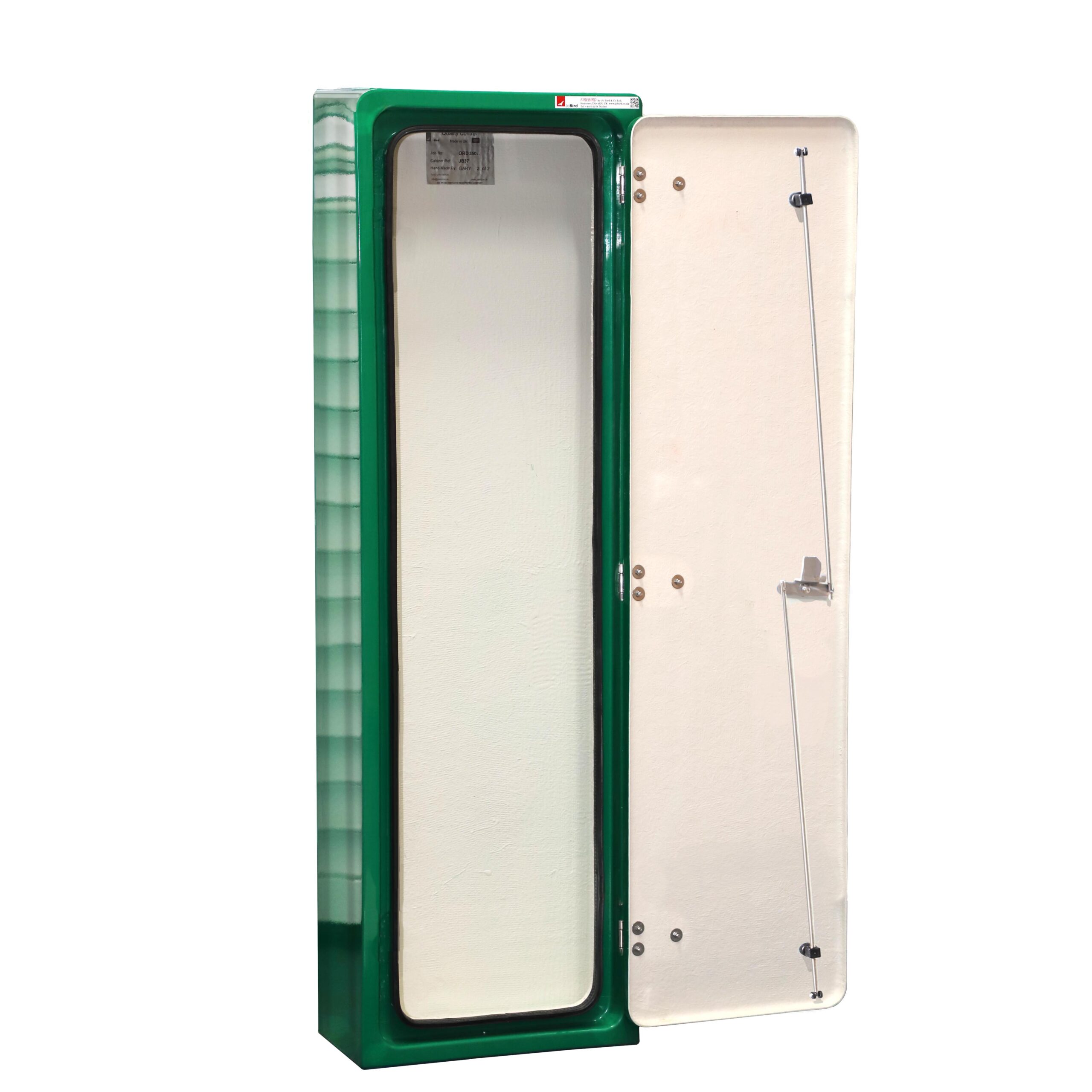

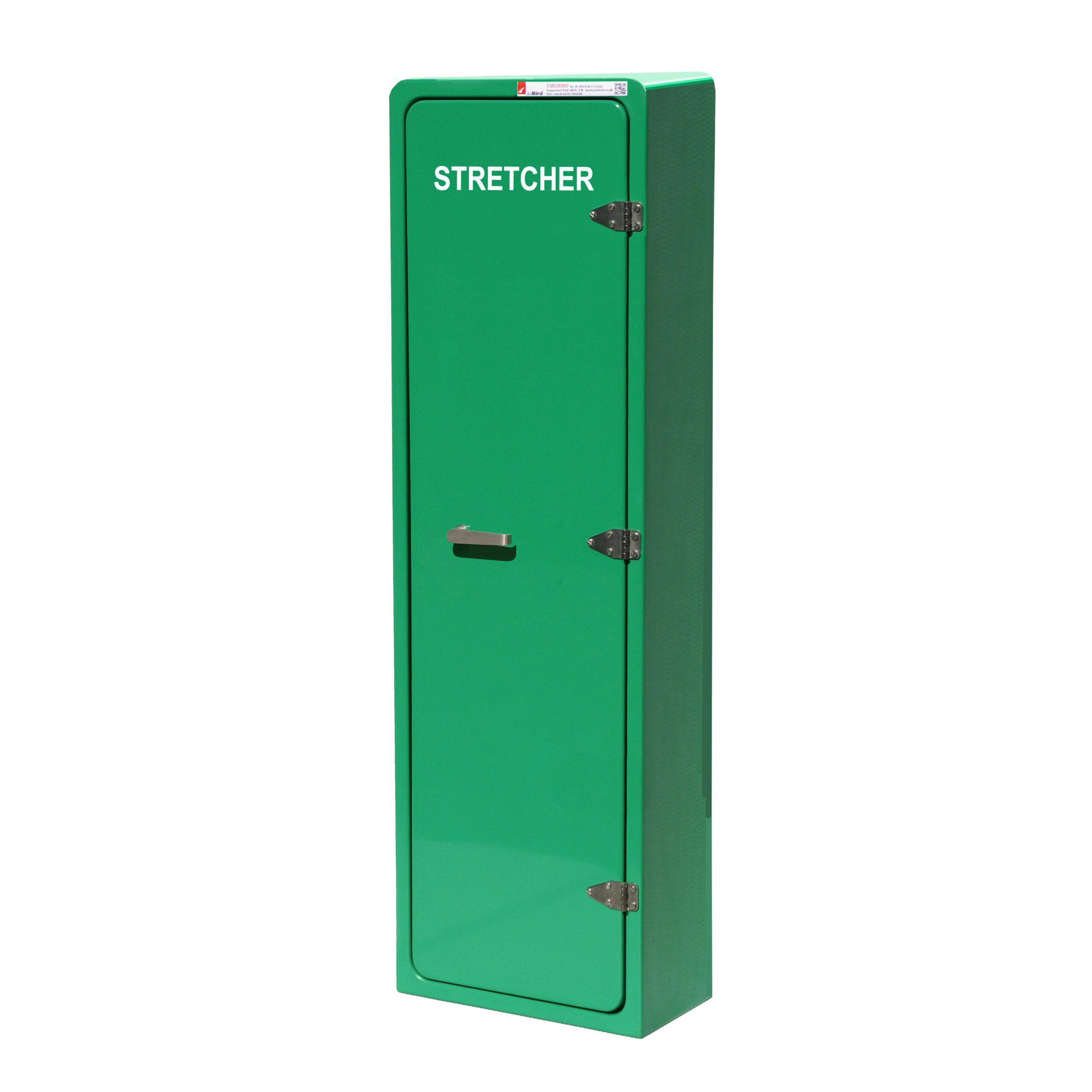

The JB37 stretcher cabinet by Jo Bird is designed to store a folding Neil Robertson type stretcher on board vessels. It has the NATO stock code NSN 99-159-9408. The cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments along with flame retardant resins. This is backed up with an excellent IP rating of 56.It has both Lloyds and ABS approvals.  The door features a three way locking system with a single handle for rapid access in an emergency.

The door can be specified for left or right hinging to fit in confined spaces. The cabinet design offers a very effective combination of corrosion resistance, rigidity but also relatively light weight (compared to a steel cabinet). NATO stock code is NSN:99-159-9408.
