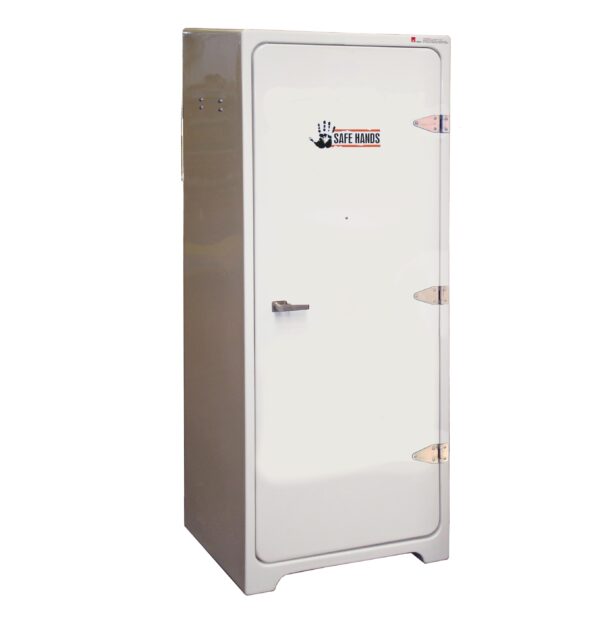

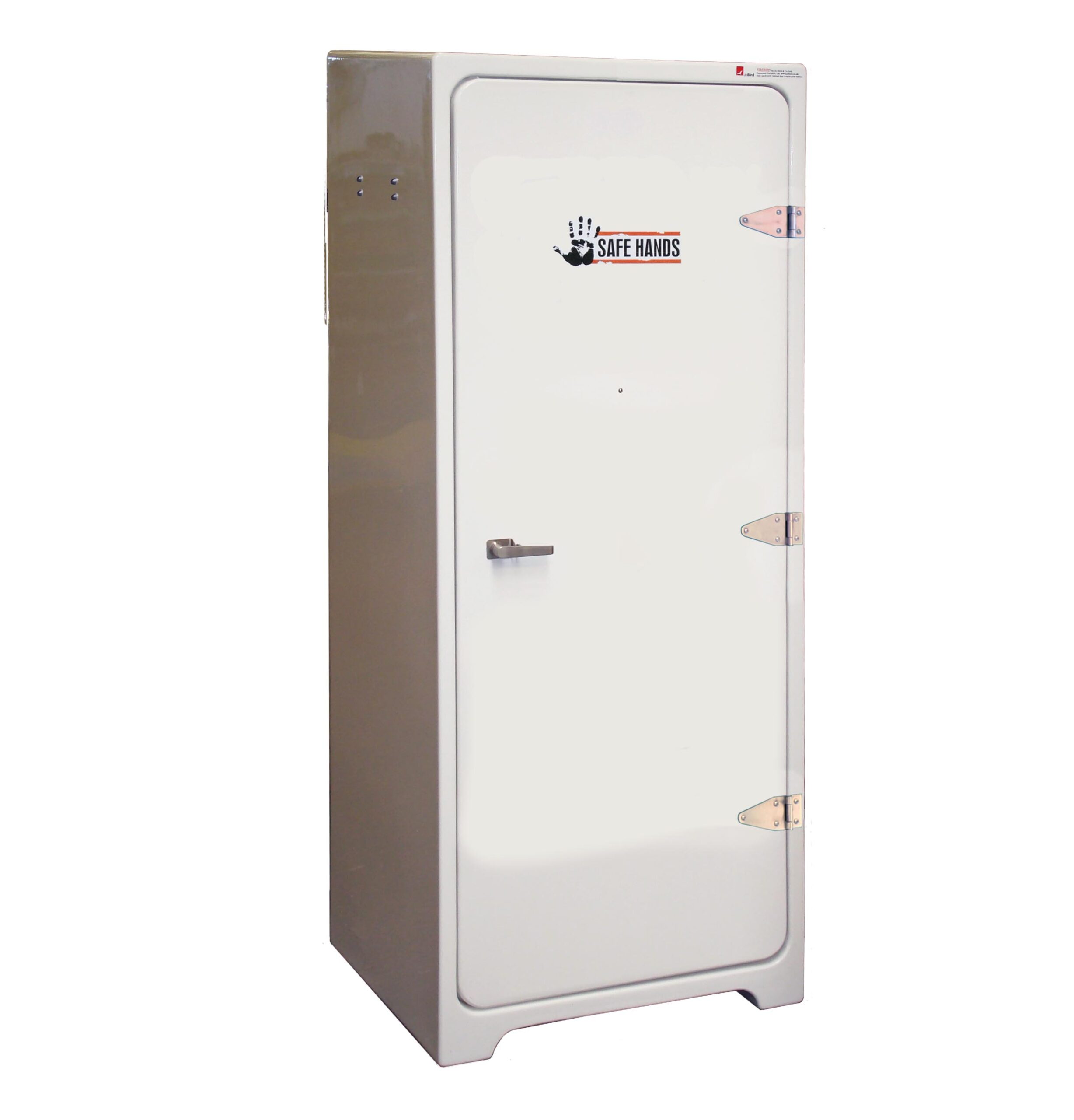

Equipment storage cabinet (JB20)
Dimensions : Height x width x depth: 1927 x 814 x 660 mm (75.87 x 32.05 x 25.98″)
Aperture: 1680H x 600W mm (66.14 x 23.62″)
Internal depth: 593 mm (23.35″)
Weight : 40Kg (88Lb)

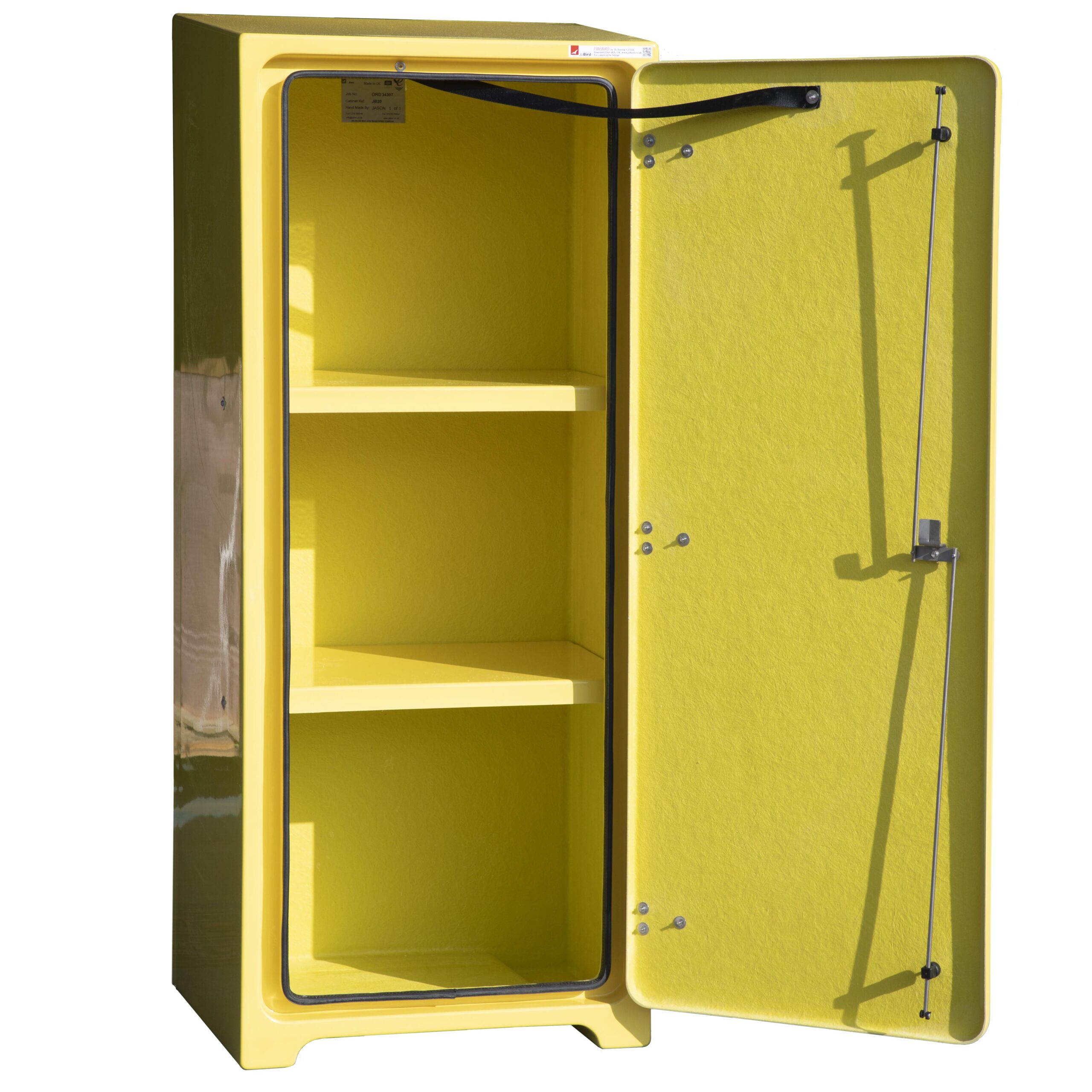

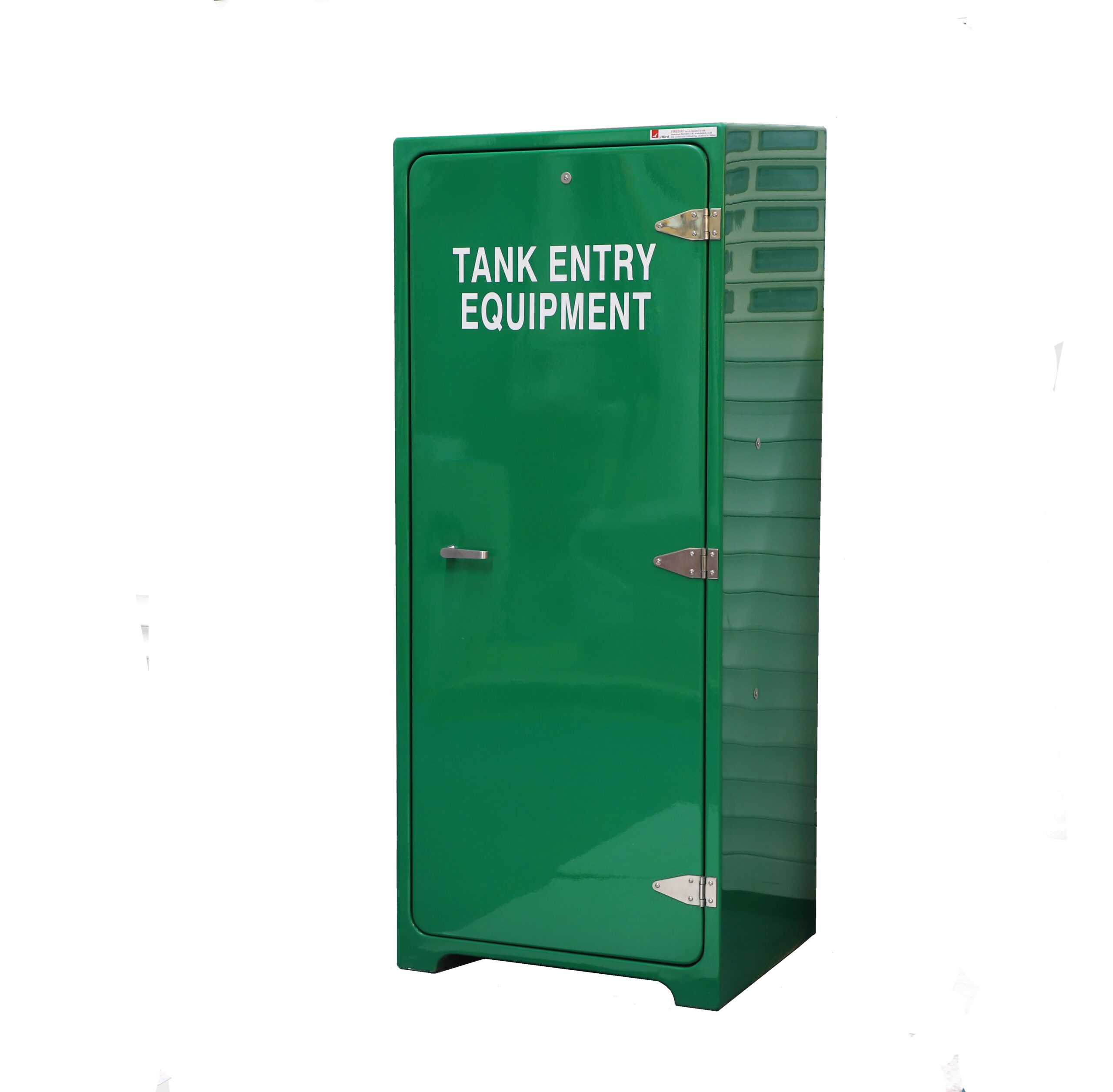

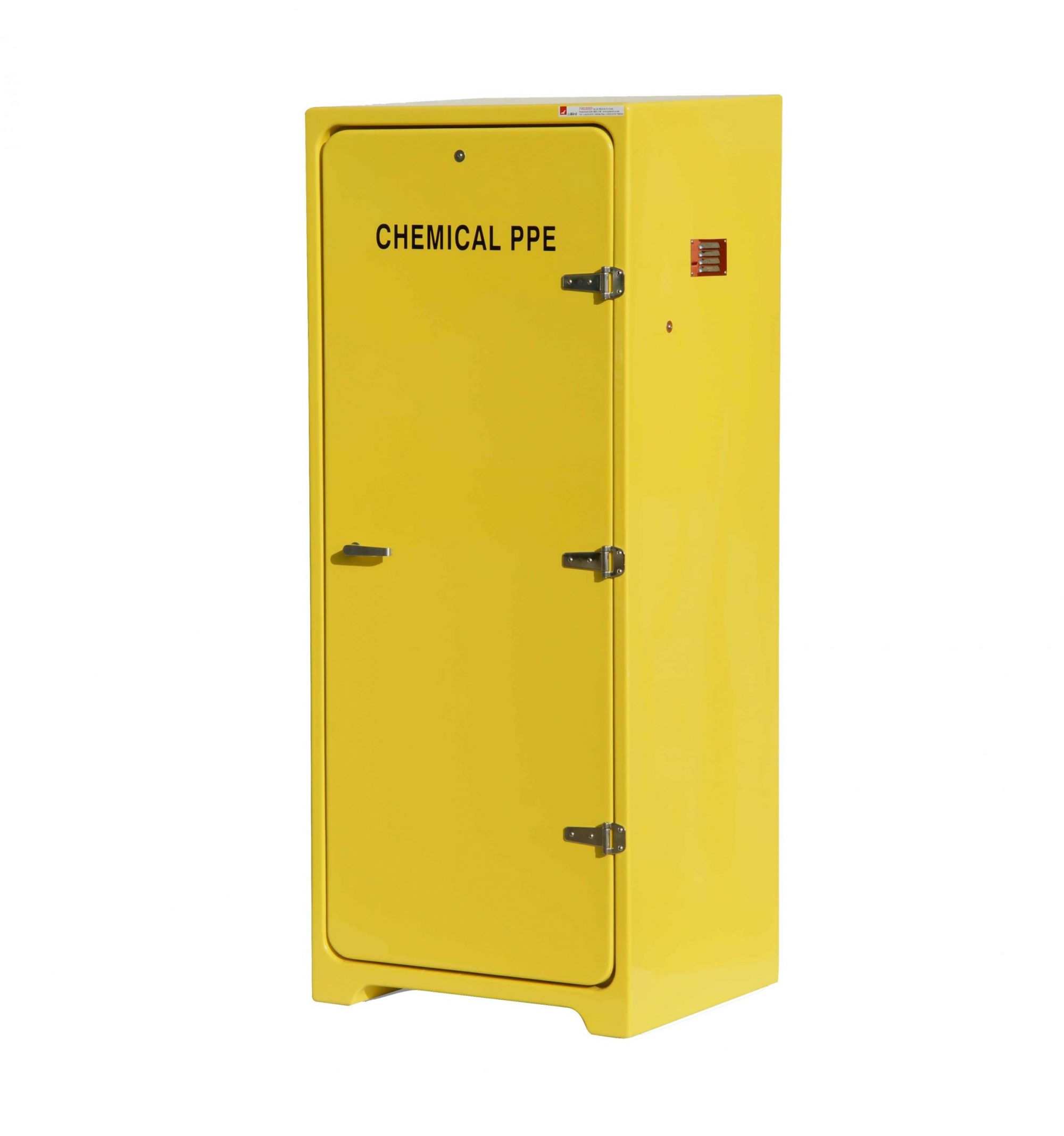

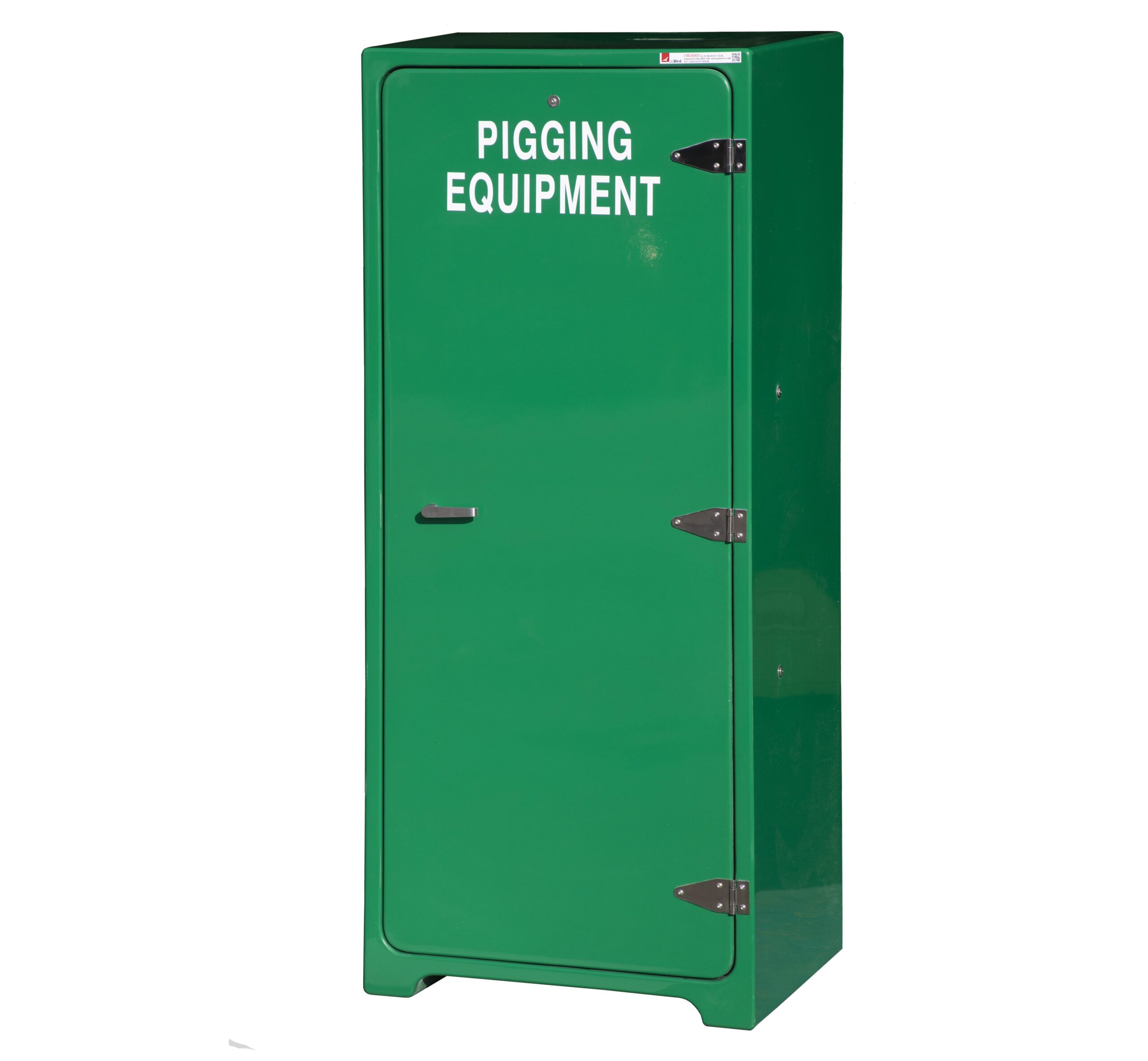

The JB20 equipment storage cabinet can be used for chemical PPE storage, confined entry equipment, cleaning equipment, safe hands tools, spare parts store, descent devices and many other uses. It can be fitted out with shelves and other brackets for tidy storage of a wide variety of safety equipment. Please ask for details.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The door can be manufactured to be left or right hinged and is secured with 316 stainless steel 3 way locking fitted with a single handle to guarantee fast access in an emergency even when wearing gloves.
General purpose storage of safety equipment such as confined entry entry gear and cleaning equipment amongst many other uses.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Choose from a wide range of RAL colours
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
L Handle: 316 Stainless steel
Seal: EPDM
Shelves
brackets
Class 1 Fire retardant composites
Perspex window
Heating and insulation
vents
JB20 Datasheet 2023
General purpose storage of safety equipment such as confined entry entry gear and cleaning equipment amongst many other uses.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Choose from a wide range of RAL colours
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
L Handle: 316 Stainless steel
Seal: EPDM
Shelves
brackets
Class 1 Fire retardant composites
Perspex window
Heating and insulation
vents
JB20 Datasheet 2023
Additional information
| Dimensions | 1000 x 1050 x 850 mm, 1029 x 335 x 318mm, 1076 x 463 x 320 mm, 1076 x 463 x 320 mm (42.36 x 18.23 x 12.6"), 1078 x 437 x 345 mm, 1079 x 815 x 305 mm, 1085 x 925 x 353 mm, 1085 x 925 x 353 mm (42.72 x 36.42 x 13.9"), 1296 x 698 x 392 mm, 1296 x 698 x 392 mm (51.02 x 27.5 x 15.43"), 1300 x 1300 x 425 mm, 1302 x 788 x 469 mm, 1304 x 788 x 469 mm, 1308 x 790 x 629, 1322 x 812 x 600, 1400 x 1000 x 350 mm, 1460 x 940 x 770 mm, 1474 x 918 x 479 mm, 1475 x 916 x 442 mm (58.07 x 36.06 x 17.4 inches), 1488 x 925 x 618 mm, 15.35 x 9.25 x 12.32", 1503 x 935 x 768 mm, 1520 x 1005 x 912 mm, 1525 x 1005 x 932 mm, 1550 x 776 x 491 mm, 1550 x 776 x 491 mm (61.02 x 30.55 x 19.33"), 1552 x 1007 x 1350 mm, 1620 x 798 x 460 mm, 1663 x 235 x 313 mm, 1765 x 903 x 460, 1765 x 903 x 460 mm (69.49 x 35.55 x 18.11"), 1775 x 908 x 600 mm, 1795 x 2450 x 600 mm (70.67 x 96.46 x 23.62"), 1831 x 1034 x 785 mm, 1831 x 1034 x 785 mm (72.09 x 40.71 x 30.91"), 1927 x 814 x 660 mm, 1927 x 814 x 660 mm (75.87 x 32.05 x 25.98"), 20.08 x 22.05 x 7.56 inches, 20.63 x 22.09 x 7.8 inches, 2000 x 1090 x 450 mm, 2010 x 1055 x 760 mm, 2010 x 1055 x 760 mm (79.13 x 41.54 x 29.92"), 2015 x 1385 x 460, 2015 x 1385 x 460 mm, 2015 x 1385 x 460mm (79.33 x 54.53 x 18.11 inches), 2020 x 1390 x 600 mm, 2024 x 1395 x 1400 mm, 2024 x 1395 x 950 mm, 2024 x 1395 x 950 mm (79.69 x 54.92 x 37.4"), 2025 x 1395 x 600 mm, 2030 x 1405 x 950 mm, 2030 x 1425 x 1400 mm, 2035 x 1395 x 750 mm, 2050 x 1395 x 1200, 2050 x 1395 x 1200 mm, 2050 x 1395 x 1200 mm (80.71 x 54.92 x 47.24 inches), 2060 x 1425 x 1200 mm, 24.13 x 26.38 x 7.28 inches, 26.61 x 93.90 x 34.84 inches, 27.56 x 27.56 x 7.87 inches, 29.53 x 58.27 x 41.34", 31.46 x 14.72 x 11.02 inches, 31.54 x 93.9 x 34.84", 31.85 x 31.3 x 6.89 inches, 33.46 x 33.46 x 7.87 inches, 35.43 x 94.29 x 35.04", 36.18 x 45.28 x 29.53", 36.61 x 36.14 x 8.27", 36.89 x 32.87 x 13.66 inches, 36.89 x 32.87 x 13.66", 361 x 276 x 150 mm, 361 x 276 x 150 mm (14.21 x 10.87 x 5.91"), 37.32 x 18.58 x 8.54 inches, 390 x 235 x 313 mm, 40.51 x 13.19 x 12.52", 422 x 448 x 213 mm, 422 x 448 x 213 mm (16.61 x 17.64 x 8.39"), 450 x 1000 x 451 mm, 475 x 995 x 615 mm, 51.02 x 27.48 x 15.43 inches, 510 x 560 x 192 mm, 524 x 561 x 198 mm, 524 x 561 x 198 mm (20.63 x 22.09 x 7.8 inches), 58.03 x 36.14 x 18.86", 605 x 935 x 480 mm, 605 x 935 x 480 mm (23.82 x 36.81 x 18.8 inches), 610 x 490 x 550 mm, 613 x 670 x 185 mm, 625 x 528 x 240 mm, 625 x 528 x 240 mm (24.6 x 20.79 x 9.45 inches), 626 x 680 x 331mm, 630 x 716 x 216 mm, 640 x 447 x 283 mm, 643 x 726 x 362 mm, 676 x 2385 x 885 mm, 686 x 2081 x 815 mm, 686 x 2081 x 815 mm (27 x 81.93 x 32.09 inches), 695 x 1000 x 580 mm, 695 x 1000 x 580 mm (27.36 x 39.37 x 22.83 inches), 700 x 700 x 200 mm, 737 x 1030 x 982 mm, 748 x 346 x 222 mm, 748 x 346 x 222 mm (29.45 x 13.62 x 8.74"), 750 x 1480 x 1050 mm, 762 x 282 x 211 mm, 773 x 426 x 314 mm, 773 x 426 x 314 mm (30.43 x 16.77 x 12.36"), 780 x 995 x 620 mm, 788 x 1150 x 750 mm, 788 x 1150 x 750 mm (31.02 x 45.28 x 29.53 inches), 799 x 374 x 279 mm, 799 x 374 x 280 mm, 800 x 373 x 277 mm, 801 x 2385 x 885 mm, 809 x 795 x 175 mm, 816 x 548 x 344 mm, 816 x 548 x 344 mm (32.13 x 21.57 x 13.54"), 850 x 850 x 200 mm, 857 x 1070 x 435 mm, 857 x 1070 x 435 mm (33.74 x 42.13 x 17.13"), 860 x 1430 x 930 mm, 875 x 1480 x 1050 mm, 900 x 2395 x 890 mm, 919 x 1150 x 750 mm, 920 x 835 x 316, 920 x 835 x 316 mm (36.22 x 32.87 x 12.44 inches), 930 x 918 x 210 mm, 935 x 537 x 365 mm (36.81 x 21.14 x 14.37"), 937 x 835 x 347, 937 x 835 x 347 mm, 937 x 835 x 347 mm (36.89 x 32.87 x 13.66 inches), 942 x 572 x 483 mm, 948 x 472 x 271 mm, 961 x 552 x 330 mm, 961 x 552 x 330 mm (37.83 x 21.73 x 12.99"), 968 x 469 x 345 mm, 970 x 470 x 345 mm (38.19 x 18.5 x 13.58") |
|---|---|
| Aperture | 1052H x 570W, 1060 x 490 mm (41.73 x 19.29"), 1060H x 490W, 1063H x 570W, 1085 x 608 mm (42.72 x 23.94"), 1085 x 608W, 1085H x 594W, 1097H x 1097W, 1194H x 712W, 1223 x 745 mm (48.15 x 29.33"), 1223H x 745W, 1228H x 745W, 1234 x 699 mm (48.58 x 27.52 inches), 1234H x 704W, 1362H x 724W, 14.72 x 16.3 inches, 1400H x 811W, 1500H x 1210W, 1500H x 1210W mm (59.06 x 47.64"), 1500H x 824W, 1500H x 824W mm (59.06 x 32.44"), 1515 x 1210 mm (59.65 x 47.63 inches), 1515H x 1185W, 1515H x 1210W, 1530H x 902W, 1583 x 812 mm (62.32 x 31.97"), 1583H x 812W, 1680H x 600W, 1680H x 600W mm (66.14 x 23.62"), 1735H x 1155W, 1739 x 1164 mm (68.46 x 45.83 inches), 1739H x 1164W, 18.11 x 20.47 inches, 21.54 x 41.69", 2294H x 680W, 2295H x 675W, 25.04 x 8.58 inches, 255 x 255 mm (10.04 x 10.04"), 255H x 255W, 29.72 x 24.8", 29.76 x 24.72 inches, 31.93 x 12.44 inches, 312 x 232 mm (12.28 x 9.13"), 312H x 232W, 33.07 x 54.09", 374W x 414W, 381H x 401W, 41.73 x 19.29 inches, 415 x 875 mm (16.34 x 34.45 inches), 415H x 875W, 448 x 523 mm (17.64 x 20.59"), 460H x 520W mm, 470 x 335 mm (18.5 x 13.19 inches), 470H x 335W, 48.58 x 27.72", 491H x 302W, 524H x 224W, 524H x 224W mm (20.63 x 8.82"), 547 x 1059 mm (21.54 x 41.69 inches), 547H x 1059W, 580 x 388, 580 x 388 mm (22.83 x 15.28"), 625 x 528 x 240, 635 x 1935 mm (25 x 76.18 inches), 635H x 1935W, 636 x 218 mm, 650H x 391W, 655H x 275W, 655H x 275W mm (25.79 x 10.83"), 659H x 236W, 662 x 395 mm (26.06 x 15.55"), 662H x 395W, 675 x 730 mm (26.57 x 28.74"), 675H x 730W, 692 x 868 mm (27.24 x 34.17"), 692H x 868W, 755 x 630 mm (29.72 x 24.8"), 755 x 676 mm (29.72 x 26.61"), 755H x 630W, 756H x 628W, 757 x 365 mm (29.8 x 14.37"), 757H x 365W, 758 x 650 mm (29.84 x 25.59"), 793H x 833W, 795H x 273W, 800H x 312W mm (31.5" x 12.28"), 811H x 316W, 840D x 1382W, 840H x 1382W, 874 x 354 mm (34.41 x 13.94 inches), 874H x 354W, 890H x 612W, 895 x 259 mm (35.24 x 10.2"), 895H x 259W, 90.31 x 26.77", 90.35 x 26.57 inches, 90.35 x 26.57", 922 x 295, 946 x 346 mm (37.24 x 13.62 inches), 946H x 346W, 958H x 826W |
| Manufacturer | Dubai, UK |
