General purpose equipment cabinet (RS300)
Dimensions : Height x width x depth: 2015 x 1385 x 460 mm (79.33 x 54.53 x 18.11″)
Aperture: 1500H x 1210W mm (59.06 x 47.64″)
Internal depth: 400 mm (15.75″)
Weight : 80Kg (176Lb)
The RS300 general purpose equipment cabinet can be adapted to store a wide range of equipment including immersion suits, emergency descent devices and a lot of other equipment too. If you have a list of equipment you need to store, the Jo Bird sales team will work out the best internal layout to suit this. It is fitted with a superb AS roller shutter door making access to the contents possible where there would not be room to open a conventional door so ideal for tight spaces.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.

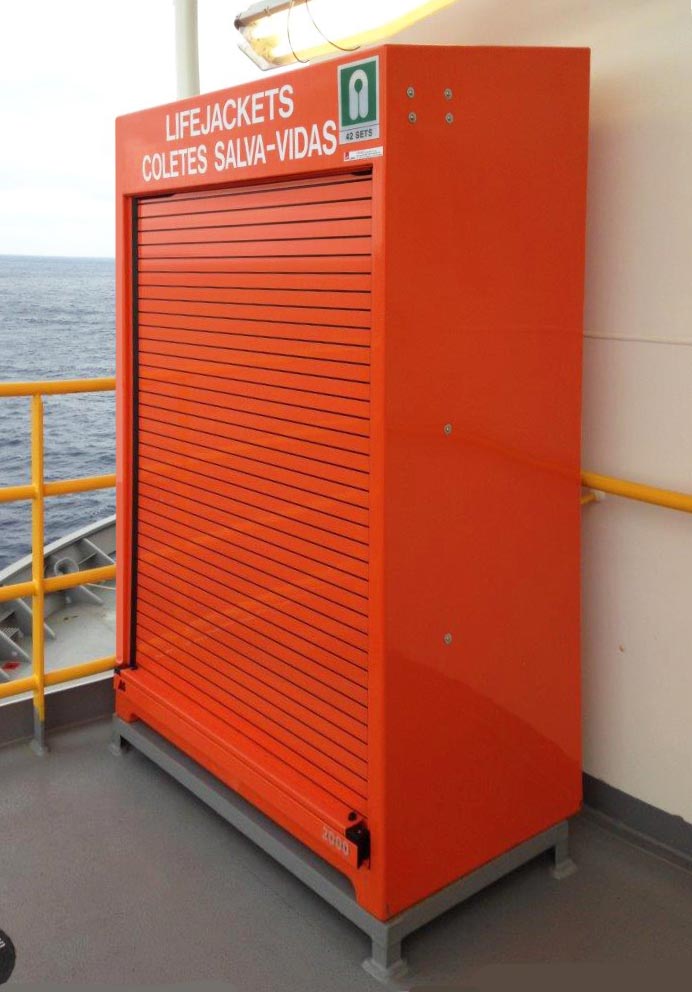

For the storage of a wide range of equipment offshore including lifejackets and immersion suits.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: TBC
Material Lloyds approved composites with UV Stabilised gelcoat
Composite
RS Roller shutter door: Aluminium
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Shelves and brackets
Heating and insulation
vents
RS300 GP Datasheet 2022
For the storage of a wide range of equipment offshore including lifejackets and immersion suits.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: TBC
Material Lloyds approved composites with UV Stabilised gelcoat
Composite
RS Roller shutter door: Aluminium
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Shelves and brackets
Heating and insulation
vents
RS300 GP Datasheet 2022
Additional information
Dimensions | 2015 x 1385 x 460 mm (79.33 x 54.53 x 18.11") |
---|---|
Aperture | 1500H x 1210W mm (59.06 x 47.64") |
Manufacturer | UK |
