Helicopter luggage cabinet (RS300.1200)

Dimensions : Height x width x depth: 2050 x 1395 x 1200 mm                          (80.71 x 54.92 x 47.24″)

Aperture: 1515H x 1210W mm (59.65 x 47.64″)

Internal depth: 1147 mm (45.16″)

Weight : 117Kg (257.4Lb)

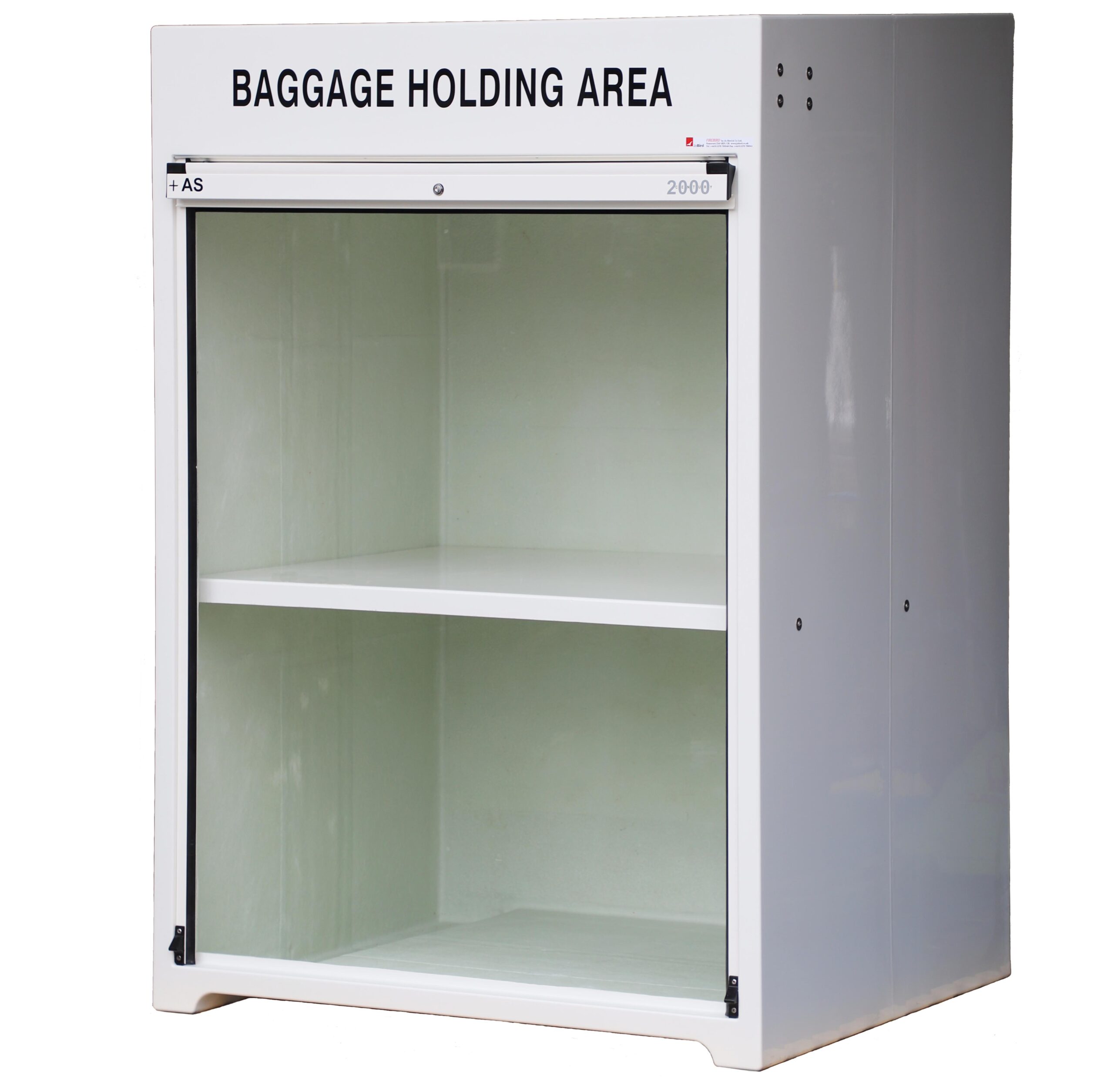

The RS300.1200 luggage cabinet is fitted with a central shelf to create two compartments for storing helicopter luggage. Comes complete with a superb AS roller shutter door for easy access in confined spaces where conventional doors would be in the way. The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals. If additional security is required, the rollers shutter door can be fitted with an optional lock.

Typical uses

For the storage of helicopter baggage.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability

Material specification

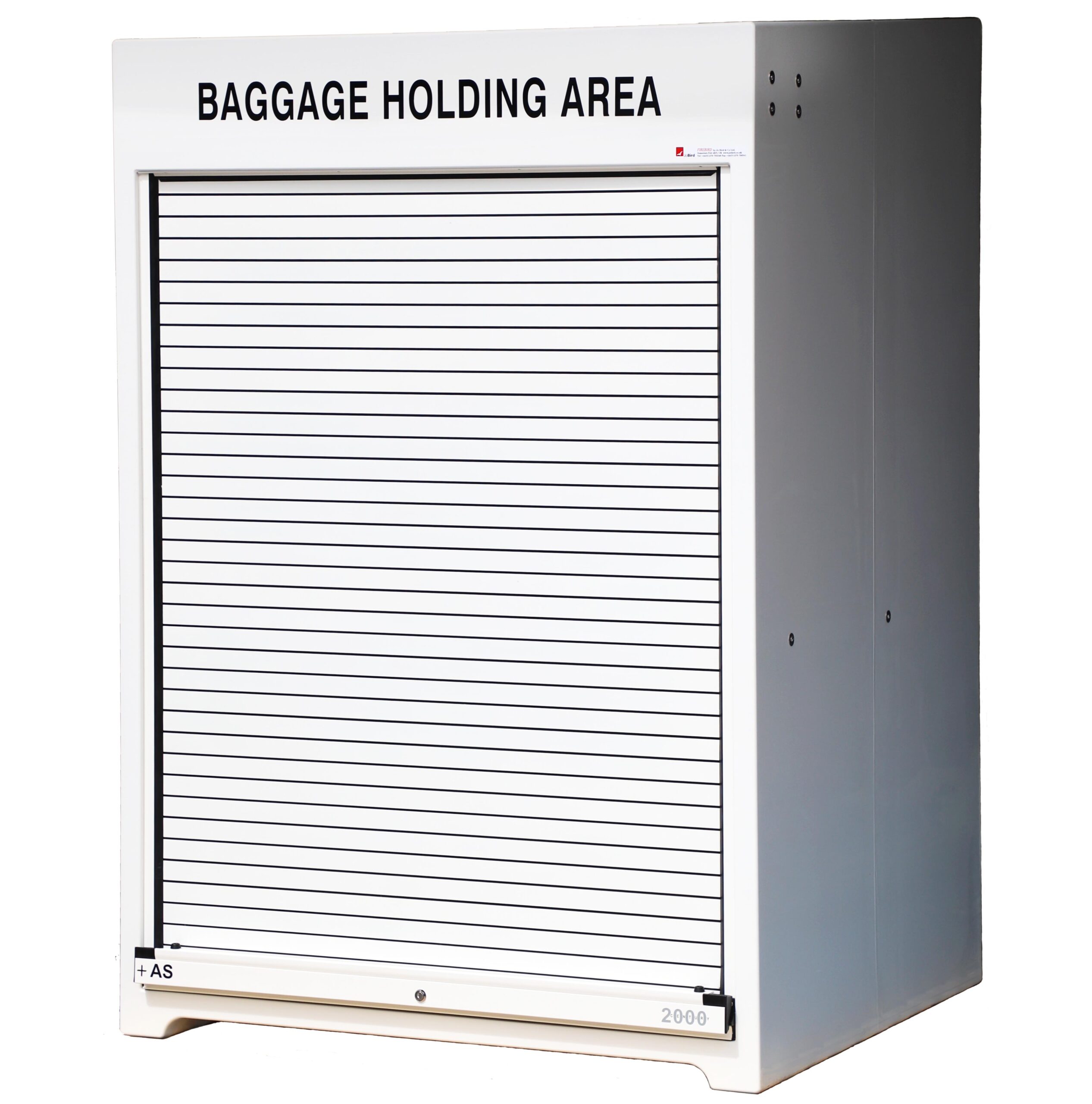

Colour: White RAL 9010
Material Lloyds approved composites with UV Stabilised gelcoat
RS Roller shutter door:
Aluminium
Seal: EPDM
Optional extras

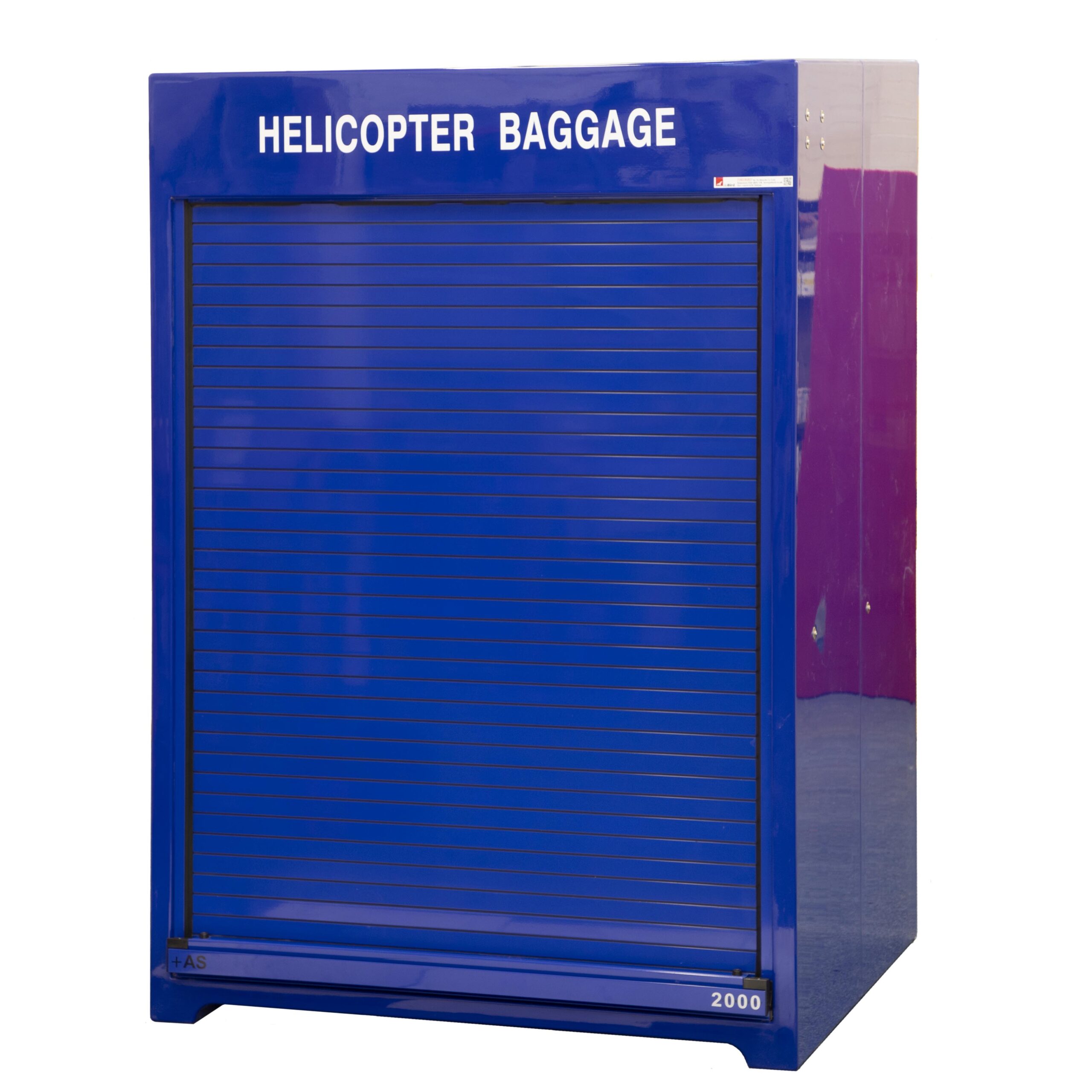

Other RAL Colours
Additional shelves
Class 1 Fire retardant composites
lockable roller door
vents

RS300.1200 Baggage Datasheet 2022

Typical uses

For the storage of helicopter baggage.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability

Material specification
Colour: White RAL 9010
Material Lloyds approved composites with UV Stabilised gelcoat
RS Roller shutter door:
Aluminium
Seal: EPDM
Optional extras
Other RAL Colours
Additional shelves
Class 1 Fire retardant composites
lockable roller door
vents

RS300.1200 Baggage Datasheet 2022

Additional information

Dimensions

2050 x 1395 x 1200 mm (80.71 x 54.92 x 47.24")

Aperture

1515 x 1210 mm (59.65 x 47.63")

Manufacturer

UK
