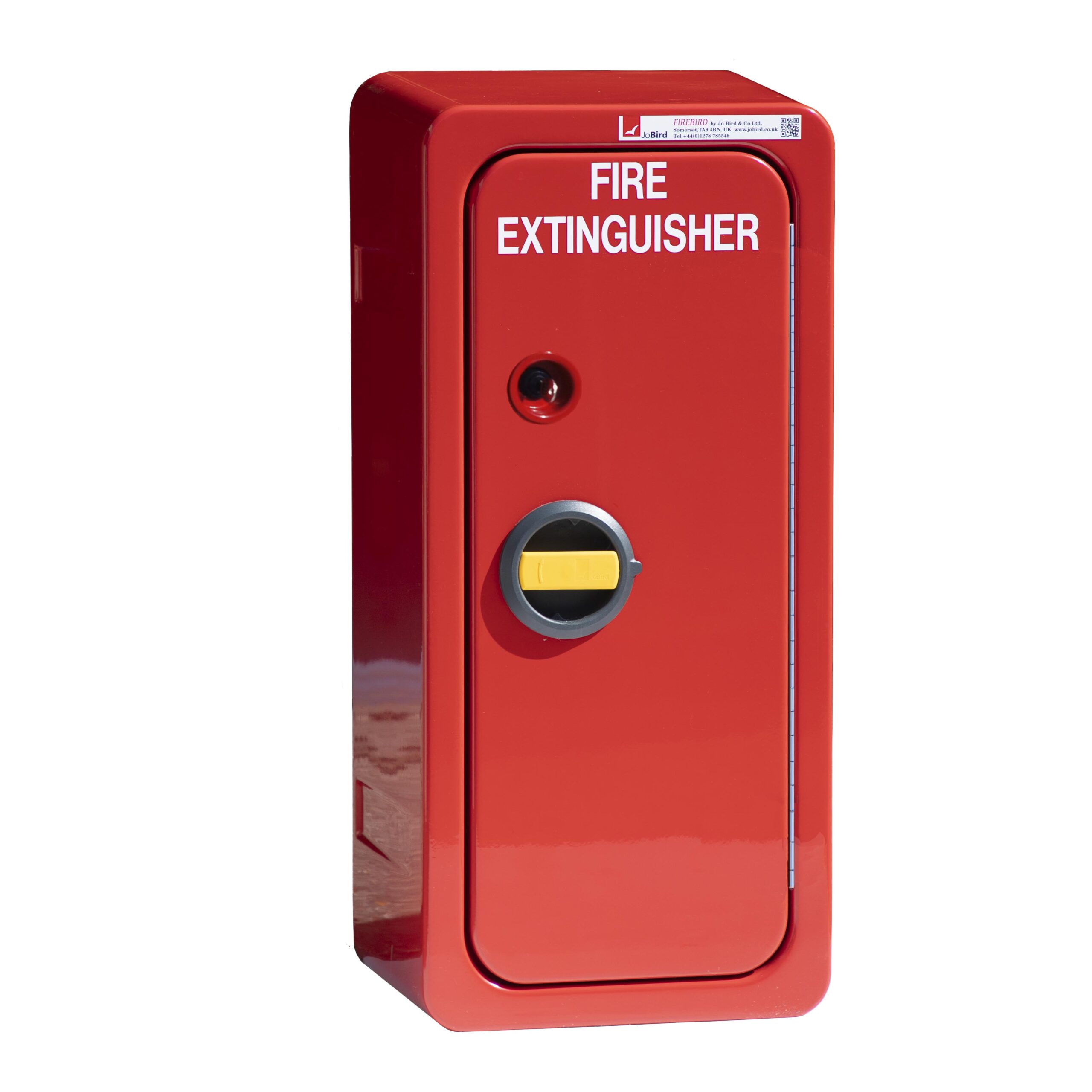

JB82NHS 6-12 Kg Fire extinguisher Cabinet

Dimensions : Height x width x depth: 799 x 373 x 263 mm                                 (31.46 x 14.69 x 10.35″)

Aperture: 639H x 217 (25.16 x 8.54″))

Internal depth: 229 mm (9″)

Weight : 10 Kg (22Lb)

The JB82NHS Fire extinguisher cabinet is used in secure hospitals. It is designed to store 1 x 6-12Kg portable fire extinguisher (excluding most 5Kg CO2 models).It is a very robust design with a built in lock so only staff can open it. The stainless steel hinge on this revised version is concealed in the door aperture for additional safety. The most obvious target, the door, is 16mm thick. The smooth surface not only makes it difficult to climb on it is also makes it very easy to clean.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments.

The door can be specified with left or right hinging and features a Rotary Graphite nylon/stainless steel handle to guarantee fast access for the key holder in an emergency. This can also be fitted with an anti-tamper seal. It now has the option of Biomaster anti-microbial protection to the cabinet door and body.

Typical uses

For the storage of 1 x 6-12kg Portable fire extinguisher (excluding 5Kg CO2)
It is widely used in NHS secure units due to it's durability and unique features

Material specification
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinge: 316 Stainless steel
Lock and bezel: steel
Handle: Nylon/316 Stainless steel with Biomaster (R) anti-microbial technology
Seal: EPDM
Optional extras
Other RAL Colours
Class 1 Fire retardant composites                                                                        Biomaster(r) Anti-microbial protection for the body as well as the handle

JB82NHS MK3 Fire Extinguisher Datasheet 2023

Typical uses

For the storage of 1 x 6-12kg Portable fire extinguisher (excluding 5Kg CO2)
It is widely used in NHS secure units due to it's durability and unique features

Material specification
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinge: 316 Stainless steel
Lock and bezel: steel
Handle: Nylon/316 Stainless steel with Biomaster (R) anti-microbial technology
Seal: EPDM
Optional extras
Other RAL Colours
Class 1 Fire retardant composites                                                                        Biomaster(r) Anti-microbial protection for the body as well as the handle

JB82NHS MK3 Fire Extinguisher Datasheet 2023

Additional information

Dimensions

799 x 373 x 263 mm (31.46 x 14.69 x 10.35")

Aperture

639 x 217 mm (25.16 x 8.54")

Manufacturer

UK

Get in touch

Our very experienced and helpful sales team would be delighted to assist you in selecting the most appropriate cabinet(s) to meet your needs in a relaxed and no pressure environment. If you need CAD drawings to incorporate into your designs we will be happy to assist.
