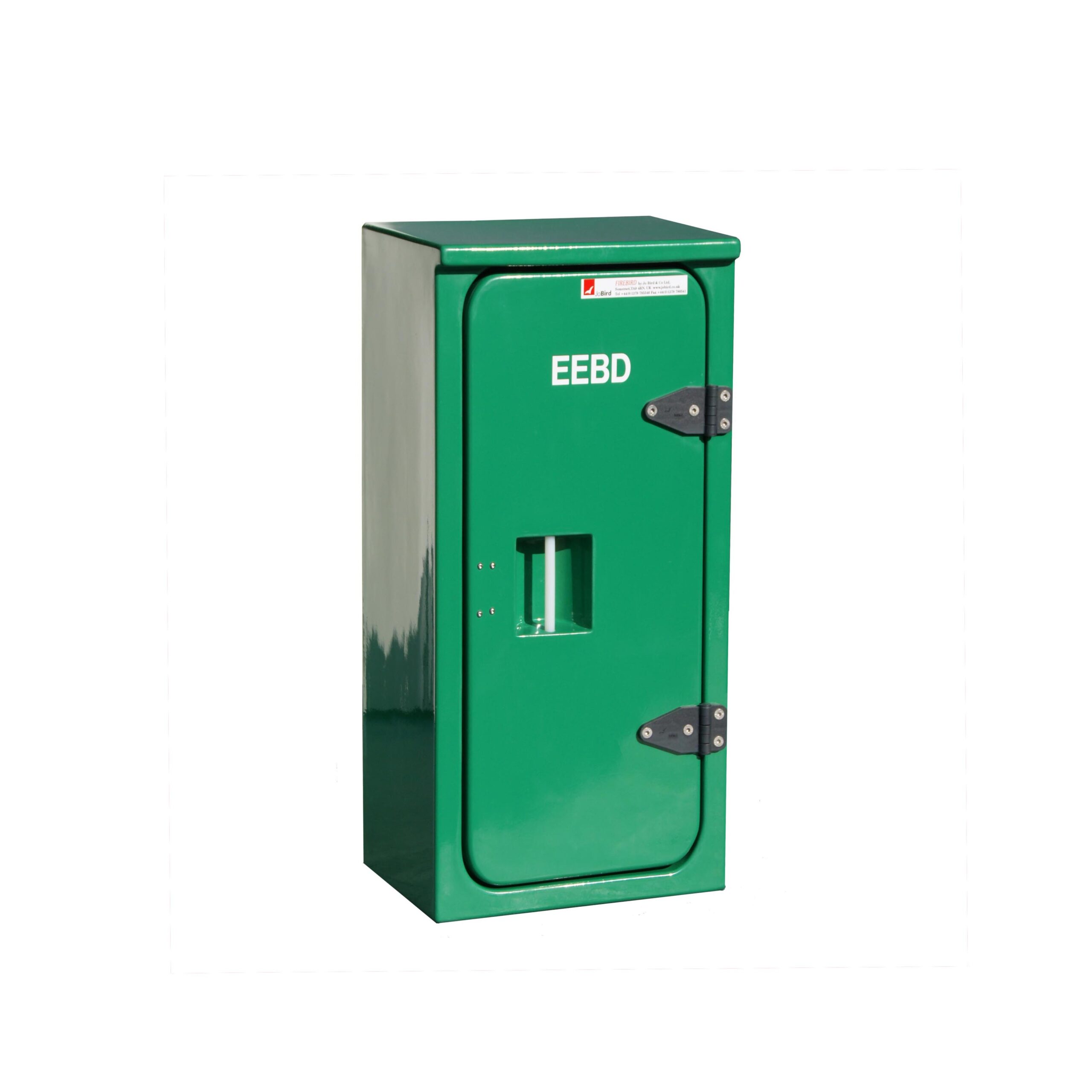

JB19 EEBD Cabinet (Dubai)
Dimensions: Height x width x depth: 748 x 346 x 222 mm (29.45 x 13.62 x 8.74″)
Aperture: 655H x 275W mm (25.79 x 10.83″)
Internal depth: 200 mm (7.87″)
Weight : 5 Kg (11Lb)
The JB19 can store 1 x 10-15 minute emergency escape breathing apparatus.This is the equivalent to the JB81 EEBD cabinet made in the UK.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The graphite nylon hinges are secured with 316 stainless steel nuts, bolts and washers.
The door can be specified with left or right hinging and features a nylon rod handle to pull the door open to guarantee fast access even when wearing gloves.
Please note: This cabinet is only manufactured in Dubai. For UK production please see the separate listing for the JB81BA https://www.spacabinets.com/product/1-x-eebd-cabinet-jb81/
For the storage of 1 x EEBD
designed to cope with extreme environments on and offshore.
It is widely used by some of the world's top energy companies due to it's durability
Colour: Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: Graphite nylon
Handle: Nylon
Seal: EPDM
Other RAL Colours
316 Stainless steel hinges
Class 1 Fire retardant composites
Perspex window
For the storage of 1 x EEBD
designed to cope with extreme environments on and offshore.
It is widely used by some of the world's top energy companies due to it's durability
Colour: Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: Graphite nylon
Handle: Nylon
Seal: EPDM
Other RAL Colours
316 Stainless steel hinges
Class 1 Fire retardant composites
Perspex window
Additional information
| Dimensions | 748 x 346 x 222 mm (29.45 x 13.62 x 8.74") |
|---|---|
| Aperture | 655H x 275W mm (25.79 x 10.83") |
| Manufacturer | Dubai |
