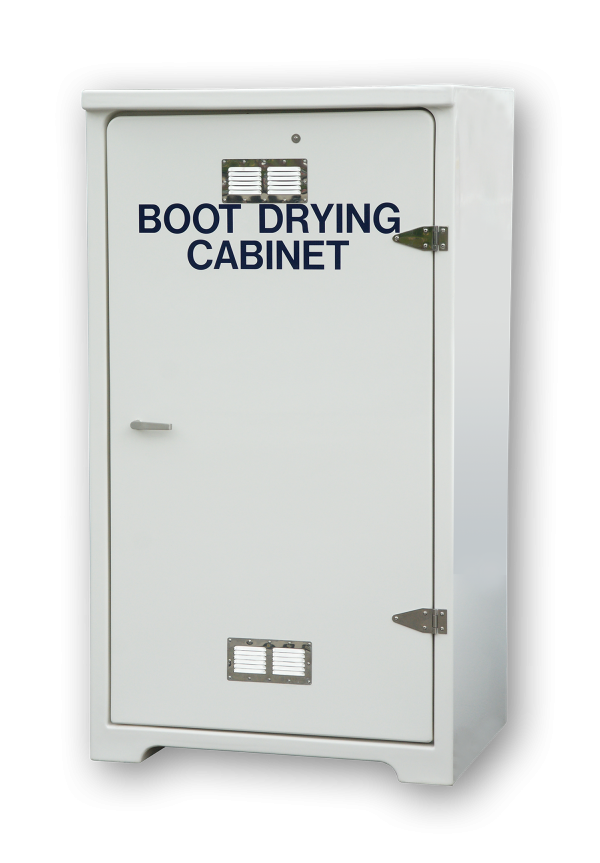

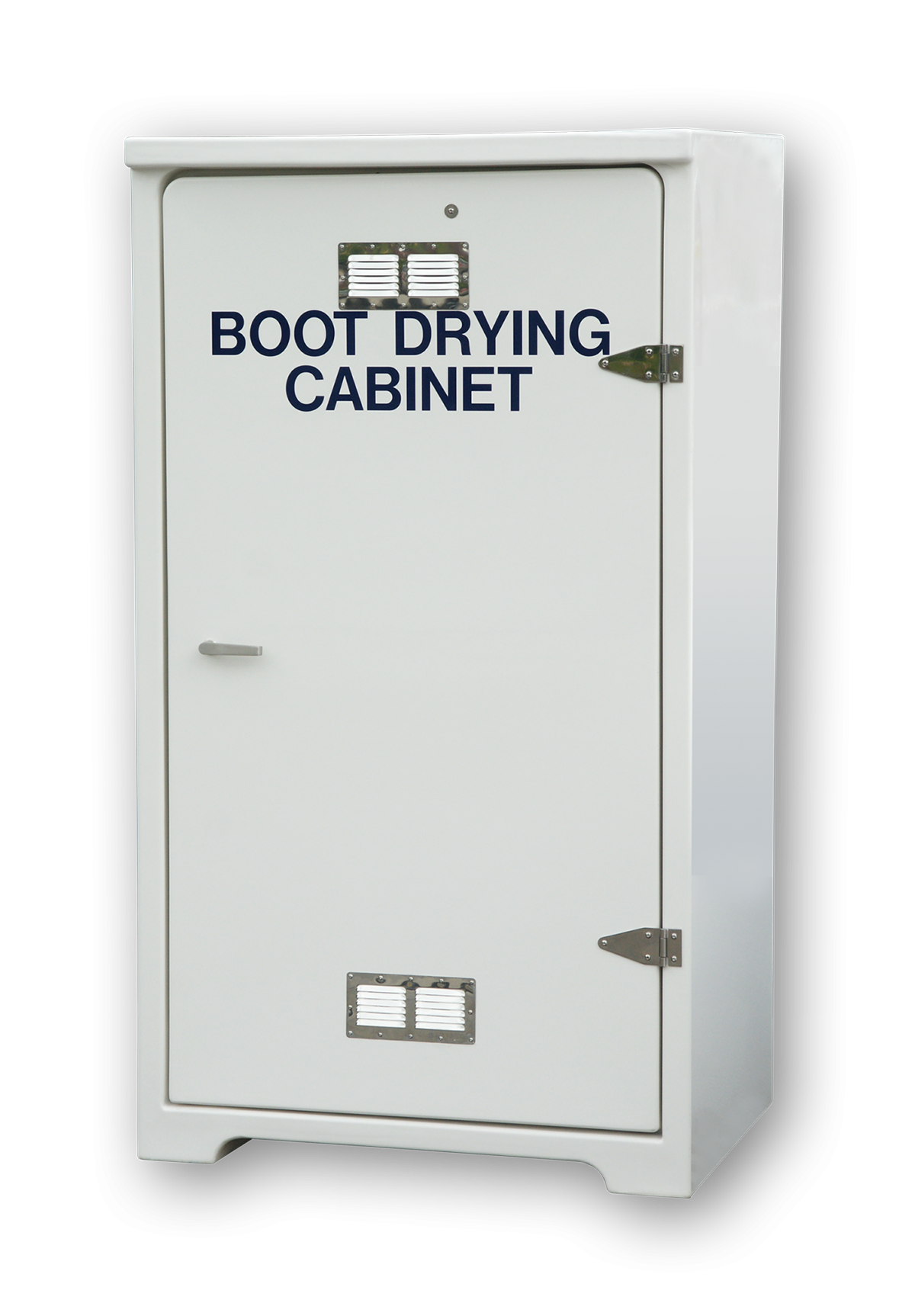

Equipment drying cabinet (JB18)

Dimensions : Height x width x depth: 1831 x 1034 x 785 mm                          (72.09 x 40.71 x 30.91″)

Aperture: 1583H x 812W mm (62.32 x 31.97″)

Internal depth: 704 mm (27.72″)

Weight : 80Kg (176Lb)

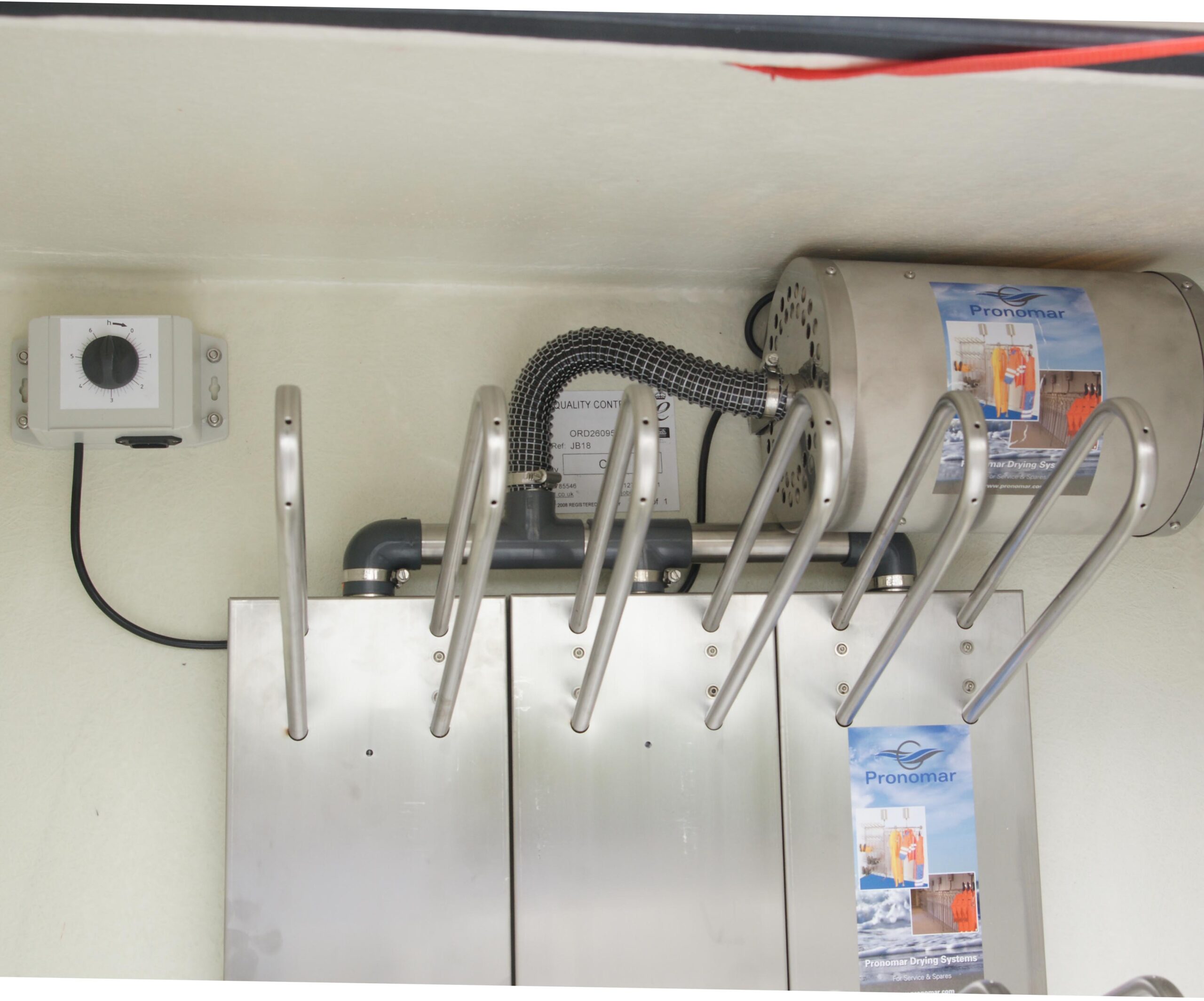

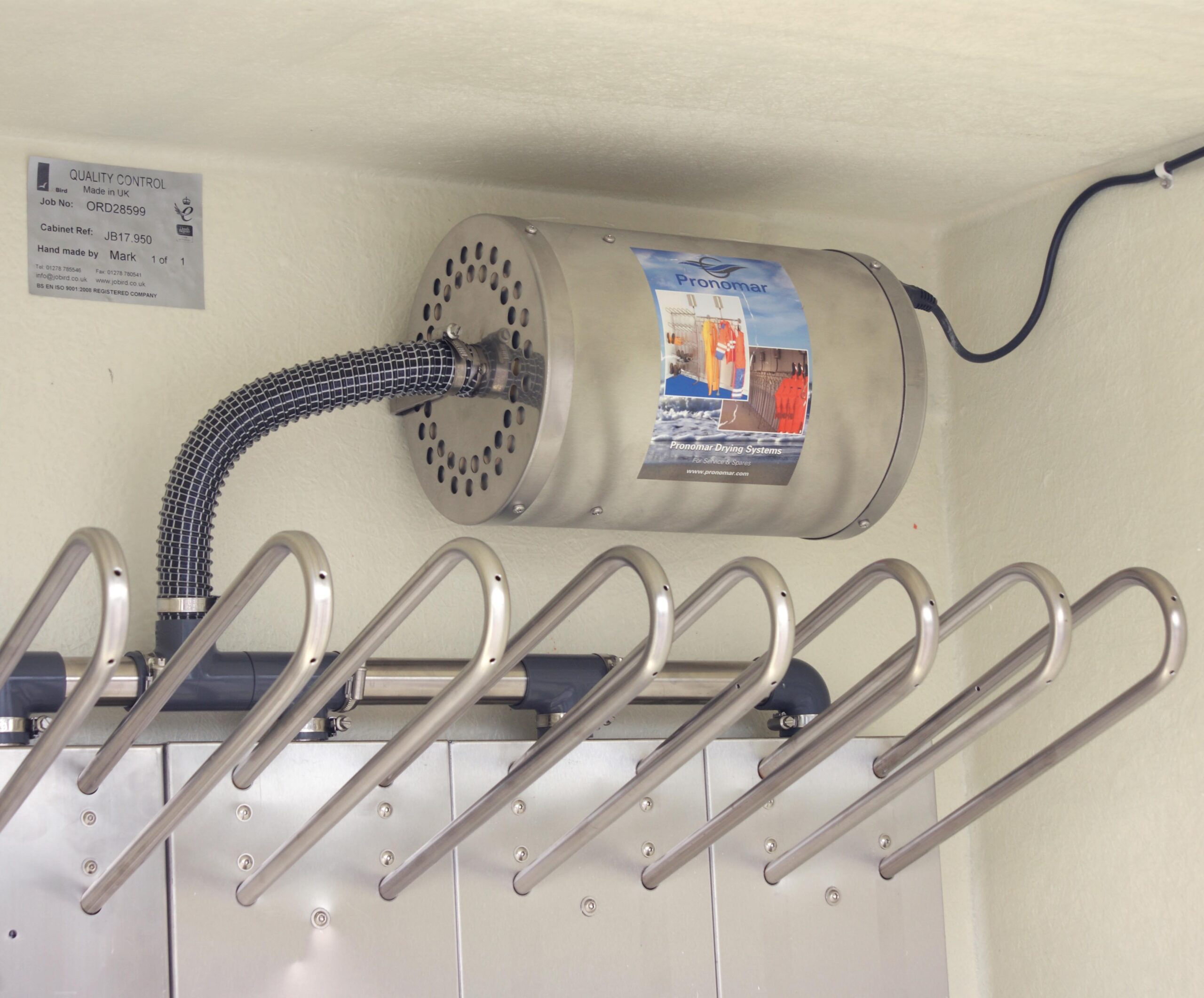

This cabinet comes fitted with the superb Pronomar stainless steel warm air drying system. This enables a wide range of wet safety or workwear to efficiently dried. The warm air system feeds air right into all parts of the clothing or gloves/boots without damaging the materials and in the most hygienic way. A wide range of fittings can be used to suit the equipment needing to be dried so please ask for details.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56 (before the fitting of the vents). It has both Lloyds and ABS approvals.

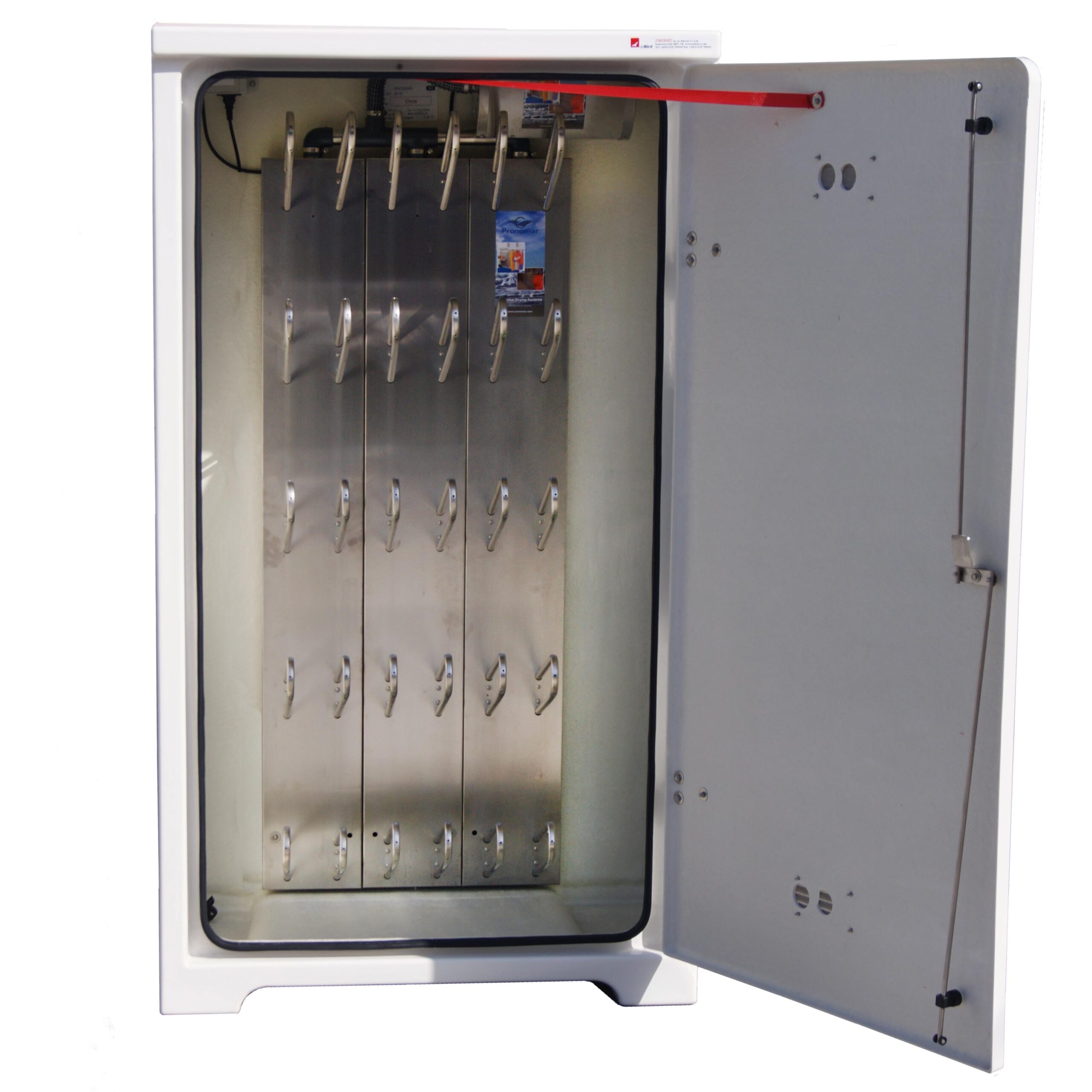

The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The hinges are secured with 316 stainless steel nuts, bolts and washers. The door can be manufactured to be left or right hinged and is secured with 316 stainless steel 3 way locking fitted with a single handle to guarantee fast access in an emergency even when wearing gloves.

Typical uses
Drying cabinet using the superb Pronomar warm air drying system with fittings of suits, life jackets, boots, gloves or have general purpose shelves.
designed to cope with extreme environments on and offshore.
Used in training centres, supply vessels (SOV) and cruise ships due to it's durability
Material specification
Colour: White RAL 9010
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
L Handle: 316 Stainless steel

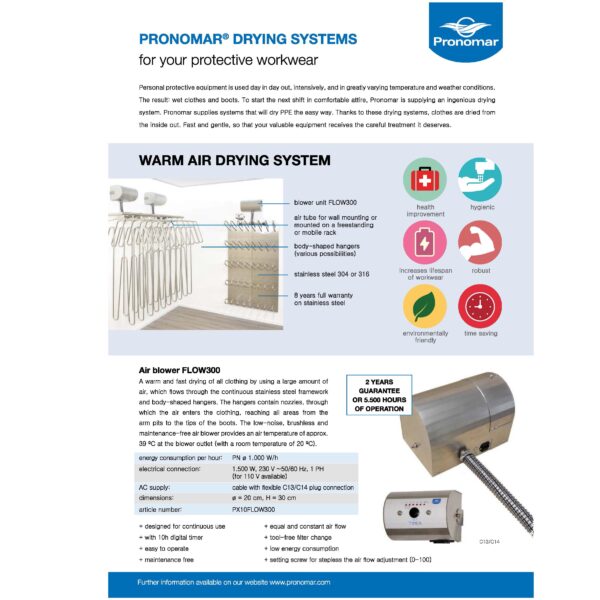

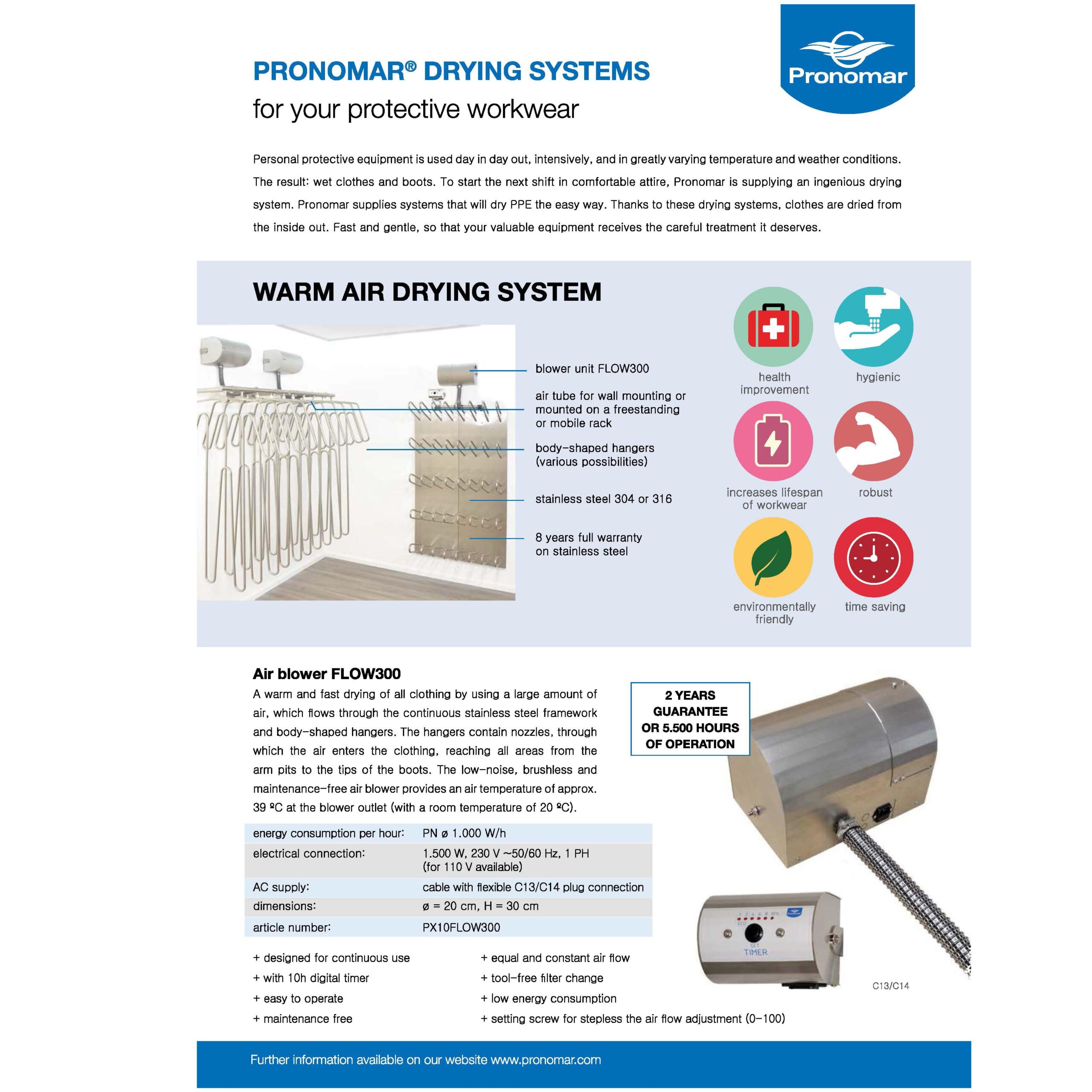

Pronomar drying system:
304 Stainless steel
Seal: EPDM
Optional extras
Other RAL Colours

Variety of hanger types for suits, lifejackets and gloves

Class 1 Fire retardant composites
JB18 drying Datasheet 2024

Typical uses
Drying cabinet using the superb Pronomar warm air drying system with fittings of suits, life jackets, boots, gloves or have general purpose shelves.
designed to cope with extreme environments on and offshore.
Used in training centres, supply vessels (SOV) and cruise ships due to it's durability
Material specification
Colour: White RAL 9010
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
L Handle: 316 Stainless steel
Pronomar drying system:
304 Stainless steel
Seal: EPDM
Optional extras
Other RAL Colours

Variety of hanger types for suits, lifejackets and gloves

Class 1 Fire retardant composites
JB18 drying Datasheet 2024

Additional information

Dimensions

1831 x 1034 x 785 mm (72.09 x 40.71 x 30.91")

Aperture

1583 x 812 mm (62.32 x 31.97")

Manufacturer

UK
