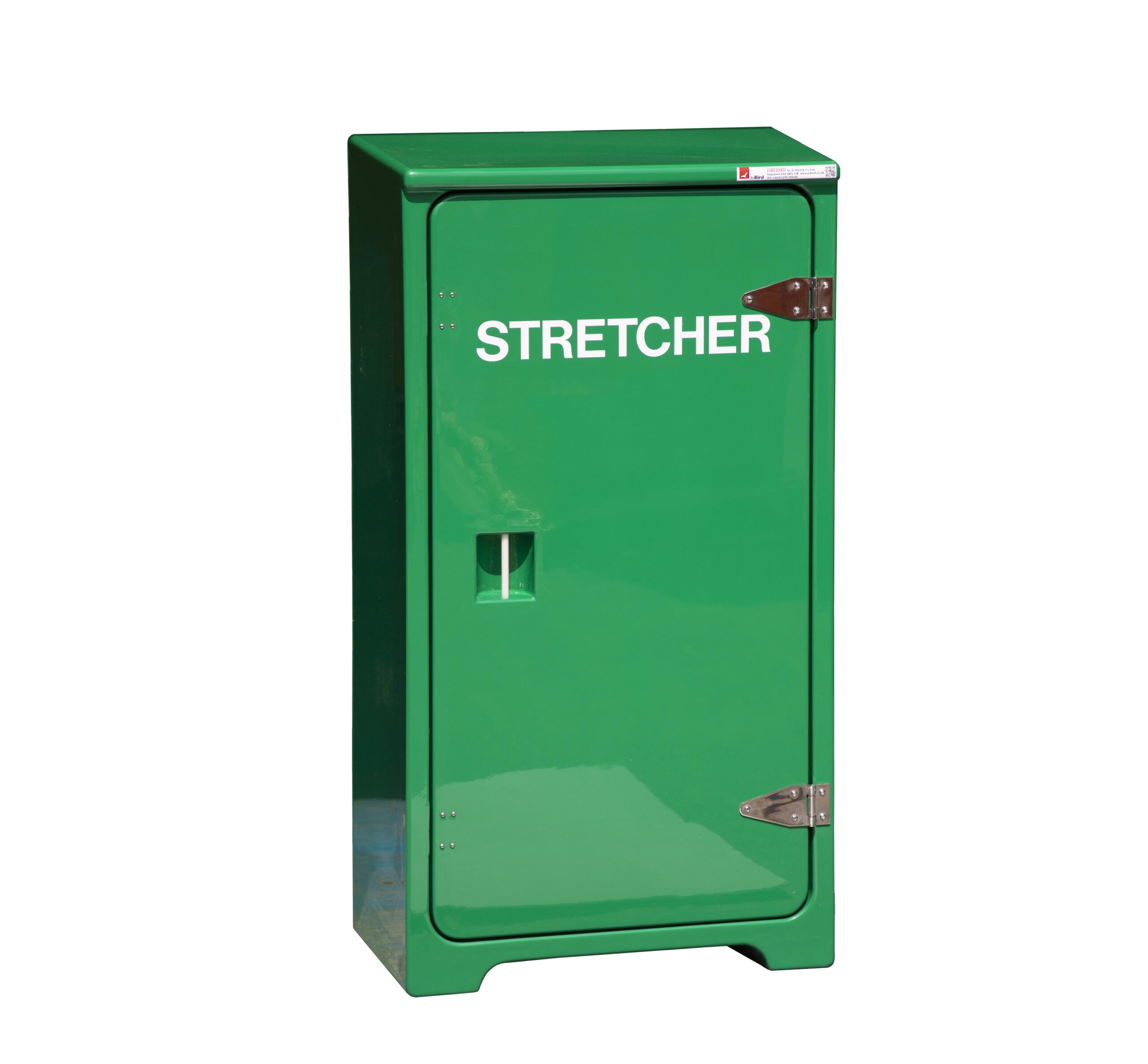

Stretcher cabinet (JB14)
Dimensions : Height x width x depth: 1296 x 698 x 392 mm (51.02 x 27.48 x 15.43″)
Aperture: 1060H x 490W mm (41.73 x 19.29″)
Internal depth: 320 mm (12.6″)
Weight : 24Kg (52.8Lb)
The JB14 stretcher cabinets store provide superb protection for folding stretchers such as those made by Paraguard and Sked. They are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The cabinet design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The 316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers.

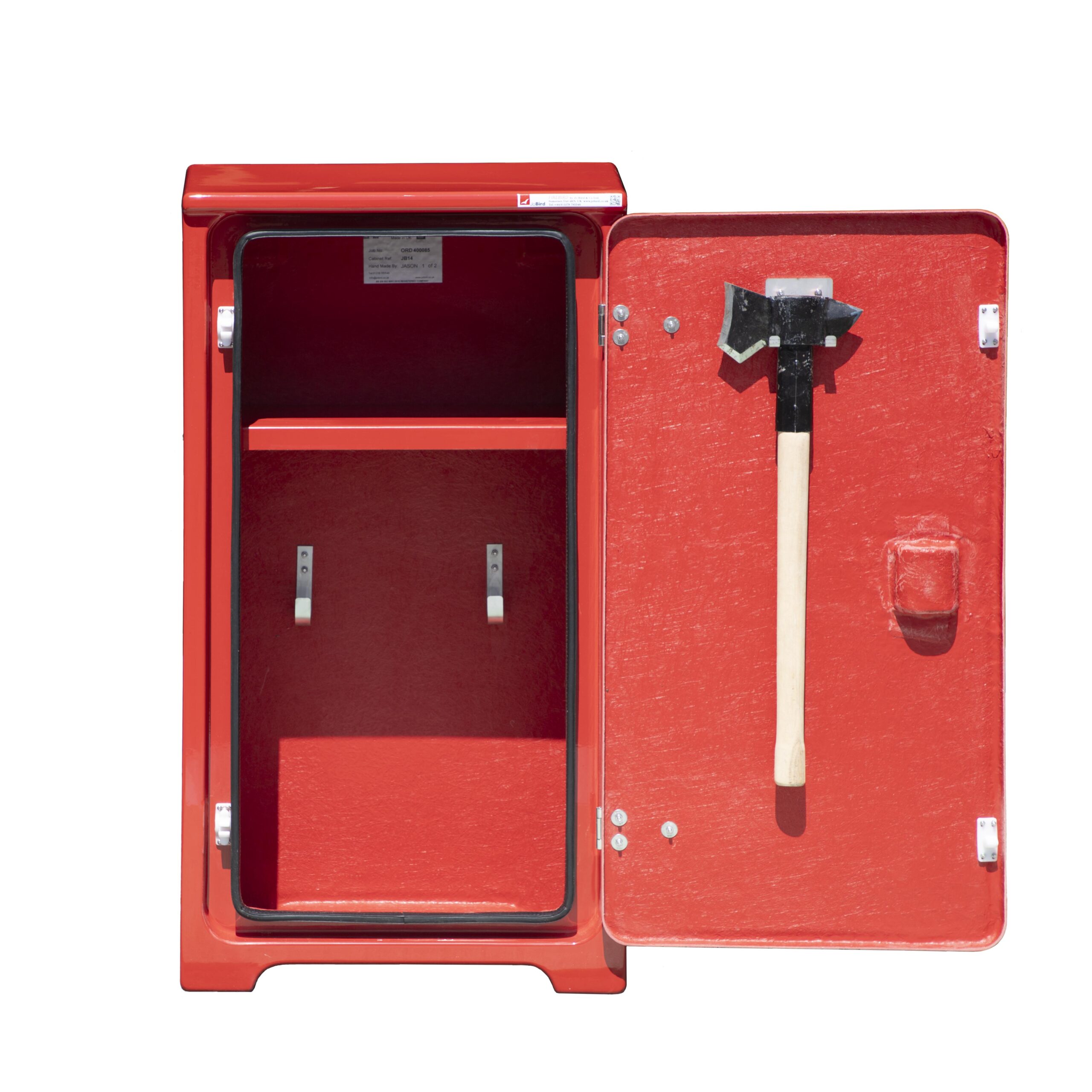

The door can be specified with left or right hinging and features a nylon rod handle to pull the door open to give fast access in an emergency even when wearing gloves. This versatile product can also be used to store many other items including helicopter crash (CAP437) rescue tools.
For the storage of 1 x Paraguard type folding stretcher
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon rod
Seal: EPDM

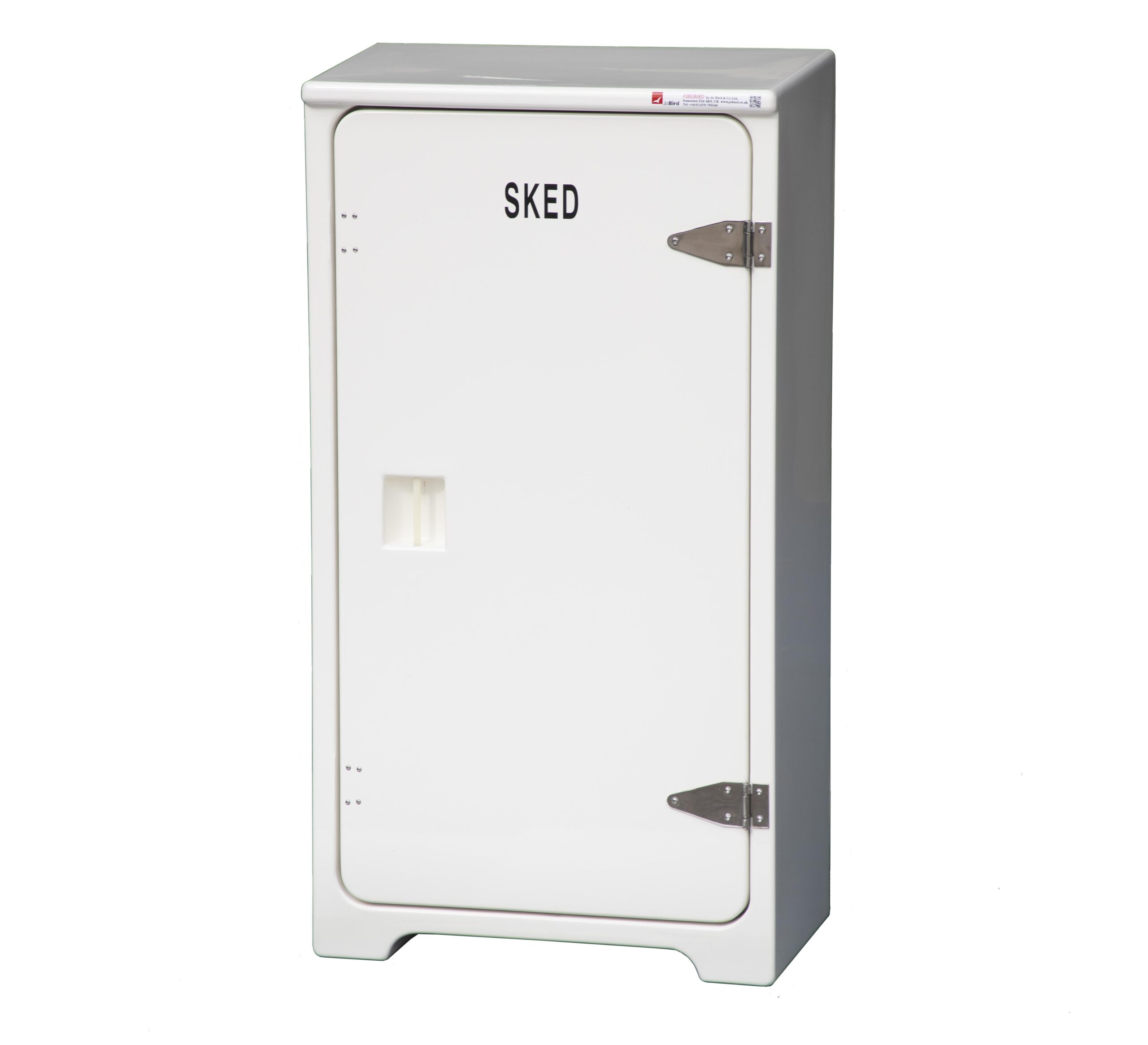

Other RAL Colours
Class 1 Fire retardant composites
Perspex window

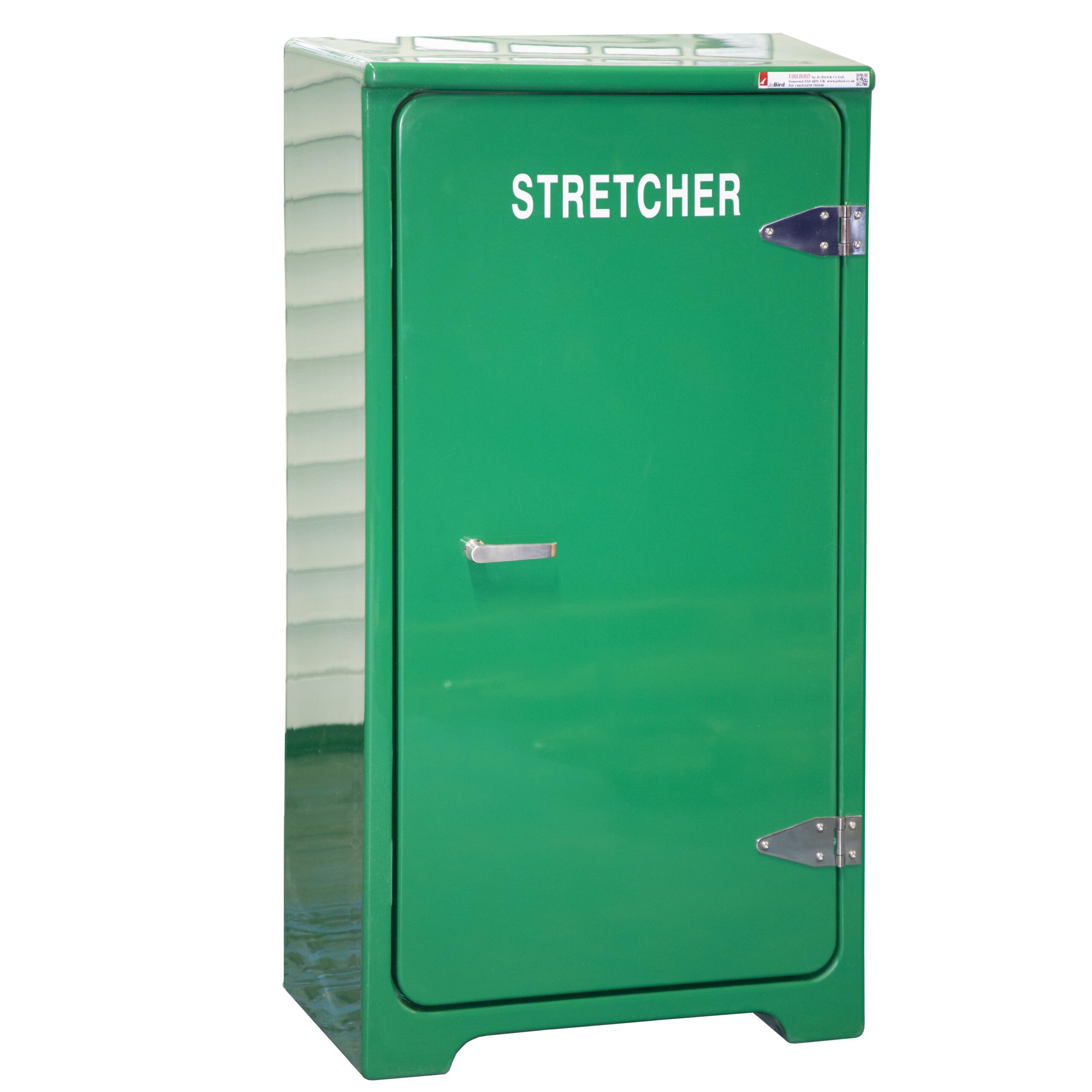

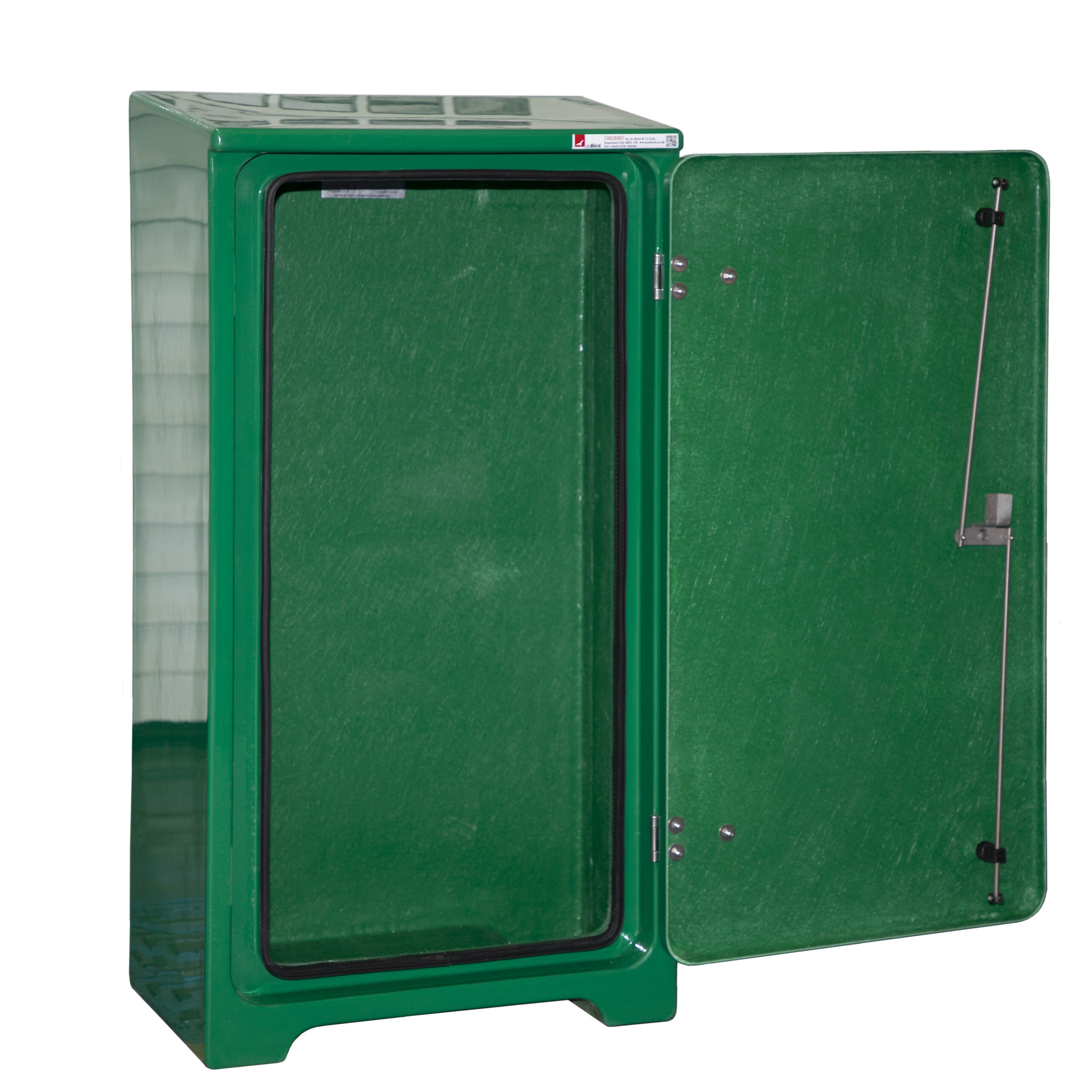

316 Stainless steel 3 way locking
For the storage of 1 x Paraguard type folding stretcher
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon rod
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
316 Stainless steel 3 way locking
Additional information
Dimensions | 1296 x 698 x 392 mm (51.02 x 27.5 x 15.43") |
---|---|
Aperture | 1060 x 490 mm (41.73 x 19.29") |
Manufacturer | UK |
