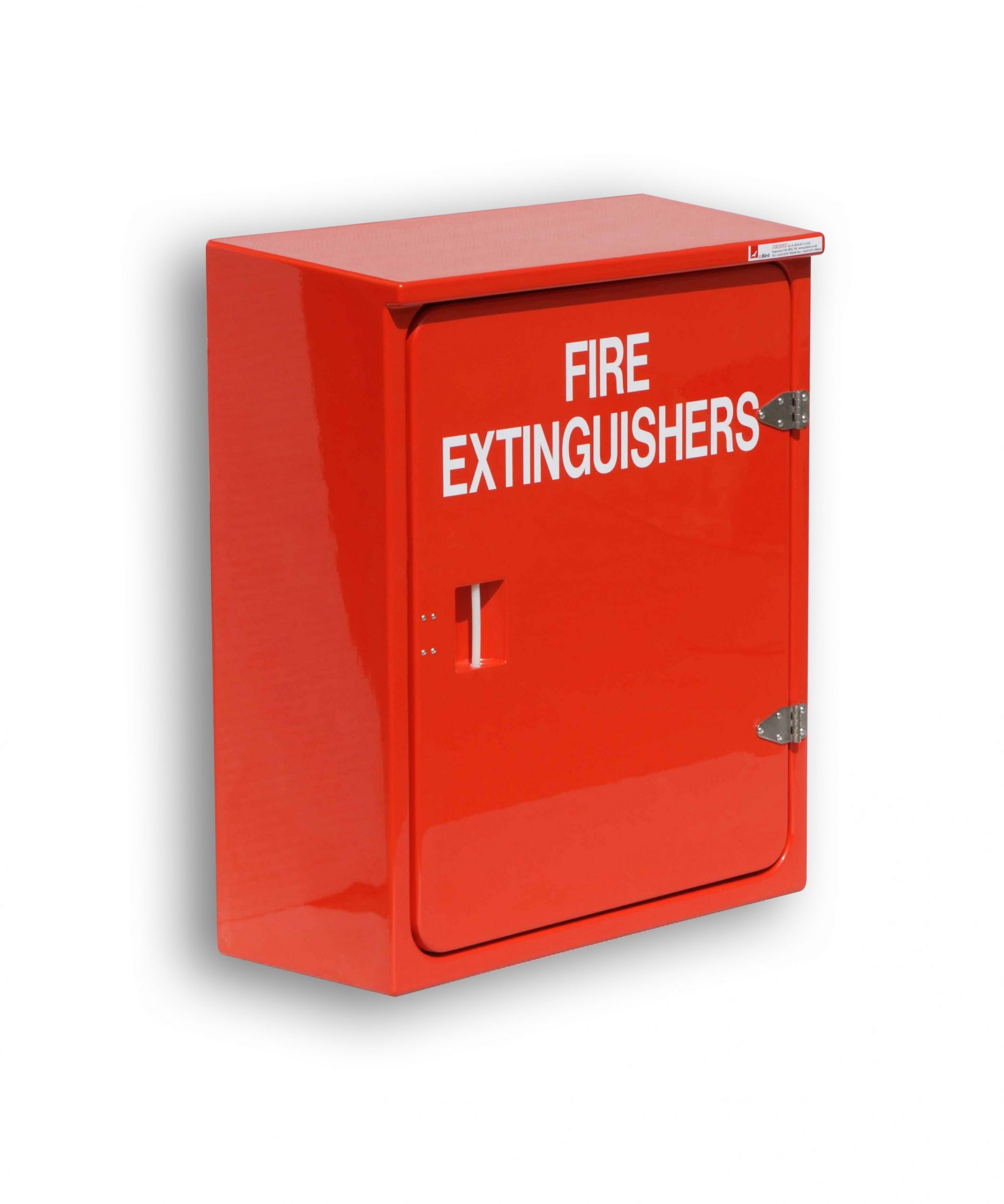

2-3 Fire extinguisher Cabinet (JB02) Dubai
Dimensions : Height x width x depth: 937 x 835 x 347mm (36.89 x 32.87 x 13.66″)
Aperture: 755H x 630W mm (29.72 x 24.8″)
Internal depth: 275 mm (10.83″)
Weight : 15 Kg (33Lb)
The JB02 Fire Extinguisher cabinet can store 2-3 portable fire extinguishers including most 5Kg CO2 models.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The 316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers.
The door can be specified with left or right hinging and features a nylon rod handle to pull the door open to guarantee fast access in an emergency even when wearing gloves.
Please note: For the UK manufactured version please see the JB02R.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
Perspex window
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
Perspex window
Additional information
| Dimensions | 347 × 835 × 937 mm |
|---|---|
| Dimensions | 937 x 835 x 347 mm (36.89 x 32.87 x 13.66") |
| Manufacturer | Dubai |
| Aperture | 755 x 630 mm (29.72 x 24.8") |
