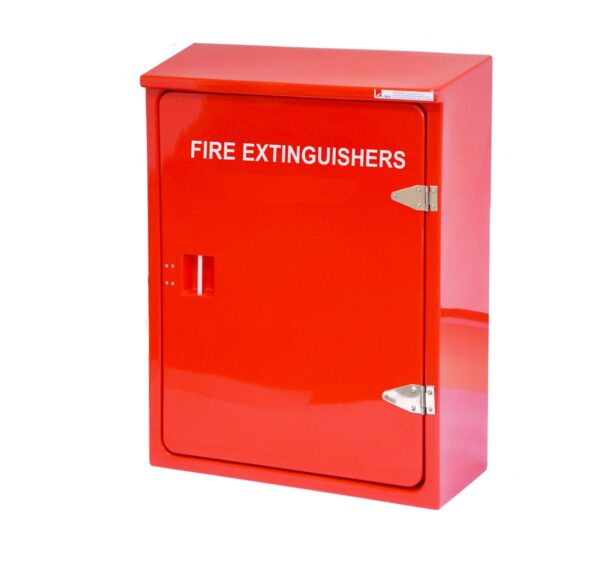

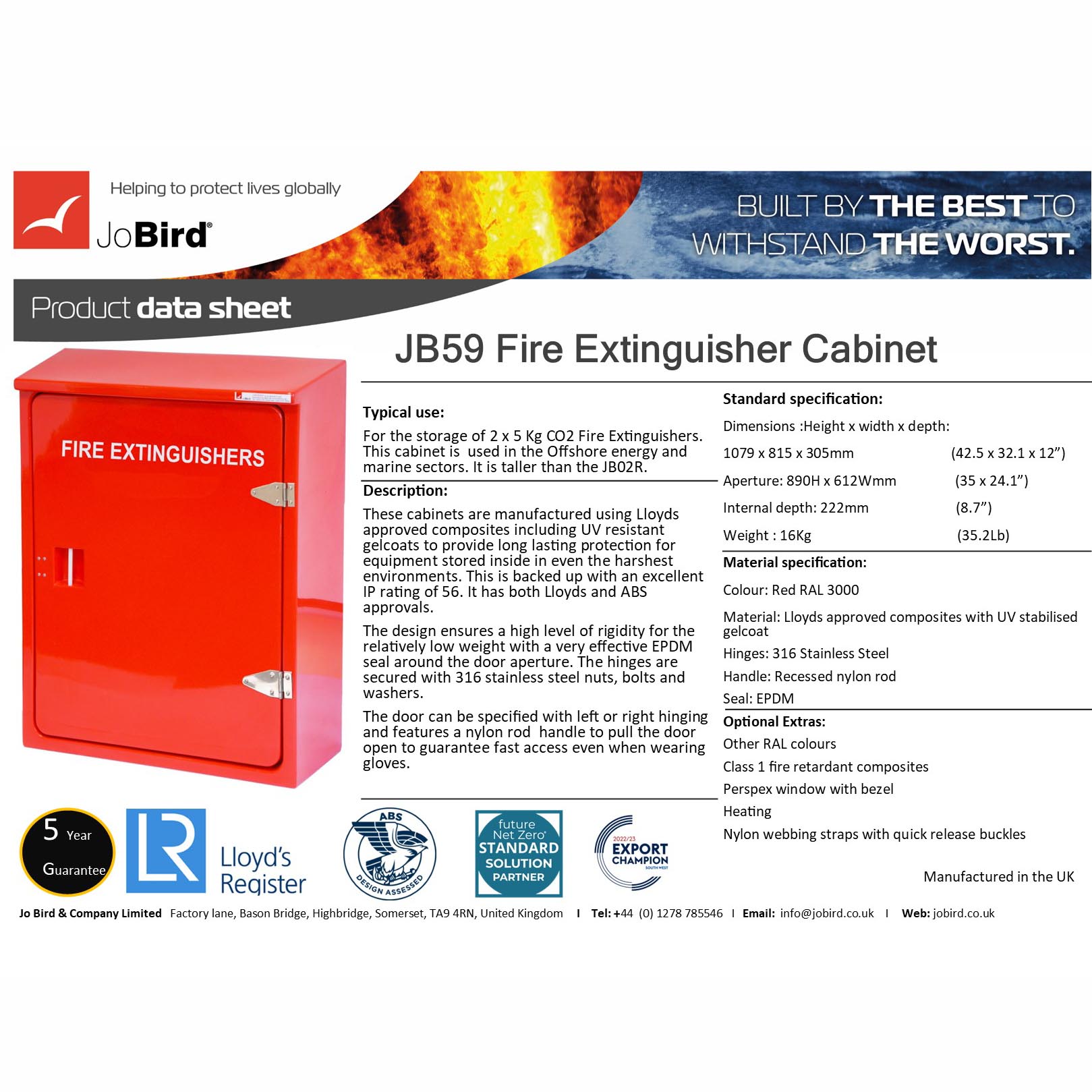

2 x 5Kg CO2 Fire extinguisher Cabinet (JB59)
Dimensions : Height x width x depth: 1079 x 815 x 305 mm (42.48 x 32.09 x 12″)
Aperture: 890H x 612W mm (35.04 x 24.09″)
Internal depth: 222 mm (8.74″)
Weight : 16 Kg (35.2Lb)
The JB59 can store 2 x tall 5kG CO2 portable fire extinguishers. Please note: Most portable 5Kg CO2 models will fit in the smaller JB02R but this model is for those that are taller than 750mm.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The 316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers.
The door can be specified with left or right hinging and features a nylon rod handle to pull the door open to guarantee fast access in an emergency even when wearing gloves.
For the storage of 2-3 Portable fire extinguishers
designed to cope with extreme environments on and offshore.
It is used by the world's top energy companies and Navies due to it's durability
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
Perspex window
Nylon webbing straps with quick release buckles for use on ships
For the storage of 2-3 Portable fire extinguishers
designed to cope with extreme environments on and offshore.
It is used by the world's top energy companies and Navies due to it's durability
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
Perspex window
Nylon webbing straps with quick release buckles for use on ships
Additional information
| Dimensions | 305 × 815 × 1079 mm |
|---|---|
| Dimensions | 1079 x 815 x 305 mm (42.48 x 32.09 x 12") |
| Manufacturer | UK |
| Aperture | 890H x 612W mm (35.04 x 24.09") |
