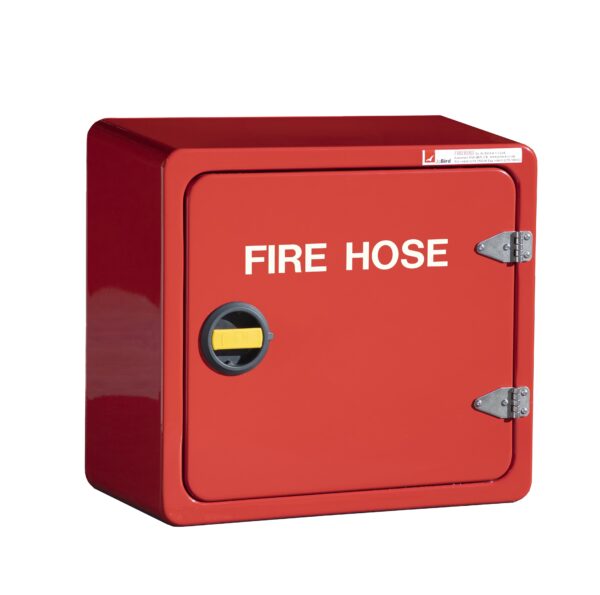

2 x 20M Fire hose cabinet (JB85.360H)
Dimensions : Height x width x depth: 626 x 680 x 331 mm (24.65 x 26.77 x 13.03″)
Aperture: 460H x 520W mm (18.11 x 20.47″)
Internal depth: 290 mm (11.42″)
Weight : 10Kg (22Lb)
The JB85.360H Fire hose cabinet is fitted with a 316 stainless steel hose pin for 2 X 20-25M Fire hoses and nozzles. The hose pin helps to maintain the shape of the hoses. They are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in harsh environments on and offshore. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.

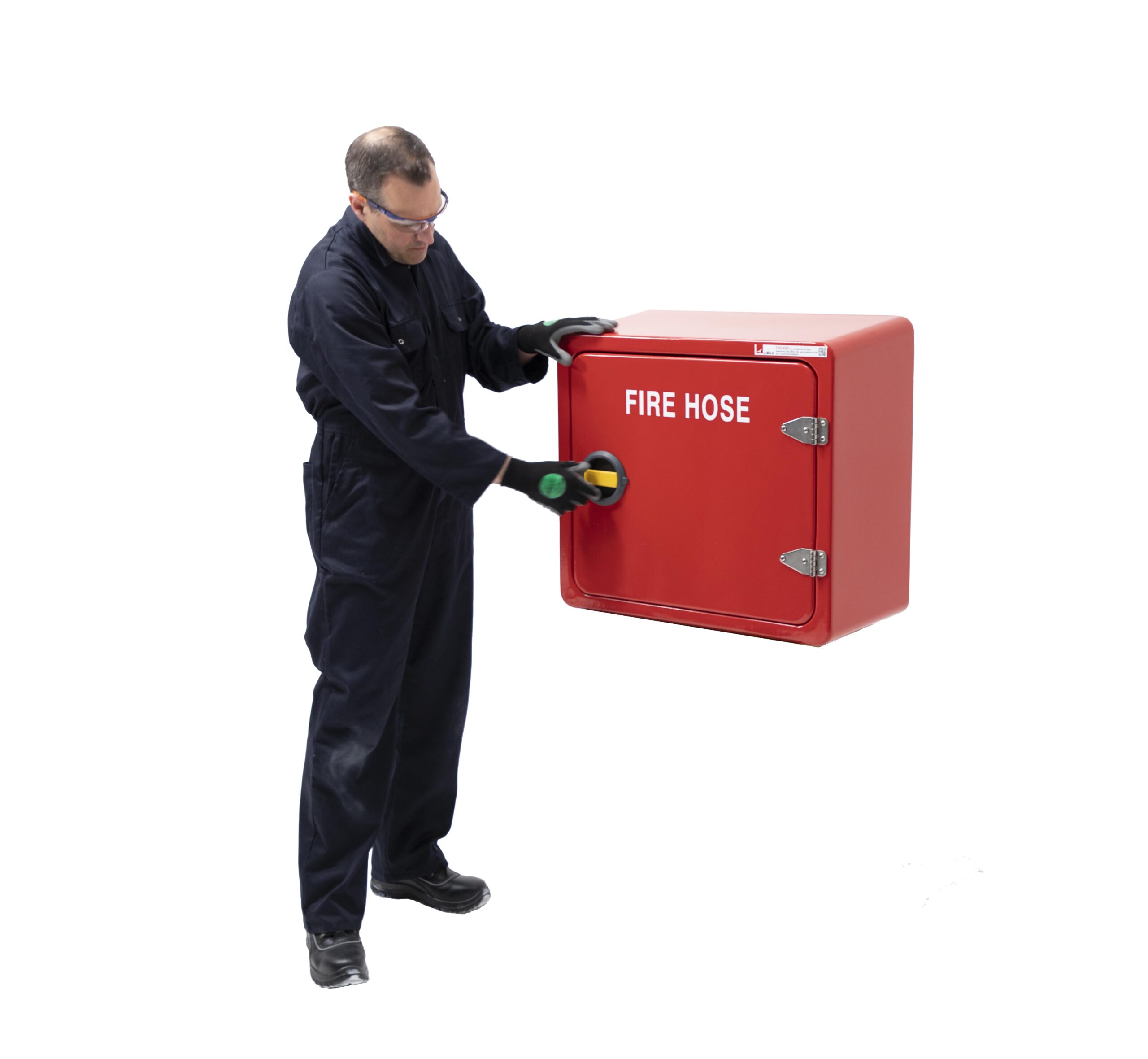

The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The hinges are secured with 316 stainless steel nuts, bolts and washers. The door can be specified with left or right hinging and features a graphite nylon rotary handle incorporating Biomaster (R) technology and is easy to open in an emergency when wearing gloves. The handle can also be fitted with an anti-tamper seal.
This model has replaced the JB16.360HR

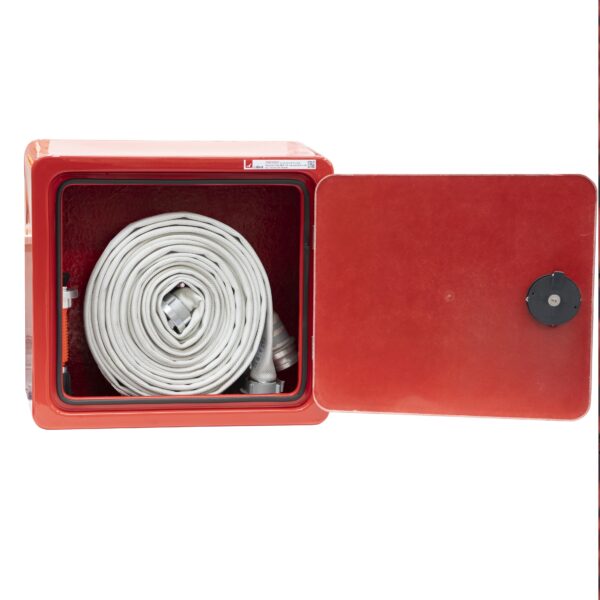

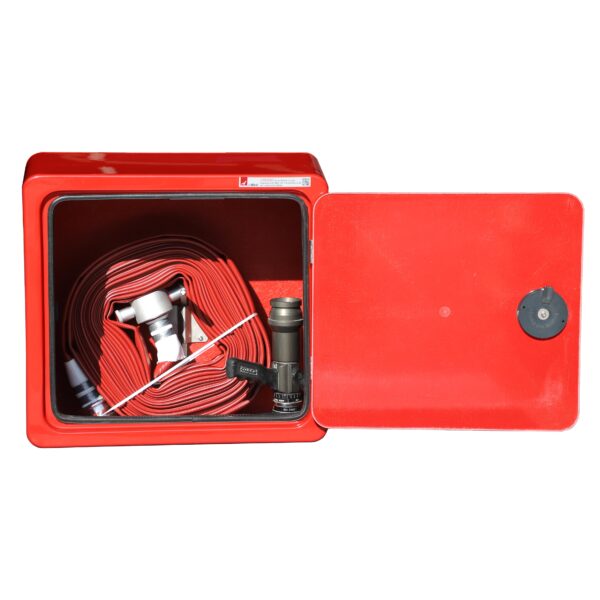

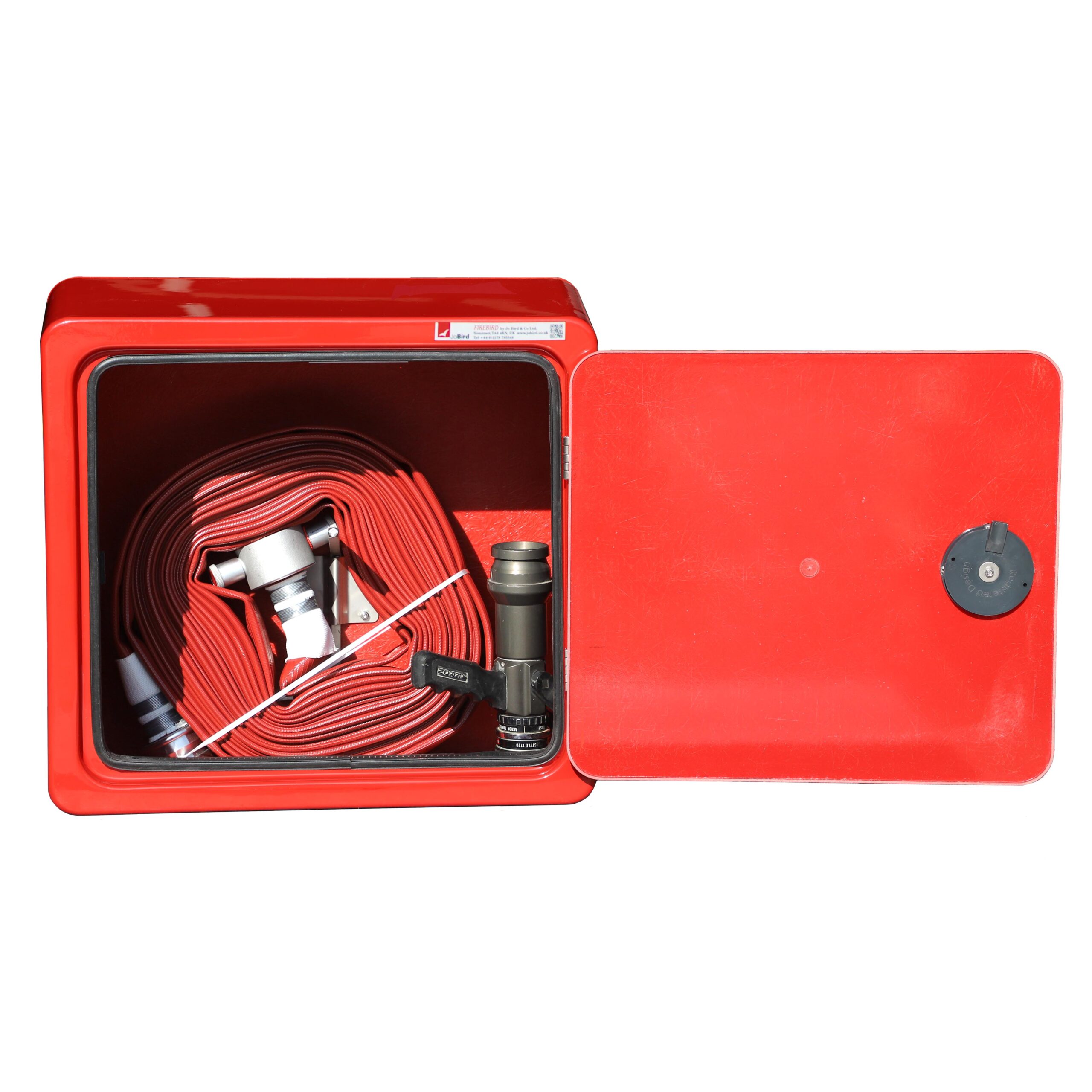

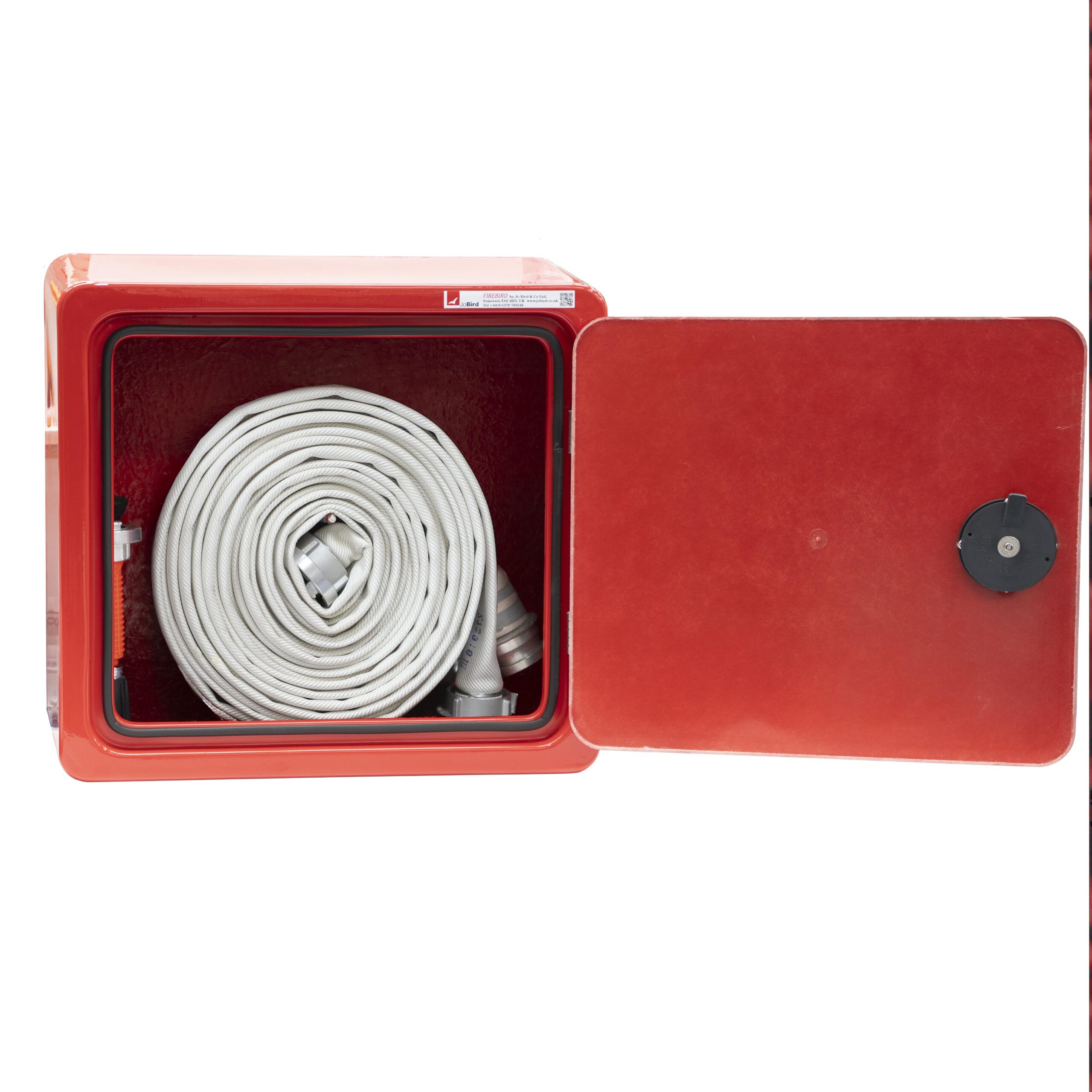

For the storage of 2 x 20-25M (depending on type) fire hoses and 2 x nozzles
designed to cope with extreme environments on and offshore.
Colour: Red RAL 3000
Material: Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Graphite Nylon/316 Stainless steel
Hose pin: 316 Stainless steel
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites

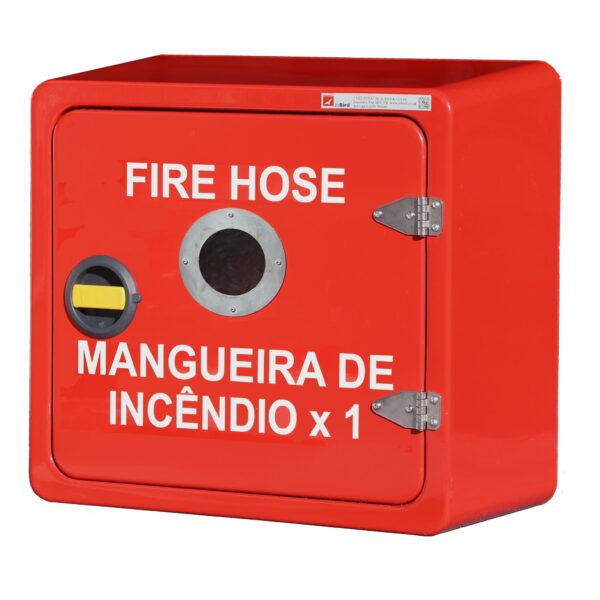

Perspex window
Nylon strap for quick release buckle
Ground mounting posts
For the storage of 2 x 20-25M (depending on type) fire hoses and 2 x nozzles
designed to cope with extreme environments on and offshore.
Colour: Red RAL 3000
Material: Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Graphite Nylon/316 Stainless steel
Hose pin: 316 Stainless steel
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
Nylon strap for quick release buckle
Ground mounting posts
Additional information
| Aperture | 460H x 520W mm (18.11 x 20.47") |
|---|---|
| Dimensions | 626 x 680 x 331 mm (24.65 x 26.77 x 13.03") |
