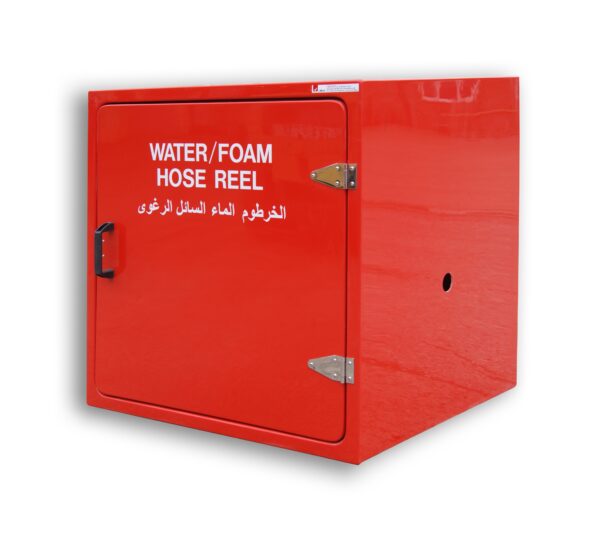

Horizontal Fire Hose reel cabinet (JB64)
Dimensions: Height x width x depth: 1000 x 1050 x 850 mm (39.37 x 41.34 x 33.46″)
Aperture: 793H x 833W mm (31.22 x 32.8″)
Internal depth: 796 mm (31.34″)
Weight : 28 Kg (61.6Lb)
The JB64 Fire hose reel cabinet is designed to store a horizontal hose reel assembly and comes with an aperture in the side for a winding handle. The reinforced base can be placed on top of a foam tank if necessary.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. The 316 Stainless steel hinges are secured nuts and bolts made in the same material.
The door can be specified with left or right hinging to fit different locations. This features a large polyamide handle to pull the door open to provide rapid access in an emergency even when wearing gloves. A 316 Stainless steel 3 way locking system with an L handle is available as a cost option.
For the storage of 1 x horizontal hose reel
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Polyamide
Seal: EPDM

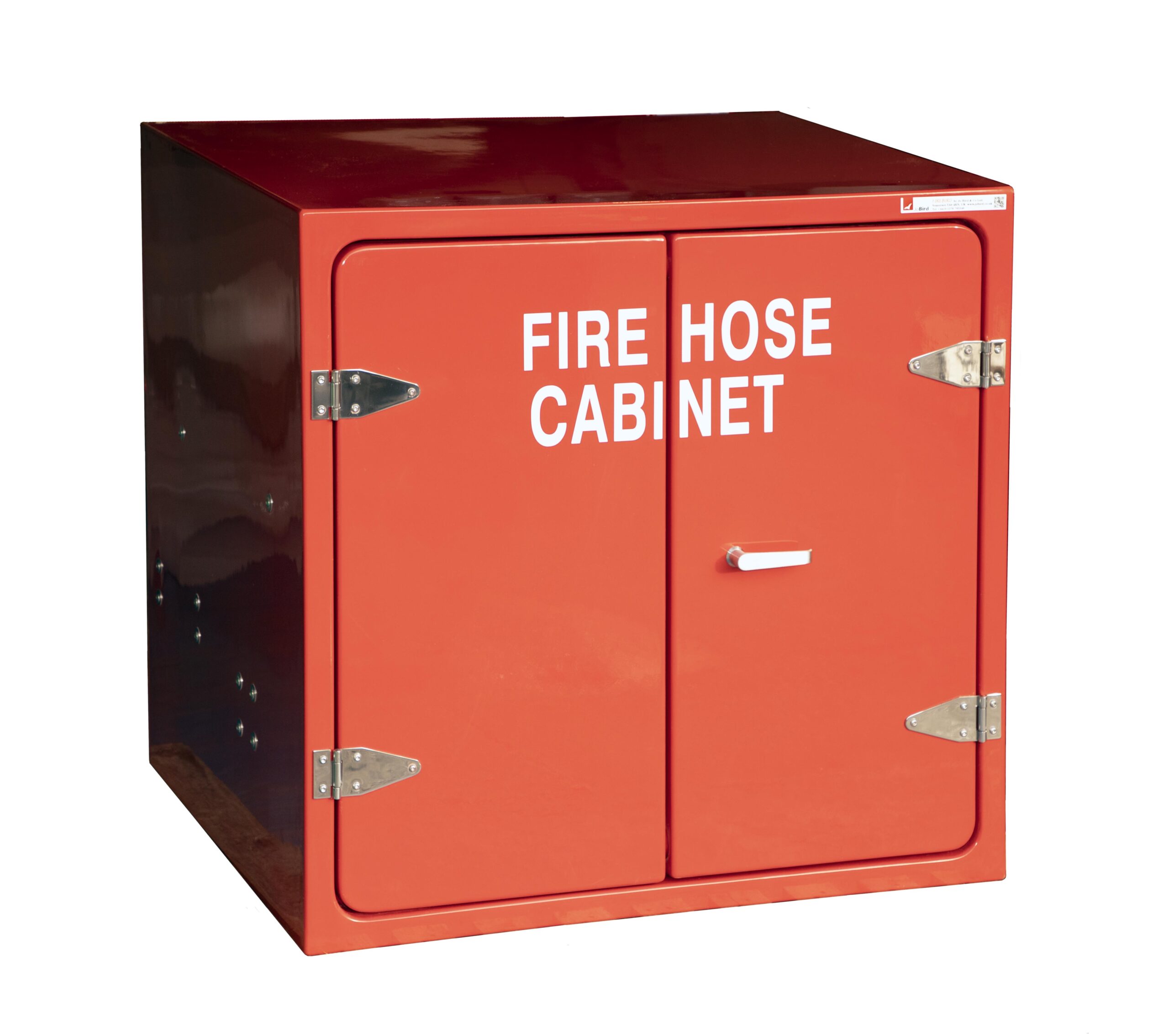

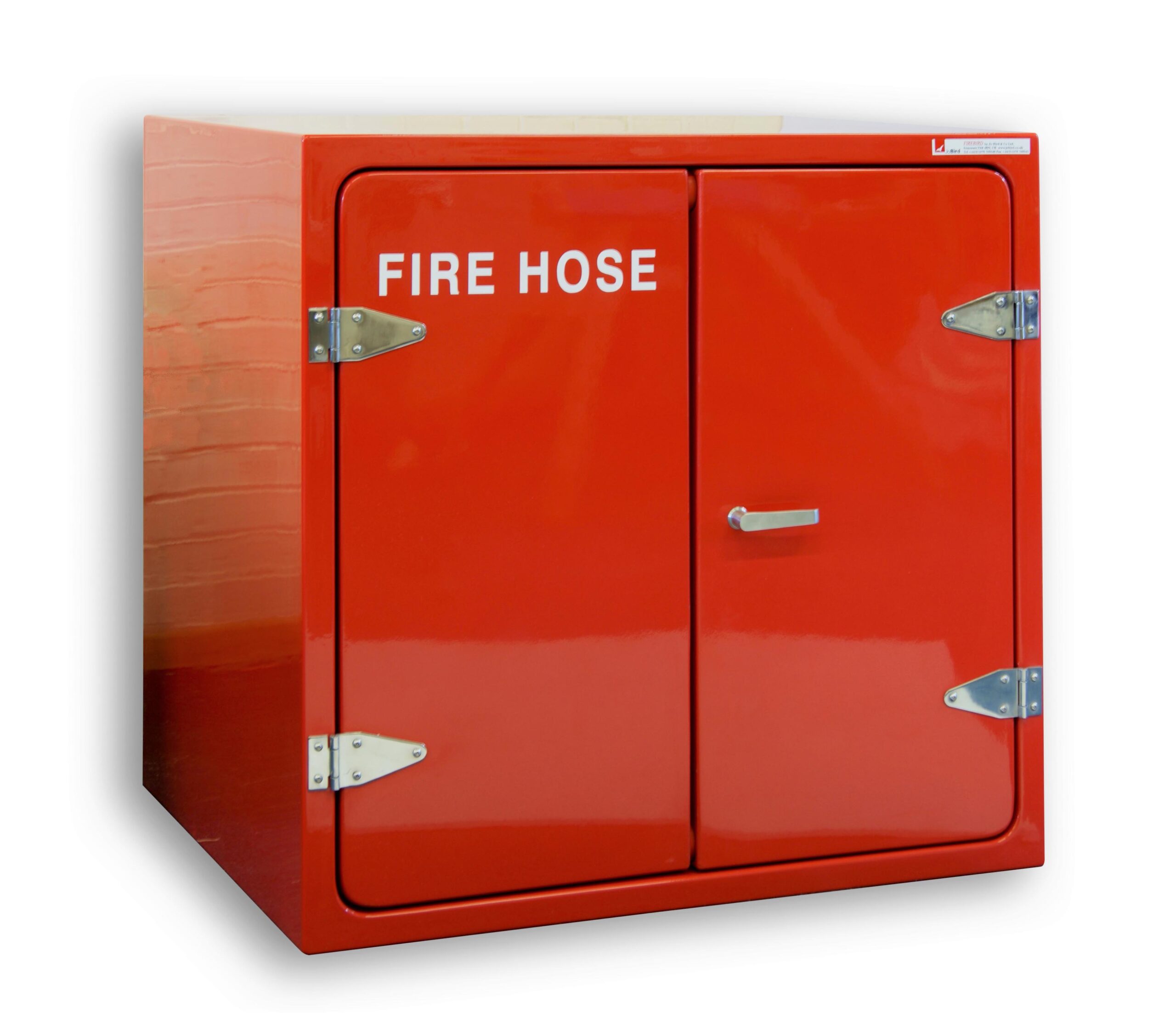

Double doors with 3 way locking

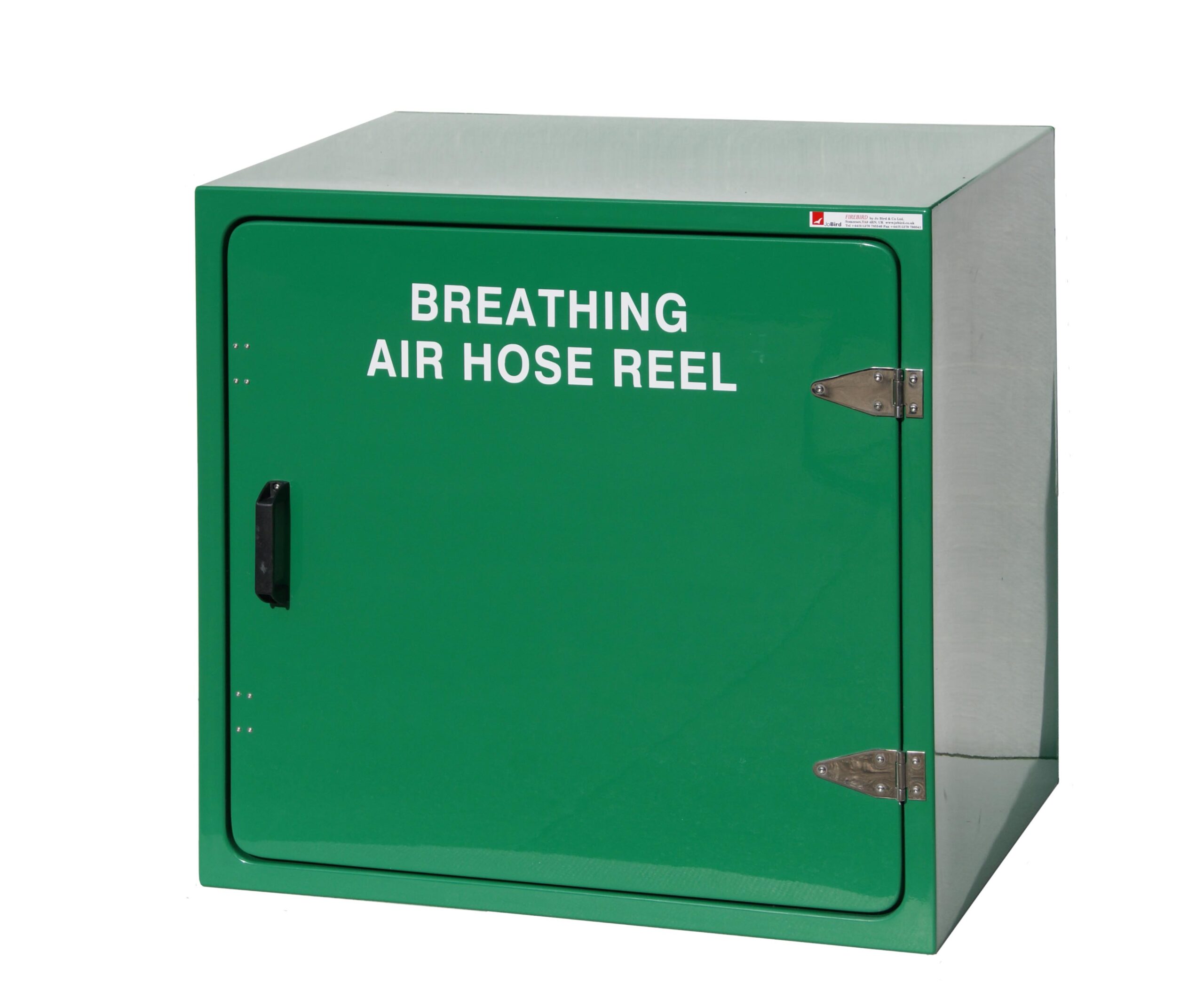

Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
Perspex window
316 stainless steel 3 way locking
shelves & bulkheads
For the storage of 1 x horizontal hose reel
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Polyamide
Seal: EPDM
Double doors with 3 way locking
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
Perspex window
316 stainless steel 3 way locking
shelves & bulkheads
Additional information
| Dimensions | 1000 x 1050 x 850 mm (39.37 x 41.34 x 33.46") |
|---|---|
| Aperture | 793H x 833W mm (31.22 x 32.8") |
| Manufacturer | UK |
Get in touch
Our very experienced and helpful sales team would be delighted to assist you in selecting the most appropriate cabinet(s) to meet your needs in a relaxed and no pressure environment. If you need CAD drawings to incorporate into your designs we will be happy to assist.
Call us: +44 (0)1278 785546
Message us: Contact form
Visit us: 5 Factory Ln, Bason Bridge, Highbridge TA9 4RN
