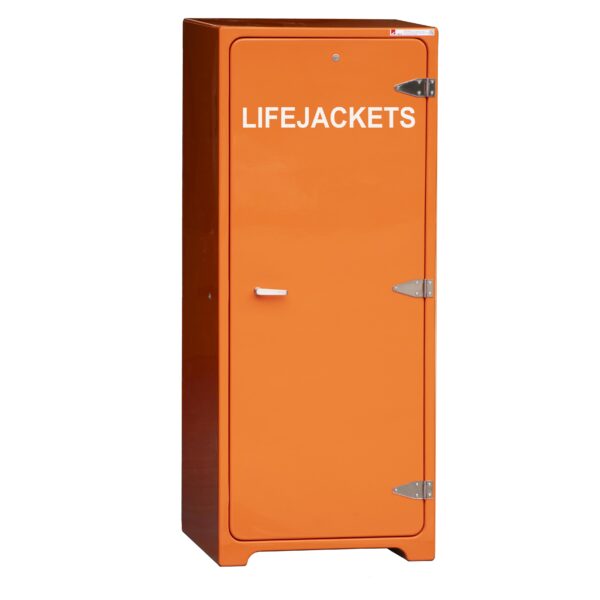

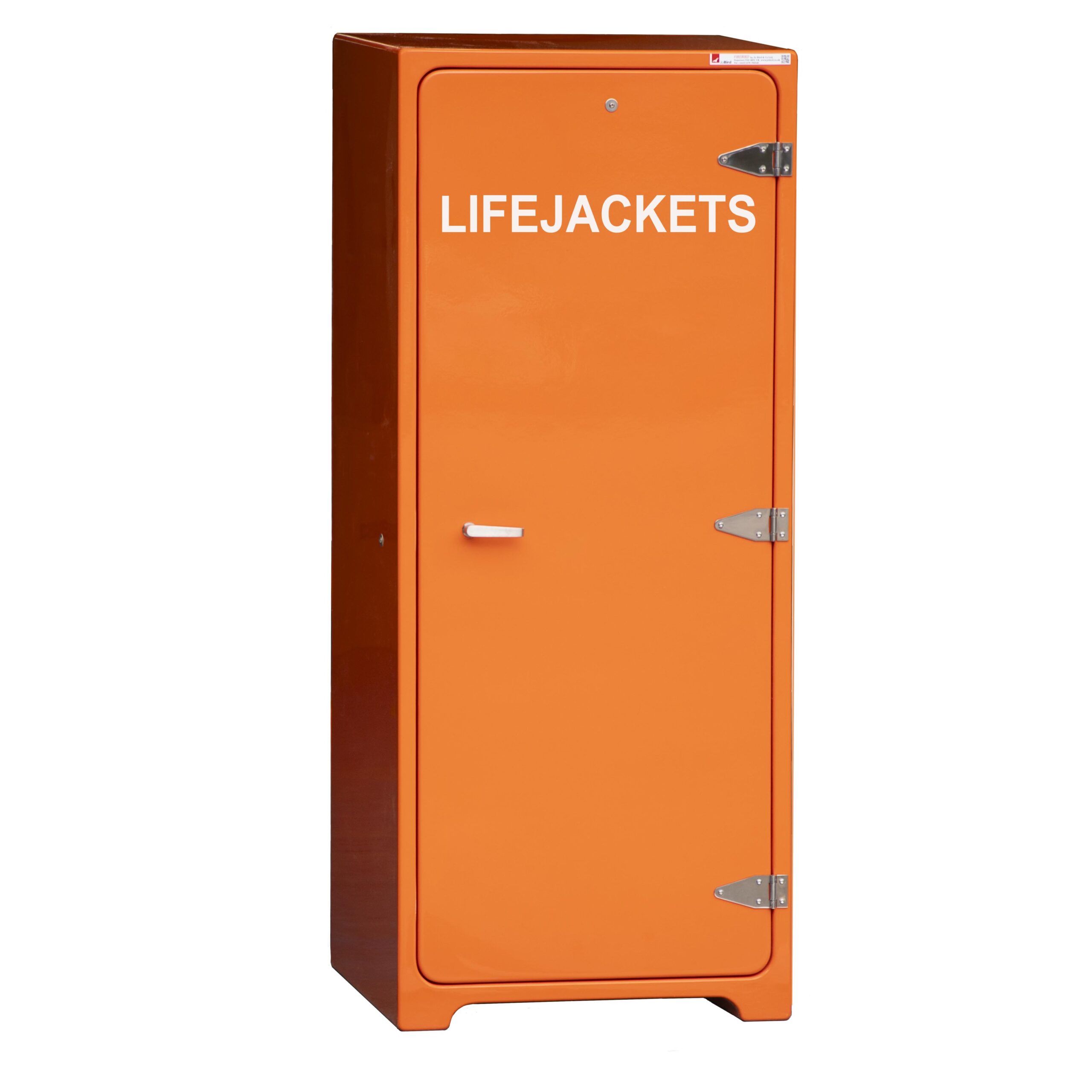

22 x life jacket cabinet (JB20LJS)
Dimensions: Height x width x depth: 1927 x 814 x 660 mm (75.87 x 32.05 x 25.98″)
Aperture: 1680H x 600W mm (66.14 x 23.62″)
Internal depth: 593 mm (23.35″)
Weight : 40Kg (88Lb)
The JB20LJS Life jacket cabinets are fitted with shelves to store approximately 22 x foam filled or automatic life jackets stored in bags. The exact capacity will depend on the type of life jacket. The Jo Bird sales team will be happy to check for you. These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The door can be manufactured to be left or right hinged and is secured with 316 stainless steel 3 way locking system. This is fitted with a single handle to guarantee fast access in an emergency even when wearing gloves.

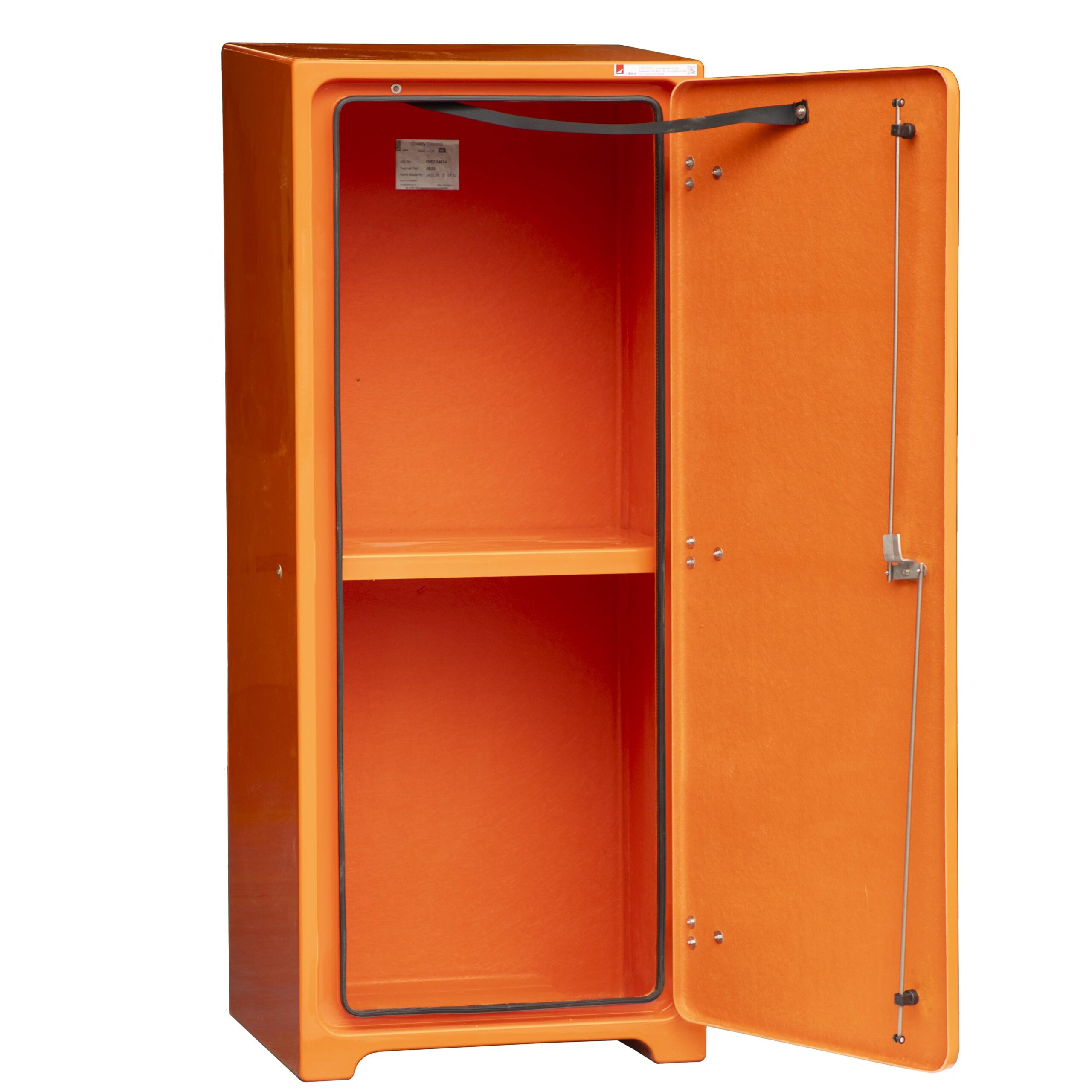

Can be fitted with 1 central shelf for the storage of automatic life jackets in foil bags, foam filled life jackets or immersion suits.
designed to cope with extreme environments offshore.
It is widely used by the world's top energy and commercial marine companies due to it's durability
Colour: Orange RAL 2009
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
L Handle: 316 Stainless steel
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
Heating and insulation
vents
https://vimeo.com/840768452?share=copy
Can be fitted with 1 central shelf for the storage of automatic life jackets in foil bags, foam filled life jackets or immersion suits.
designed to cope with extreme environments offshore.
It is widely used by the world's top energy and commercial marine companies due to it's durability
Colour: Orange RAL 2009
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
L Handle: 316 Stainless steel
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
Heating and insulation
vents
https://vimeo.com/840768452?share=copy
Additional information
| Dimensions | 1927 x 814 x 660 mm (75.87 x 32.05 x 25.98") |
|---|---|
| Aperture | 1680H x 600W mm (66.14 x 23.62") |
| Manufacturer | UK |
