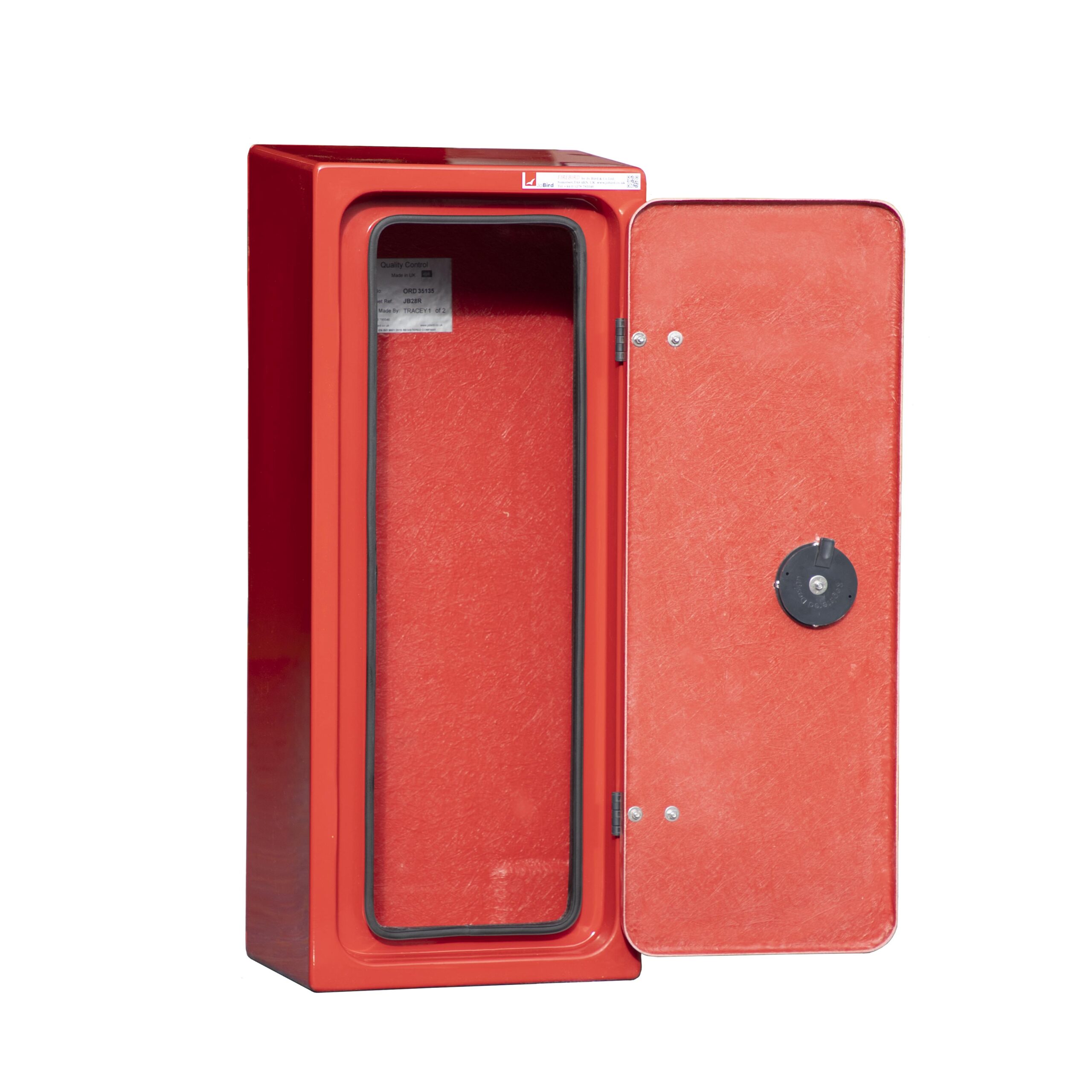

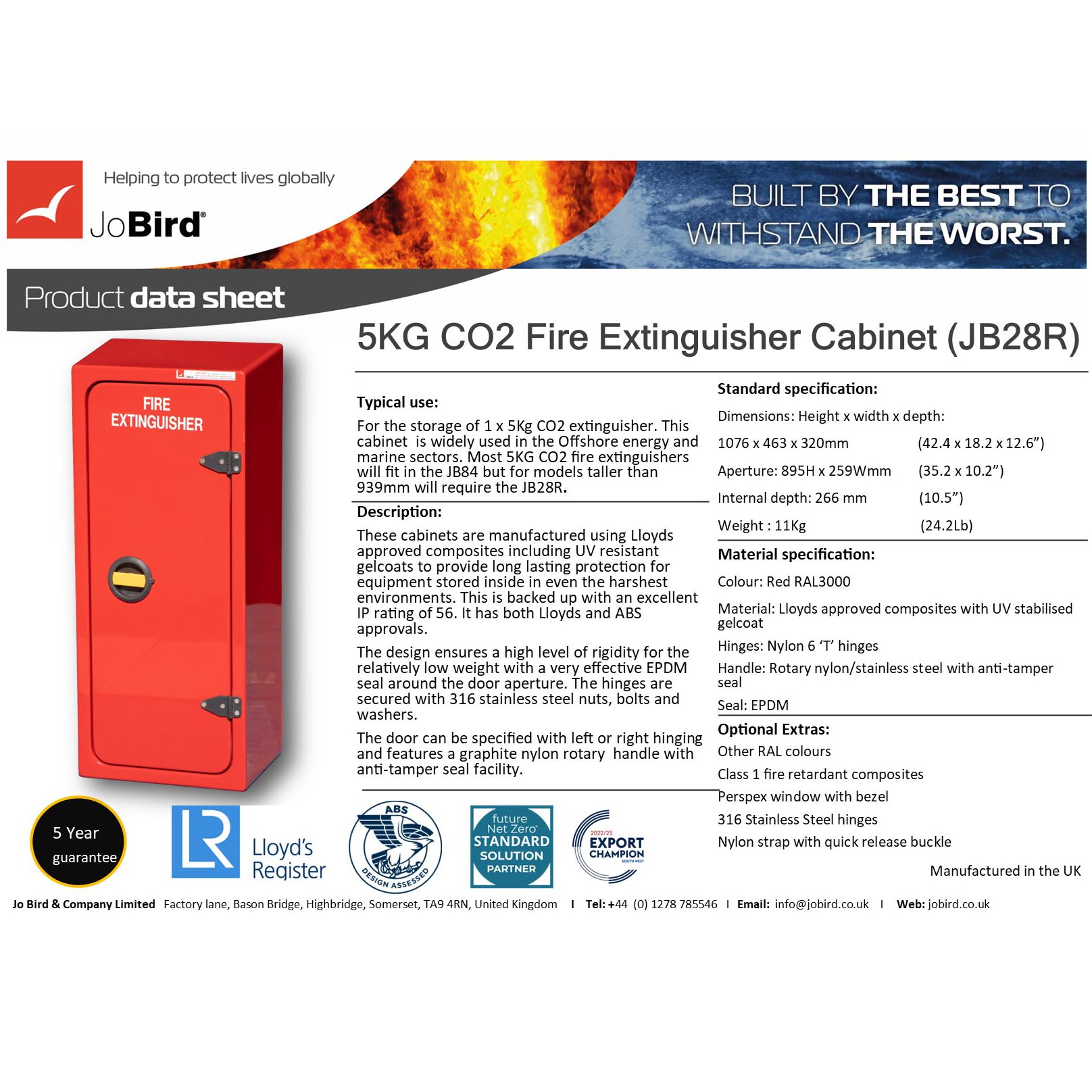

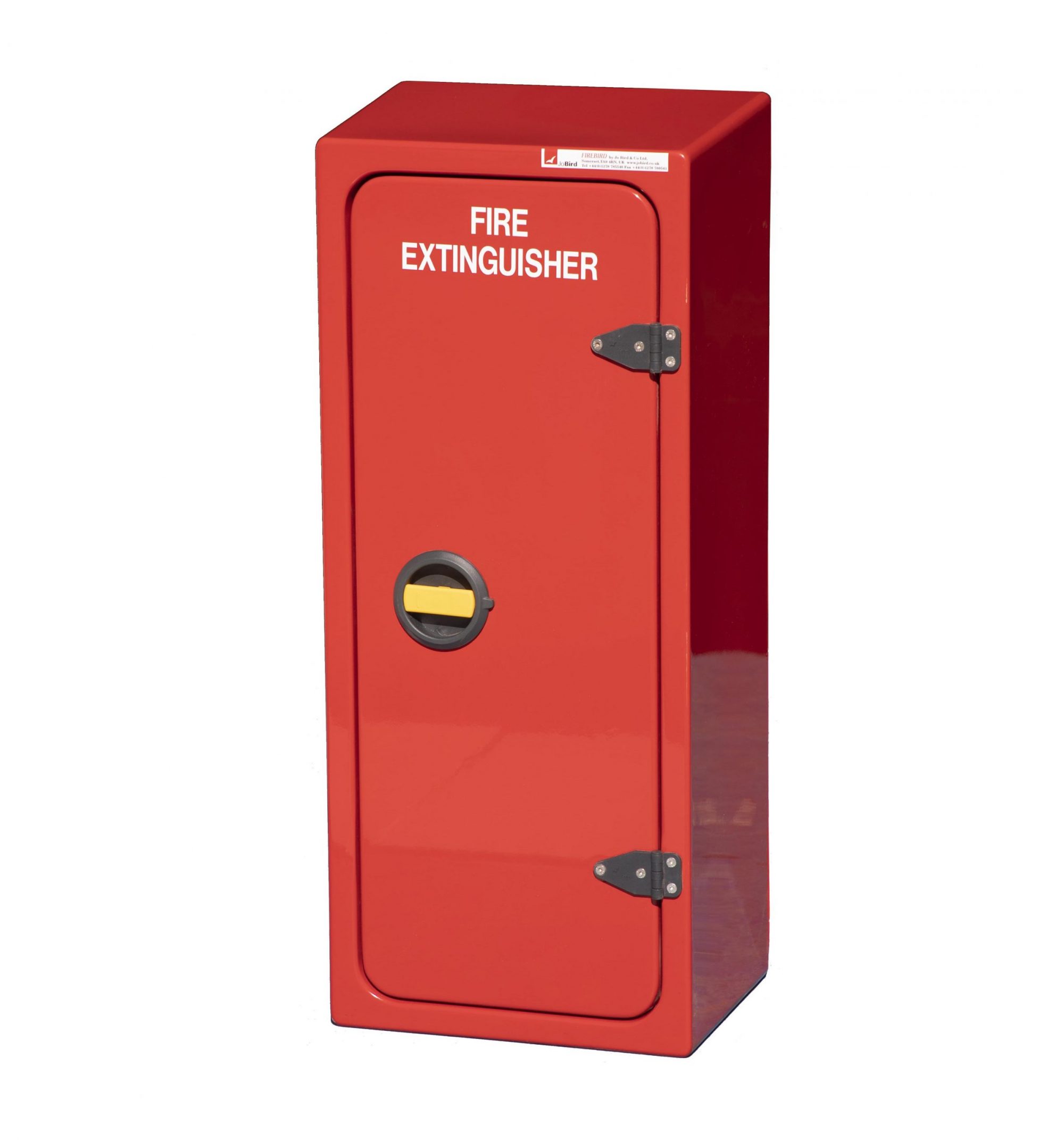

5kg CO2 Fire extinguisher Cabinet (JB28R)
Dimensions : Height x width x depth: 1076 x 463 x 320 mm (42.36 x 18.23 x 12.6″)
Aperture: 895H x 259W mm (35.24 x 10.2″)
Internal depth: 266 mm (10.47″)
Weight : 11 Kg (24.2Lb)
The JB28R can store 1 x 5Kg CO2 portable fire extinguisher Taller than 939mm.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The nylon hinges are secured with 316 stainless steel nuts, bolts and washers.

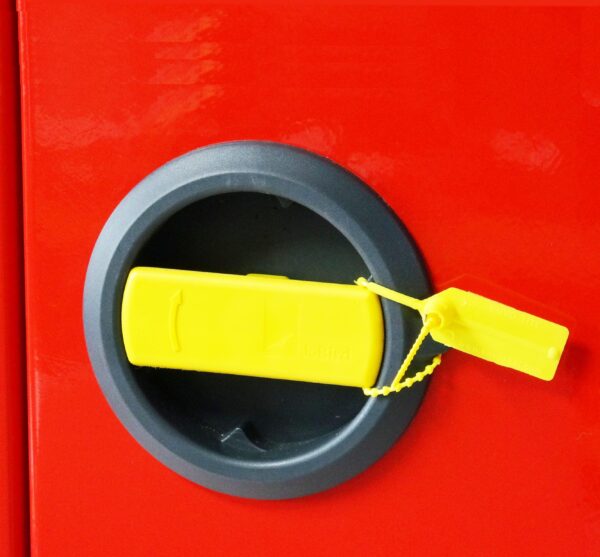

The door can be specified with left or right hinging and features a Graphite nylon/316 Stainless steel rotary handle to guarantee fast access in an emergency even when wearing gloves. The handle features Biomaster (R) technology and can be fitted with an anti-tamper seal.
For the storage of 1 x 5Kg CO2 Fire extinguisher taller than 939mm
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: Nylon
Handle: Nylon/316 Stainless steel with Biomaster (R)
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
316 Stainless steel hinges
Perspex window
Nylon strap with quick release buckle
For the storage of 1 x 5Kg CO2 Fire extinguisher taller than 939mm
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: Nylon
Handle: Nylon/316 Stainless steel with Biomaster (R)
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
316 Stainless steel hinges
Perspex window
Nylon strap with quick release buckle
Additional information
| Dimensions | 320 × 463 × 1076 mm |
|---|---|
| Dimensions | 1076 x 463 x 320 mm (42.36 x 18.23 x 12.6") |
| Aperture | 895 x 259 mm (35.24 x 10.2") |
