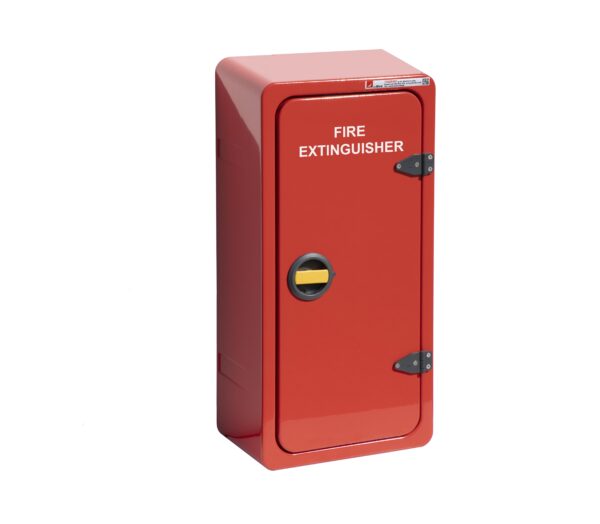

5kg CO2 Fire extinguisher Cabinet (JB84)
Dimensions : Height x width x depth: 972 x 472 x 271mm (38.3 x 18.58 x 10.67″)
Aperture: 811H x 316W mm (31.93 x 12.44″)
Internal depth: 225 mm (8.86″)
Weight : 11.5 Kg (25.3Lb)

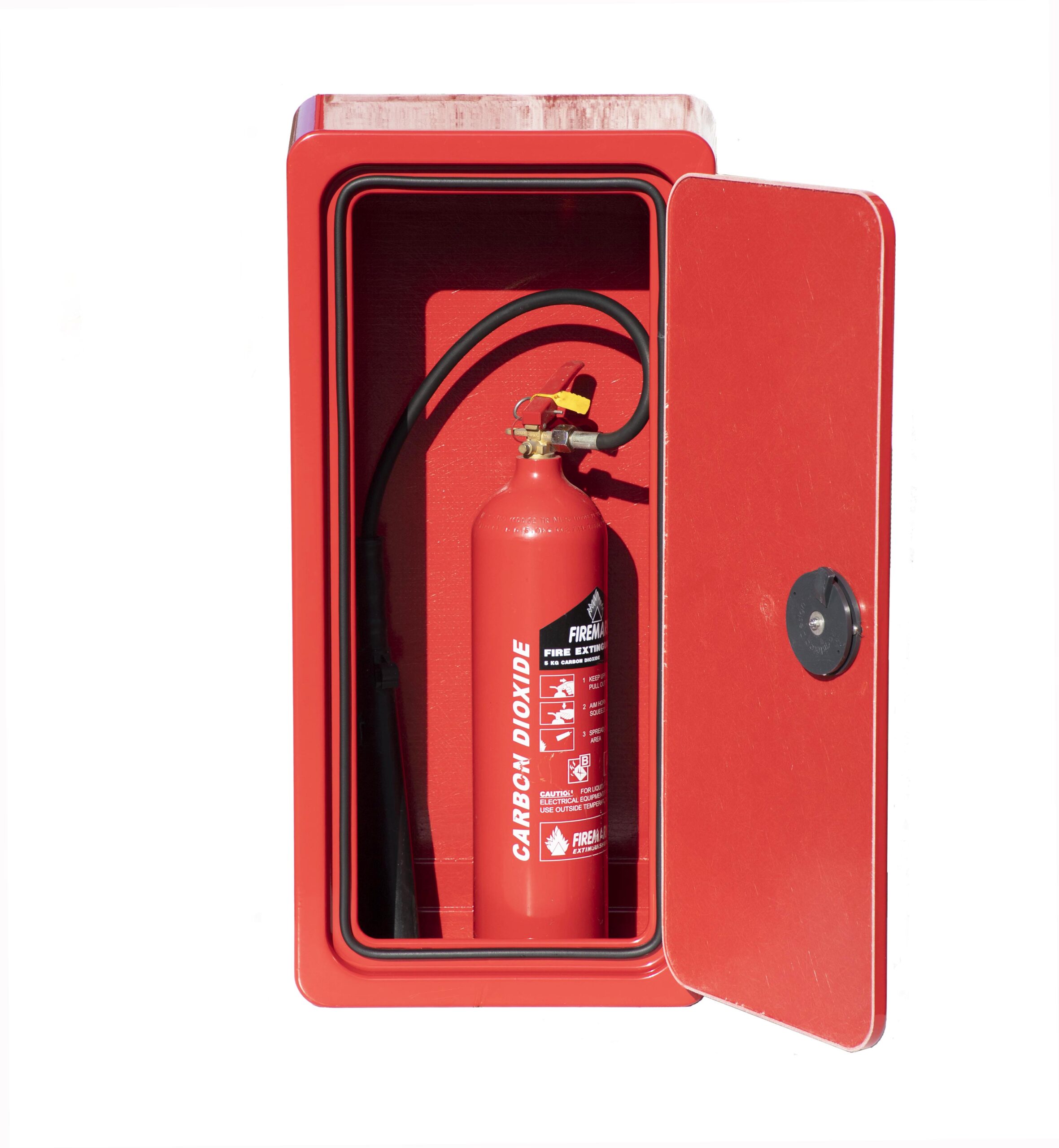

The JB84 can store a 5Kg CO2 portable fire extinguisher up to 939mm in height or a 12Kg/ litre fire extinguisher.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The nylon hinges are secured with 316 stainless steel nuts, bolts and washers.
The door can be specified with left or right hinging and features a graphite/nylon rotary handle to guarantee fast access in an emergency even when wearing gloves. This can be fitted with an anti-tamper seal and contains the anti-microbial Biomaster (R) additive.
For the storage of a 5kg CO2 or a 12kg/litre Portable fire extinguisher.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL3000
Material: Lloyds approved composites with UV Stabilised gelcoat
Hinges: Nylon graphite with 316 Stainless steel bolts
Handle: Nylon/316 Stainless steel with Biomaster (R) additive
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
316 Stainless steel hinges
Perspex window
Nylon webbing strap with quick release buckle for use on ships
View this video to see the differences between the JB84 versus the JB01.
For the storage of a 5kg CO2 or a 12kg/litre Portable fire extinguisher.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL3000
Material: Lloyds approved composites with UV Stabilised gelcoat
Hinges: Nylon graphite with 316 Stainless steel bolts
Handle: Nylon/316 Stainless steel with Biomaster (R) additive
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
316 Stainless steel hinges
Perspex window
Nylon webbing strap with quick release buckle for use on ships
View this video to see the differences between the JB84 versus the JB01.
Additional information
| Dimensions | 271 × 472 × 948 mm |
|---|---|
| Dimensions | 948 x 472 x 271 mm (37.32 x 18.58 x 8.54") |
| Manufacturer | UK |
| Aperture | 811 x 316 mm (31.93 x 12.44") |
