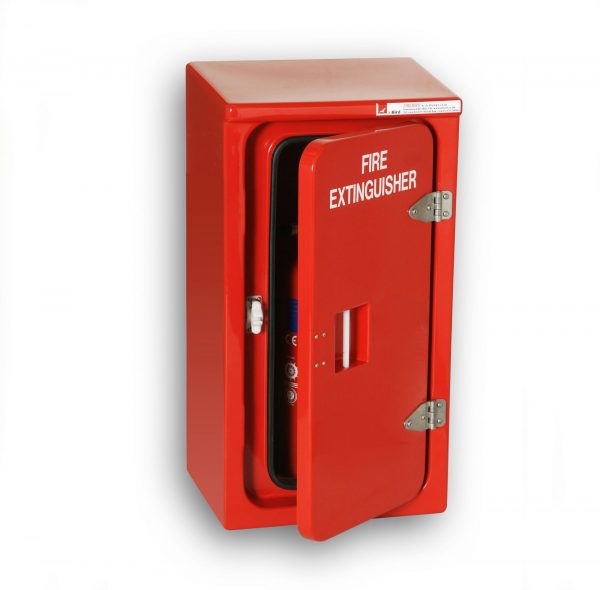

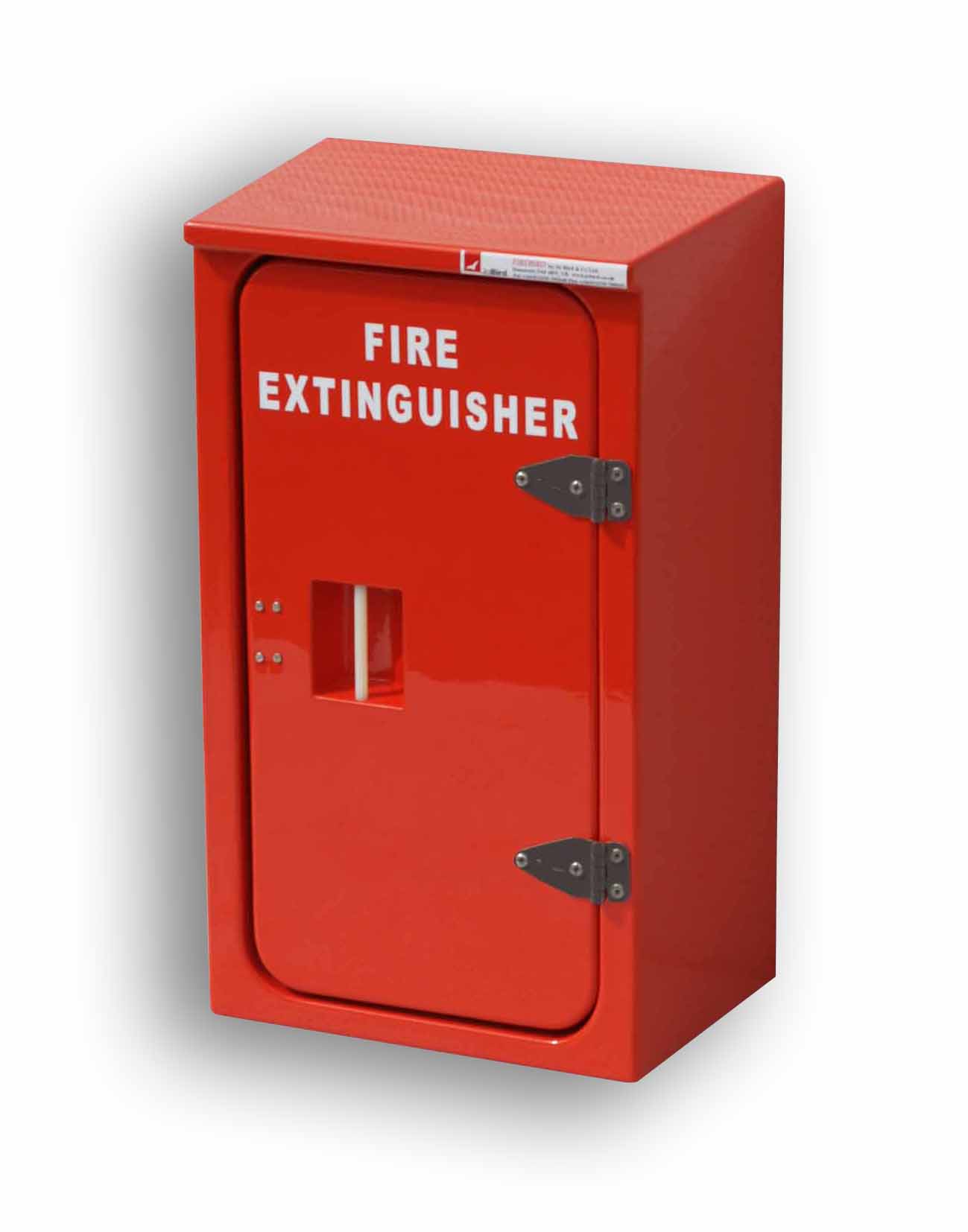

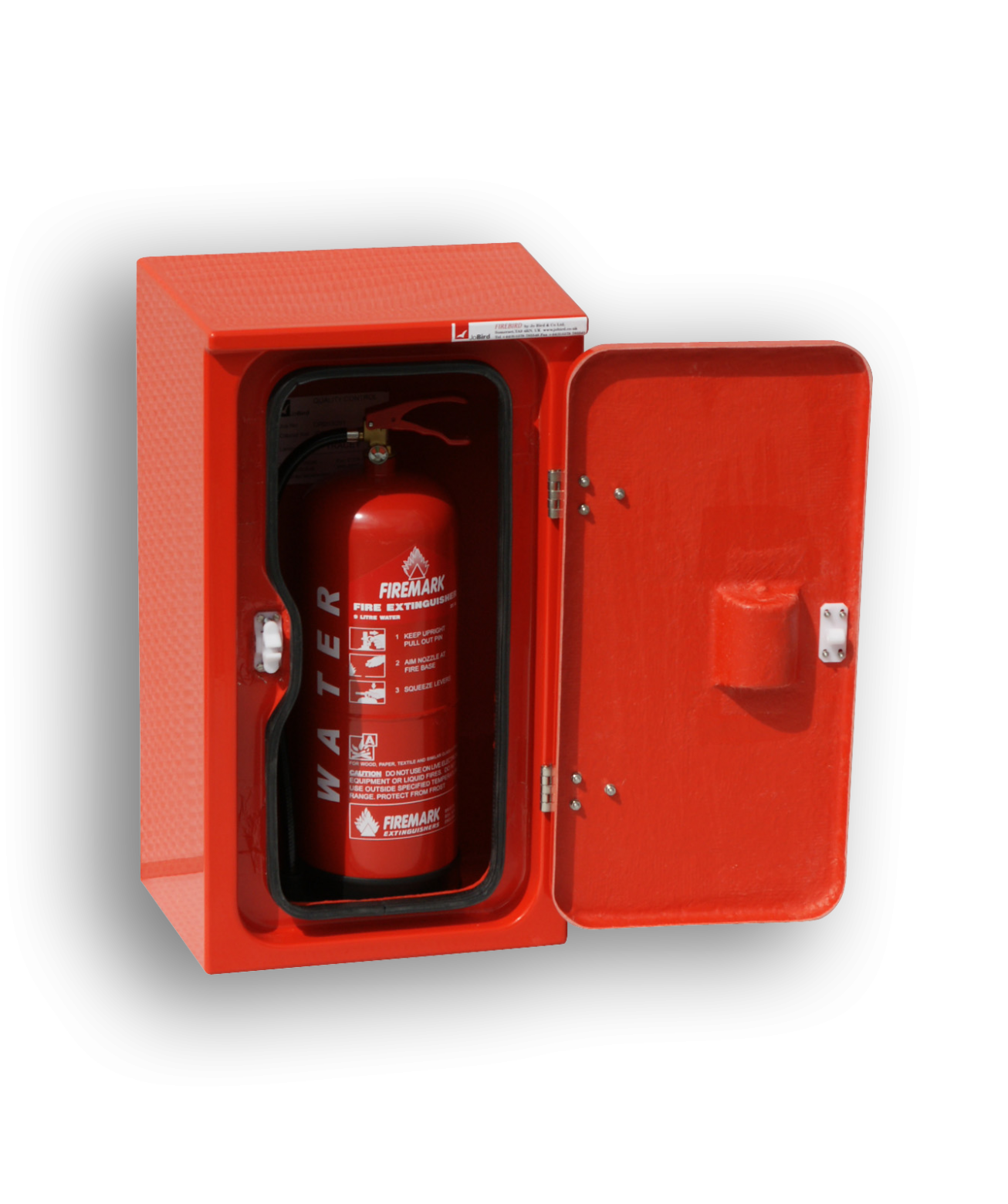

1 x 6-9 Kg/litre Fire extinguisher Cabinet (JB66)
Dimensions : Height x width x depth: 773 x 426 x 314 mm (30.43 x 16.77 x 12.36″)
Aperture: 524H x 224W mm (20.63 x 8.82″)
Internal depth: 240 mm (9.45″)
Weight : 9 Kg (19.8Lb)
The JB66 can store 1 x 6-9Kg / Litre portable fire extinguisher (excluding most 5Kg CO2 models).
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The 316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers.
The door can be specified with left or right hinging and features a nylon rod handle to pull the door open to guarantee fast access in an emergency even when wearing gloves.
This cabinet is only manufactured in Dubai. For UK production please see the separate listing for the JB82.
for the storage of 1 x 6-9Kg / litre portable Fire extinguisher (excluding most 5Kg CO2)
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon Rod
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Nylon hinges
Perspex window
Nylon strap with quick release buckle, GRP ground mounting post
JB66 Datasheet 2022
for the storage of 1 x 6-9Kg / litre portable Fire extinguisher (excluding most 5Kg CO2)
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon Rod
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Nylon hinges
Perspex window
Nylon strap with quick release buckle, GRP ground mounting post
JB66 Datasheet 2022
Additional information
| Dimensions | 314 × 426 × 773 mm |
|---|---|
| Dimensions | 773 x 426 x 314 mm (30.43 x 16.77 x 12.36") |
| Manufacturer | Dubai |
| Aperture | 524H x 224W mm (20.63 x 8.82") |
