6 x Life jacket cabinet (SOS505)

Dimensions : Height x width x depth: 475 x 995 x 615 mm                              (18.7 x 39.17 x 24.21″)

Aperture :   890 x 487 mm                                                                                        (35 x 19″)

Weight : 16.5Kg   (36.3Lb)

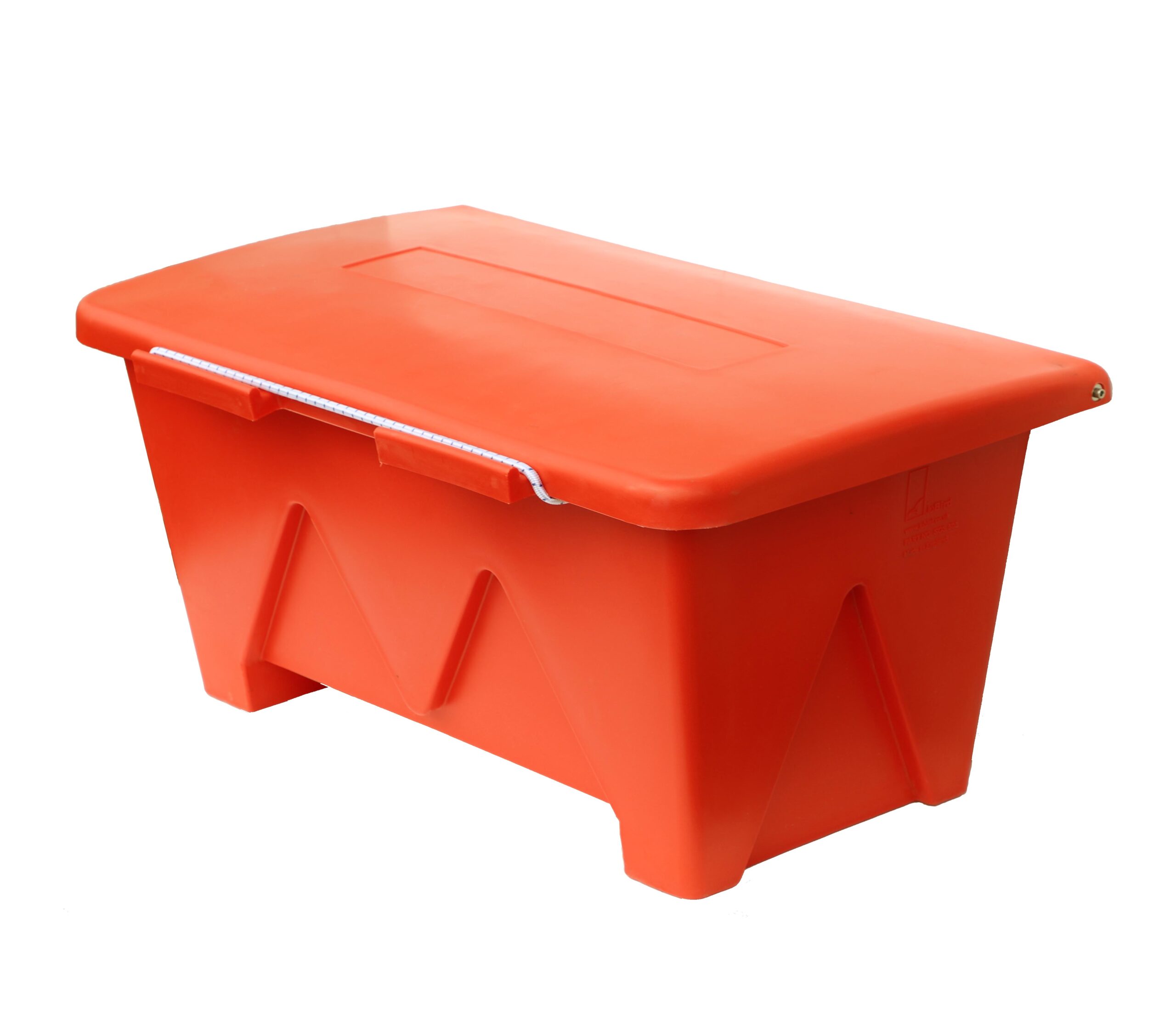

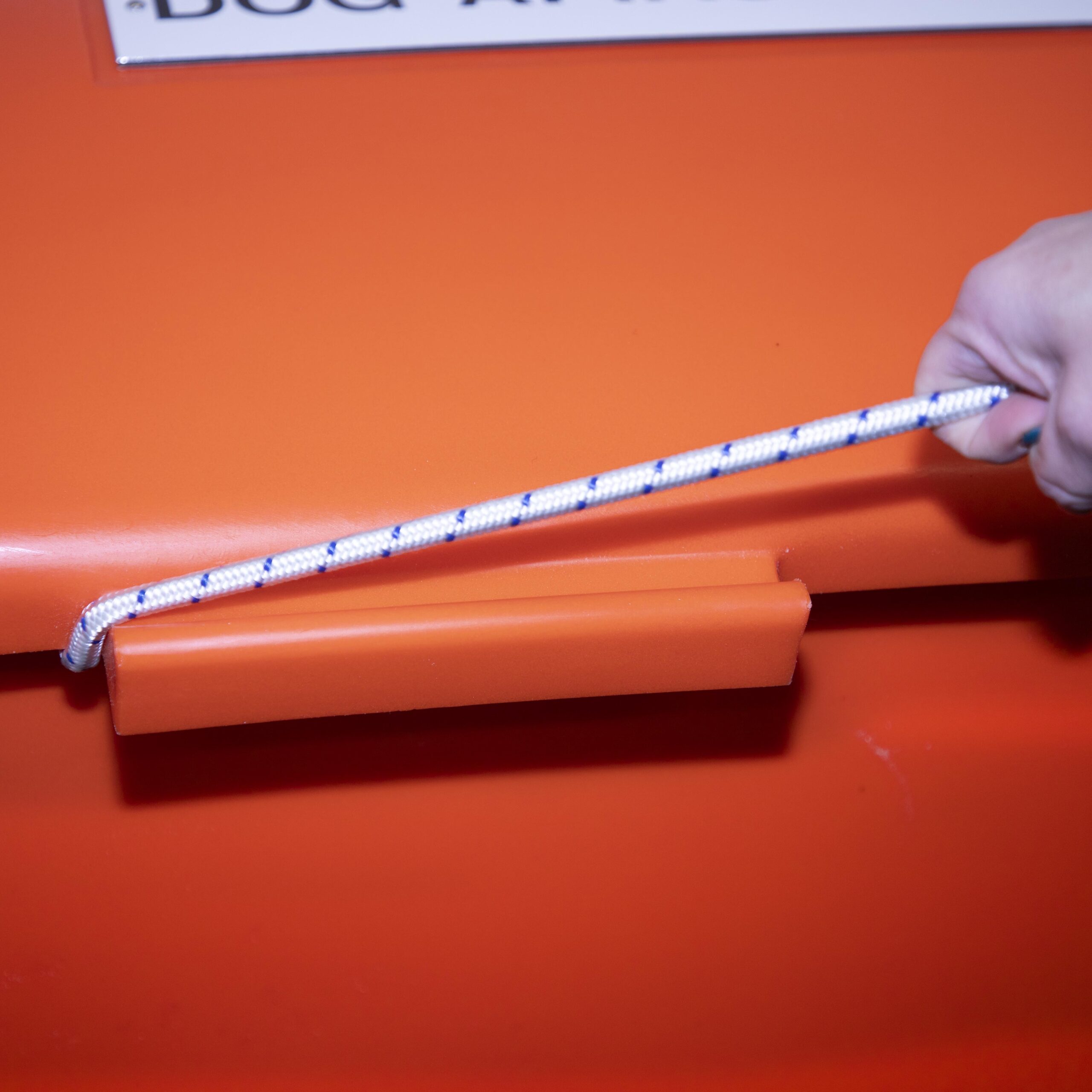

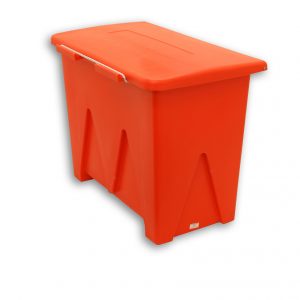

The SOS505 life jacket chest is designed to store approximately 6 foam filled life jackets depending on type. It is made of thick single skin, UV stabilised polyethylene so as to provide many years of reliable use.  Many similar looking chests will be made with thin double skins which can become brittle and crack from UV aging. The lid is secured by a marine bungee cord which makes it easy to open with only one hand even when wearing gloves. This is better than using plastic or metal catches secured with rivets as the rivets can pull through the comparatively soft polyethylene. This very effective sealing gives it an excellent IP rating of x5. Because of this the contents will be protected whatever the weather.  The base is reinforced for deck mounting and the design means they can be stacked when not in use to minimise storage and transport costs. It comes with a five year guarantee. If a larger chest is required please look at the SOS506 https://www.spacabinets.com/product/lifejacket-and-immersion-suit-chest-sos506/.

Typical uses

For the storage  approximately 6 foam filled life jackets (exact qty depends on type) on commercial ships.
designed to cope with harsh Marine environments.

Material specification
Colour: Orange
Material UV Stabilised polyethylene
Hinges: 316 Stainless steel
Handle: Marine Bungee
Optional extras

Label: self adhesive or Diabond
Other colours (min order qty may apply)
200mm x 200mm photo-luminescent IMO approved symbols

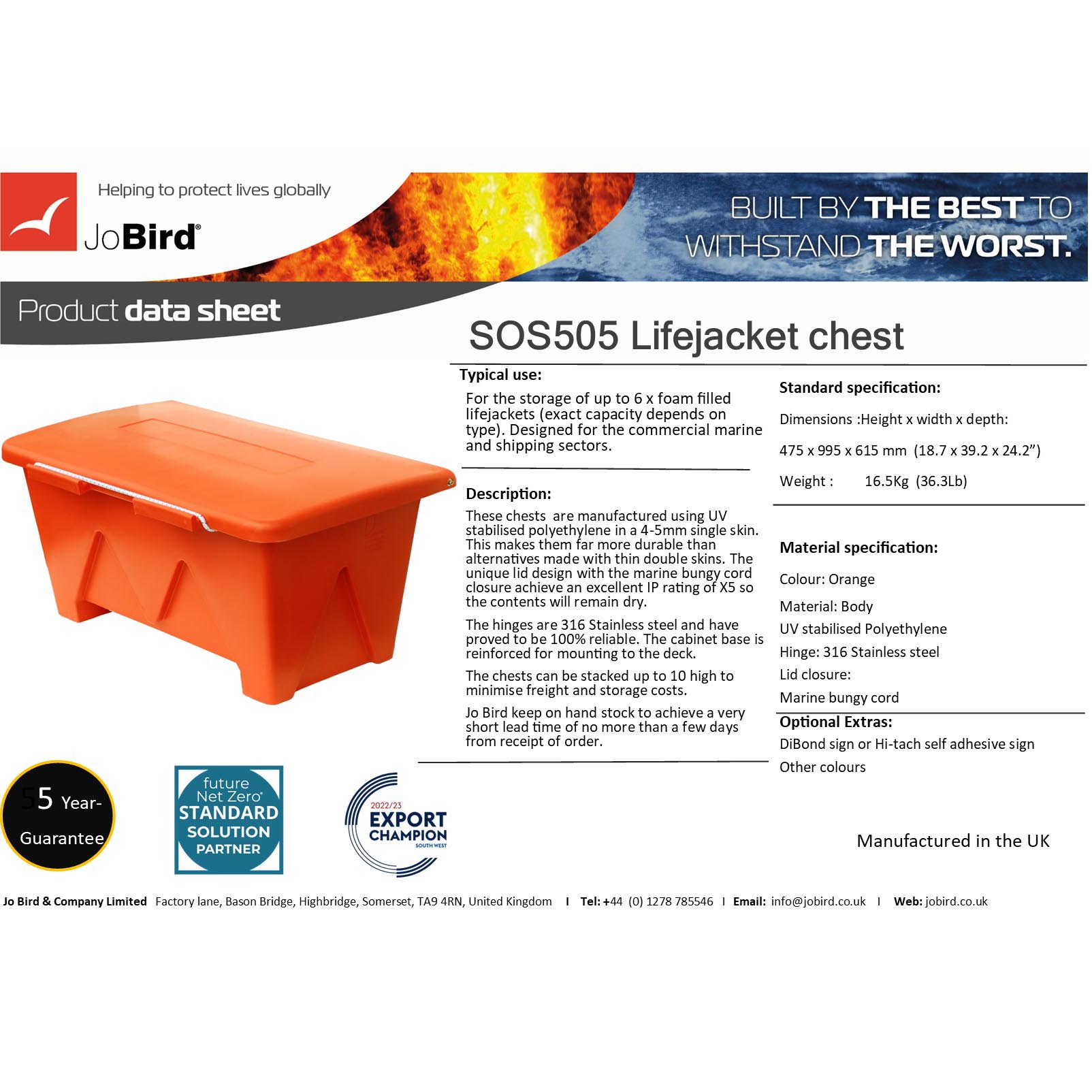

SOS505 Lifejacket Datasheet 2024

Typical uses

For the storage  approximately 6 foam filled life jackets (exact qty depends on type) on commercial ships.
designed to cope with harsh Marine environments.

Material specification
Colour: Orange
Material UV Stabilised polyethylene
Hinges: 316 Stainless steel
Handle: Marine Bungee
Optional extras

Label: self adhesive or Diabond
Other colours (min order qty may apply)
200mm x 200mm photo-luminescent IMO approved symbols

SOS505 Lifejacket Datasheet 2024

Additional information

Dimensions

475 x 995 x 615 mm (18.7 x 39.17 x 24.21")

Manufacturer

UK

Aperture

890 x 487 mm (35 x 19")
