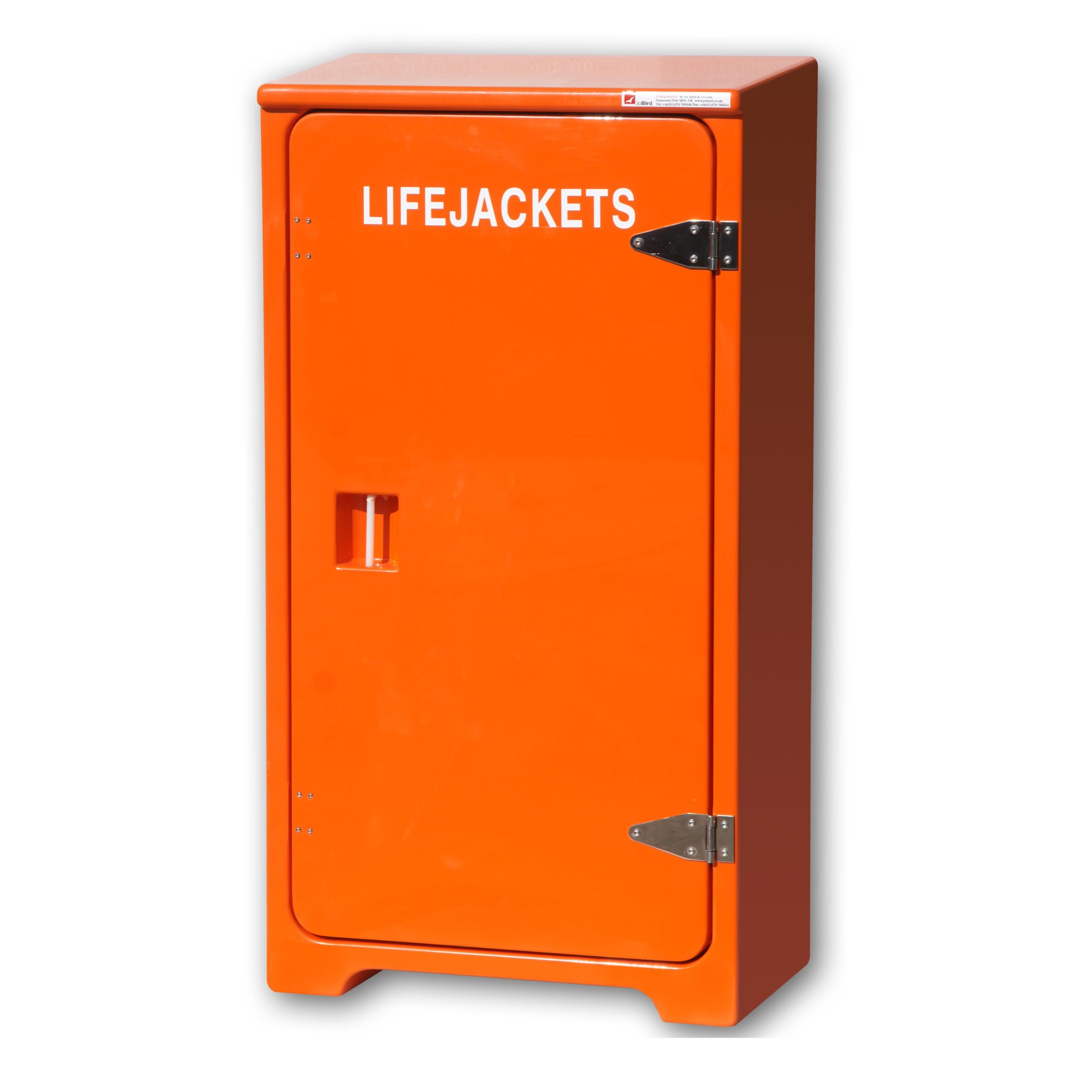

8 x Automatic life jacket cabinet (JB14LJ)
Dimensions : Height x width x depth: 1296 x 698 x 392 mm (51.02 x 27.48 x 15.43″)
Aperture: 1060H x 490W mm (41.73 x 19.29″)
Internal depth: 320 mm (12.6″)
Weight : 24Kg (52.8Lb)

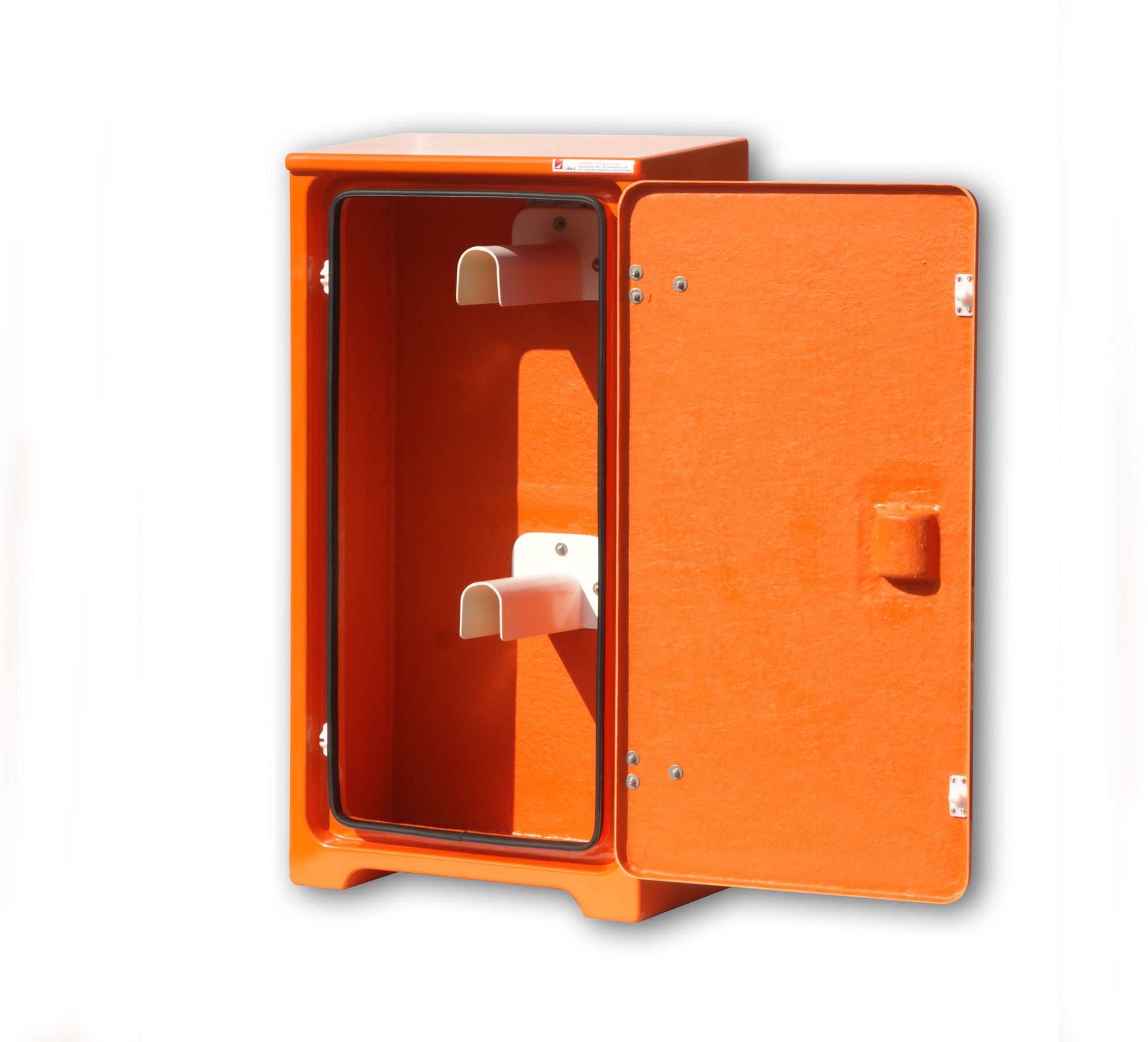

The JB14LJ Life jacket cabinet fitted with two hangers to store up to 8 automatic life jackets (not in bags). These are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The door can be specified with left or right hinging and features a nylon rod handle to pull the door open to guarantee fast access in an emergency even when wearing gloves. The hinges are made of 316 Stainless steel along with the nuts, bolts and washers to secure them.
For the storage of 8 x automatic life jackets
designed to cope with extreme environments offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Orange RAL 2009
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon rod
lifejacket hangers:
Composites
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
316 Stainless steel 3 way locking
For the storage of 8 x automatic life jackets
designed to cope with extreme environments offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Orange RAL 2009
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon rod
lifejacket hangers:
Composites
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
316 Stainless steel 3 way locking
Additional information
| Dimensions | 1296 x 698 x 392 mm (51.02 x 27.5 x 15.43") |
|---|---|
| Aperture | 1060 x 490 mm (41.73 x 19.29") |
| Manufacturer | UK |
