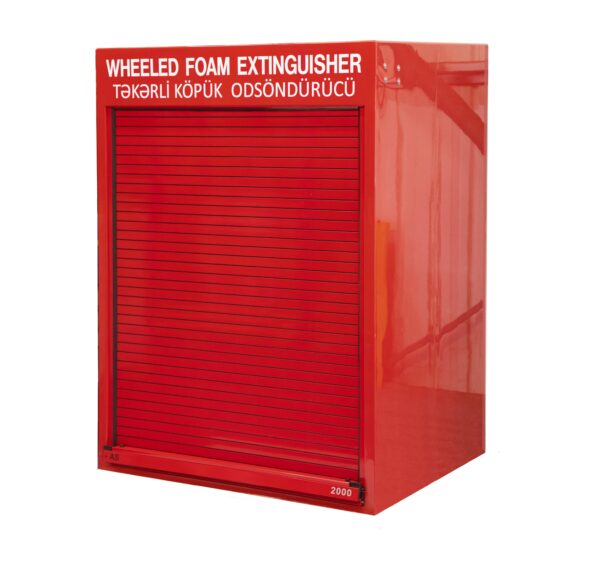

Cabinet for wheeled fire extinguishers (RS300.1200)

Dimensions : Height x width x depth: 2050 x 1395 x 1200 mm                       (80.71 x 54.92 x 47.24″)

Aperture: 1515H x 1210W mm (59.65 x 47.63″)

Internal depth: 1147 mm (45.16″)

Weight : 117 Kg  (257.4Lb)

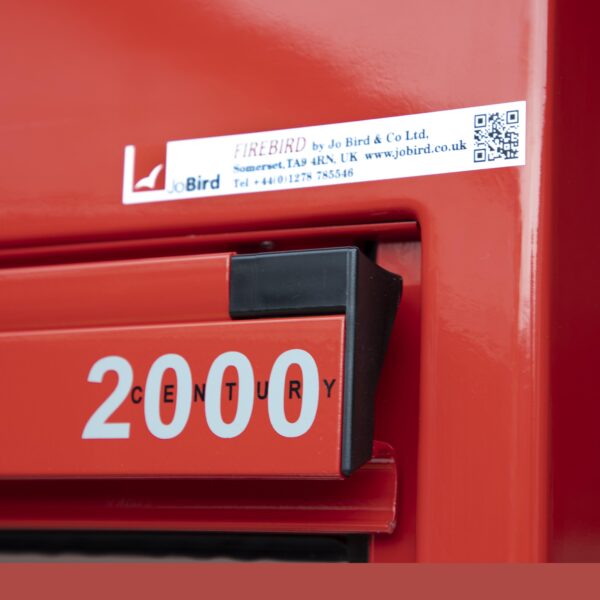

The RS300.1200 is a large fire extinguisher or foam trolley cabinet fitted with a superb AS roller shutter door. This makes it easy to access to the contents where there would not be room to open a conventional door. This makes it ideal for tight spaces or windy locations where large doors can become a hazard. These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The cabinet can be manufactured (as shown) with a flat reinforced base to make it easy to wheel a large fire extinguisher or fire trolley in and out. The cabinet can also be customised with shelves and bulkheads to store a wide range of other safety equipment. It is also possible to have Insulated and heated versions manufactured too so please ask for further details.

Typical uses

For the storage of wheeled fire extinguishers or large foam trolleys.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability

Material specification
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
RS Roller shutter door: Aluminium
Seal: EPDM
Optional extras
Other RAL Colours
Shelves/bulkheads
Class 1 Fire retardant composites
Heating and insulation
vents

Trolley ramp

RS300.1200 GP Datasheet 2022

Typical uses

For the storage of wheeled fire extinguishers or large foam trolleys.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability

Material specification
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
RS Roller shutter door: Aluminium
Seal: EPDM
Optional extras
Other RAL Colours
Shelves/bulkheads
Class 1 Fire retardant composites
Heating and insulation
vents

Trolley ramp

RS300.1200 GP Datasheet 2022

Additional information

Dimensions 1200 × 1395 × 2050 mm
Dimensions

2050 x 1395 x 1200 mm (80.71 x 54.92 x 47.24")

Manufacturer

UK

Aperture

1515 x 1210 mm (59.65 x 47.63")
