Fire fighter’s equipment cabinet (RS150FE)

Dimensions : Height x width x depth: 1620 x 798 x 460 mm                                  (63.78 x 31.42 x 18.11″)

Aperture: 1228H x 745W mm (48.35 x 29.33″)

Internal depth: 404 mm (15.91″)

Weight : 60Kg (132Lb)

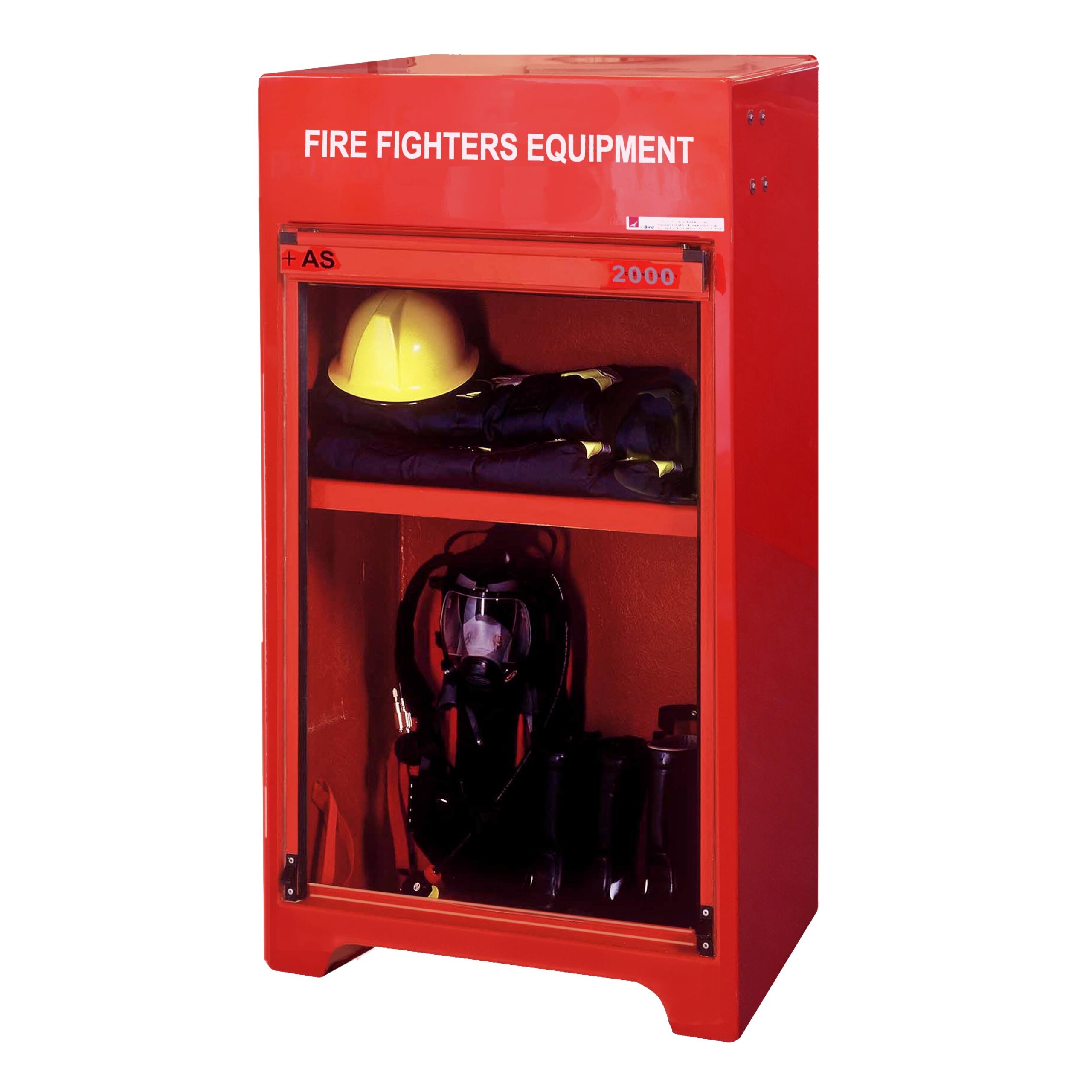

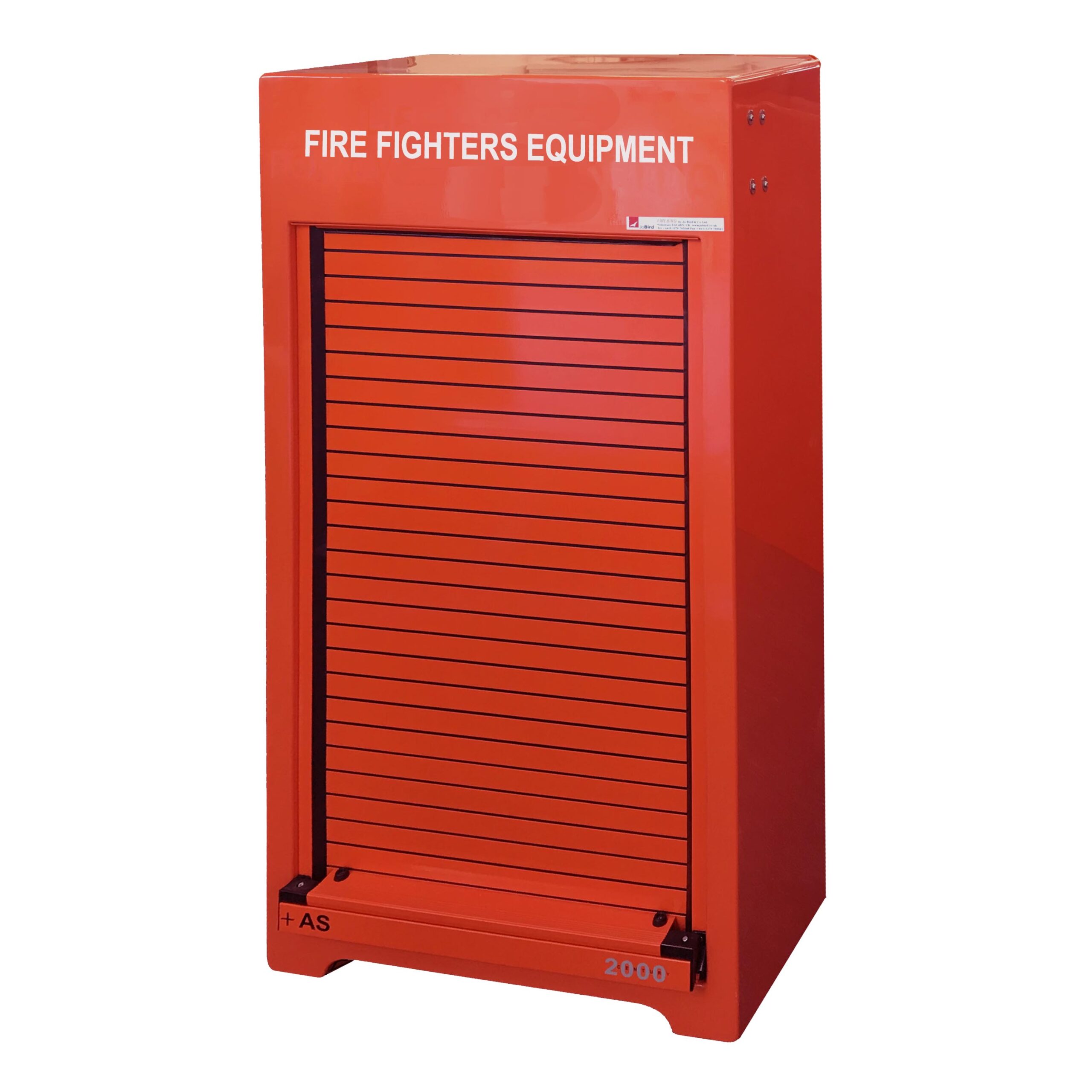

The RS150FE Fire fighter’s equipment cabinet is fitted with a central shelf for a folded uniform along with 1 x BA sprung clip to hold an SCBA in place. It has a high quality AS Roller shutter door making it ideal for tight spaces or windy locations. The cabinet body an shelf are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals. This design provides a high level of rigidity for relatively low weight. It also has a very effective EPDM seal around the door aperture.

Typical uses

For the storage of 1 set of Fire fighter's equipment including SCBA.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability

Material specification
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Shelf: Composite
RS Roller shutter door: Aluminium
Seal: EPDM
Optional extras
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
vents
316 Stainless steel axe bracket

RS150FE Datasheet 2022

Typical uses

For the storage of 1 set of Fire fighter's equipment including SCBA.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability

Material specification
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Shelf: Composite
RS Roller shutter door: Aluminium
Seal: EPDM
Optional extras
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
vents
316 Stainless steel axe bracket

RS150FE Datasheet 2022

Additional information

Dimensions

1620 x 798 x 460 mm (63.78 x 31.42 x 18.11")

Aperture

1228H x 745W mm (48.35 x 29.33")

Manufacturer

UK

Get in touch

Our very experienced and helpful sales team would be delighted to assist you in selecting the most appropriate cabinet(s) to meet your needs in a relaxed and no pressure environment. If you need CAD drawings to incorporate into your designs we will be happy to assist.
