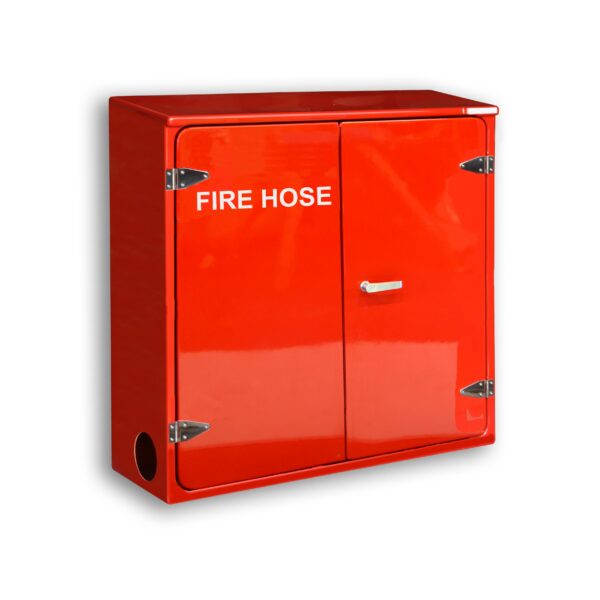

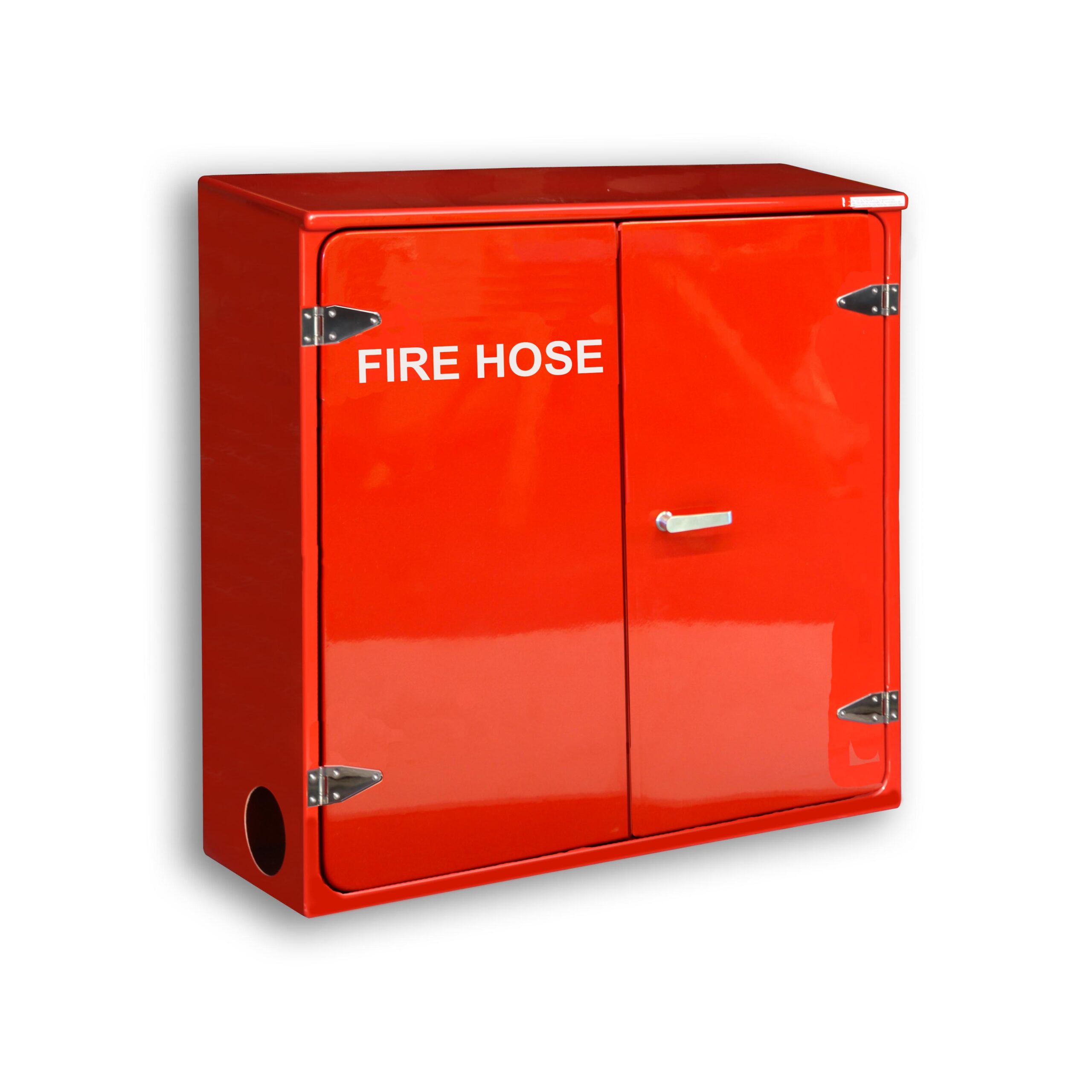

Fire Hose reel cabinet (JB55)
Dimensions : Height x width x depth: 1300 x 1300 x 425 mm (51.18 x 51.18 x 16.73″)
Aperture: 1097H x 1097W mm (43.19 x 43.19″)
Internal depth: 346 mm
Weight : 27Kg (59.4Lb)
The JB55 Fire hose reel cabinet is designed to store a swinging hose reel and features a reinforced back and side wall to take the weight of the reel. It can also be fitted with insulation and heating for frost protection in cold climates.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The 316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers. The interlocking double doors can be rapidly opened by turning the 316 Stainless steel handle and pulling outwards. The double doors reduce the amount of space needed in front of the cabinet for the door swing.
For the Storage of 1 x swinging hose reel.
designed to cope with extreme environments on and offshore.
It is used by the world's top energy companies due to it's durability
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: 316 Stainless steel three way locking
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
Heating and insulation
vents
JB55 Datasheet 2022
https://vimeo.com/840768452?share=copy
For the Storage of 1 x swinging hose reel.
designed to cope with extreme environments on and offshore.
It is used by the world's top energy companies due to it's durability
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: 316 Stainless steel three way locking
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
Heating and insulation
vents
JB55 Datasheet 2022
https://vimeo.com/840768452?share=copy
Additional information
| Dimensions | 1300 x 1300 x 425 mm (51.18 x 51.18 x 16.73") |
|---|---|
| Aperture | 1097H x 1097W mm (43.19 x 43.19") |
| Manufacturer | UK |
