Dimensions : Height x width x depth: 422 x 448 x 213 mm                              (16.61 x 17.64 x 8.39″)

Aperture: 255H x 255W mm  (10.04 x 10.04″)

Internal depth: 160 mm (6.3″)

Weight : 6 Kg  (13.2Lb)

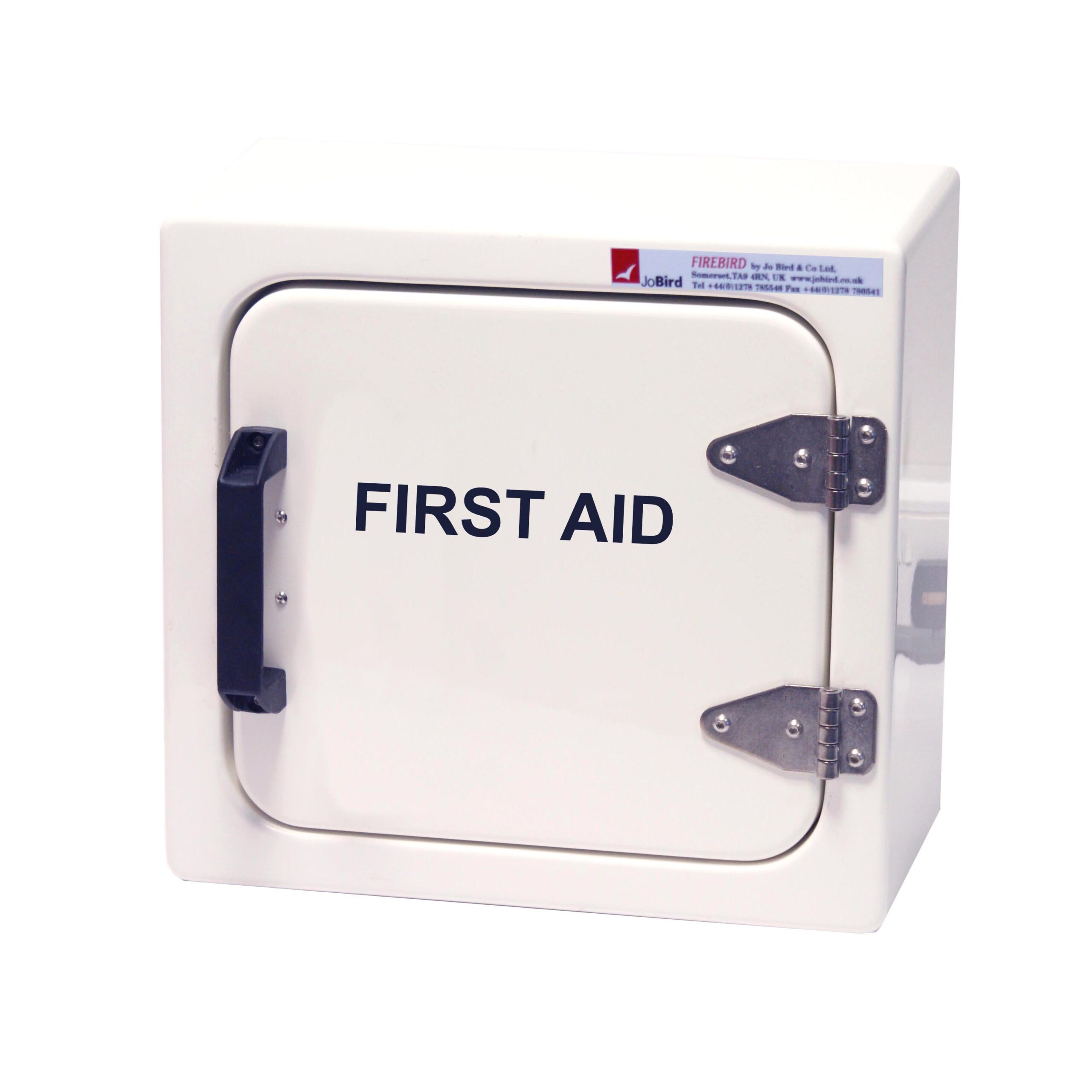

The JB04 is designed to store a first aid kit on or offshore. It provides a high level of protection but also allowing fast access in an emergency. These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The torsion box body design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The  316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers.

The door can be specified with left or right hinging and features a polyamide handle to pull the door open to guarantee fast access in an emergency even when wearing gloves. The cabinet can be manufactured in other colours and IMO approved photo-luminescent signs are available as optional extras.
