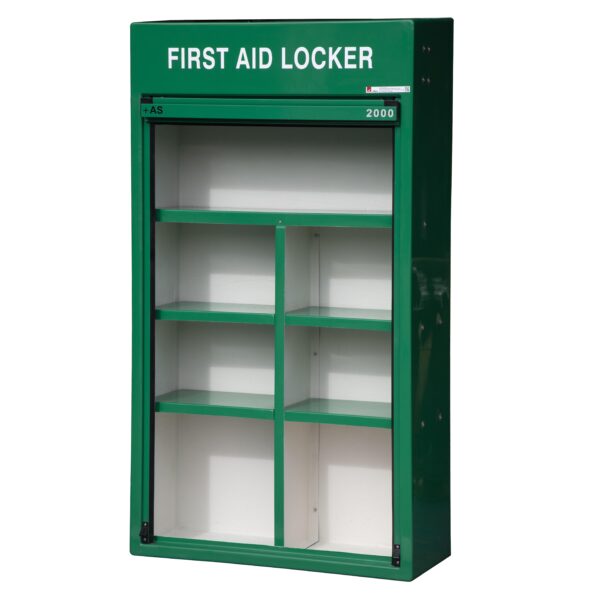

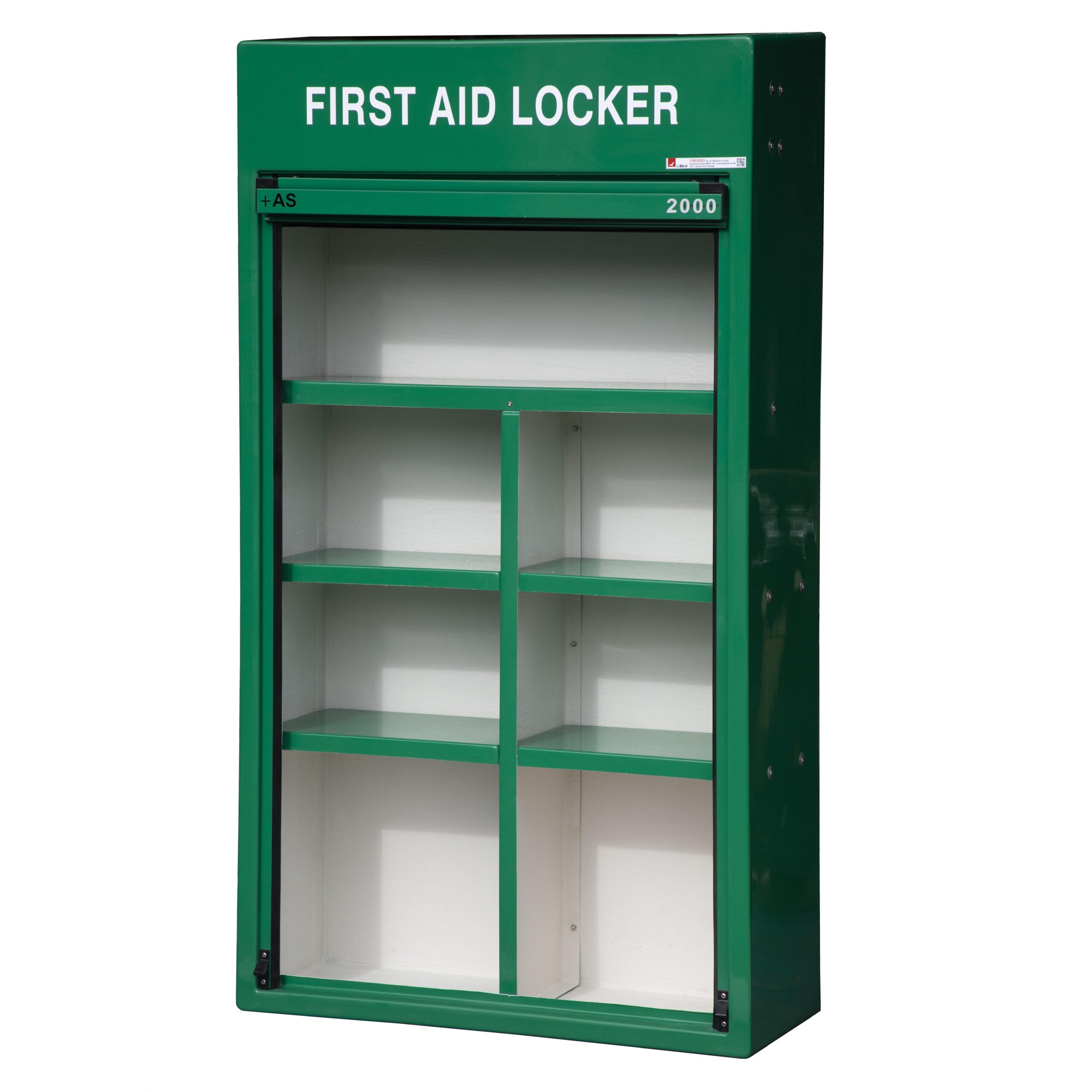

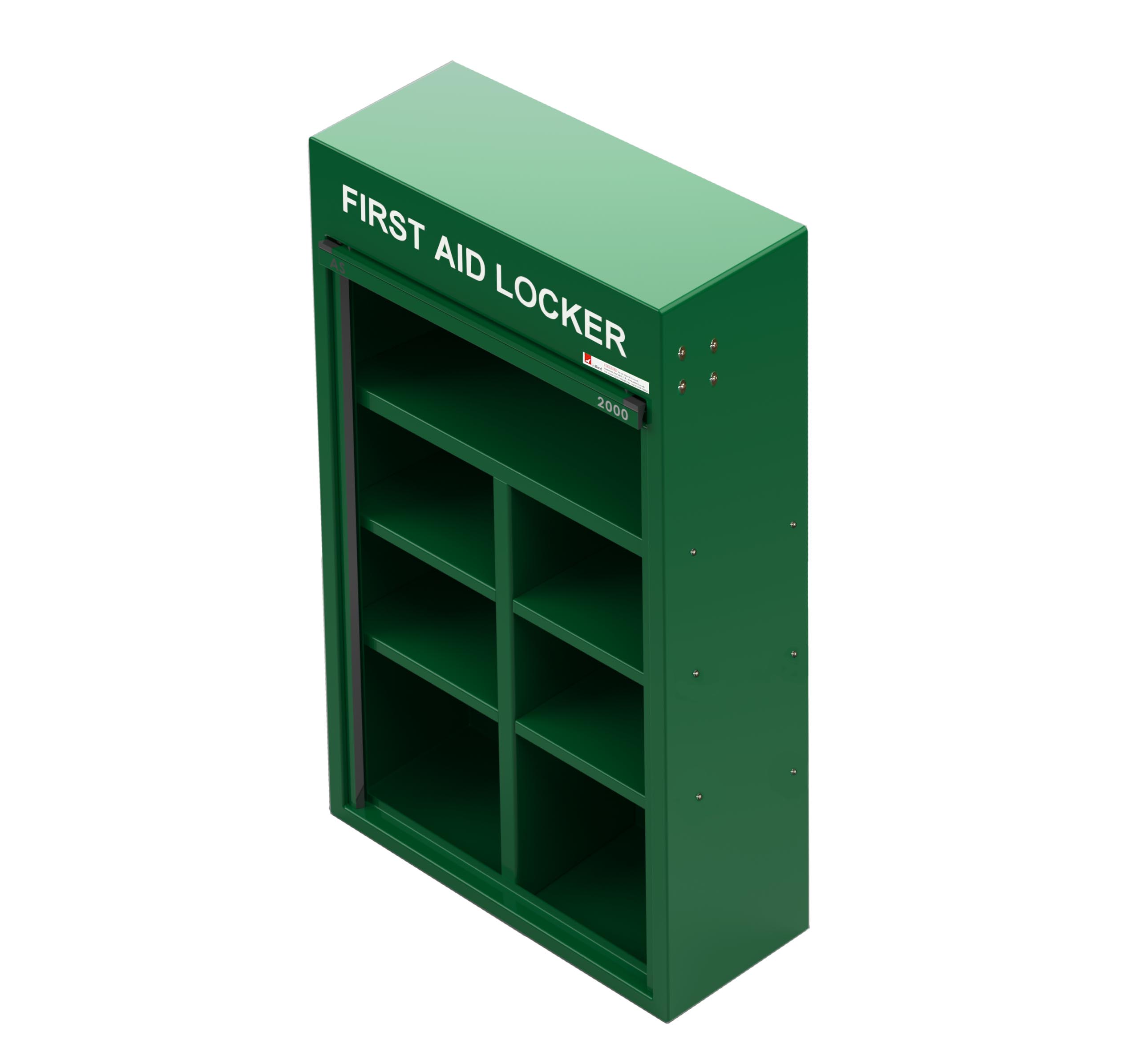

First Aid Locker (RS450FF-Type A)

Dimensions : Height x width x depth: 2000 x 1090 x 450 mm                                 (78.74 x 42.91 x 17.72″)

Aperture: 1530H x 902W mm                                                                                    (60.24 x 35.51″)

Weight : 71Kg                                                                                                             (156.2Lb)

The RS450FF-Type A stores first aid equipment on Naval vessels. The NATO stock code is NSN 2090-99-258-4405 (Type A). It comes complete with shelving and brackets for the neat storage of all the equipment.

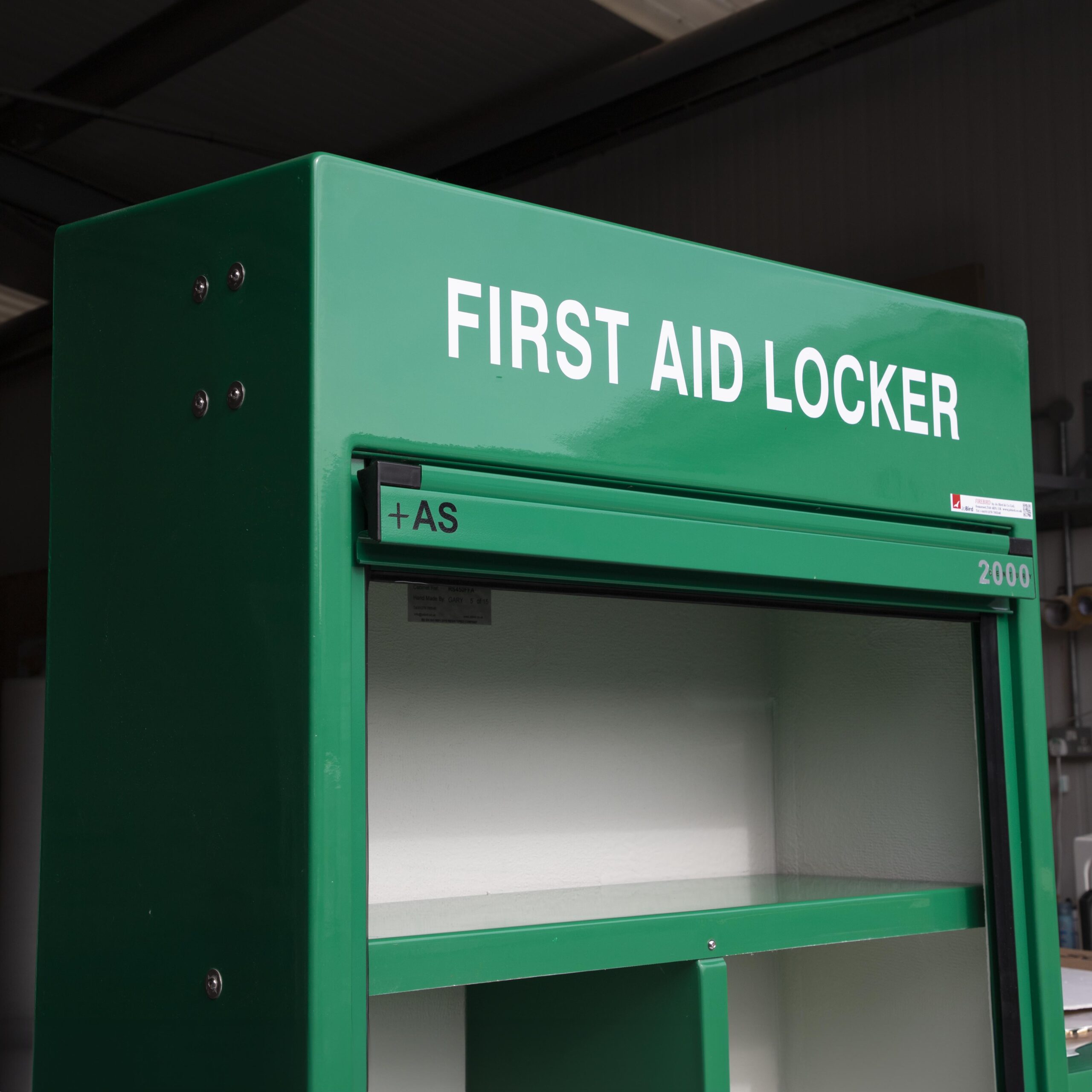

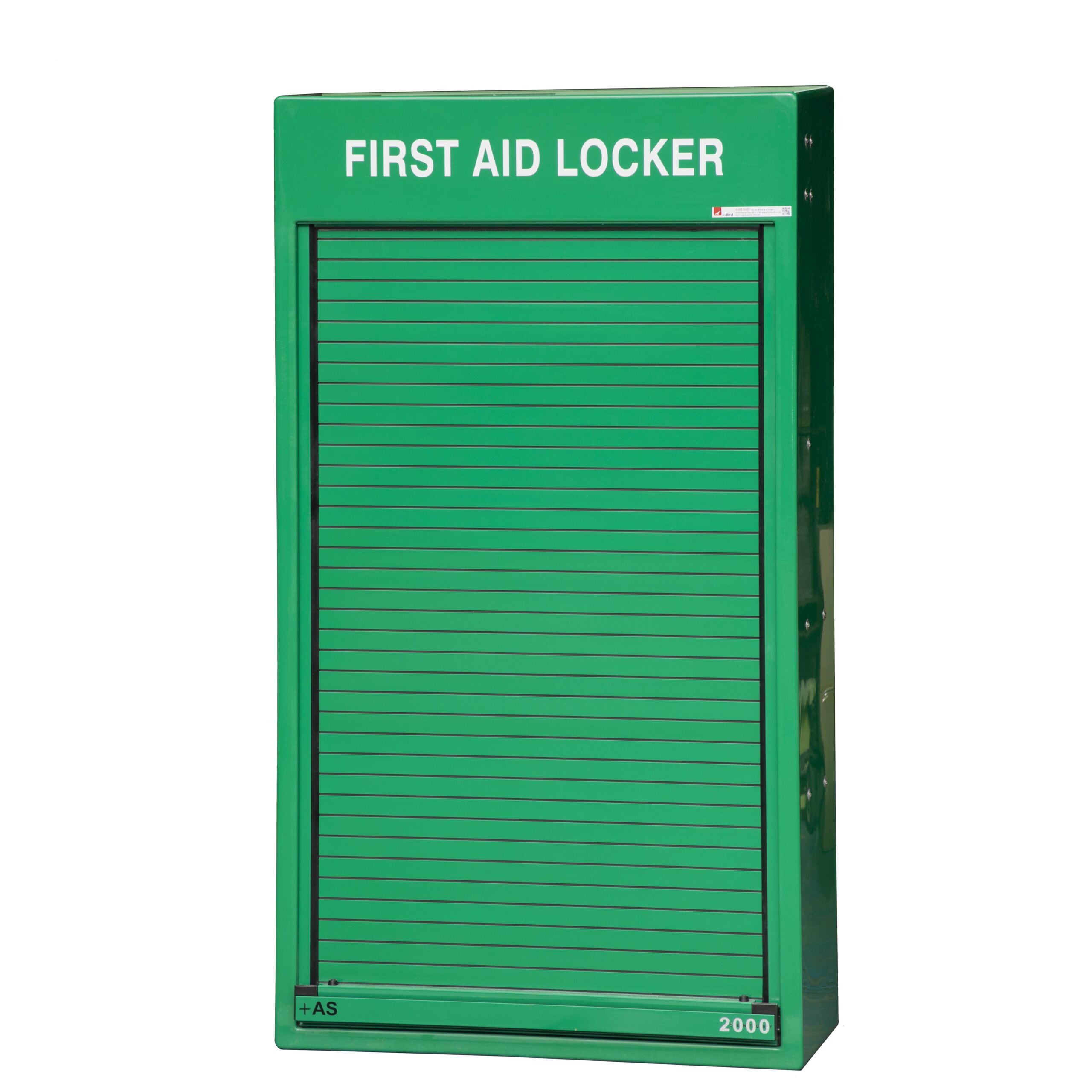

It is fitted with a superb AS roller shutter door making access to the contents possible where there would not be room to open a conventional door so ideal for tight spaces. The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door apertures. These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection and the body is manufactured using class 1 flame retardant resins. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.

Typical uses

For the storage of first aid equipment on Naval vessels.
designed to cope with extreme environments offshore.
It is used by Military vessels due to it's durability and light weight.

Material specification
Colour: Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoats and class 1 fire retardant resins
RS Roller shutter door: Aluminium
Seal: EPDM
Optional extras
Other RAL Colours

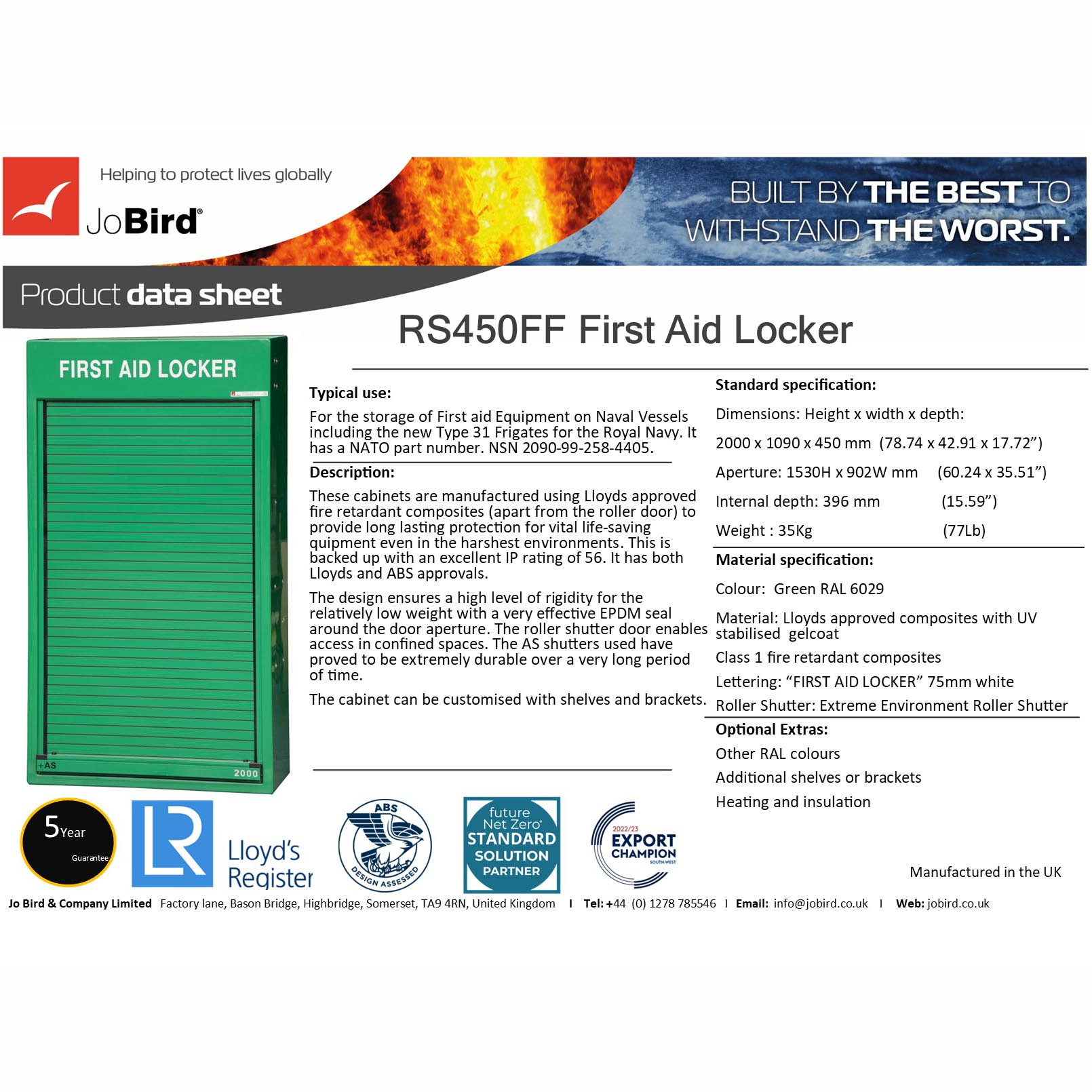

RS450FF FA Datasheet 2023

Typical uses

For the storage of first aid equipment on Naval vessels.
designed to cope with extreme environments offshore.
It is used by Military vessels due to it's durability and light weight.

Material specification
Colour: Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoats and class 1 fire retardant resins
RS Roller shutter door: Aluminium
Seal: EPDM
Optional extras
Other RAL Colours

RS450FF FA Datasheet 2023

Additional information

Dimensions

2000 x 1090 x 450 mm (78.74 x 42.91 x 17.72")

Aperture

1530H x 902W mm (60.24 x 35.51")

Manufacturer

UK
