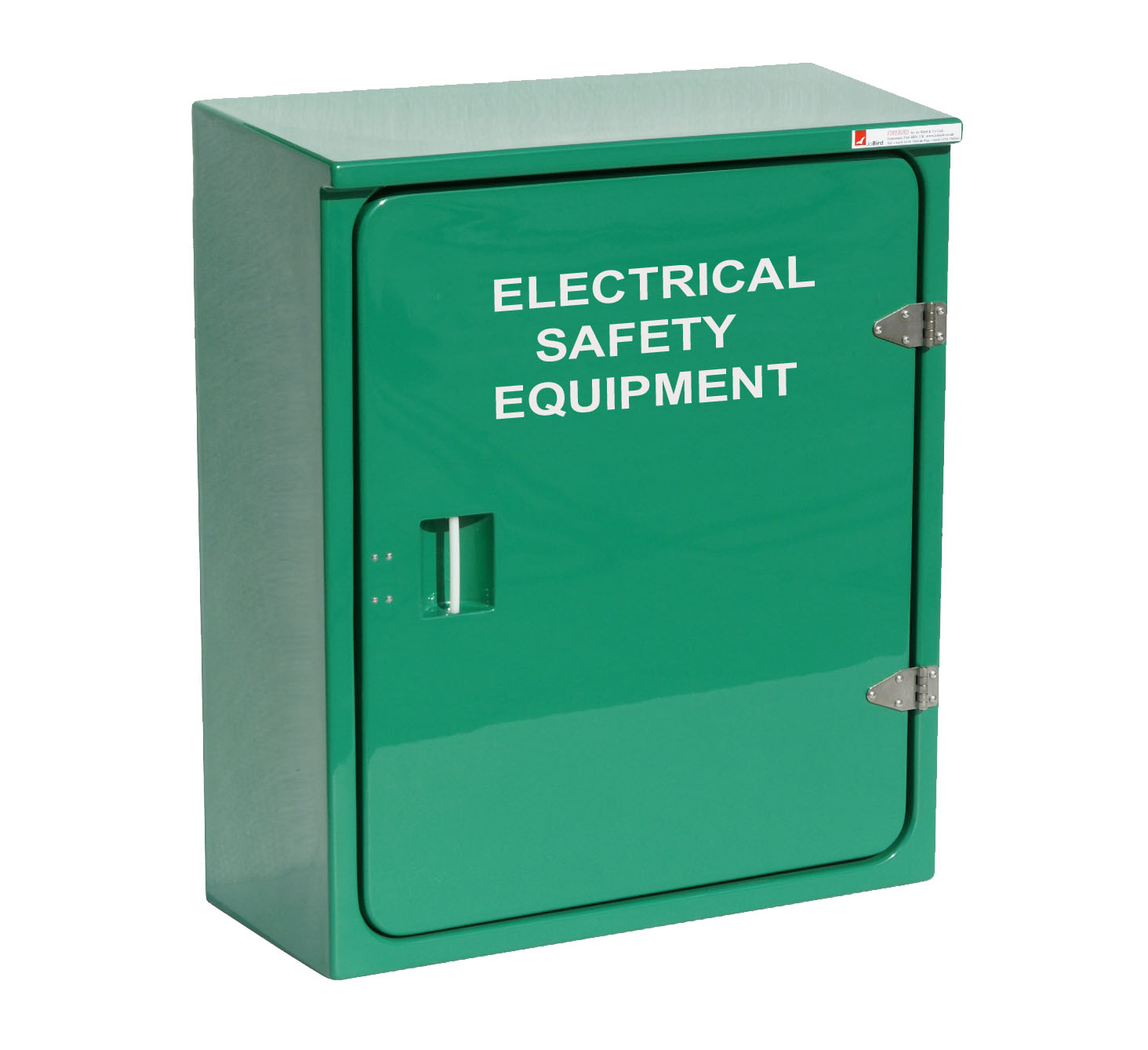

JB02 Electrical safety Cabinet (Dubai)
Dimensions: Height x width x depth: 937 x 835 x 347 mm (36.89 x 32.87 x 13.66″)
Aperture: 755H x 630W mm (29.72 x 24.8″)
Internal depth: 275 mm (10.83″)
Weight : 15 Kg (33Lb)
The JB02 Electrical safety equipment cabinet can store insulated boots, cable cutters, gloves and other electrical rescue equipment for MV/HV applications.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The 316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers.
The door can be specified with left or right hinging and features a nylon rod handle to pull the door open to guarantee fast access even when wearing gloves.
This model can be manufactured in Dubai. For UK production please see the JB02RES
For the storage of electrical safety equipment
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
Perspex window
For the storage of electrical safety equipment
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Nylon
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
Perspex window
Additional information
| Dimensions | 937 x 835 x 347 mm (36.89 x 32.87 x 13.66 inches) |
|---|---|
| Aperture | 755 x 630 mm (29.72 x 24.8") |
| Manufacturer | Dubai |
