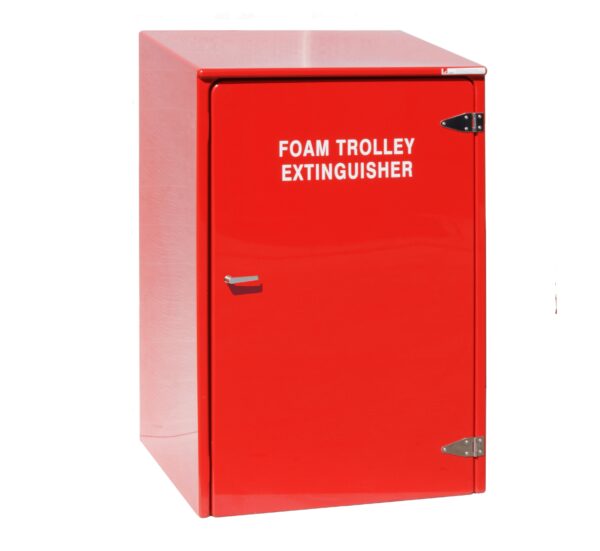

JB65 Wheeled fire extinguisher cabinet (Dubai)
Dimensions : Height x width x depth: 1525 x 1005 x 932 mm (60.03 x 39.57 x 36.69″)
Aperture: 1362H x 724W mm (53.62 x 28.5″)
Internal depth: 856 mm (33.7″)
Weight : 42Kg (92.4Lb)
The JB65 Fire extinguisher cabinet is designed to store wheeled fire extinguishers up to 50Kg max. It features a flat reinforced floor to make it easy to wheel the extinguisher in and out of the cabinet.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The hinges are secured with 316 stainless steel nuts, bolts and washers. The door can be manufactured to be left or right hinged and is fitted with 316 Stainless steel 3 way locking to ensure fast access in an emergency even when wearing gloves.
Storage of 1 x 25-50Kg wheeled fire extinguisher.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: 316 Stainless steel
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
vents
Storage of 1 x 25-50Kg wheeled fire extinguisher.
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: 316 Stainless steel
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
vents
Additional information
| Dimensions | 932 × 1005 × 1525 mm |
|---|---|
| Manufacturer | Dubai |
| Aperture | 1362 x 724 mm (53.62 x 28.5") |
| Dimensions | 1525 x 1005 x 932 mm (60.03 x 39.57 x 36.69") |
