1 x 20m Fire hose cabinet (JB16R)
Dimensions (mm): Height x width x depth: 630 x 716 x 216
Aperture: 460H x 520W
Internal depth: 144
Weight Kg: 8Kg

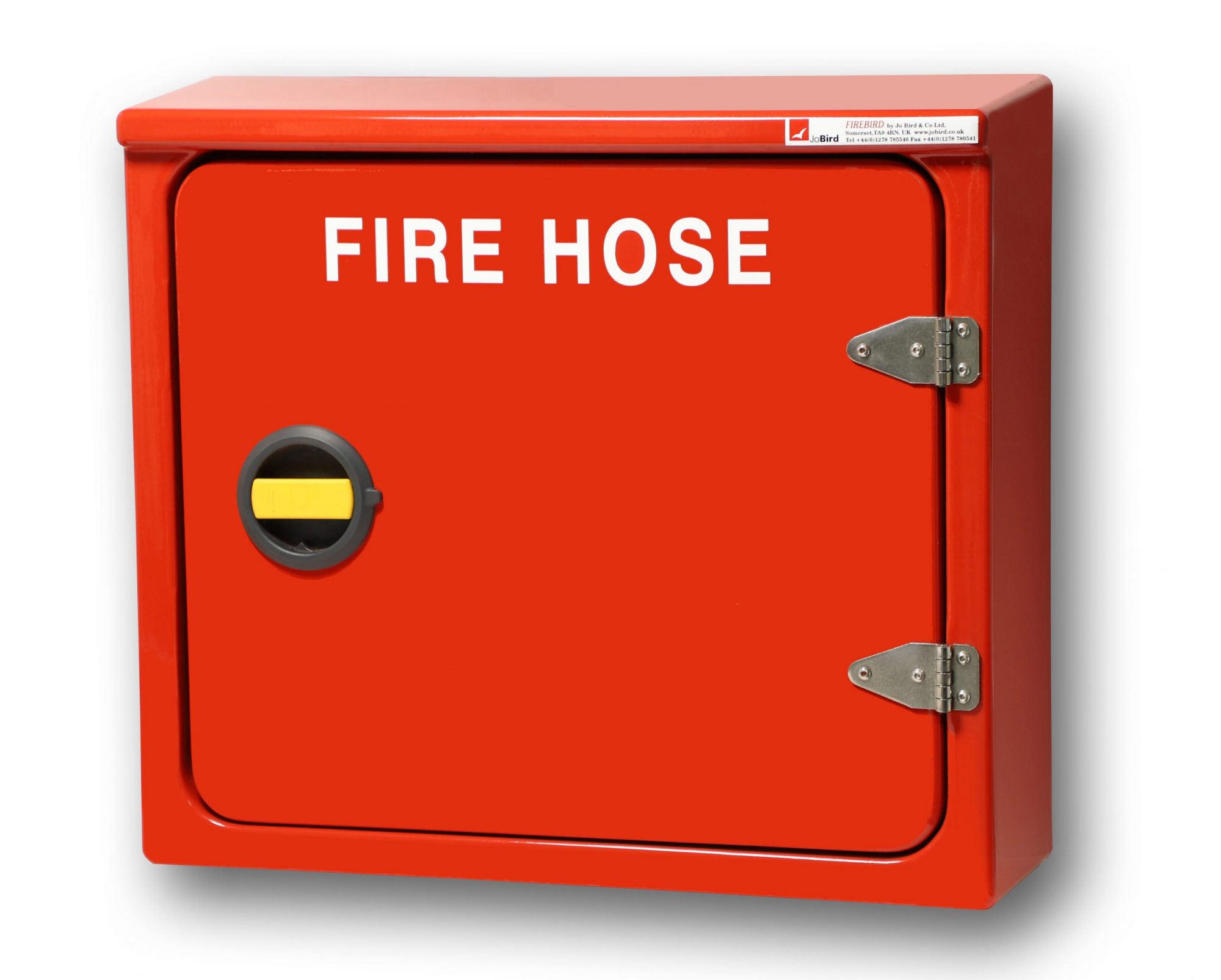

The JB16R fire hose cabinet by Jo Bird can store a twenty to twenty-five metre fire hose and nozzle. For rubber covered hoses the maximum length is 20M due to the greater diameter. This popular cabinet is extensively used on and offshore in harsh environments on both ships and platforms. The cabinet design features a 10mm thick door which is very rigid and has a high quality EPDM seal around the door aperture. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals. The 316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers.
The door can be specified with left or right hinging and features a Graphite nylon/Stainless steel rotary handle with Biomaster (R) technology) to open the door and guarantee fast access in an emergency even when wearing gloves. The handle can be fitted with an anti-tamper seal.
If you need a cabinet for a larger diameter hose please see the JB02HR:https://www.spacabinets.com/product/fire-hose-cabinet-jb02hr/
For the storage of 1 x 20-25M (depending on type) fire hose and 1 x nozzle
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Graphite Nylon/316 Stainless steel with Biomaster (R) anti-microbial technology and anti-tamper seal facility
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites

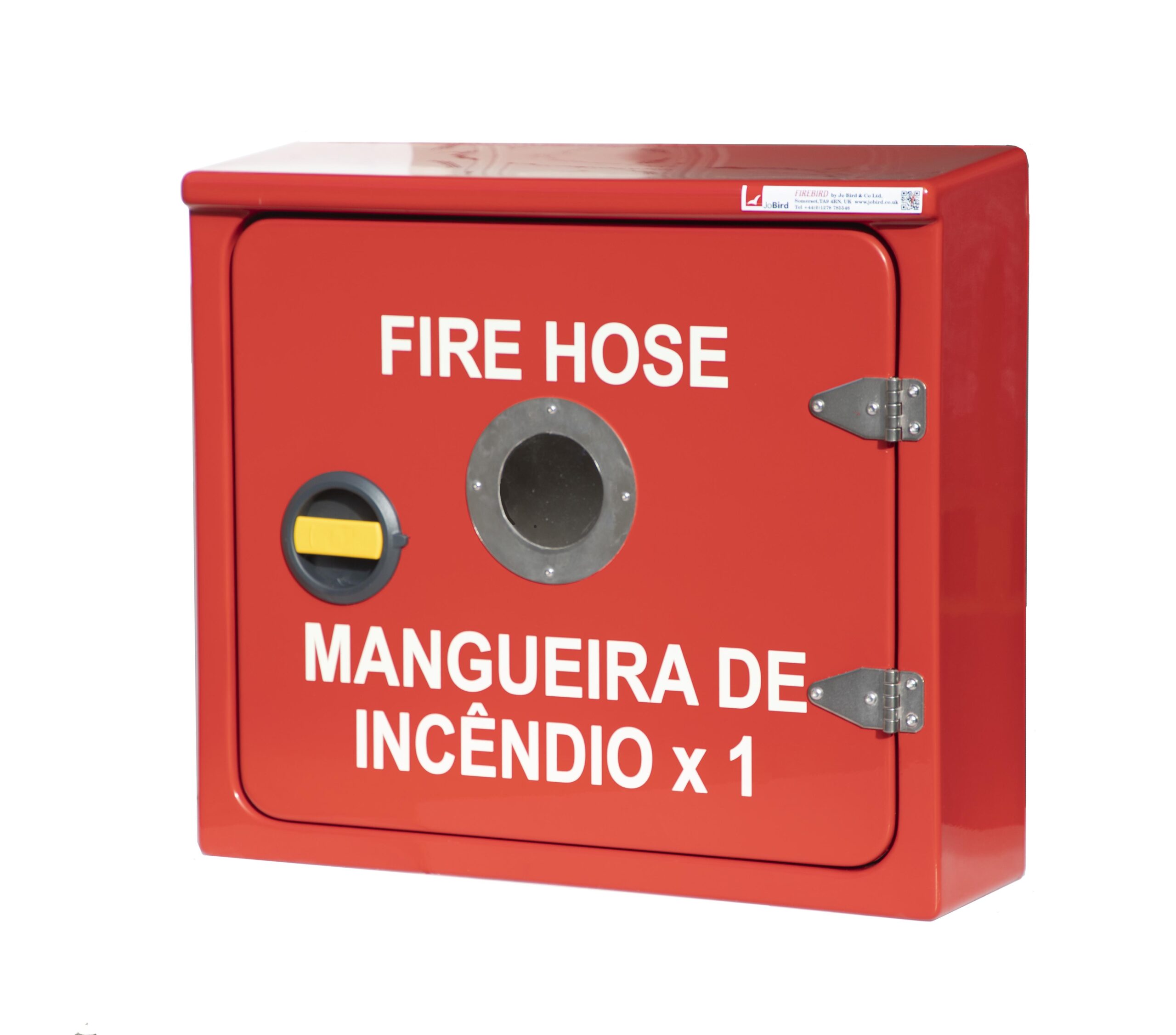

Perspex window
Nylon strap for quick release buckle
Ground mounting posts
For the storage of 1 x 20-25M (depending on type) fire hose and 1 x nozzle
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Red RAL 3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Graphite Nylon/316 Stainless steel with Biomaster (R) anti-microbial technology and anti-tamper seal facility
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
Nylon strap for quick release buckle
Ground mounting posts
Additional information
| Dimensions | 630 x 716 x 216 mm |
|---|---|
| Aperture | 460H x 520W mm |
| Manufacturer | UK |
