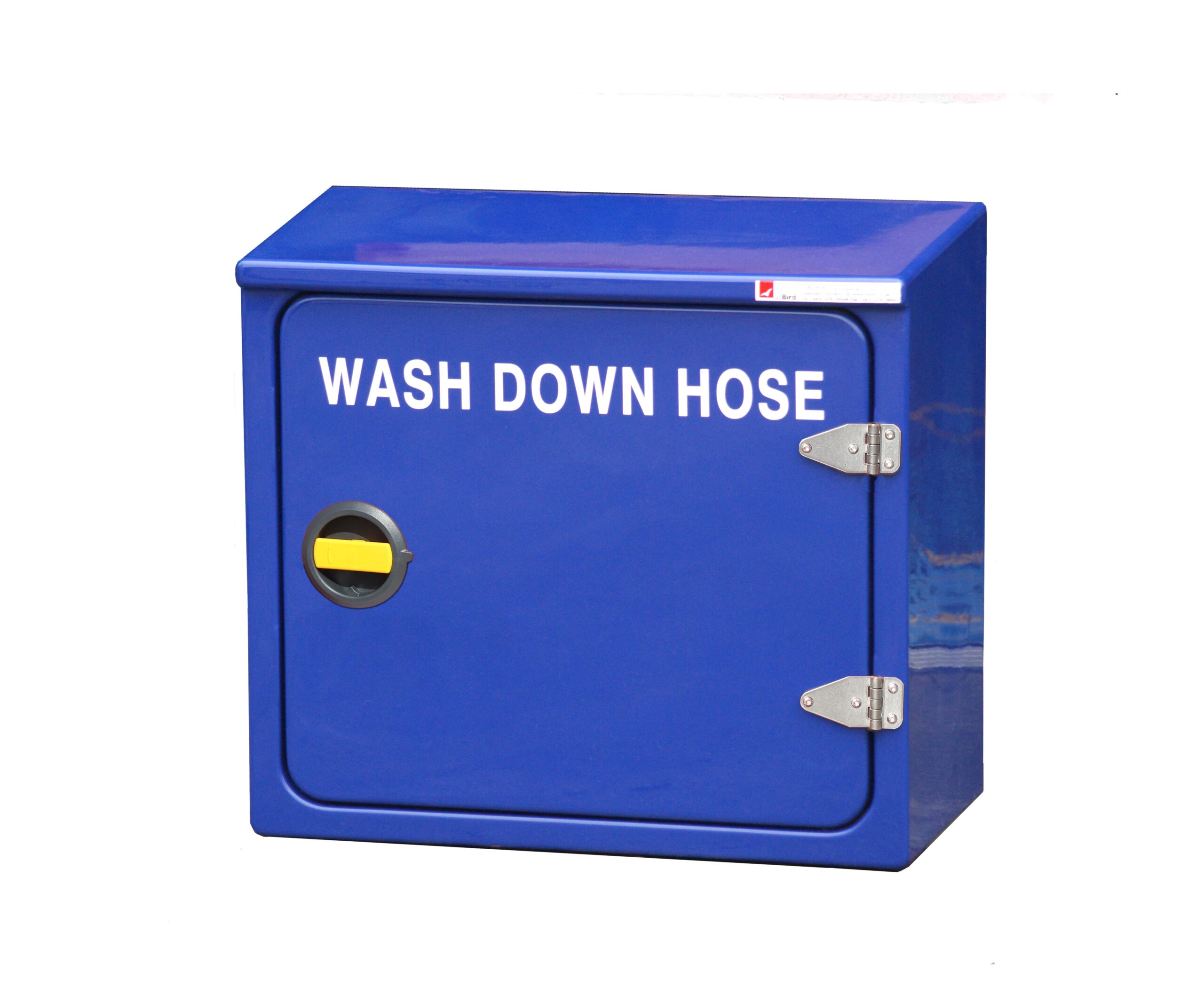

2 x 20M Wash down hose cabinet (JB16.360HR)
Dimensions (mm): Height x width x depth: 643 x 726 x 362
Aperture: 460H x 520W
Internal depth: 290
Weight Kg: 10Kg

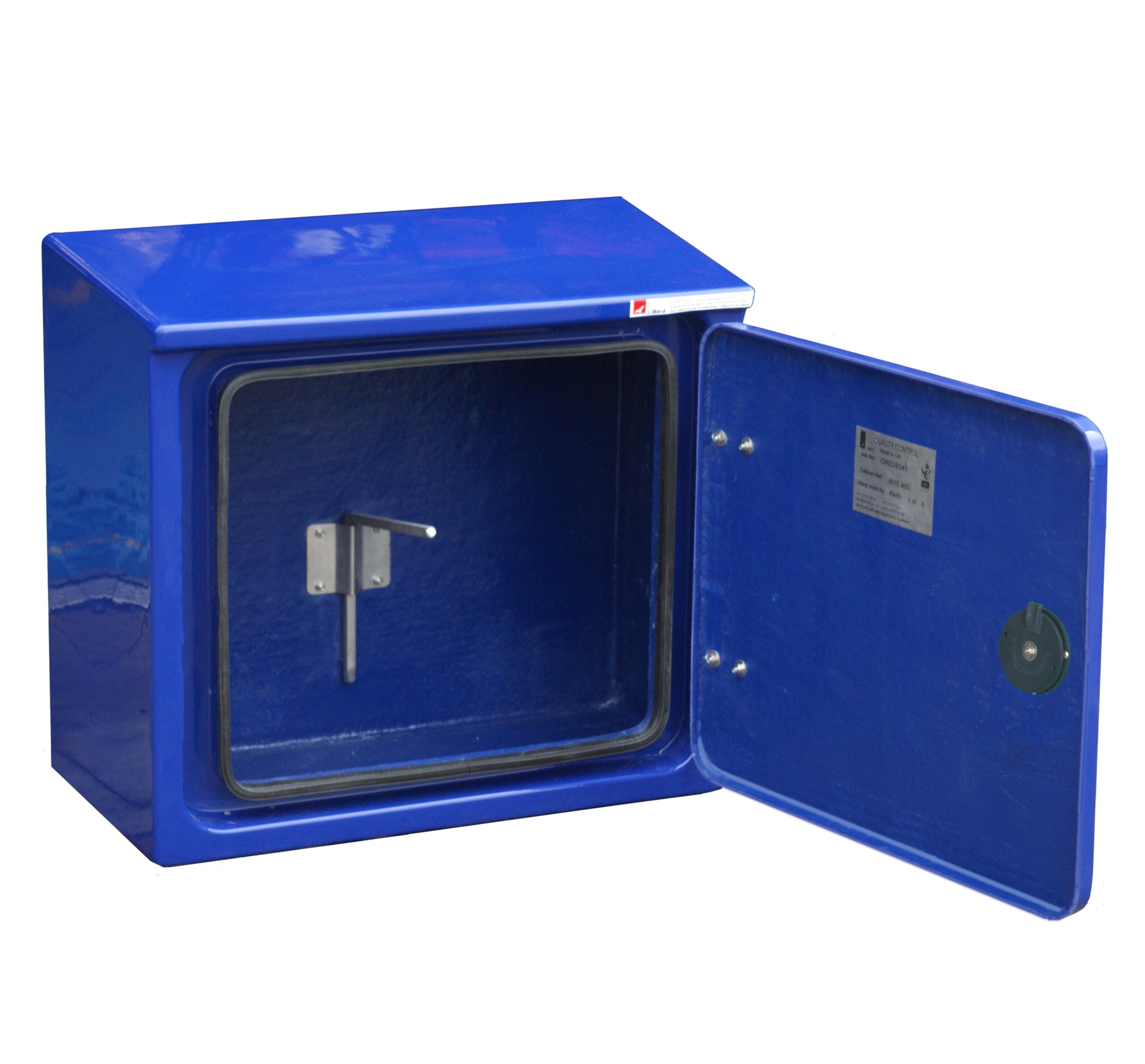

The JB16.360HR Fire hose cabinet is fitted with a 316 stainless steel hose pin for 2 X 20-25M Fire hoses and nozzles. The hose pin helps to maintain the shape of the hoses. They are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in harsh environments on and offshore. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The hinges are secured with 316 stainless steel nuts, bolts and washers. The door can be specified with left or right hinging and features a graphite nylon rotary handle incorporating Biomaster (R( technology and is easy to open in an emergency when wearing gloves. The handle can also be fitted with an anti-tamper seal.
For the storage of 2 x 20-25M (depending on type) water hoses and 2 x nozzles
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Blue RAL 5002
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Graphite Nylon/316 Stainless steel
Hose pin: 316 Stainless steel
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
Ground mounting posts
Rail mount clamps
For the storage of 2 x 20-25M (depending on type) water hoses and 2 x nozzles
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability
Colour: Blue RAL 5002
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle: Graphite Nylon/316 Stainless steel
Hose pin: 316 Stainless steel
Seal: EPDM
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
Ground mounting posts
Rail mount clamps
Additional information
| Dimensions | 643 x 726 x 362 mm |
|---|---|
| Aperture | 460H x 520W mm |
| Manufacturer | UK |
