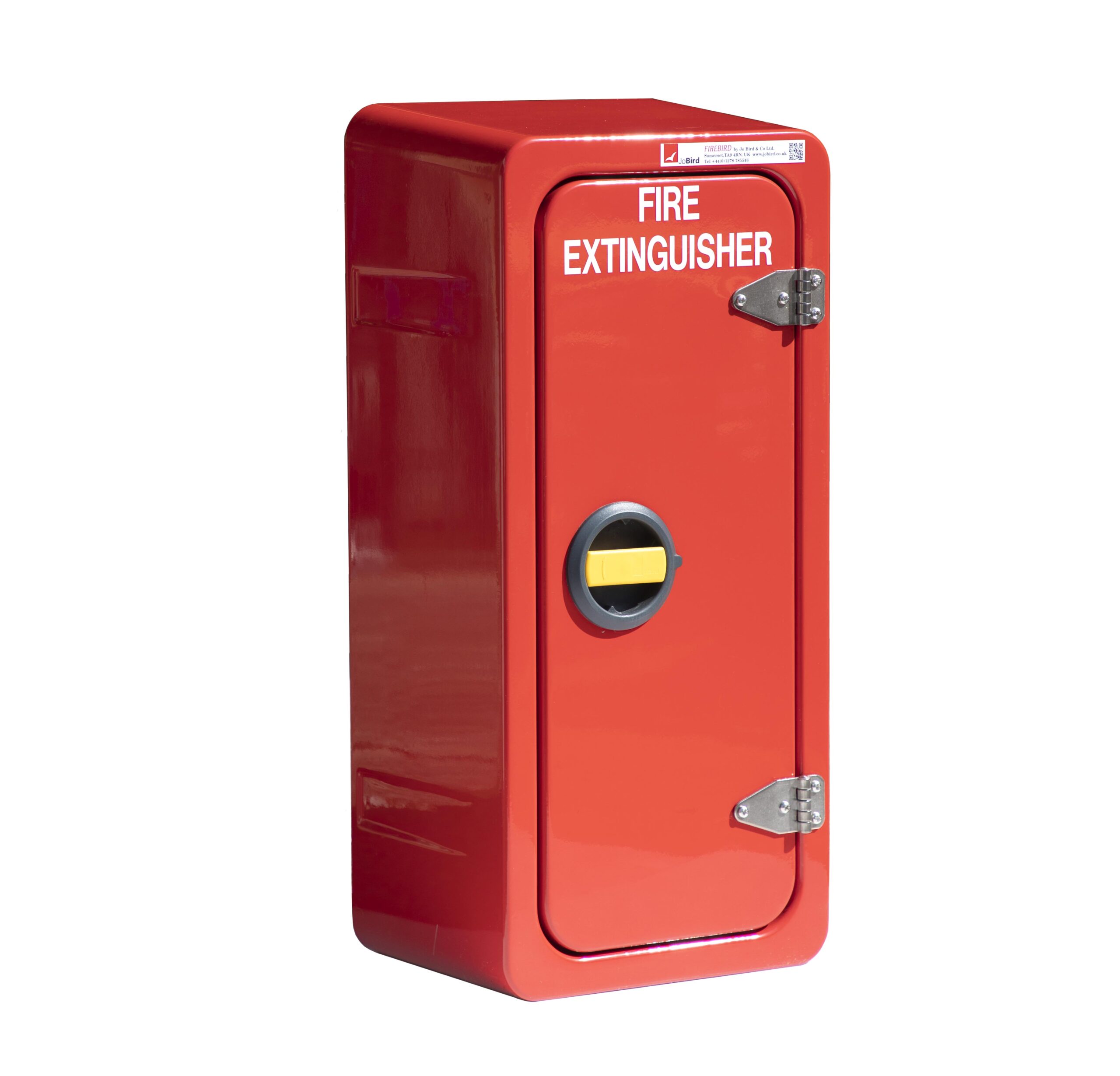

6-12 litre Fire extinguisher Cabinet (JB82S) New
Dimensions : Height x width x depth: 799 x 374 x 263 mm (31.46 x 14.72 x 10.35″)
Aperture: 639H x 217W mm (25.16 x 8.54″)
Internal depth: 213 mm (8.39″)
Weight : 10 Kg (22Lb)

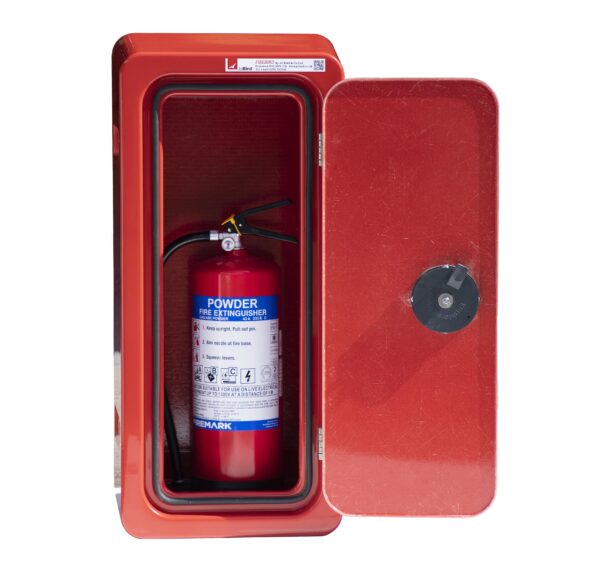

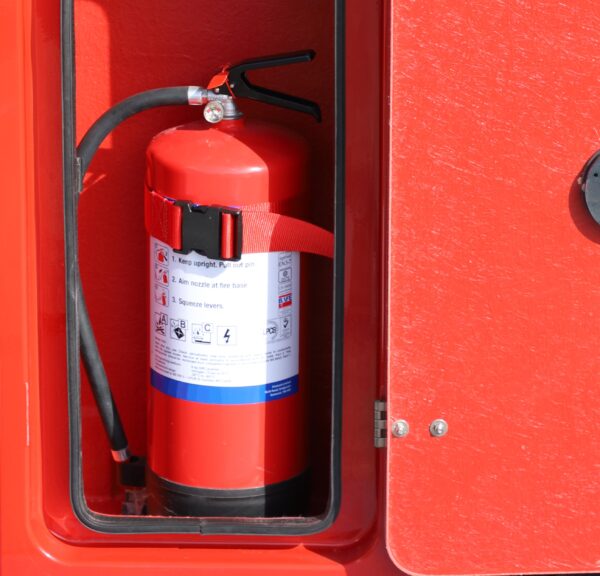

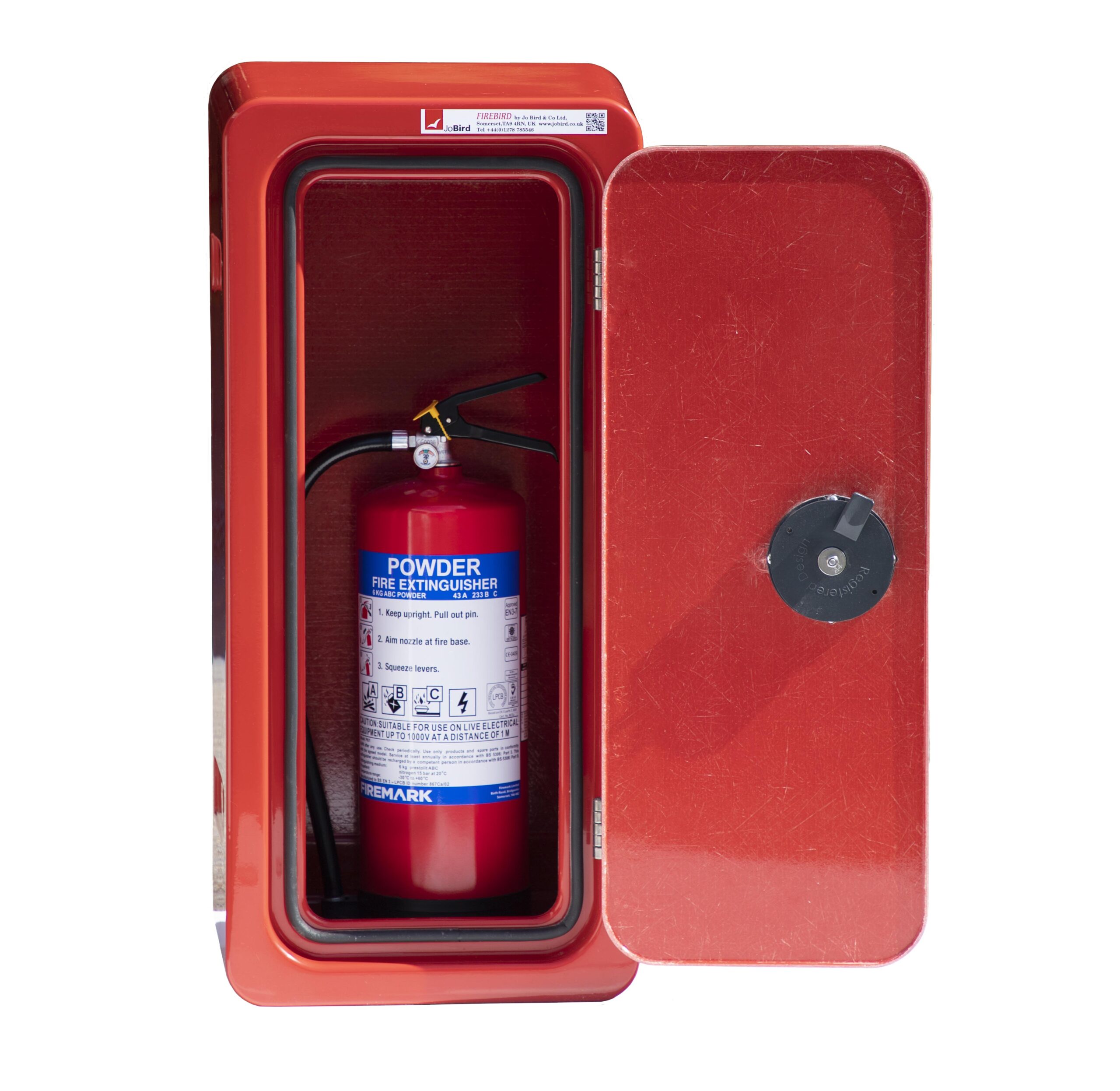

This is the slightly revised version of the very popular JB82S. It stores 1 x 6-12Kg/litre portable fire extinguisher. Designed for use on ship’s decks/bulkheads and the extinguisher is firmly held in place by a nylon webbing strap with quick release buckle to prevent movement during rough sea conditions.
The cabinet features a 16mm thick door with high quality EPDM door seal to help prevent water ingress. It is manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.

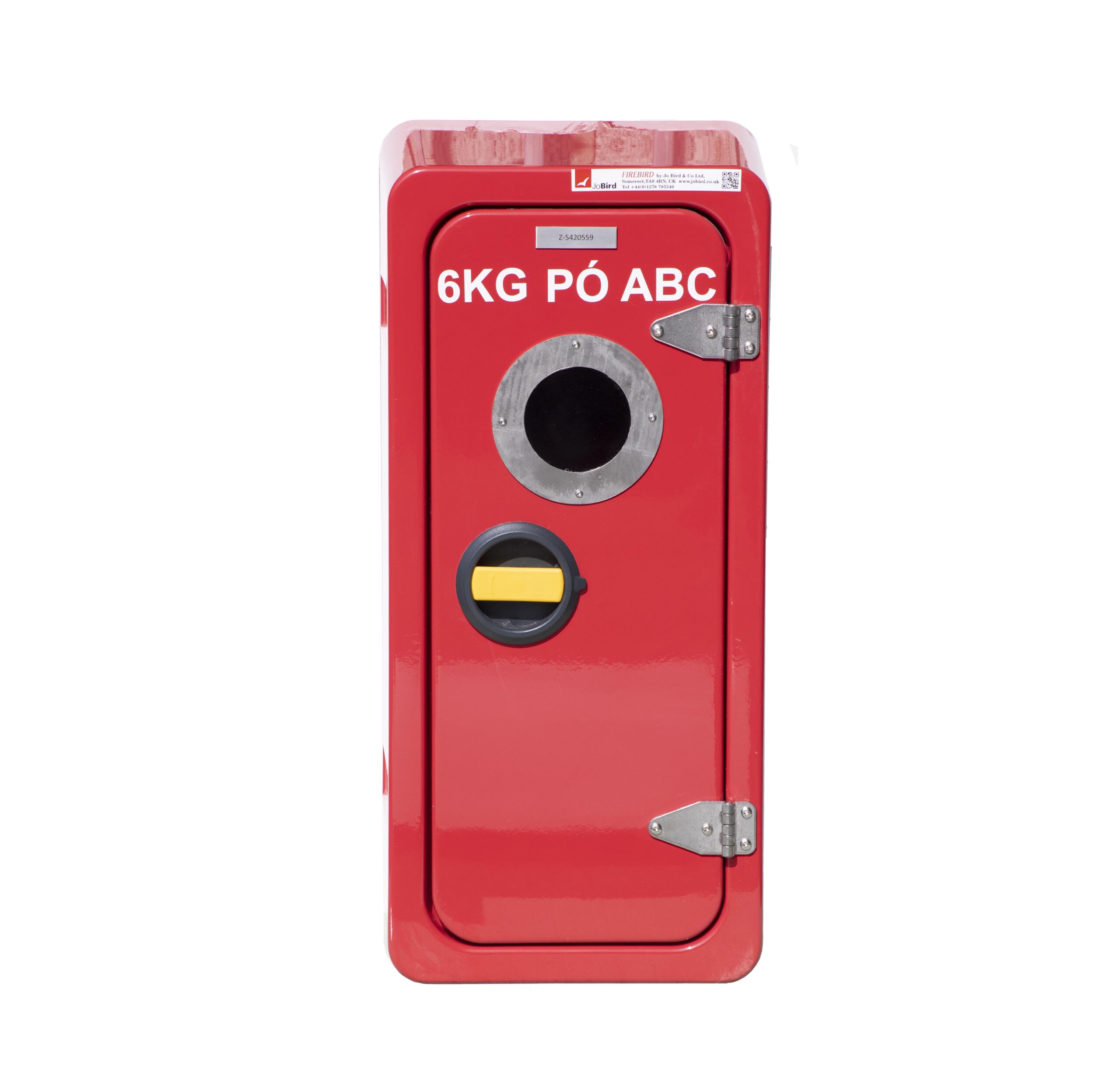

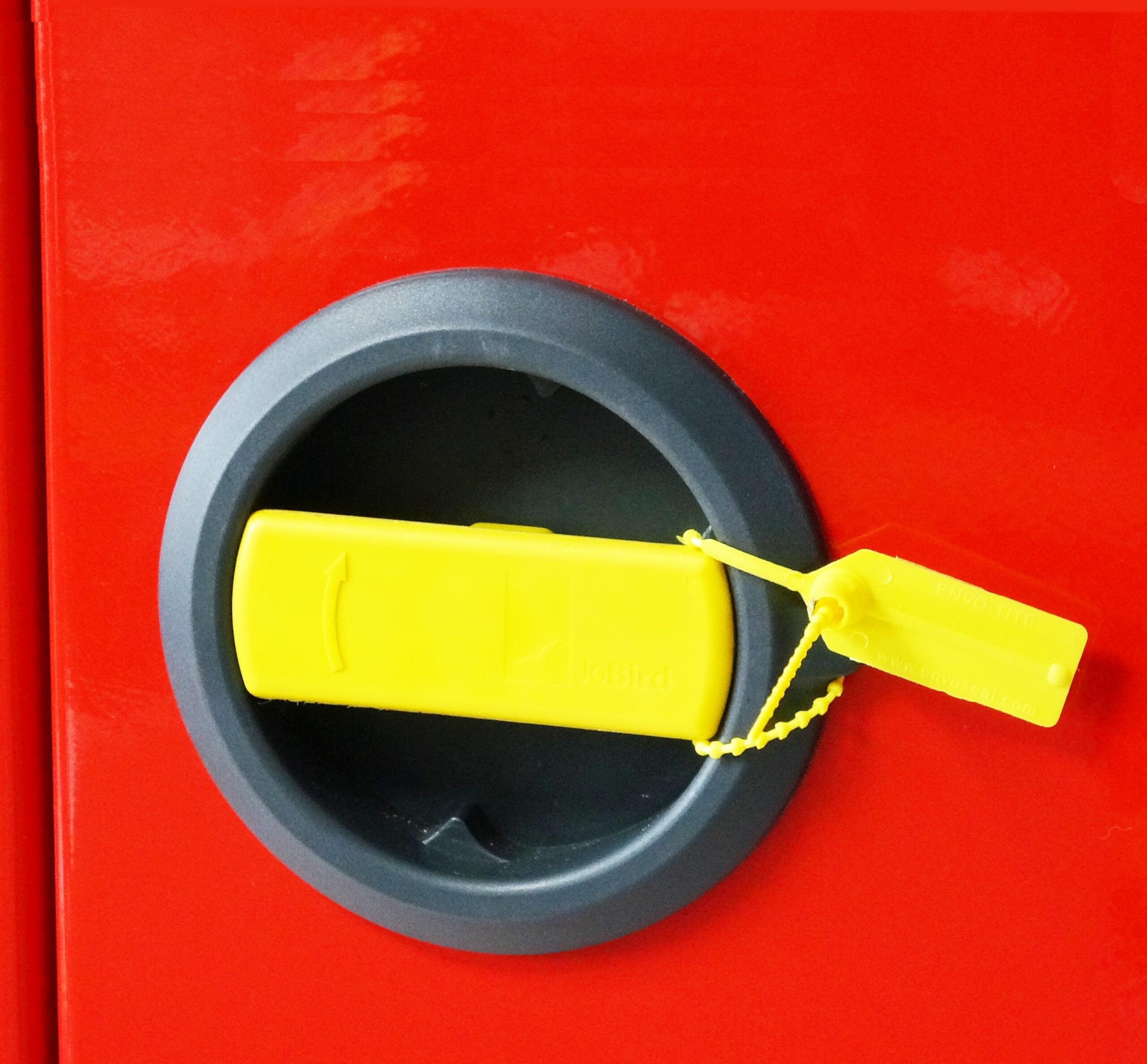

The door can be specified with left or right hinging and features a Rotary Graphite nylon/stainless steel handle to guarantee fast access in an emergency even when wearing gloves. It contains Biomaster (R) anti-microbial additive and can also be fitted with an anti-tamper seal.
For 5Kg CO2 portable fire extinguishers the larger JB84S is recommended due to the extra height and room for the horn. Please see:https://www.spacabinets.com/product/co2-fire-extinguisher-cabinet-jb84s/
For the storage of 1 x 6-12kg Portable fire extinguishers including 9 litre Lith EX but excluding most 5Kg CO2)
designed to cope with extreme environments offshore.
It is widely used by the world's top cruise and commercial shipping companies due to it's durability and high level of protection
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: Graphite nylon
Handle: Nylon/316 Stainless steel with Biomaster (R) anti-microbial additive
Seal: EPDM
Strap: Nylon
316 Stainless steel hinges
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
JB82 Fire Ext Datasheet 2023.new
https://vimeo.com/840752679?share=copy
For the storage of 1 x 6-12kg Portable fire extinguishers including 9 litre Lith EX but excluding most 5Kg CO2)
designed to cope with extreme environments offshore.
It is widely used by the world's top cruise and commercial shipping companies due to it's durability and high level of protection
Colour: Red RAL3000
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: Graphite nylon
Handle: Nylon/316 Stainless steel with Biomaster (R) anti-microbial additive
Seal: EPDM
Strap: Nylon
316 Stainless steel hinges
Other RAL Colours
Class 1 Fire retardant composites
Perspex window
JB82 Fire Ext Datasheet 2023.new
https://vimeo.com/840752679?share=copy
Additional information
| Dimensions | 277 × 373 × 800 mm |
|---|---|
| Manufacturer | UK |
| Dimensions | 799 x 373 x 263 mm (31.46 x 14.69 x 10.35") |
| Aperture | 639 x 217 mm (25.16 x 8.54") |
